Pelikan 100 Timeline - 1929 until 1944

Pelikan 100

1929 — 1944

The first Pelikan fountain pen!

  • Cylindrical cap top
  • No cap rings
  • Two opposing air vents
  • Heart-hole nib
  • Bakelite barrel

Loading

The Heart-hole disappears

November 1930

  • The heart-hole of the nib is replaced by a round breather hole, but the nib remains a third-party product until 1934.
  • The cap gets two rings and four air vents (two and two opposing).
  • Two additional air vents, thus providing a total of four air vents (two opposing) to equalize the pressure.

Loading

Substantial revision

June 1931

The cap top becomes conical. The grip section and barrel are now manufactured from two components. The grip section is made of hard rubber, the barrel from celluloid The bush which holds the nib and the feed together is cut from 17mm to 12mm.

Loading

Change of the section

June 1933 — 1937

The previously straight section becomes tapered. For pressure equalization the cap has two opposing air vents.

Loading

Nib size - the first version

August 30, 1935 — June 5, 1938

The cap top comes back out with two opposing air holes for pressure equalization returns.

Loading

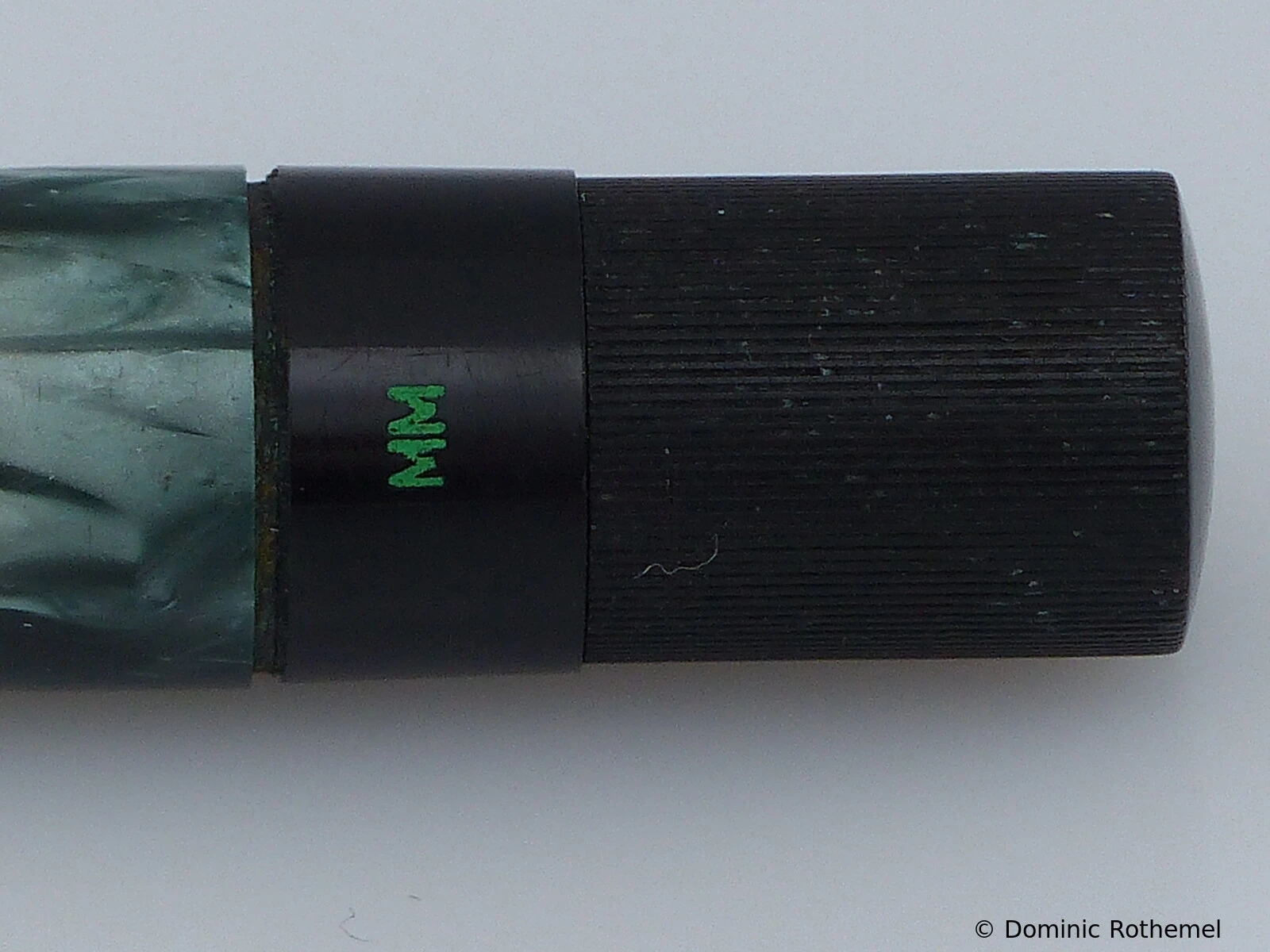

Nib size - the second version

September 9, 1936 — June 8, 1941

For the German market, the nib size is now indicated near the turning knob.

Loading

Change of materials

1938 — 1940

Celluloid is now used instead of hard rubber, and the new logo decorates the cap top.

Loading

Palladium nib

May 16, 1938 — February 10, 1940

Because of legal prohibitions no gold nibs are made, instead palladium was used. These nibs are imprinted with PD. The model 100N is produced only for export, while the Model 100 is manufactured for German market.

Loading

Steel nib

November 11, 1939 — March 31, 1944

CN-Nibs (Chrome-Nickel) are used.

Loading

Barrel color and barrel material changed again

1940 — 1942

The injection moulding technique set up. The fluted turning knob becomes smooth. The barrel and the ink window are light green.

Loading

Materials shortage

June 26, 1942 — March 31, 1944

During World War II the cap bands were dispensed with on the Model 100. This saved valuable material. Either the caps have no rings (rarely), or it will be marked as a pattern instead of the metal rings in the plastic.

Loading

Seal improvements

October 29, 1942 — March 31, 1944

A synthetic seal replaced the cork. Pelikan used a material that was used for connecting sewer pipes at the time.

Loading

Discontinuation

March 31, 1944

The model 100 is discontinued in Germany. Spare parts are still made, but in price lists the model 100 is no longer mentioned.

Loading

Pelikan 100

The Heart-hole disappears

Substantial revision

Change of the section

Nib size - the first version

Nib size - the second version

New Logo

Change of materials

Palladium nib

Steel nib

Barrel color and barrel material changed again

Materials shortage

Seal improvements

Discontinuation

1882
1883
1884
1885
1886
1887
1888
1889
1890
1891
1892
1893
1894
1895
1896
1897
1898
1899
1900
1901
1902
1903
1904
1905
1906
1907
1908
1909
1910
1911
1912
1913
1914
1915
1916
1917
1918
1919
1920
1921
1922
1923
1924
1925
1926
1927
1928
1929
1930
1931
1932
1933
1934
1935
1936
1937
1938
1939
1940
1941
1942
1943
1944
1945
1946
1947
1948
1949
1950
1951
1952
1953
1954
1955
1956
1957
1958
1959
1960
1961
1962
1963
1964
1965
1966
1967
1968
1969
1970
1971
1972
1973
1974
1975
1976
1977
1978
1979
1980
1981
1982
1983
1984
1985
1986
1987
1988
1989
1990
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Dec.
March
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
March
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.
Feb.
March
April
May
June
July
Aug.
Sept.
Oct.
Nov.
Dec.

Pelikan 100

In addition to the changes and variants that are shown in the timeline there are also pens which have a mix of parts. In addition there are a number of other variations including:

  • Clip ending in a diamond shape instead of drop shape (Collectors call it "Gdanzk production")
  • Only one cap ring instead of the usual two rings (Collectors call it "Gdanzk production")
  • Gold ring without clip (from 1930 a ladies' pen - for better storage in ladies handbags - a gold filled ring instead of a clip was produced)

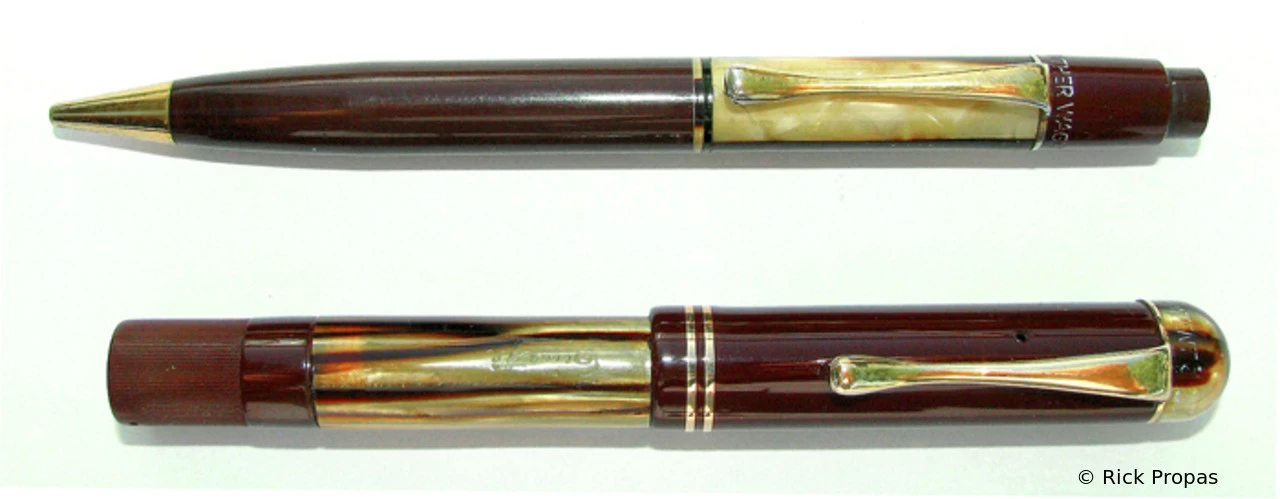

  • Short cap-top (1935-1938, intended for wearing in a closed shirt pocket, the cap tube is longer than usual, so that the same total length of the cap is reached, while the length of the clip is unchanged.)
  • Chrome clips (especially in the war models we find silver colored clips)
  • 18 carat gold nib (needed for the French market, where only nibs made of 18 carat gold can be referred as gold nibs)

Details on the further development of the model can be found on the model 100 details page.

Model Production Period Nib
100 1929-1944

14 ct gold nib / PD / CN / 18 ct gold nib for export

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.49 oz 4.61 in 3.74 in 2.40 in 0.47 in 1.5 ml
13.9 g 117 mm 95 mm 61 mm 12 mm


Ur-Pelikan

Ur-Pelikan Jade Series Production Color Details
Production: 1929Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: greenCap Color: blackTrim: gold plated

In the Pelikan "Blätter" dated October 1929 the Pelikan fountain pen is presented in detail.

Ur-Pelikan Black Series Production Color
Production: 1930Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: blackCap Color: blackTrim: gold plated

100

100 Jade Series Production Color Details
Production: 1930-1931Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: jade greenCap Color: blackTrim: gold plated

The first revision of the original Pelikan with jade barrel. Sometimes with hearthole nib.

100 Black Series Production Color
Production: 1931-1944Nib: 14 ct / PD / CN Leaflet: DeutschLink opens PDF documentPelikan Preisliste 60
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: blackCap Color: blackTrim: gold plated

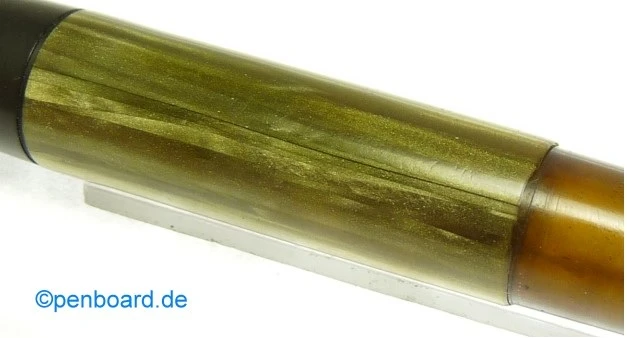

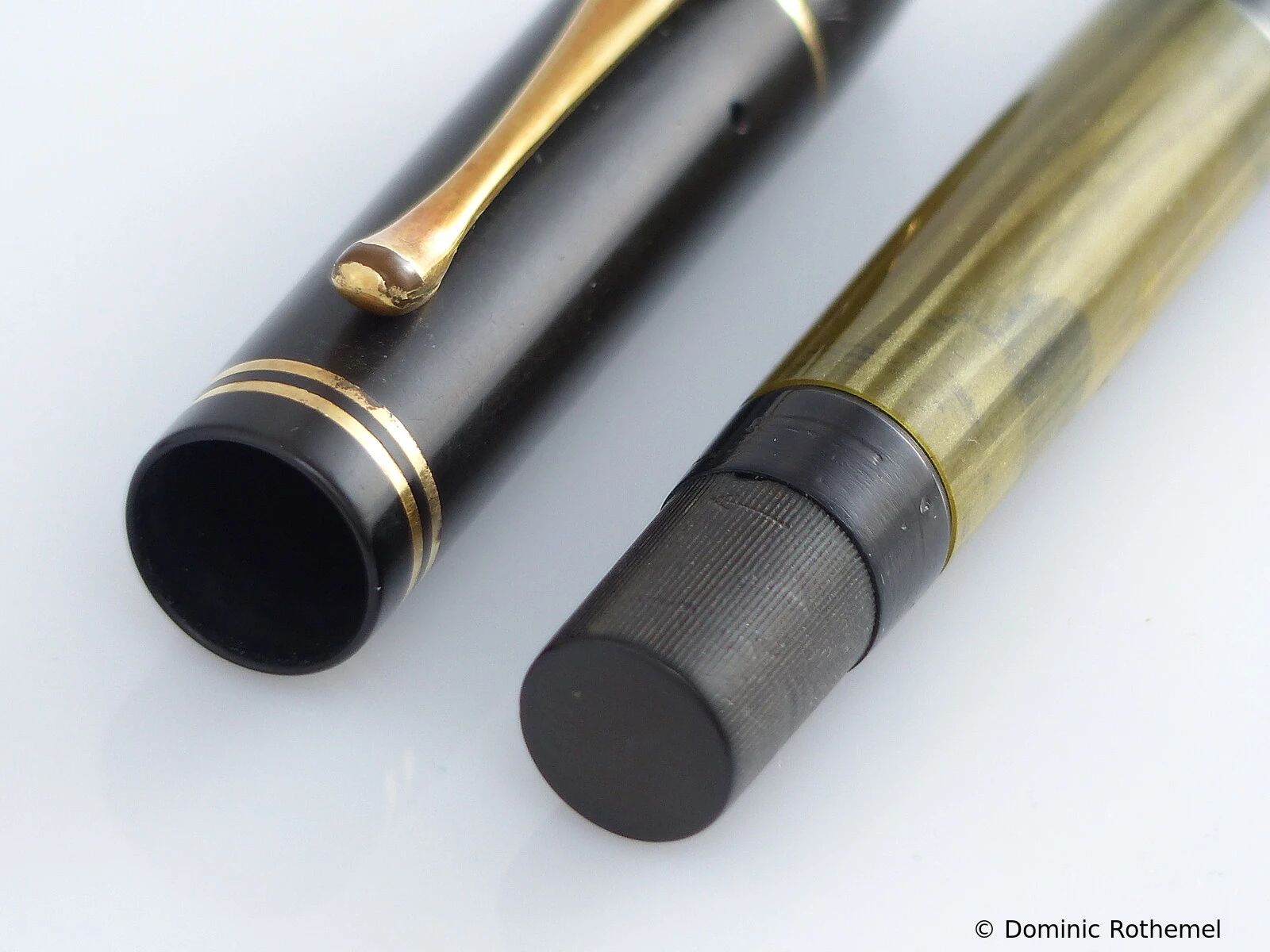

100 Olive green Series Production Color Details
Production: 1930-1931Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: olive greenCap Color: blackTrim: gold plated

The first revision of the original Pelikan had taken the jade barrel with an olive striped pattern.

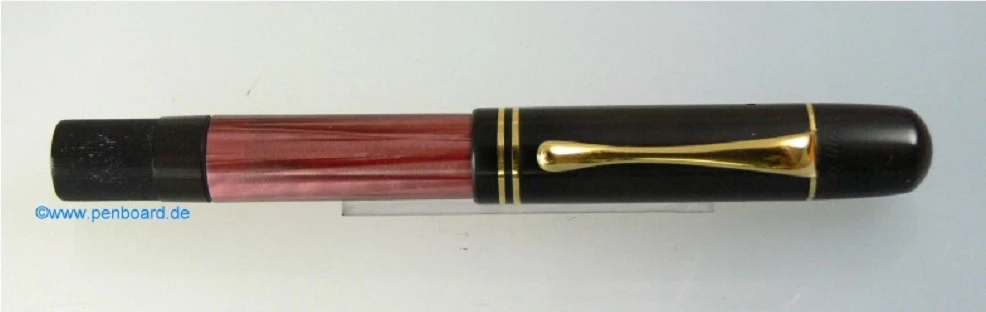

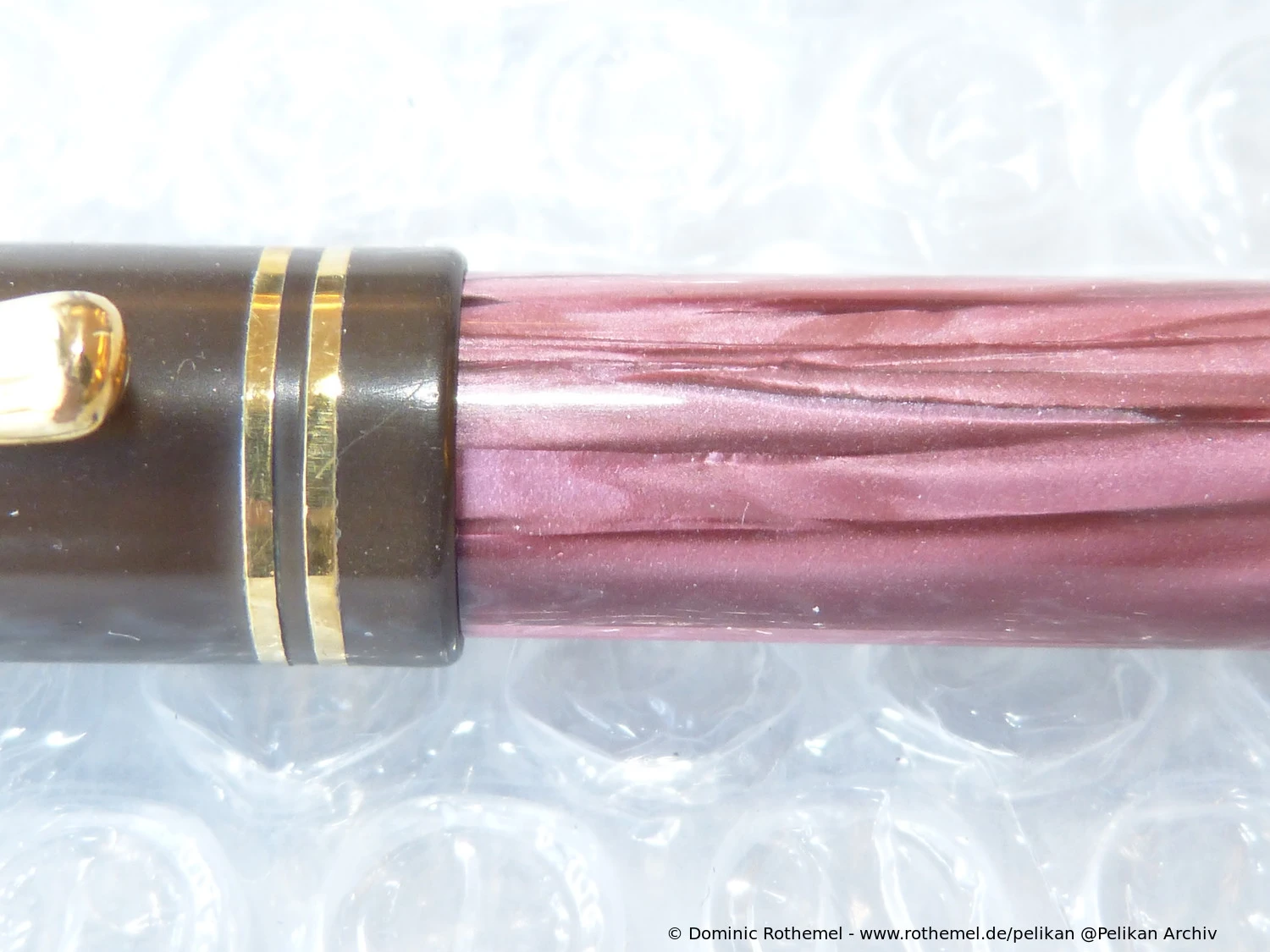

100 Red-marbled Exportmodel Color
Production: 1931-1938Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Exportmodel
Barrel Color: red-marbledCap Color: blackTrim: gold plated
100 Mother-of-pearl Exportmodel Color
Production: 1935Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Exportmodel
Barrel Color: mother-of-pearlCap Color: blackTrim: gold plated

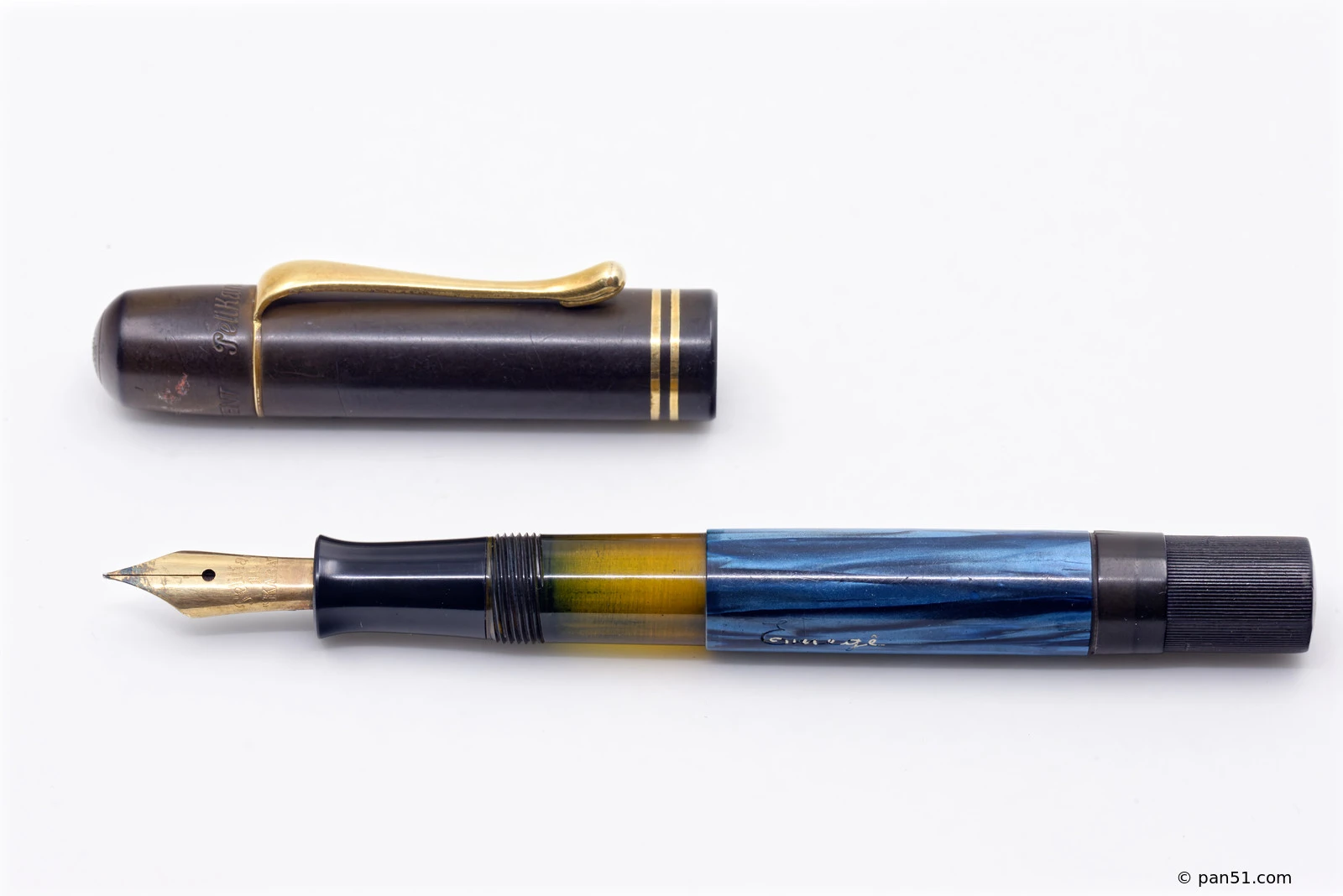

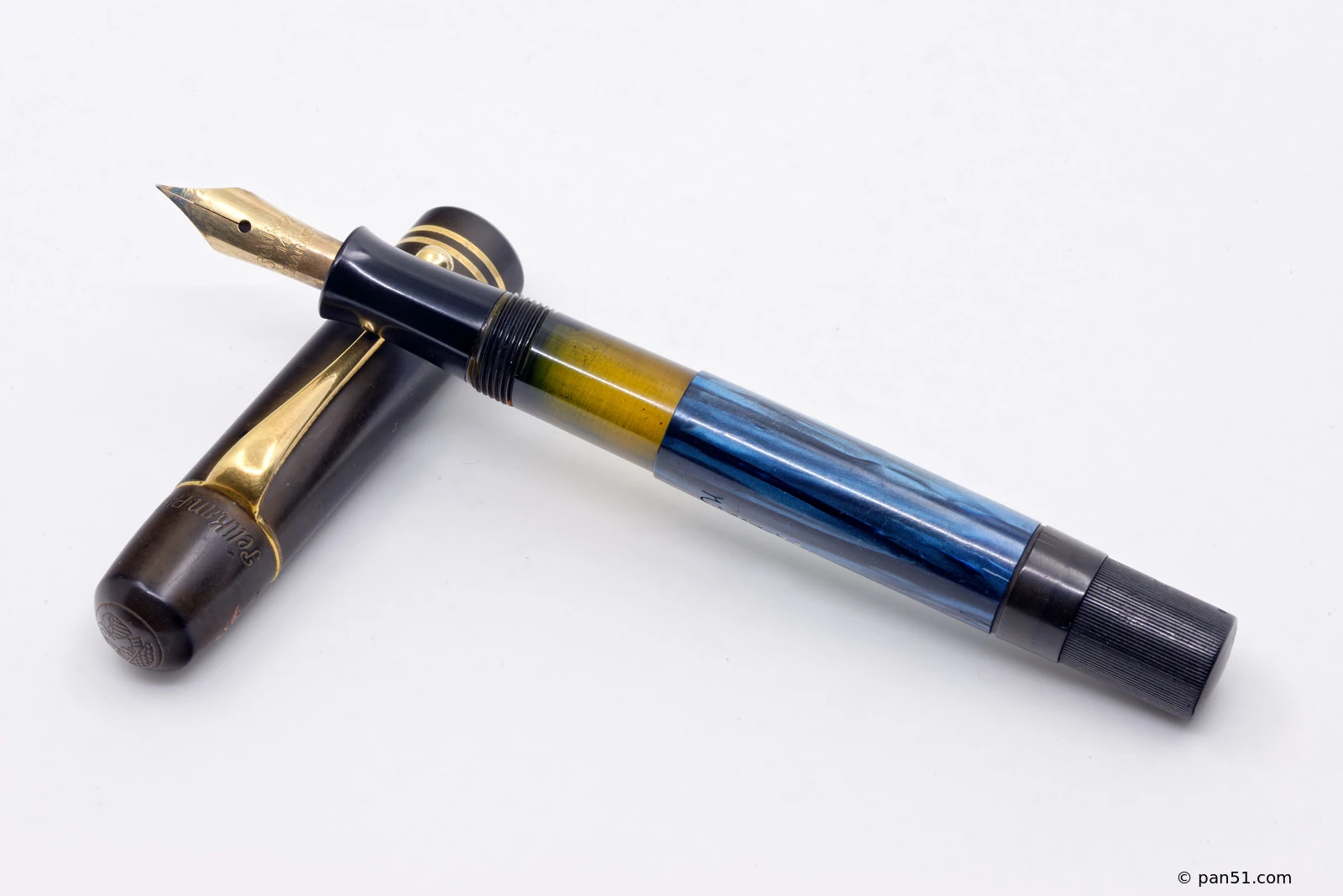

100 Blue-marbled Exportmodel Color Details
Production: 1931-1938Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Exportmodel
Barrel Color: blue-marbledCap Color: blackTrim: gold plated

Known for the portuguese market with the engraving Emegê.

100 Honey yellow Series Production Color
Production: 1931-1934Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: yellow-marbledCap Color: blackTrim: gold plated
100 Brown-marbled Series Production Color
Production: 1935-1937Nib: 14 ct gold Leaflet: FranzösischLink opens PDF documentPelikan Liporello appr. 1936
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: brown-marbledCap Color: blackTrim: gold plated
100 Grey-marbled Exportmodel Color
Production: 1931-1939Nib: 14 ct / PD / CN Leaflet: FranzösischLink opens PDF documentPelikan Tarif 67 or.
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Exportmodel
Barrel Color: grey-marbledCap Color: blackTrim: gold plated

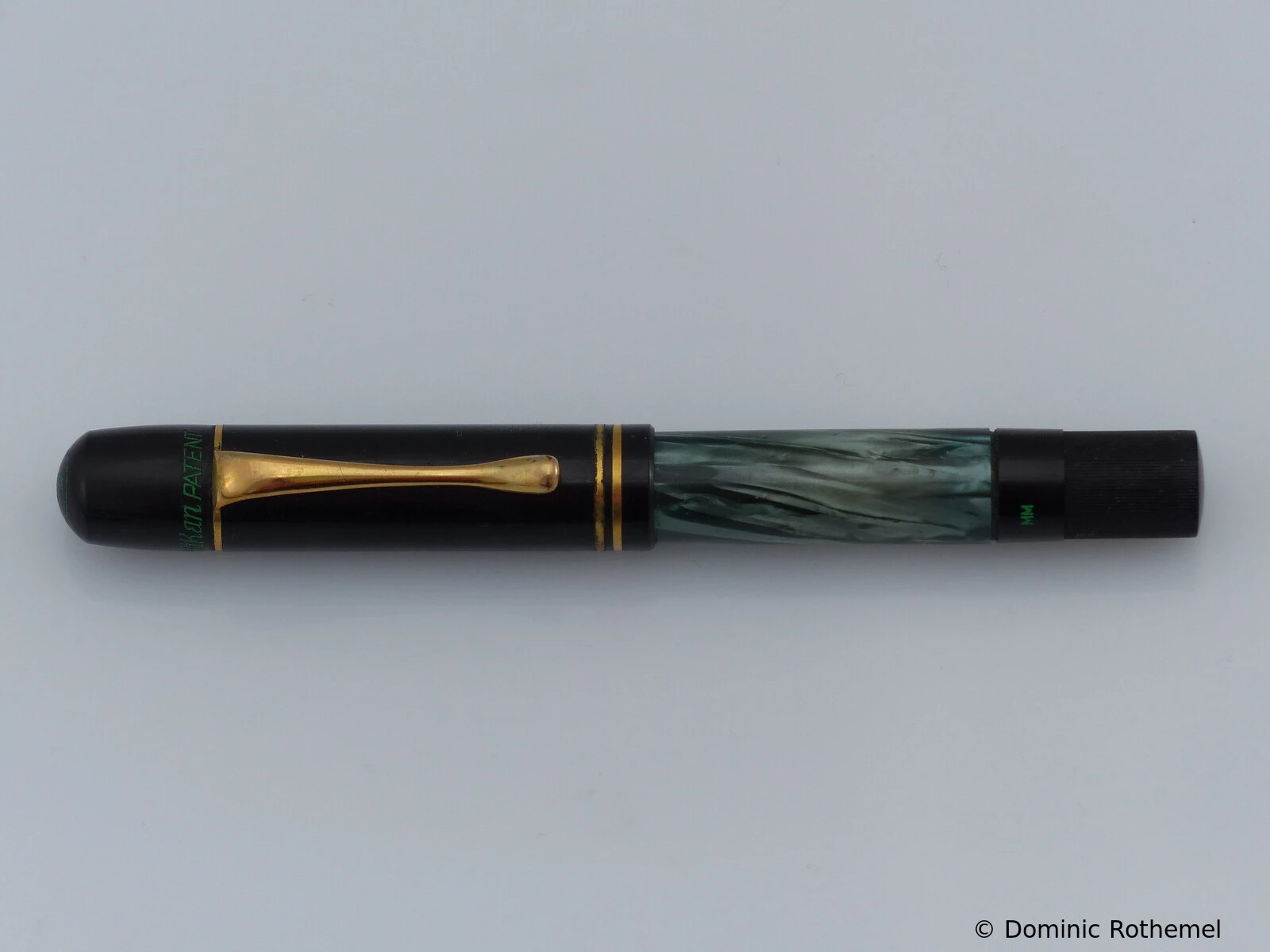

100 Green-marbled Series Production Color Details
Production: 1931-1944Nib: 14 ct / PD / CN Leaflet: DeutschLink opens PDF documentPelikan Preisliste 60
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: green-marbledCap Color: blackTrim: gold plated

The most common color at the german market.

[+] Variation: 100 Cut-away model

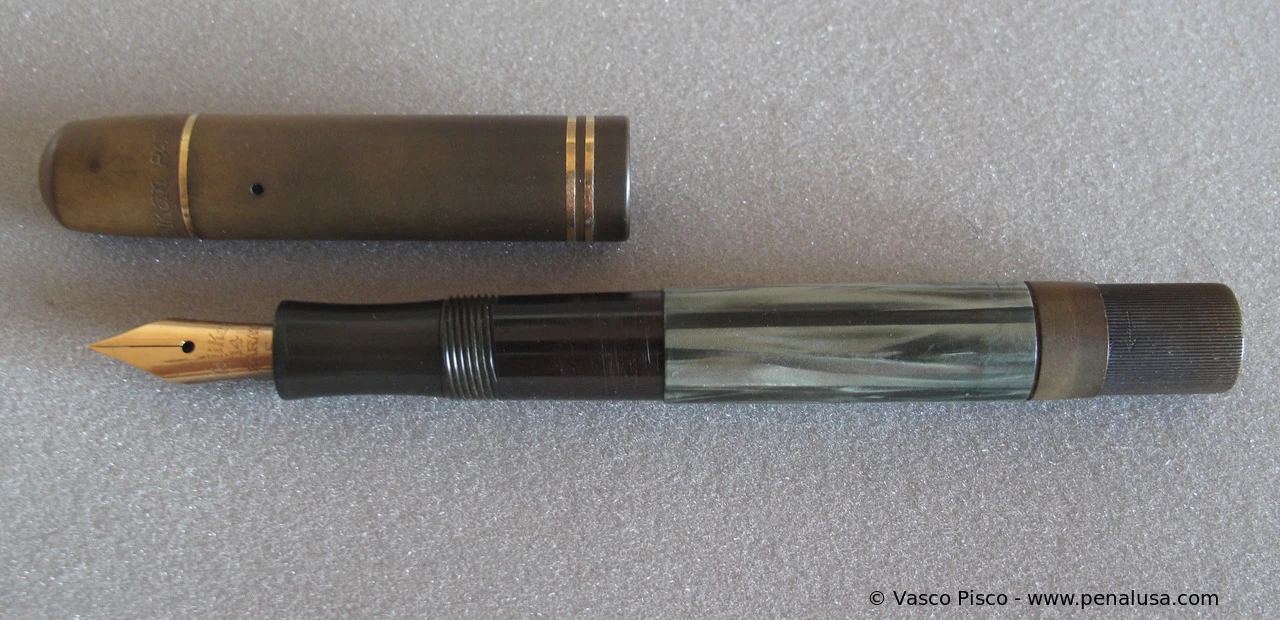

[+] Variation: 100 Ring without clip
[+] Variation: 100 Gdansk
[+] Variation: 100 War version

Pelikan 101

The original Pelikan fountain pen got its name Pelikan 100 in the years 1930/31. The models with black cap at this time were named Pelikan 100, fountain pens with white gold filled the name 110, with yellow gold filled overlay 111 and with a 14 carat yellow gold barrel and cap named Pelikan 112.

Models with colored caps were later given the name Pelikan101.

Model Production Period Nib
101 1935-1939

14 ct gold nib / 18 ct gold nib for export / CN

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.49 oz 4.61 in 3.74 in 2.40 in 0.47 in 1.5 ml
13.9 g 117 mm 95 mm 61 mm 12 mm


101

101 Jade Series Production Color Details
Production: 1935-1938 + appr. 1943Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: greenCap Color: greenTrim: gold plated

There are several samples which show the production of the red and green 101 fountain pens with a smooth filling grip, green ink window, partly with a CN nib (these are presumably a sale in Germany) and a plastic seal. For this the fountain pen can be dated to a manufacturing time around 1943.

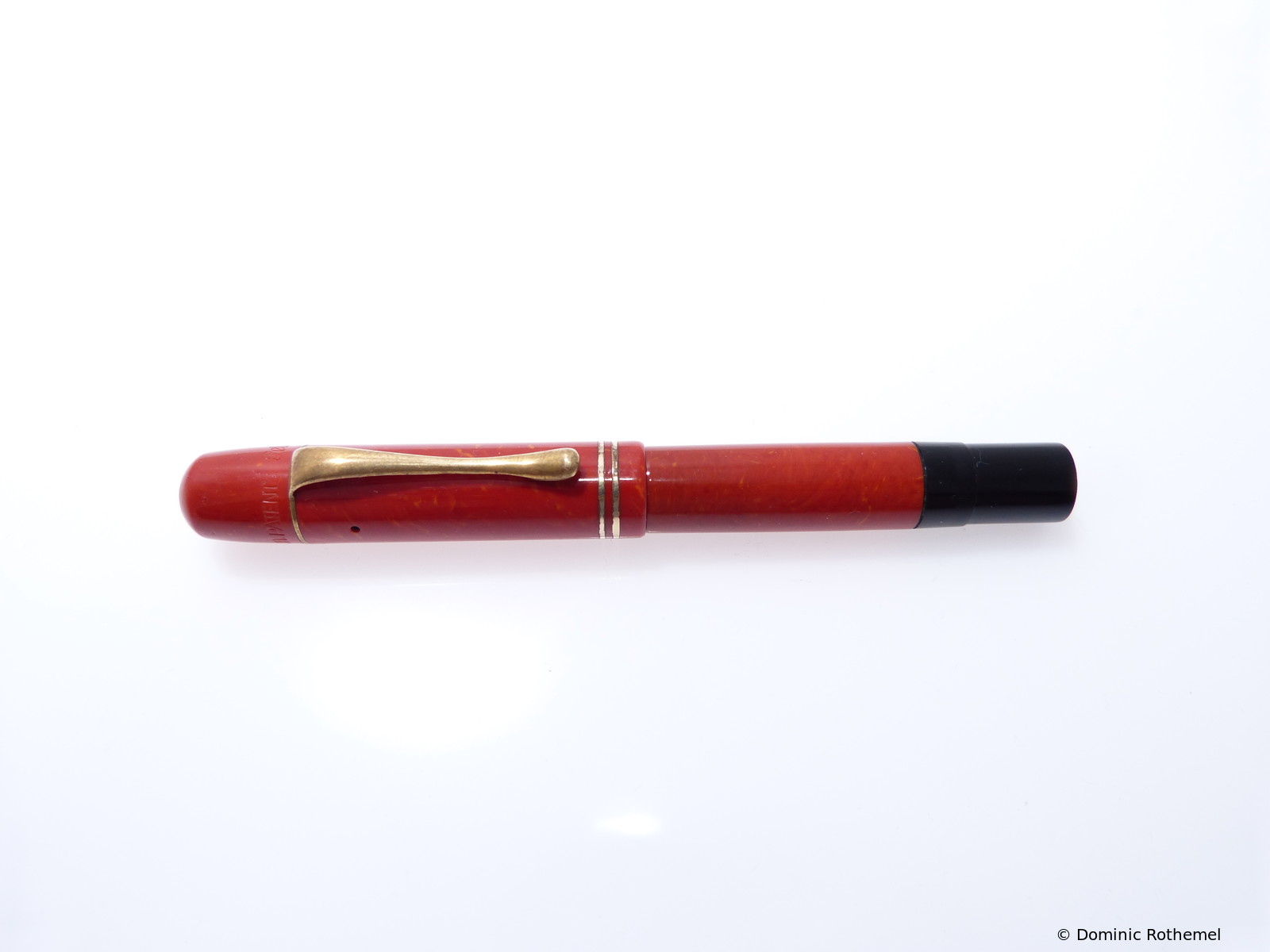

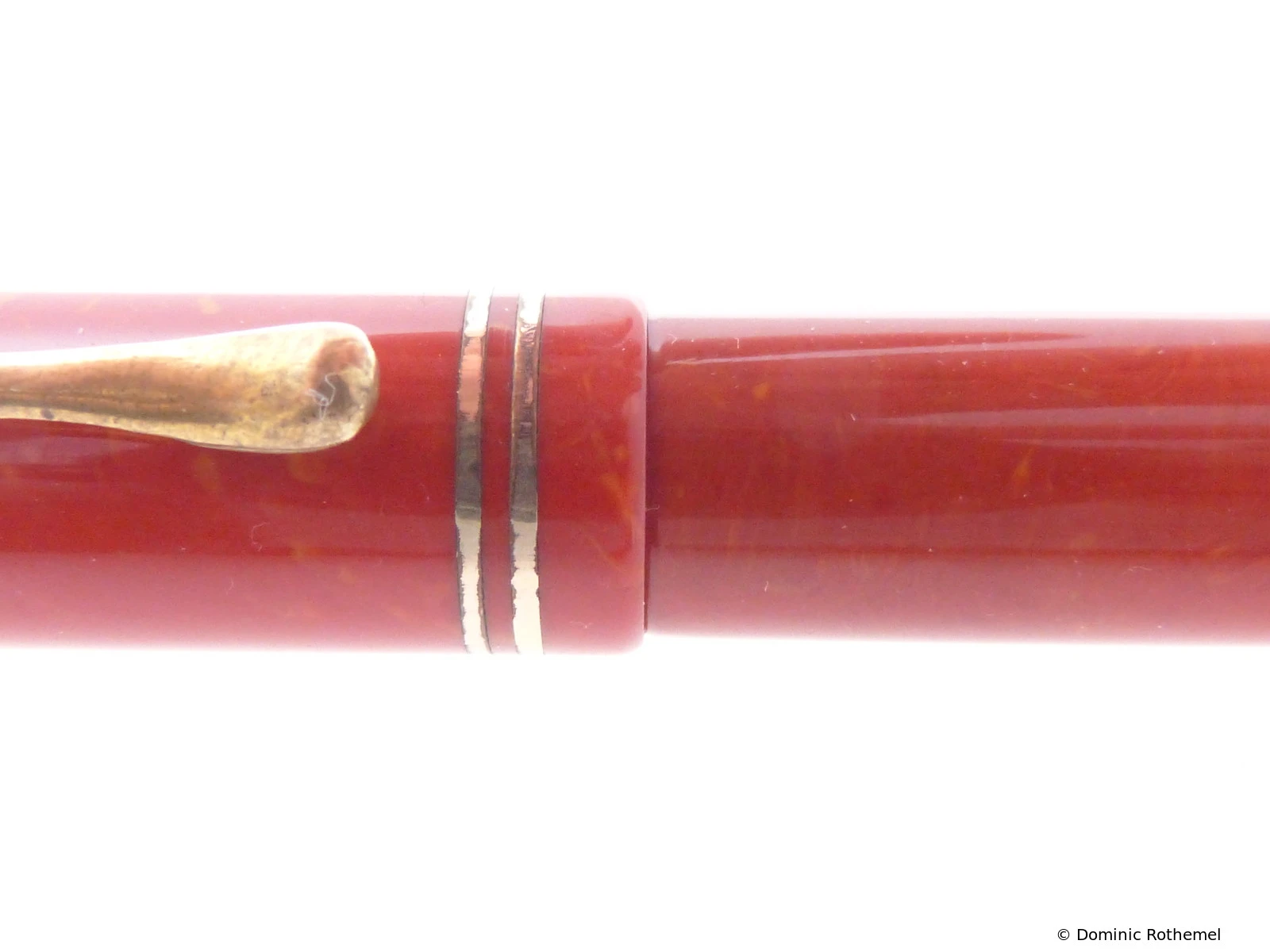

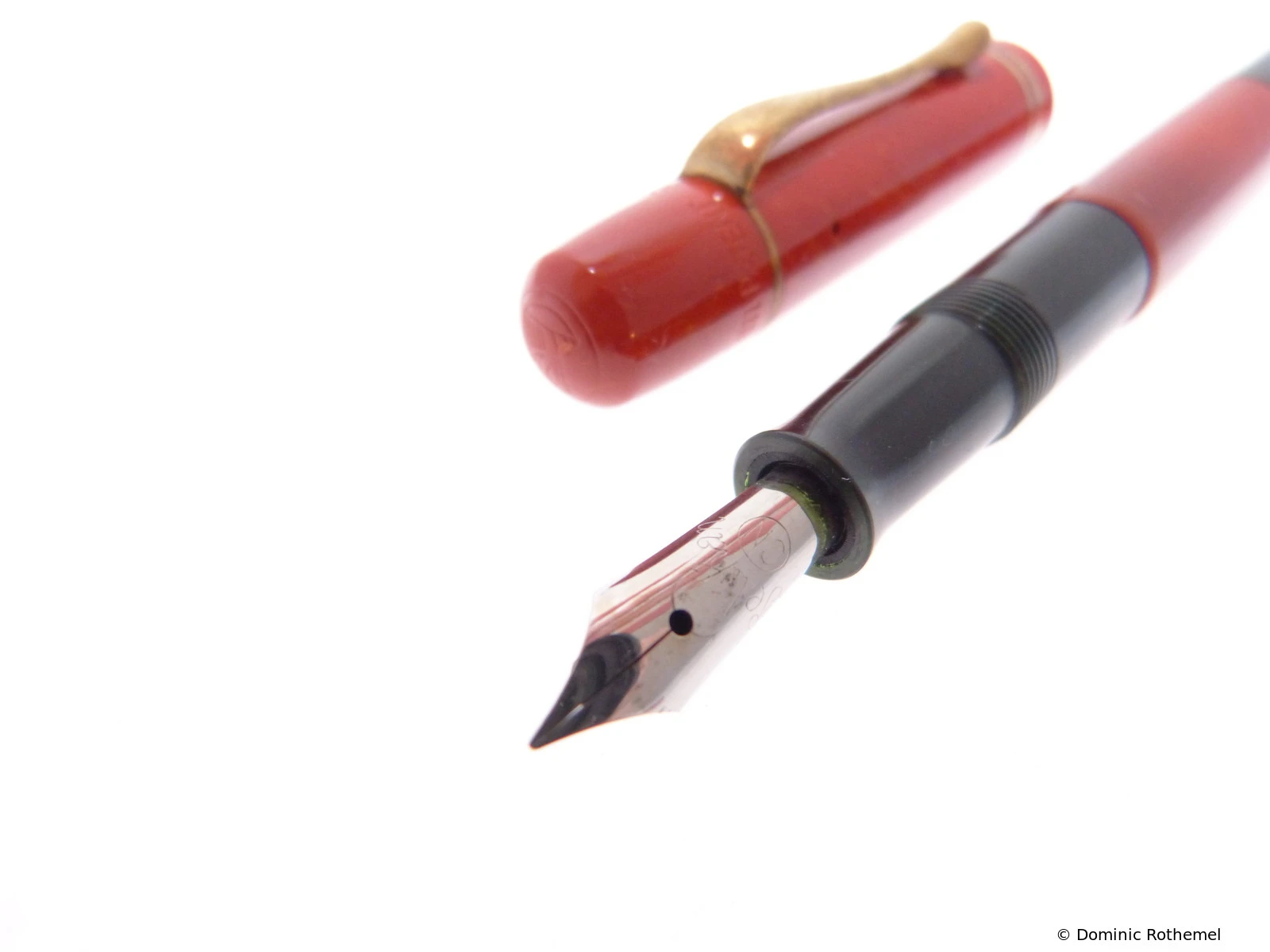

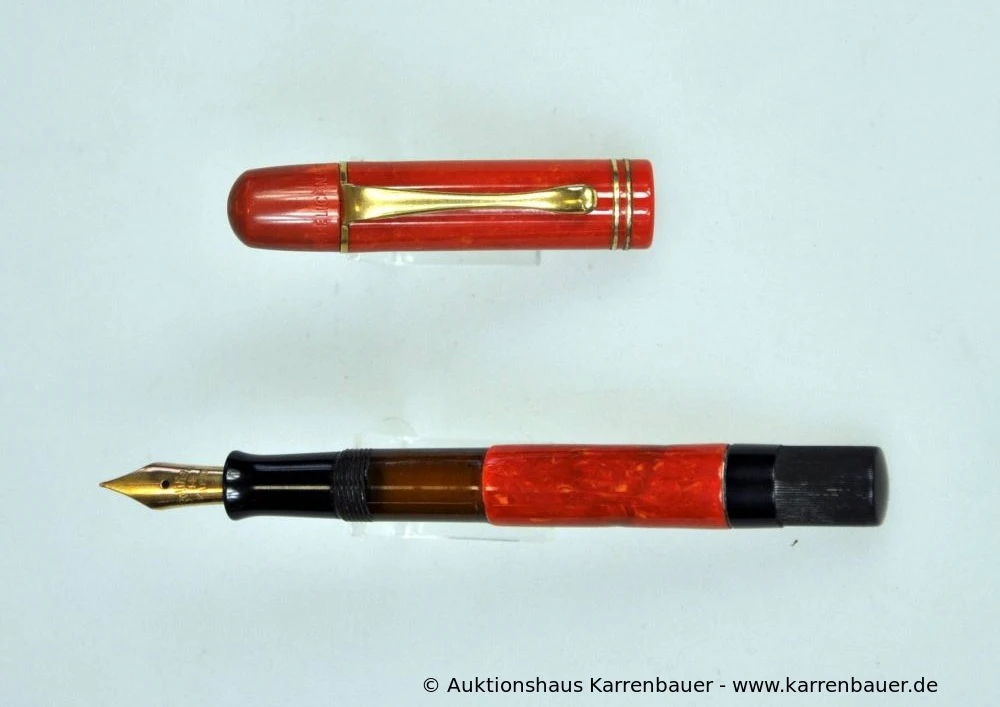

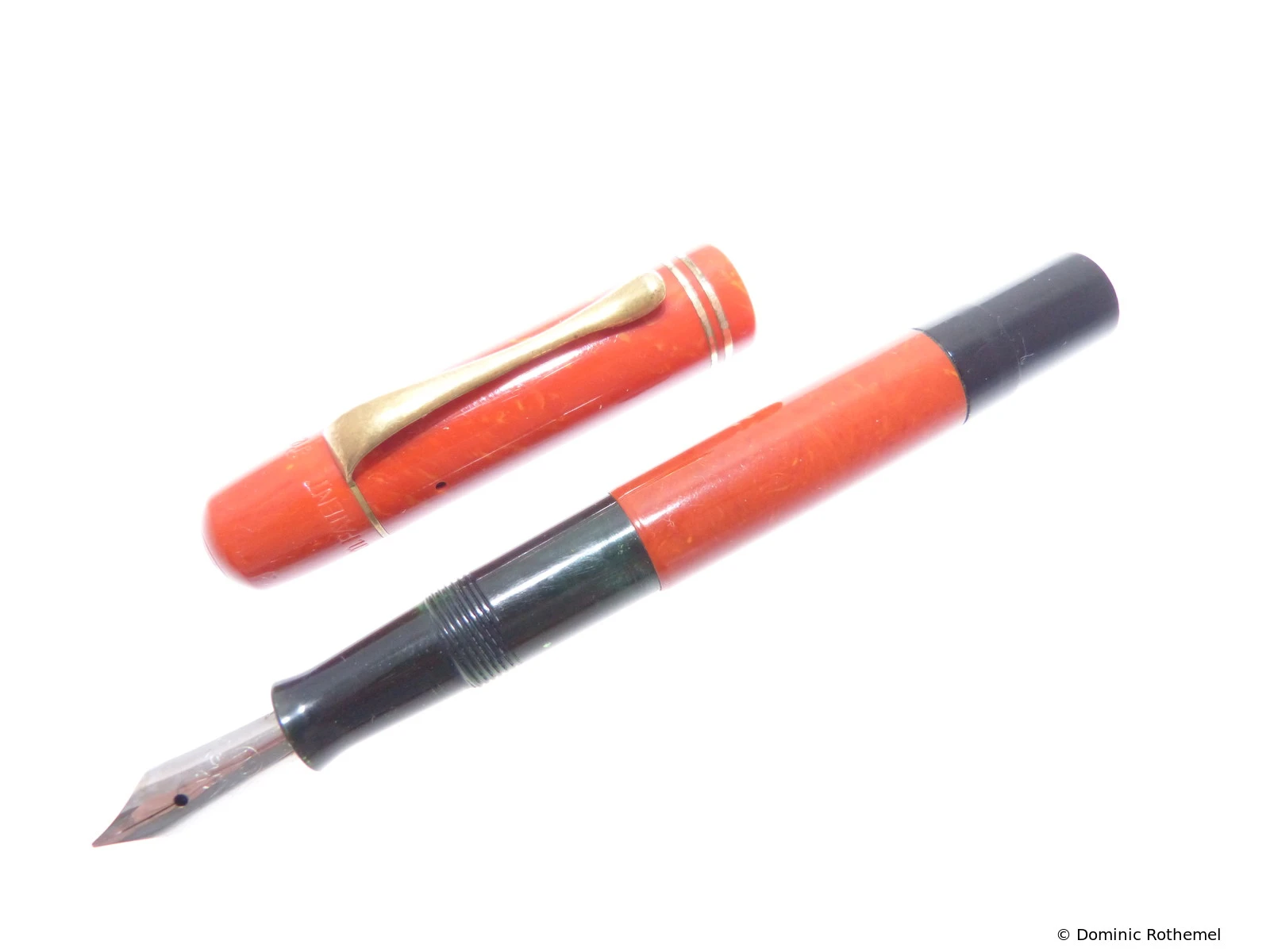

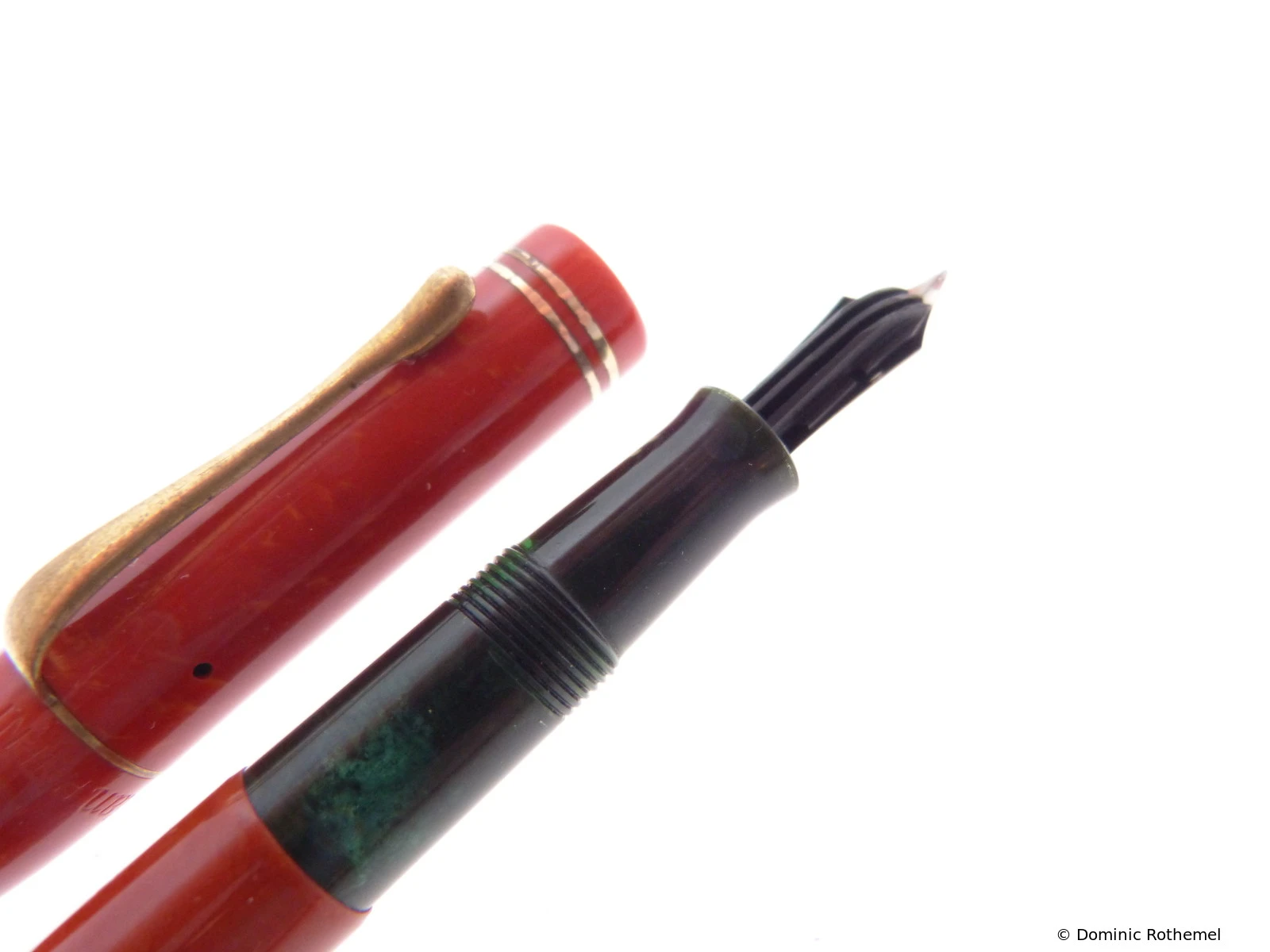

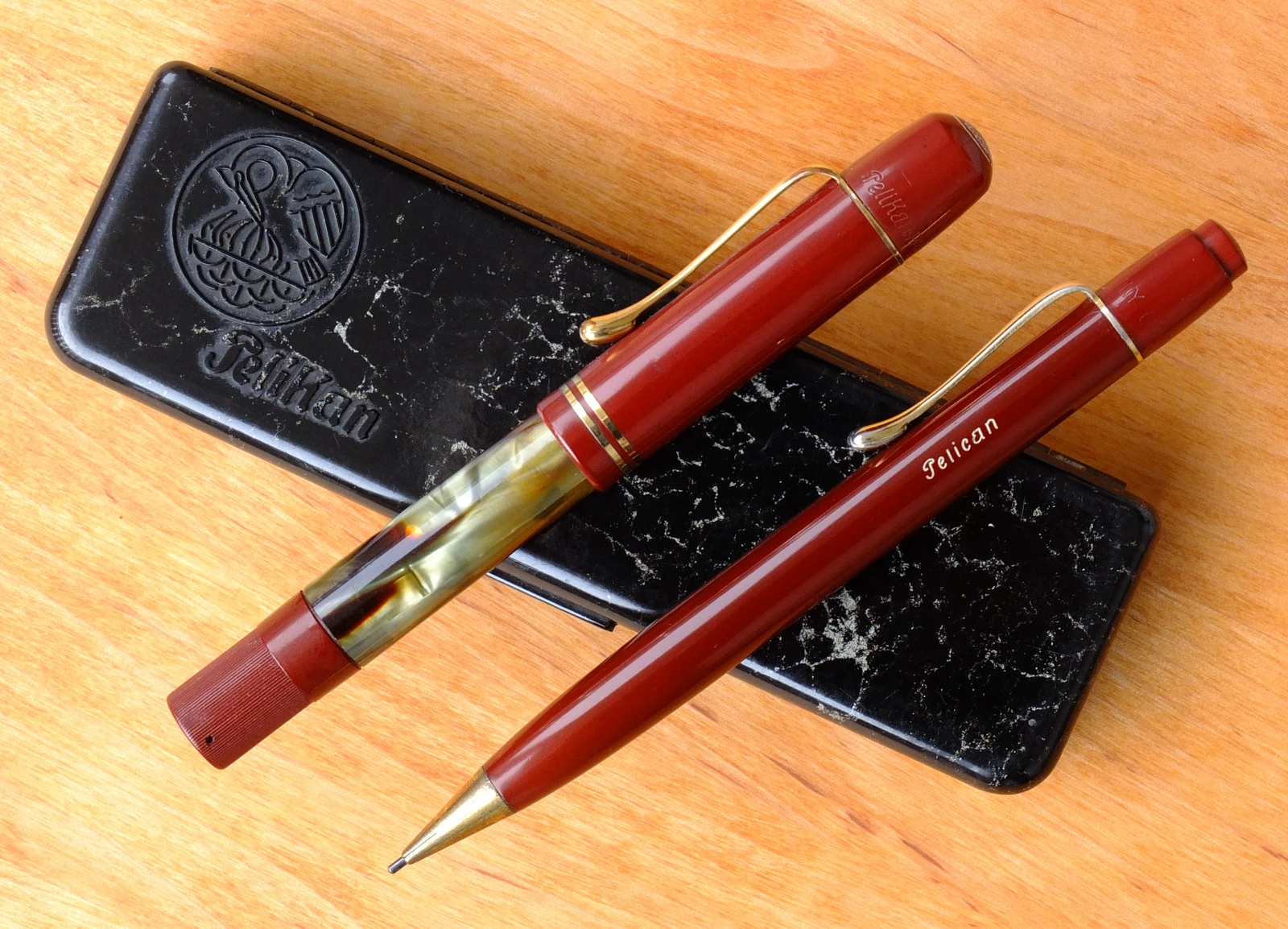

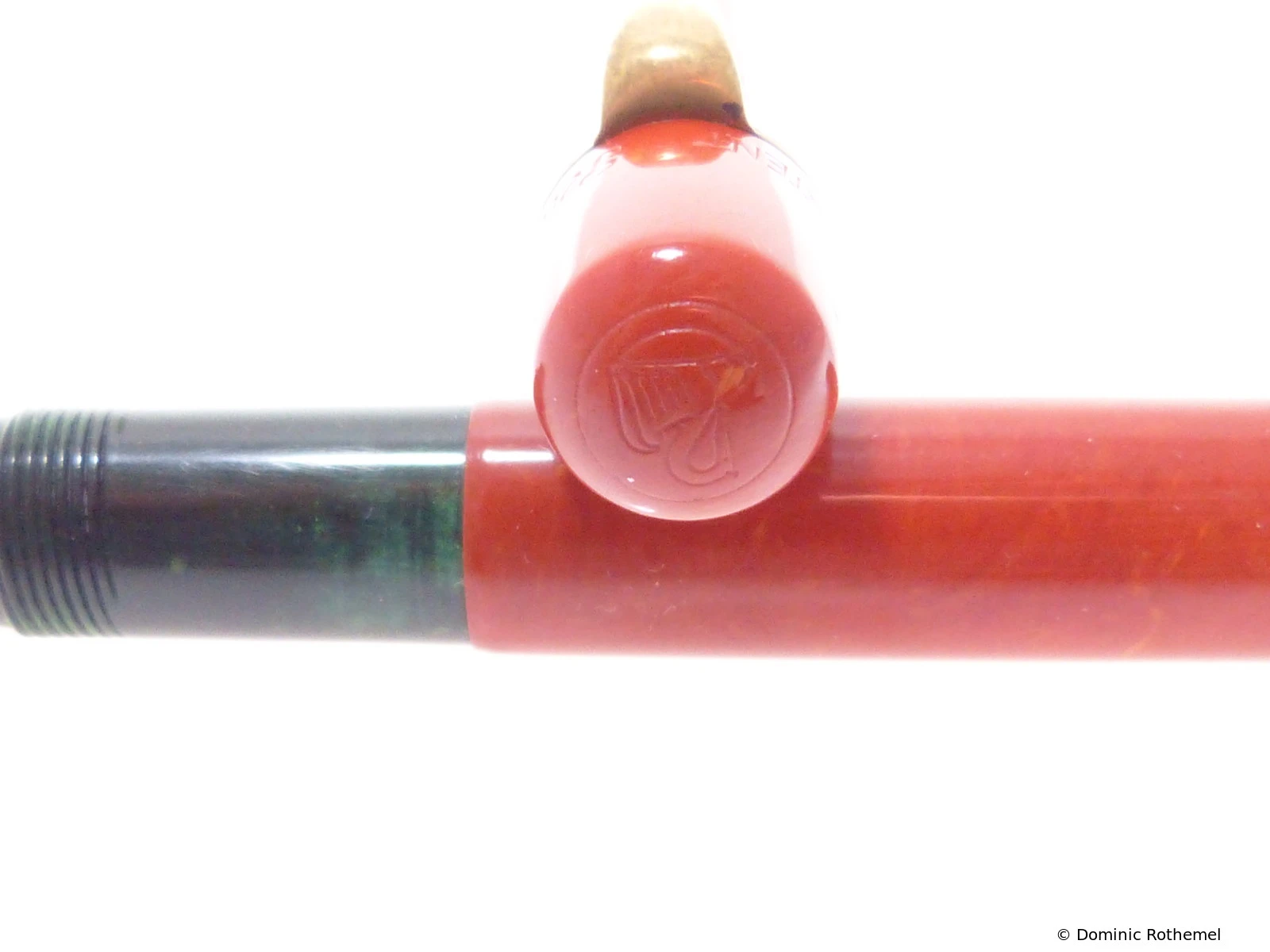

101 Coral Series Production Color Details
Production: 1935-9/1937 + appr. 1943Nib: 14 ct / CN
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: redCap Color: redTrim: gold plated

There are several samples which show the production of the red and green 101 fountain pens with a smooth filling grip, green ink window, partly with a CN nib (these are presumably a sale in Germany) and a plastic seal. For this the fountain pen can be dated to a manufacturing time around 1943.

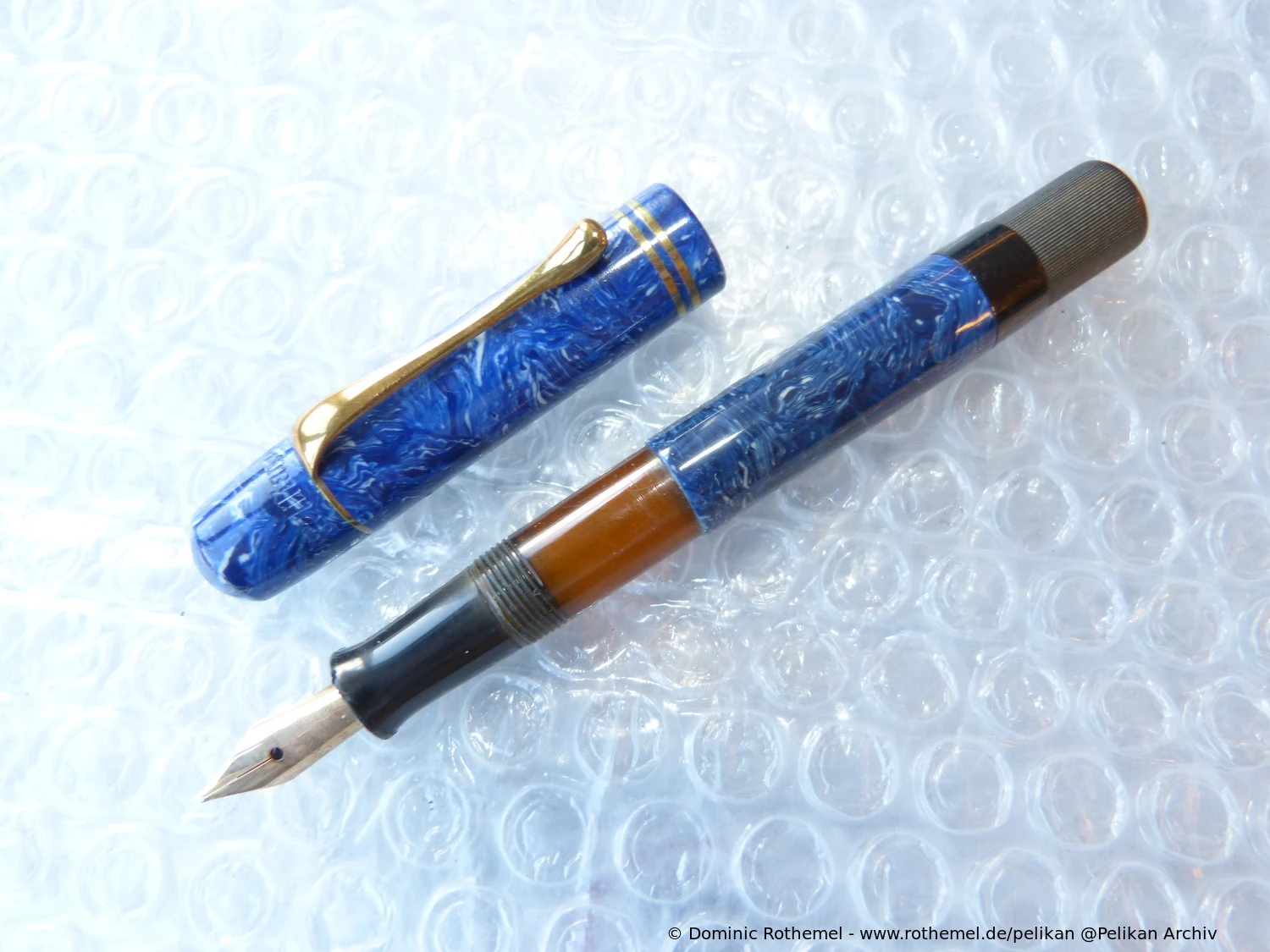

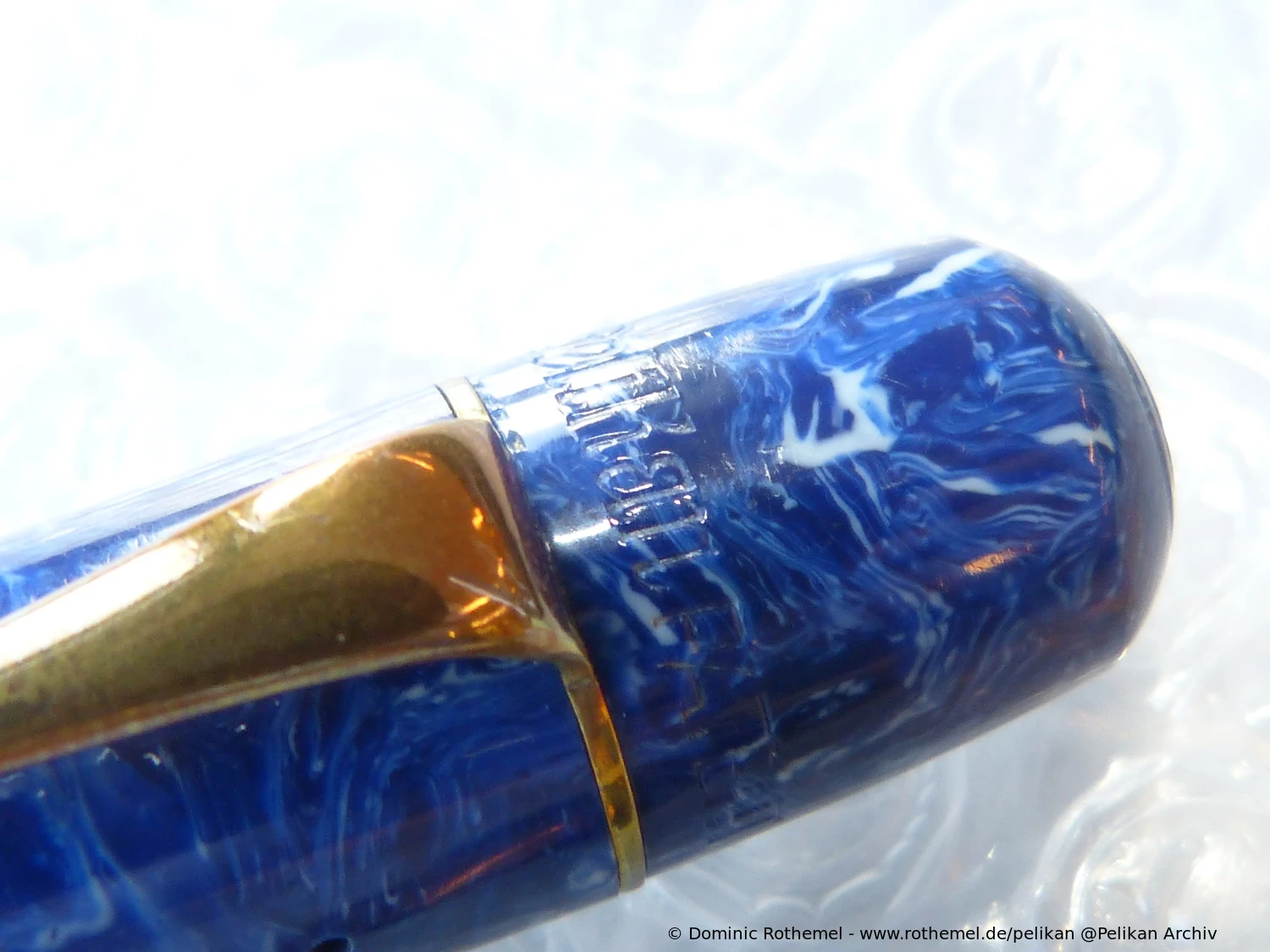

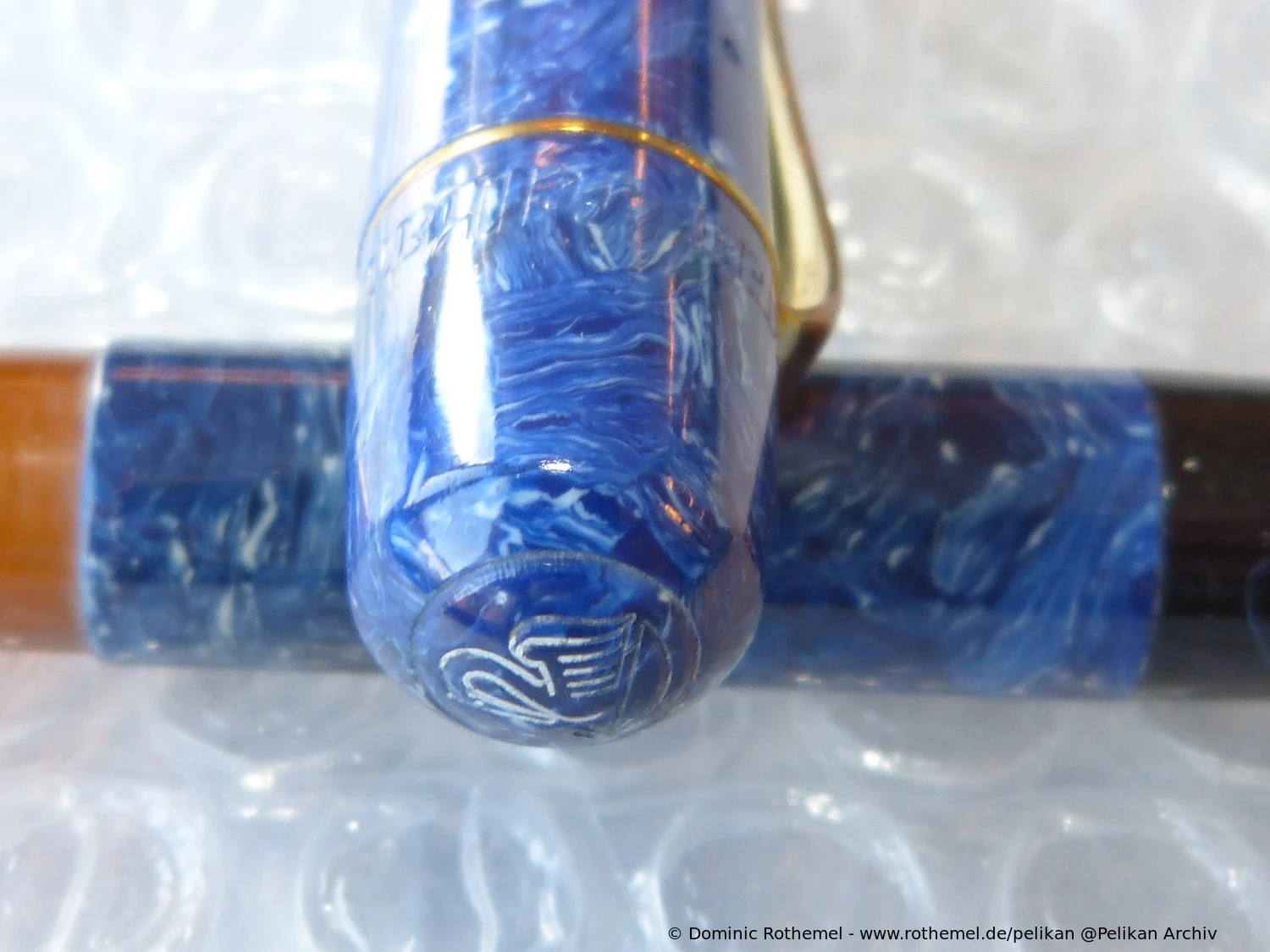

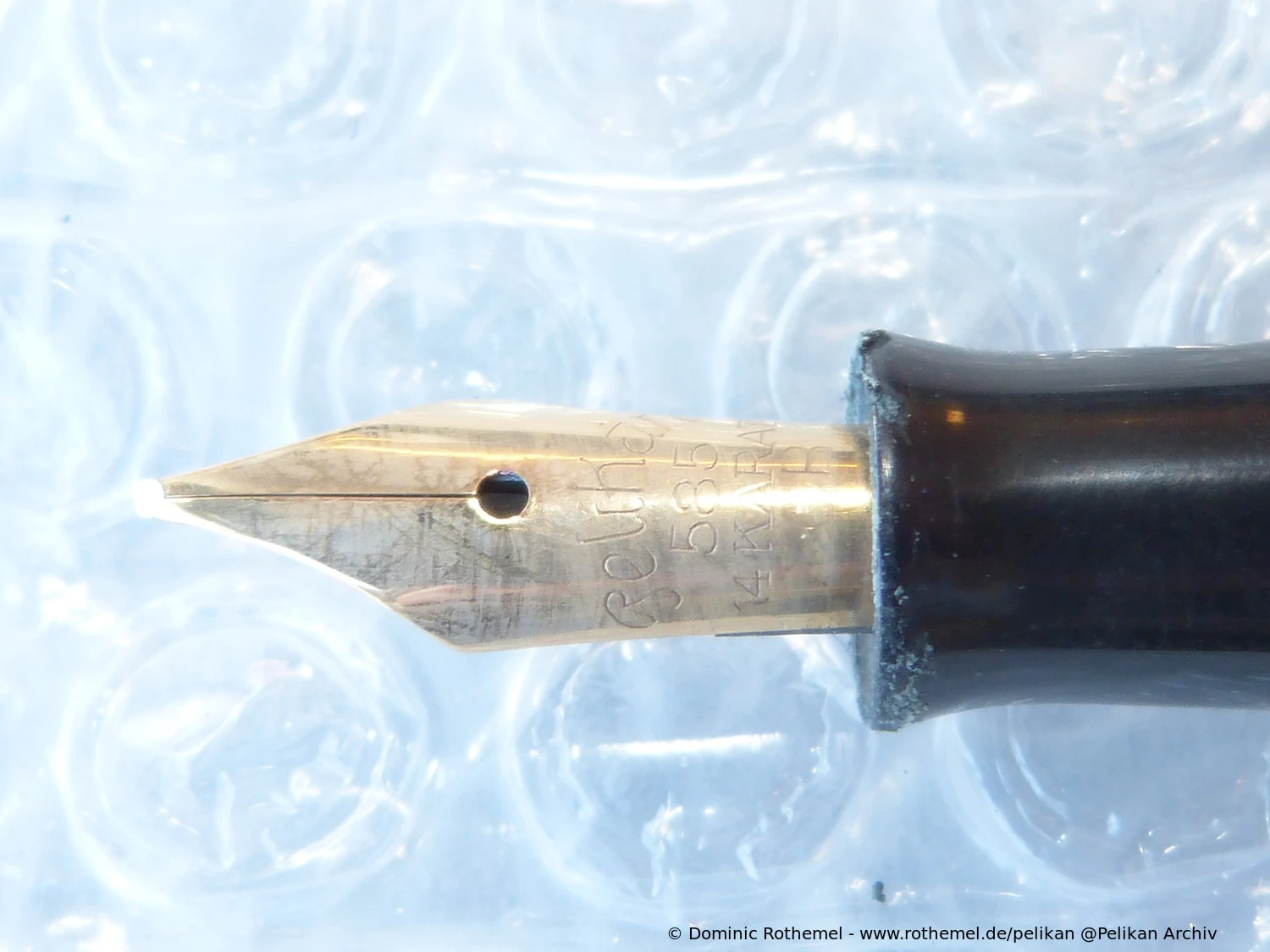

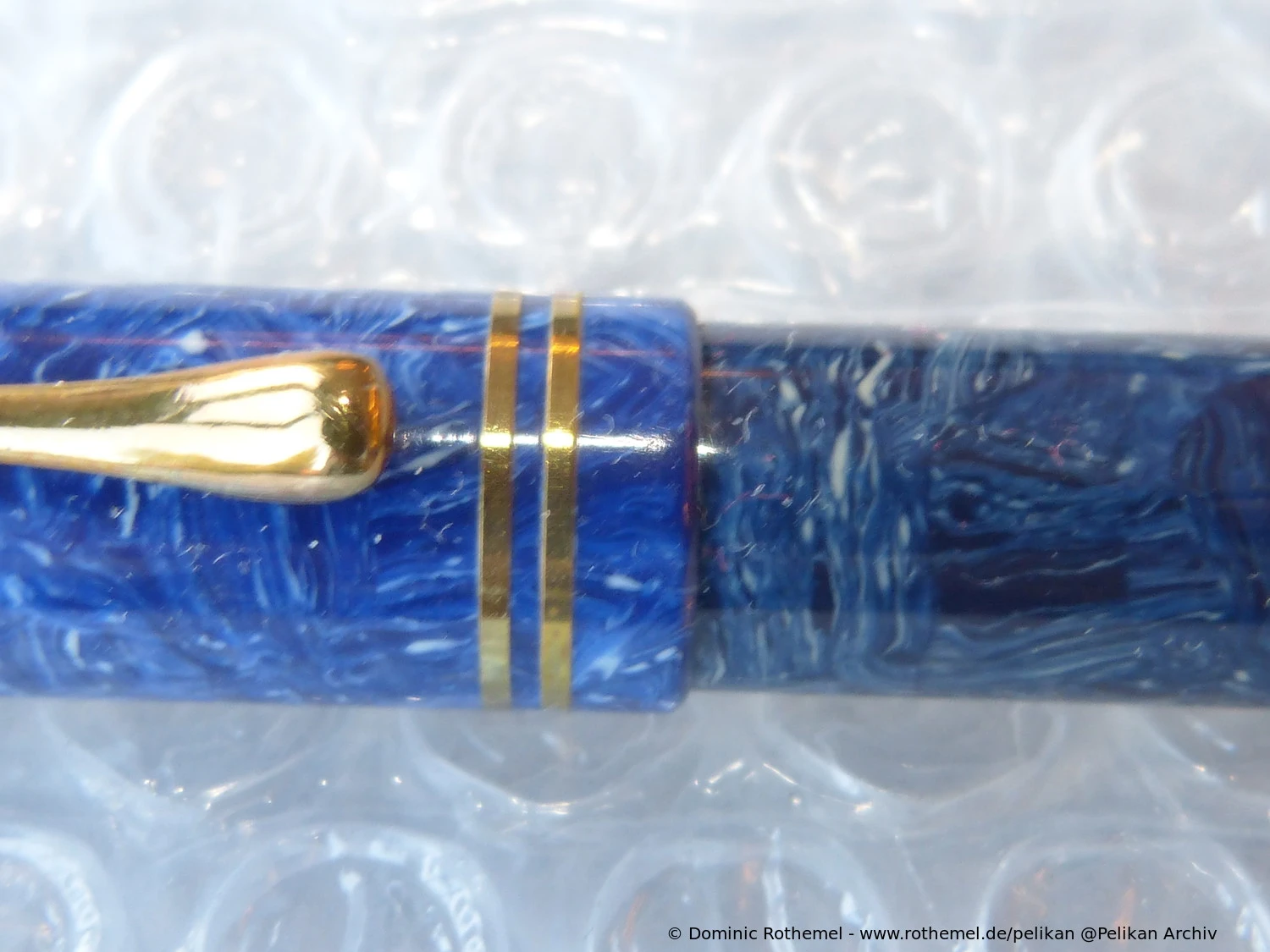

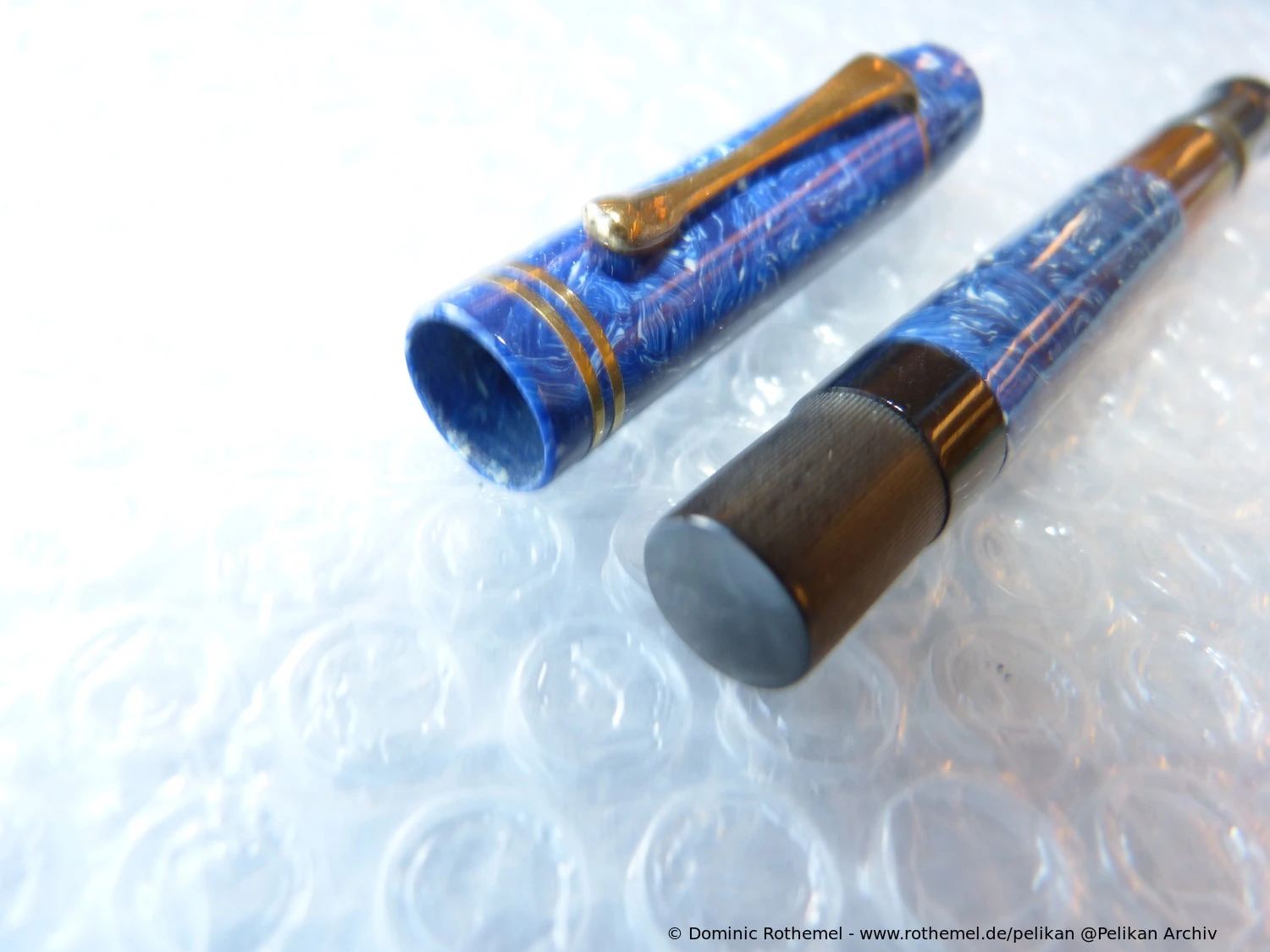

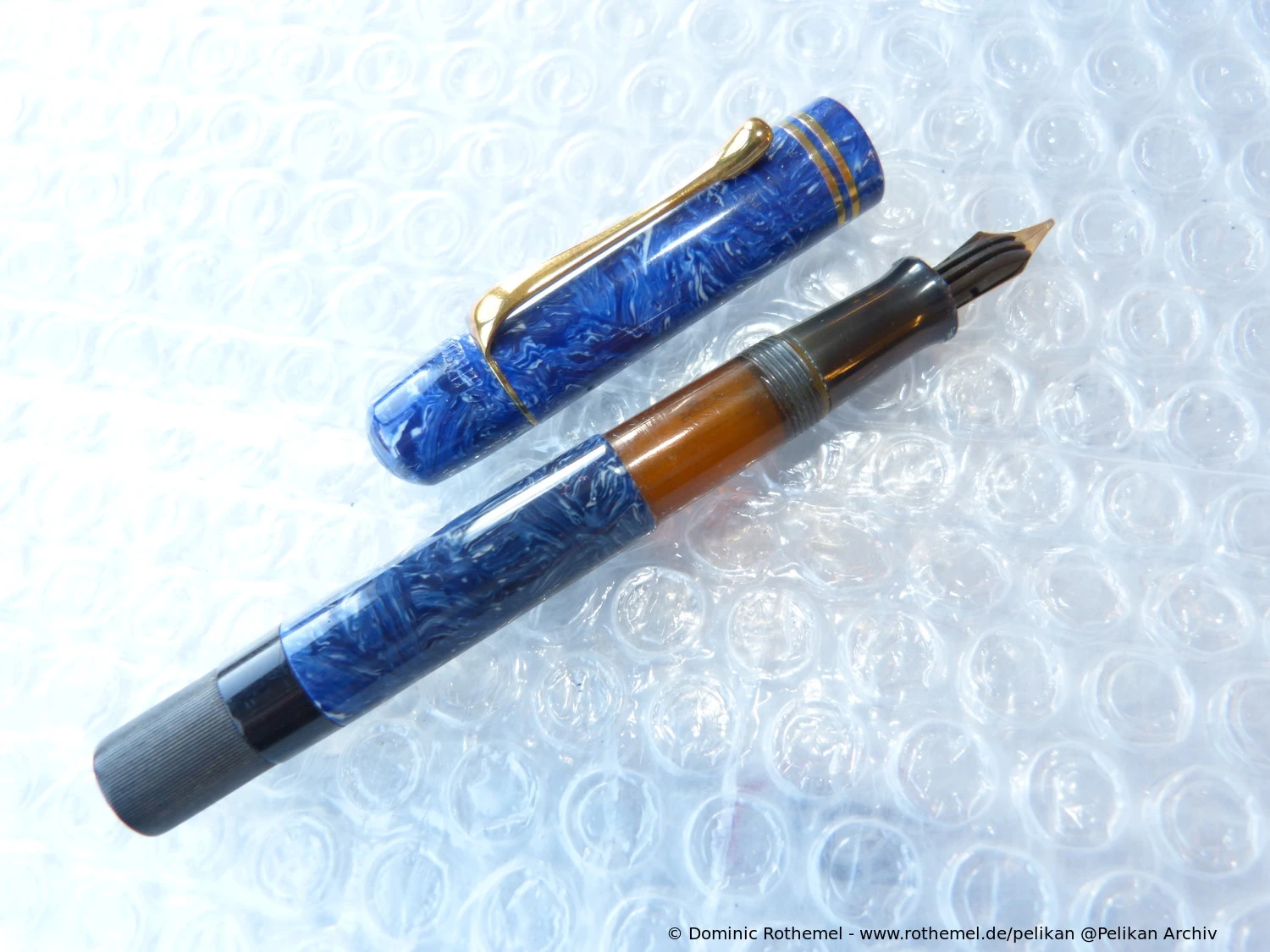

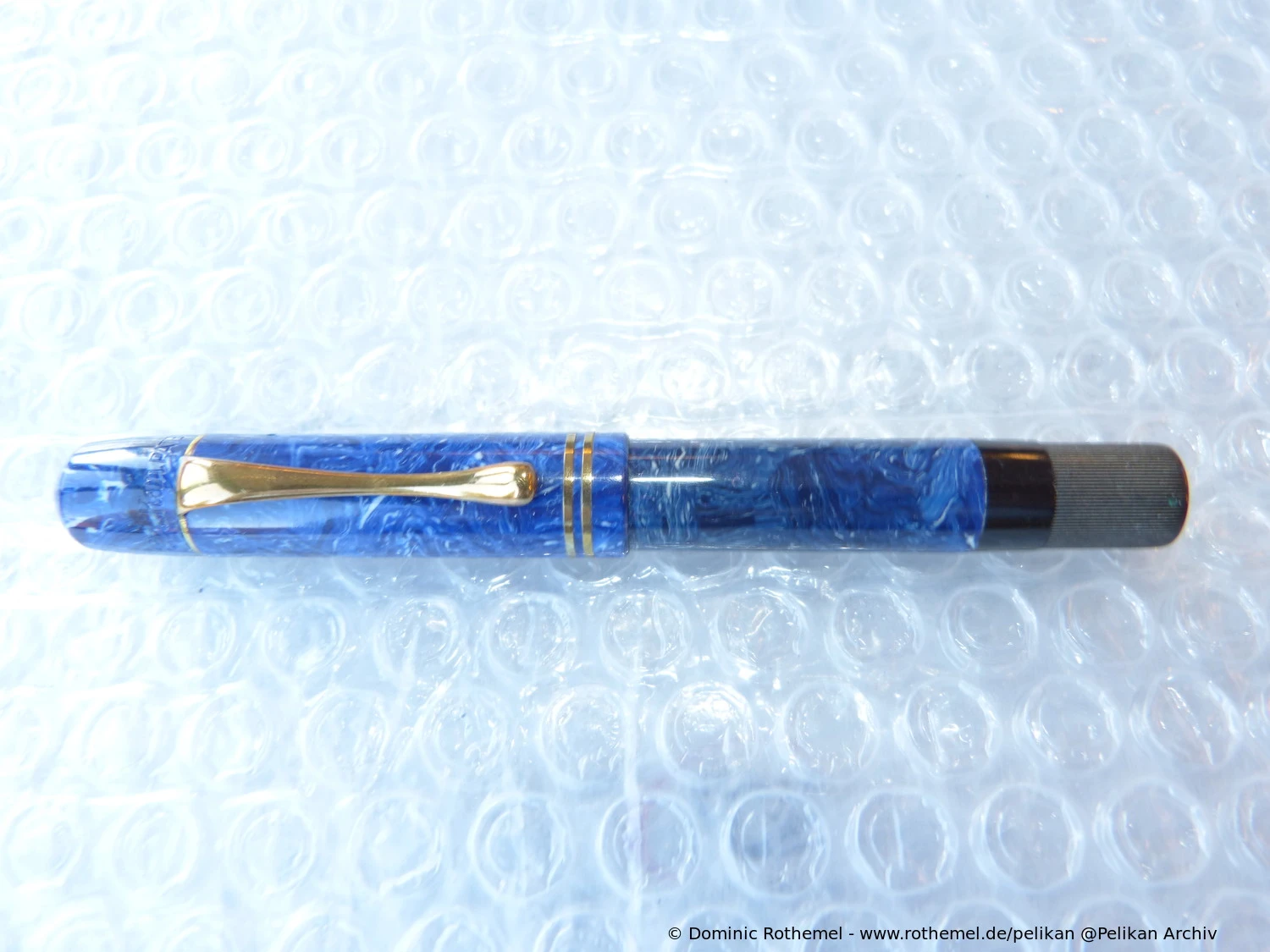

101 Lapis Series Production Color
Production: 1935-1937Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: blueCap Color: blueTrim: gold plated

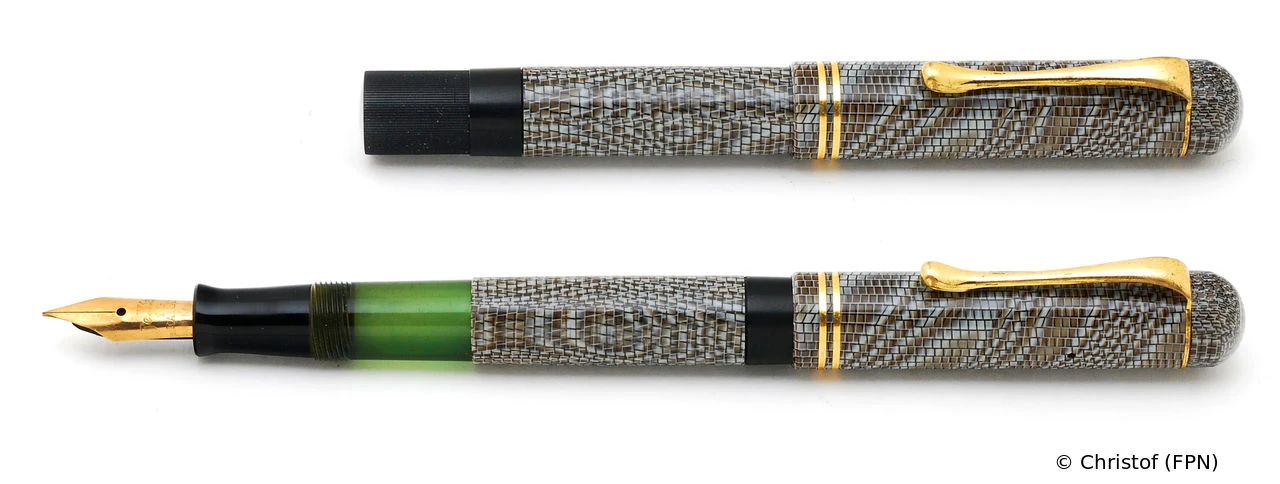

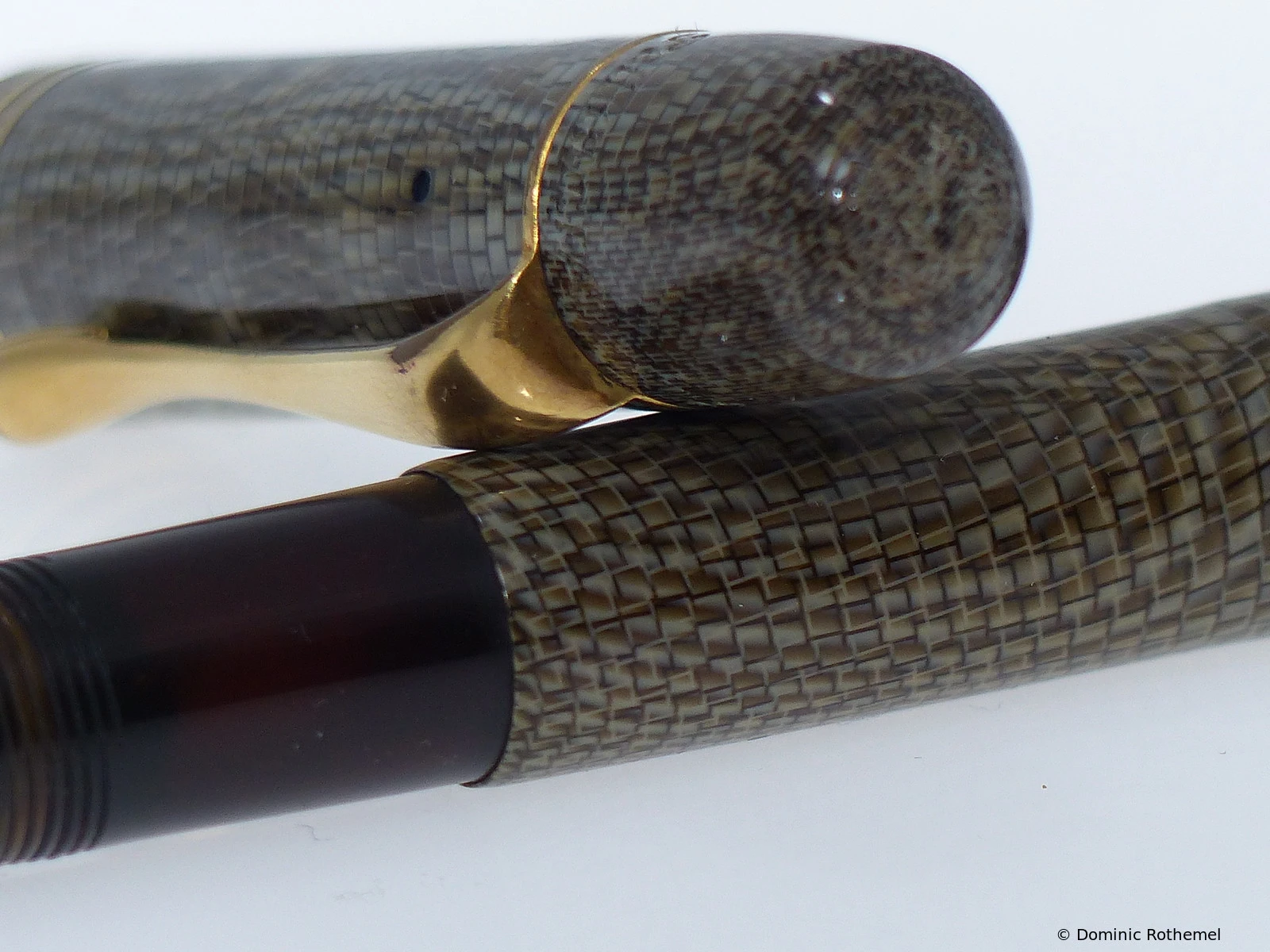

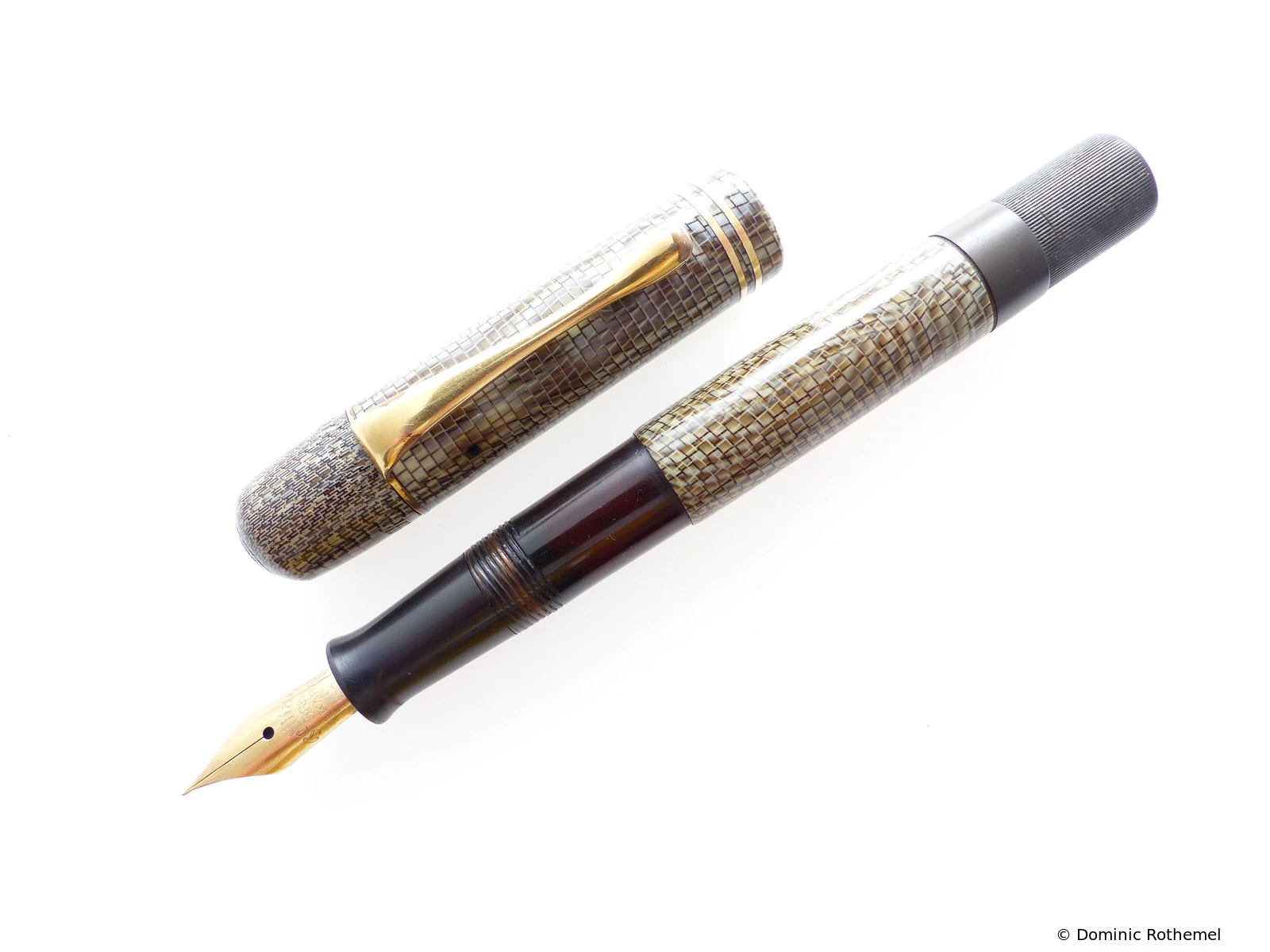

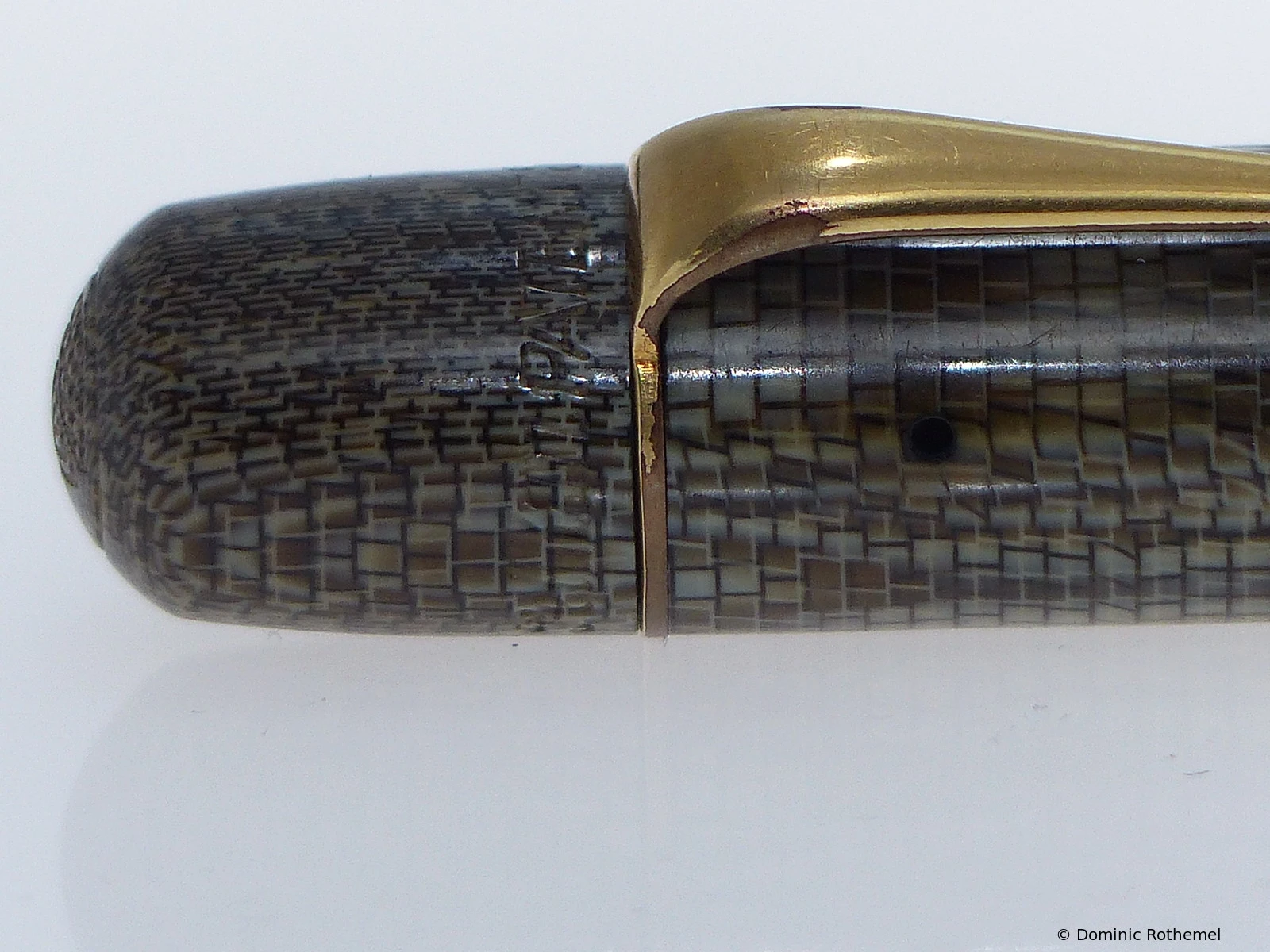

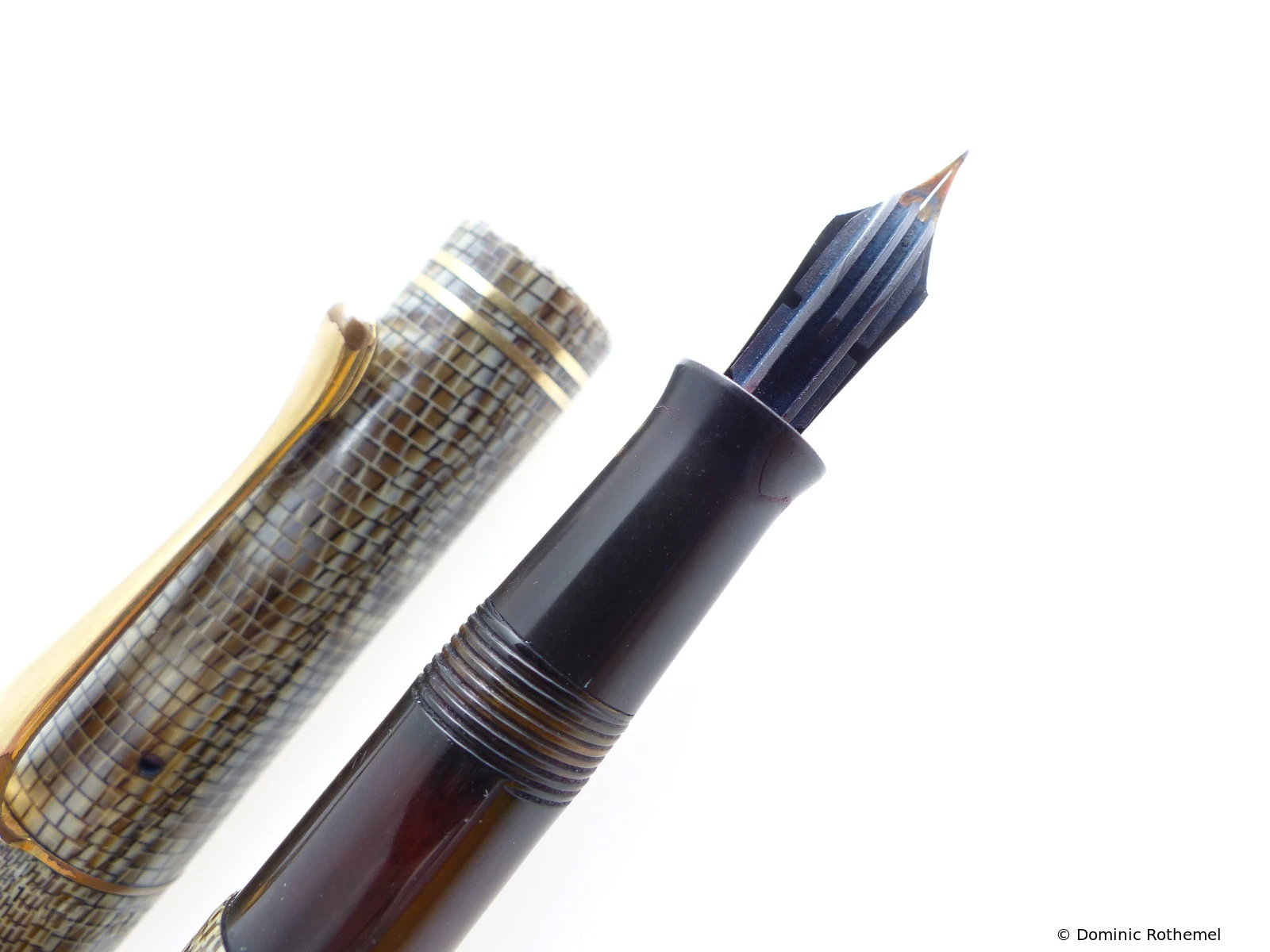

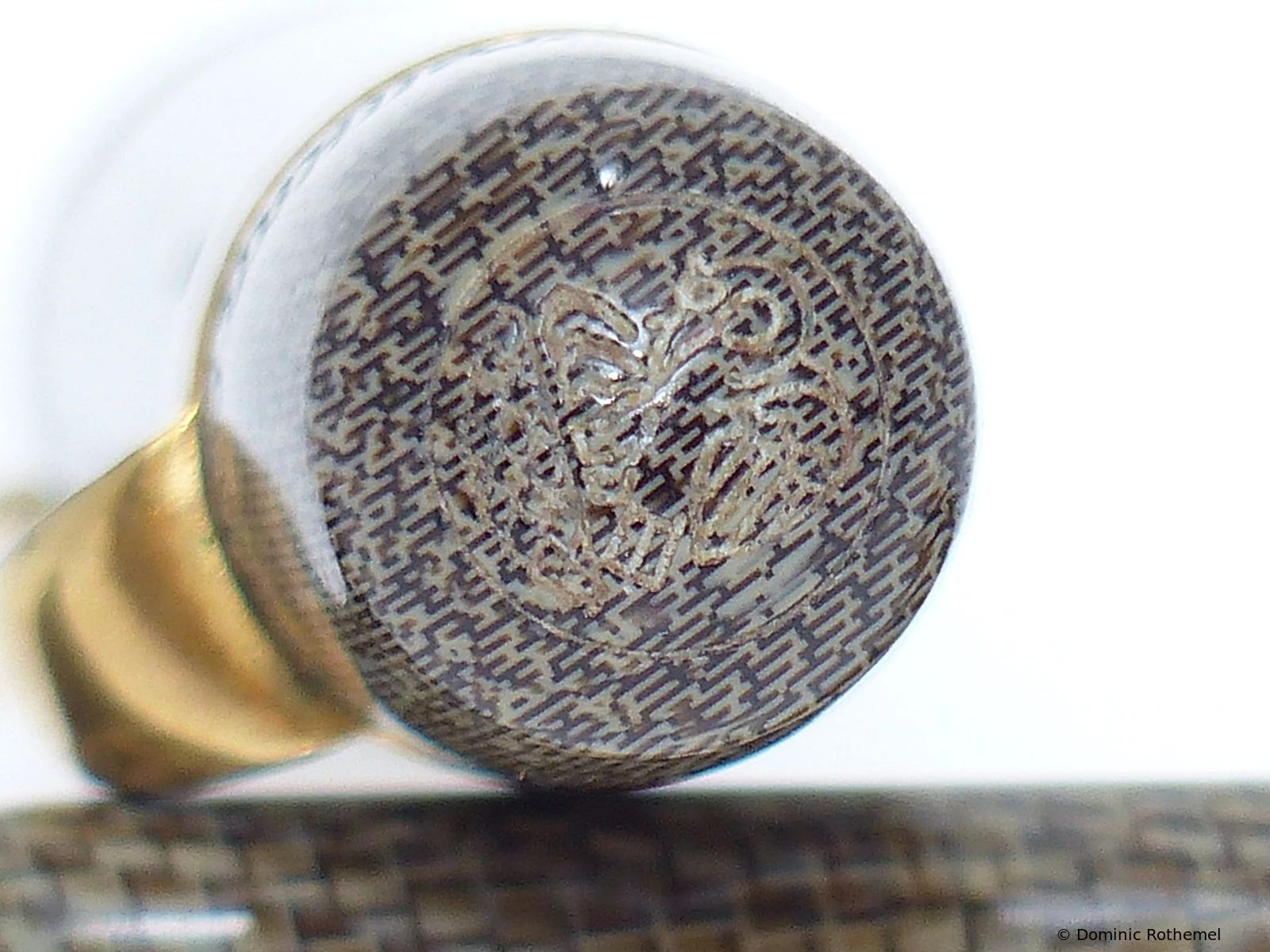

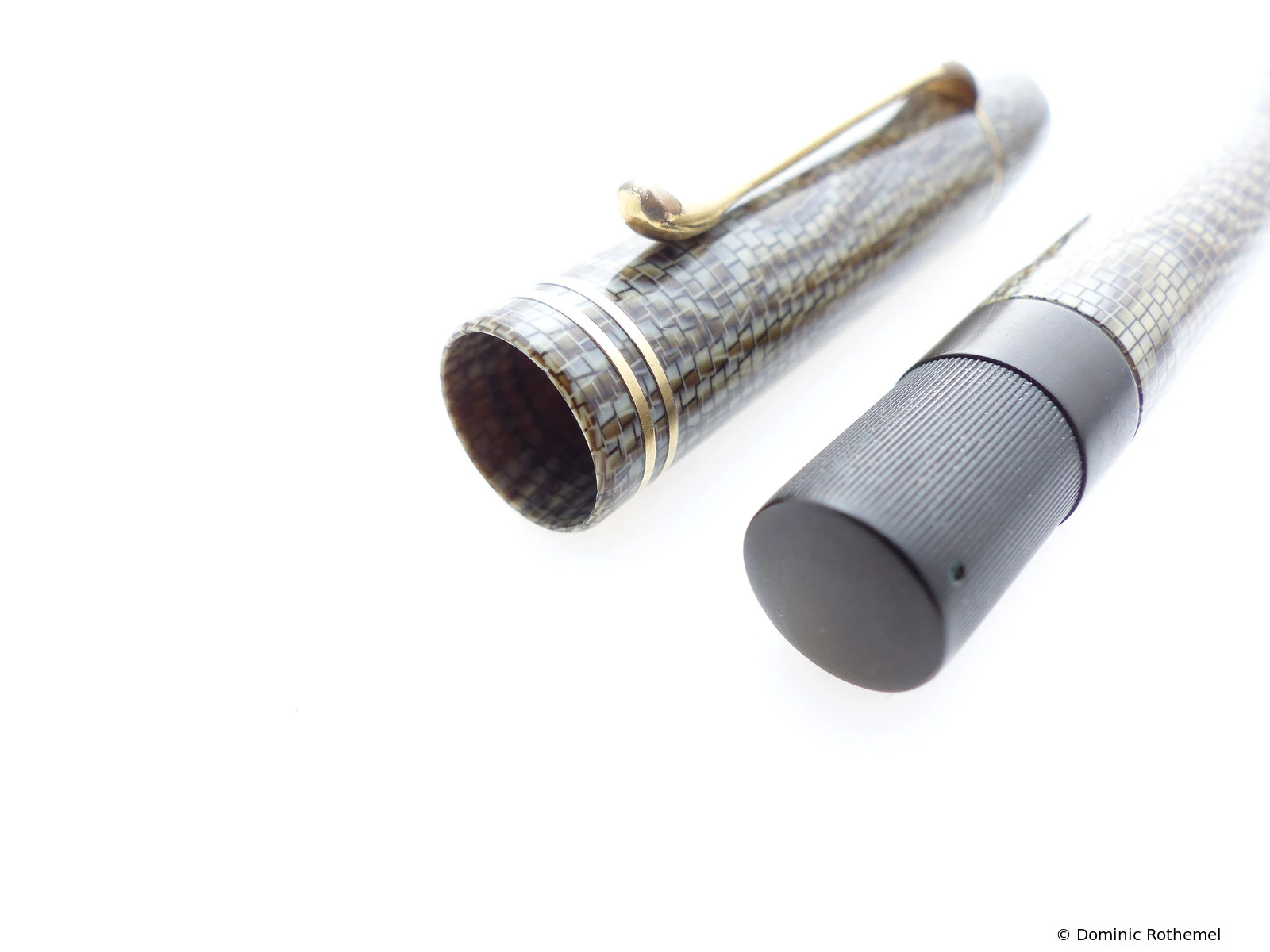

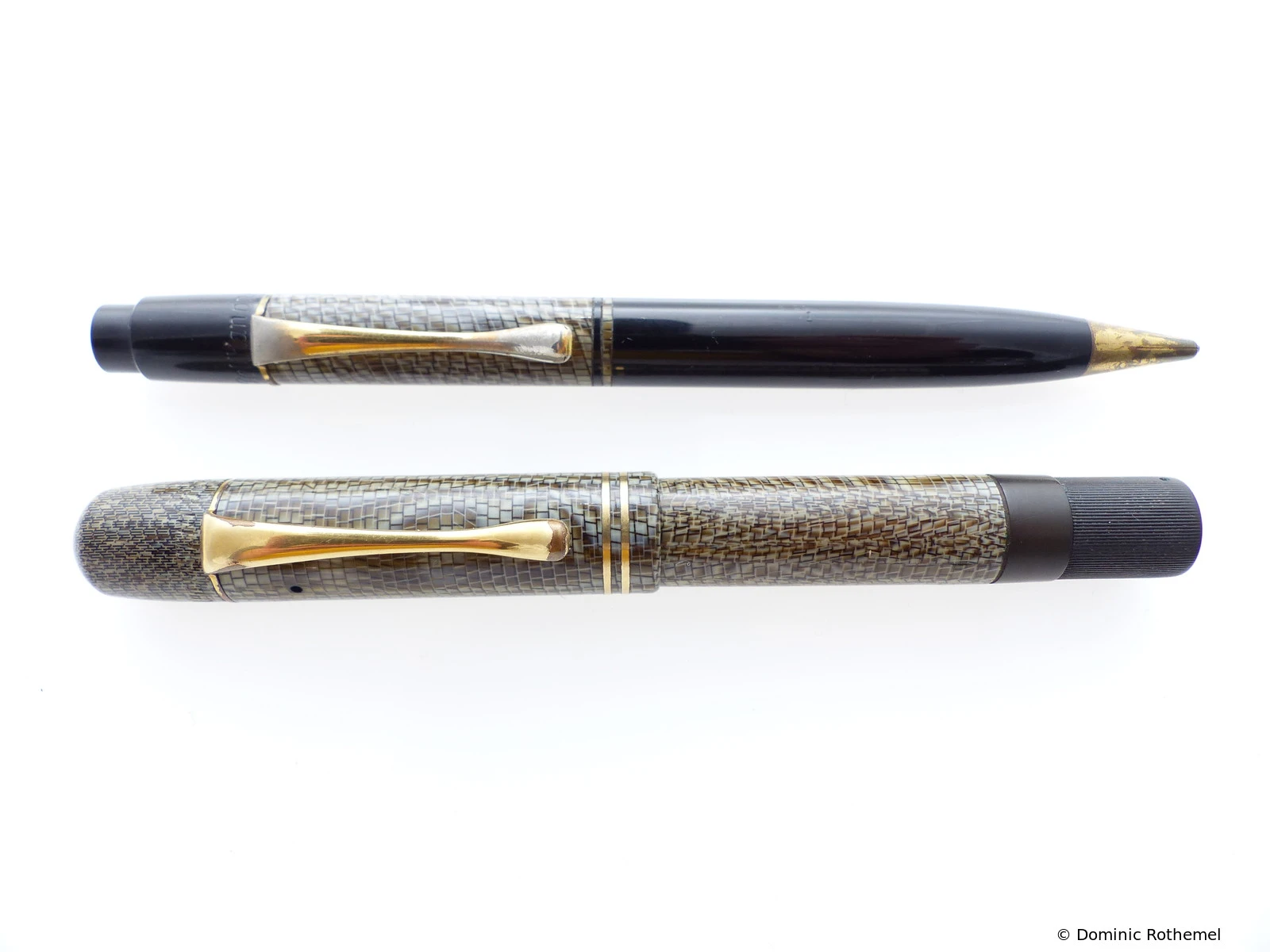

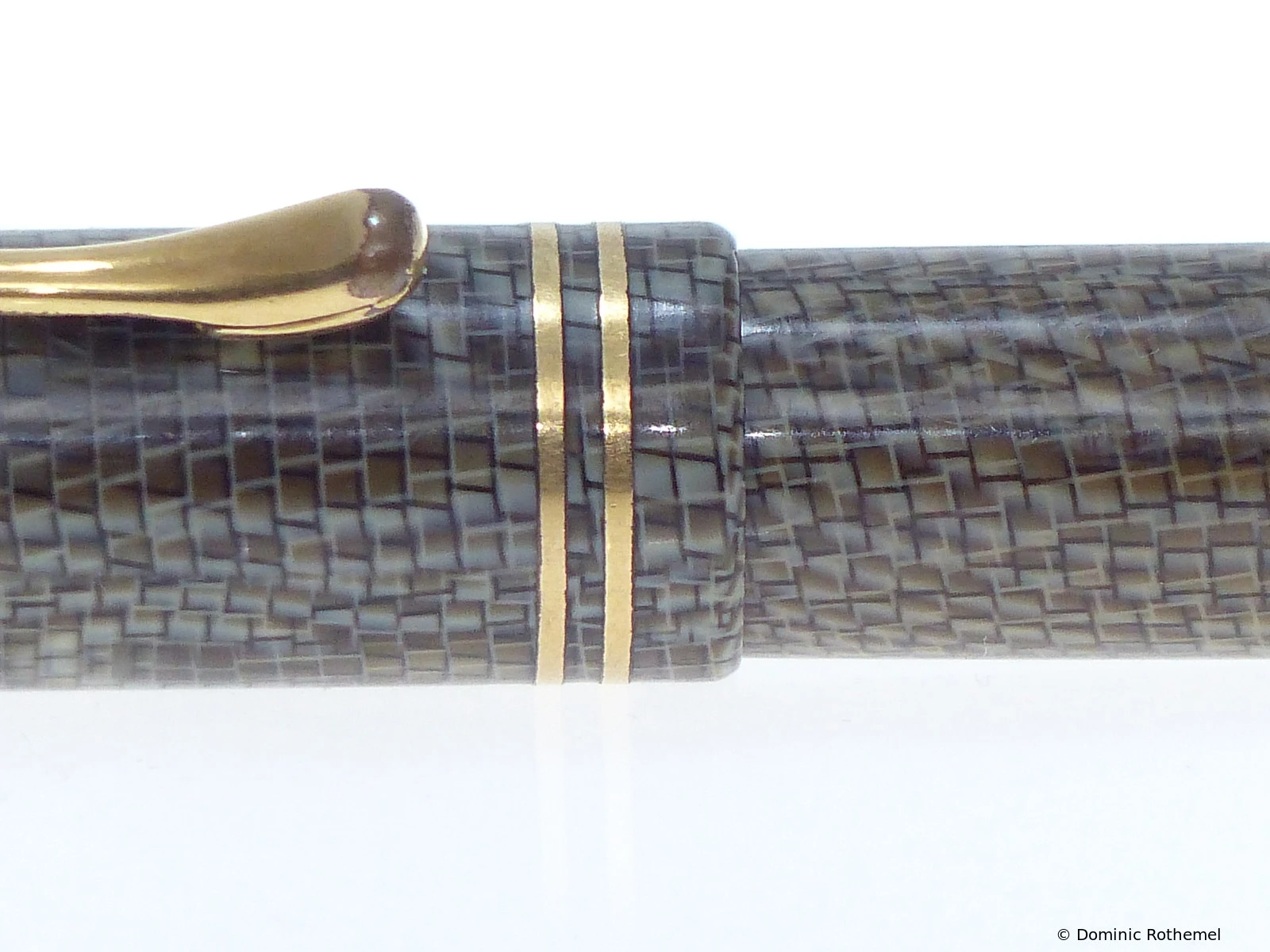

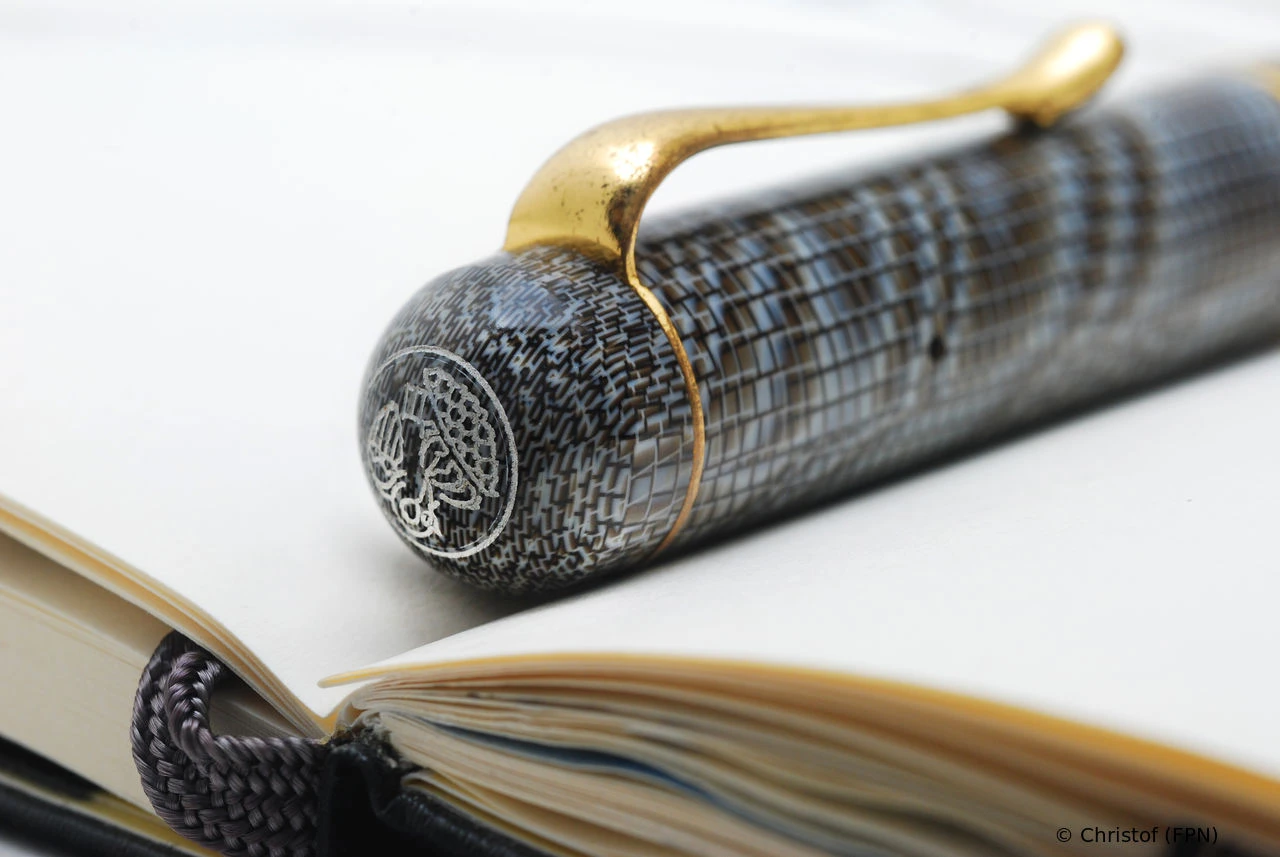

101 Lizard Series Production Color
Production: 1935-1937Nib: 14 ct gold Leaflet: FranzösischLink opens PDF documentPelikan Liporello appr. 1936
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: lizard patternCap Color: lizard patternTrim: gold plated

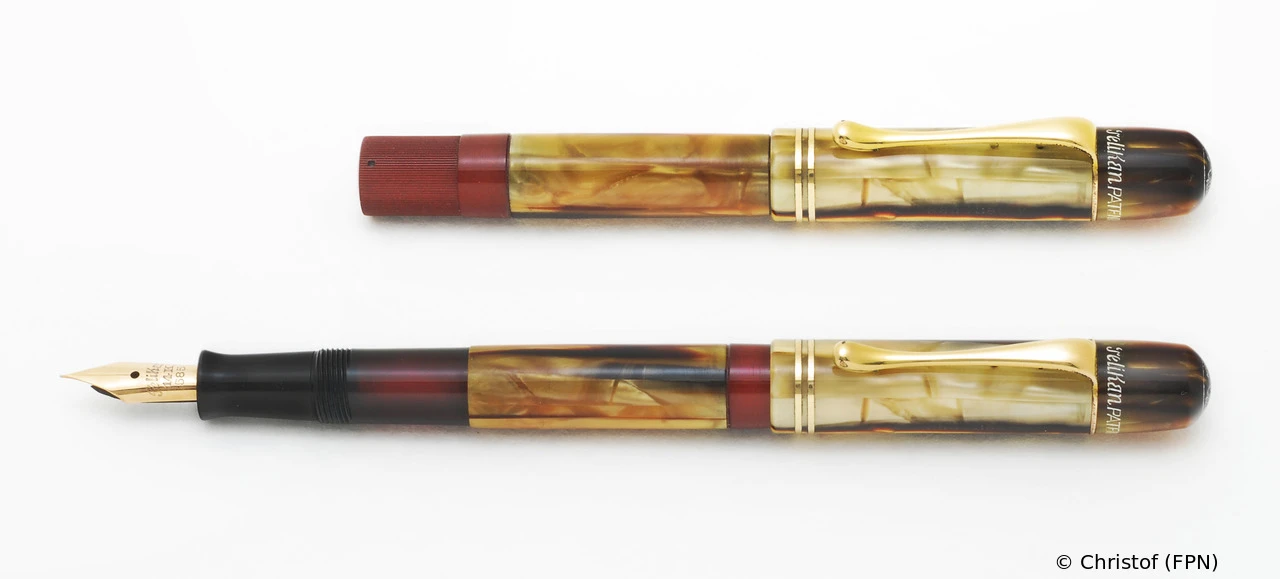

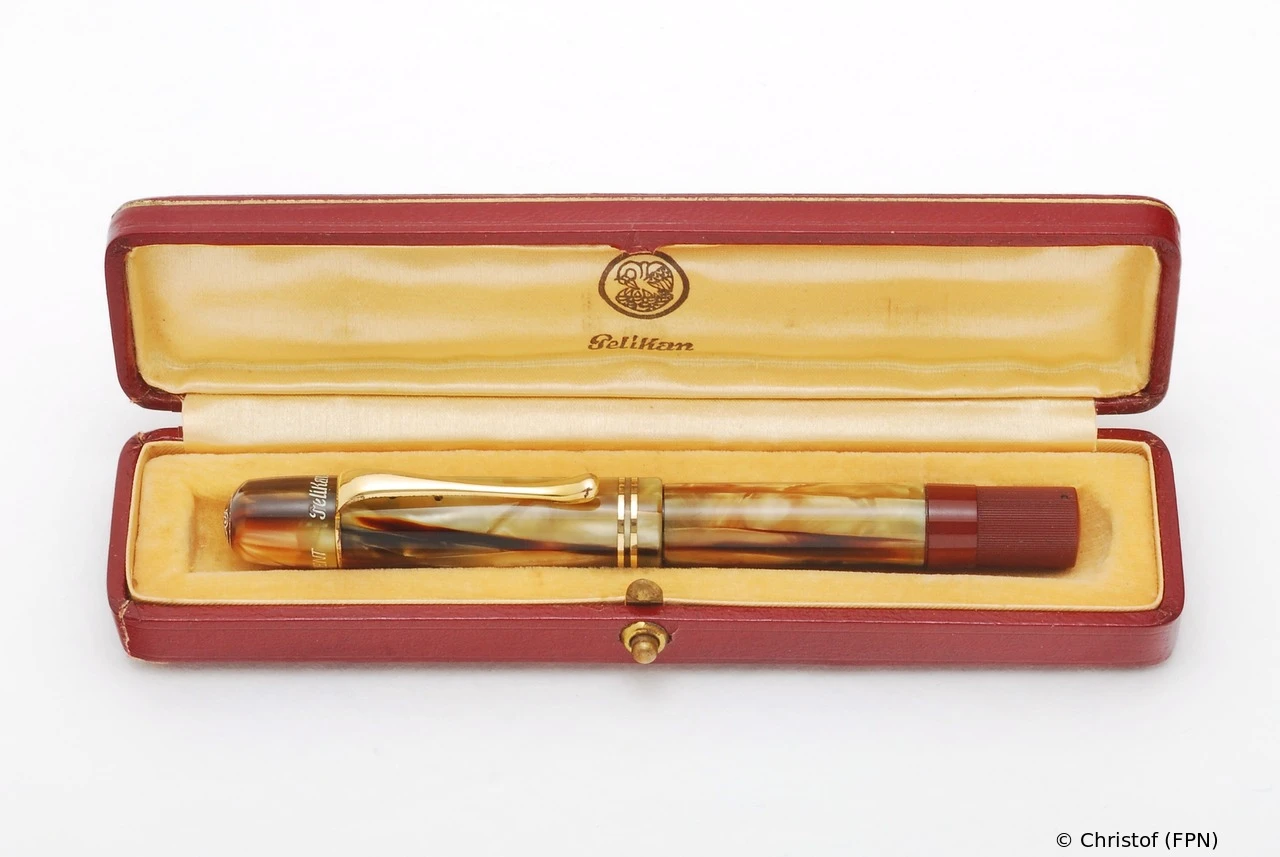

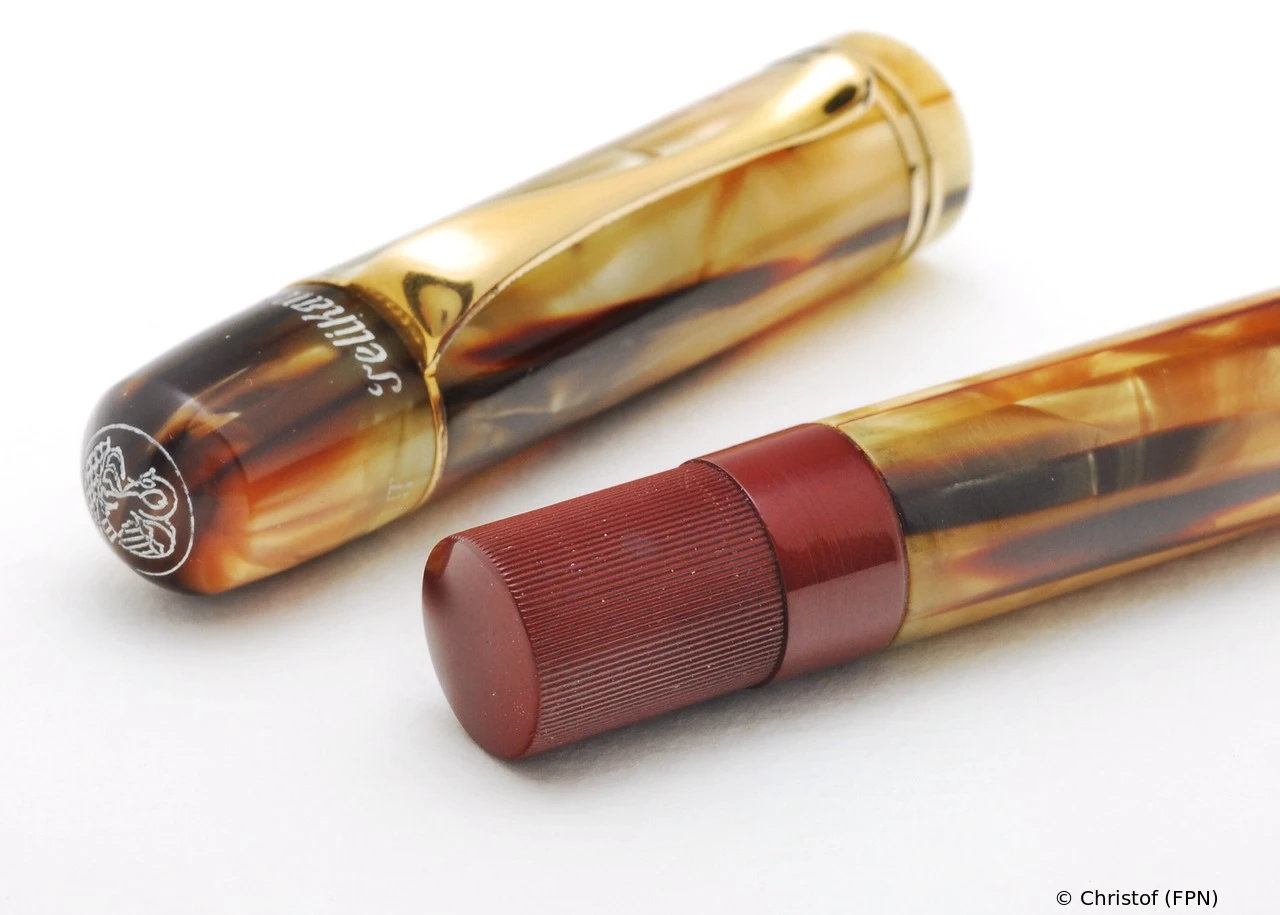

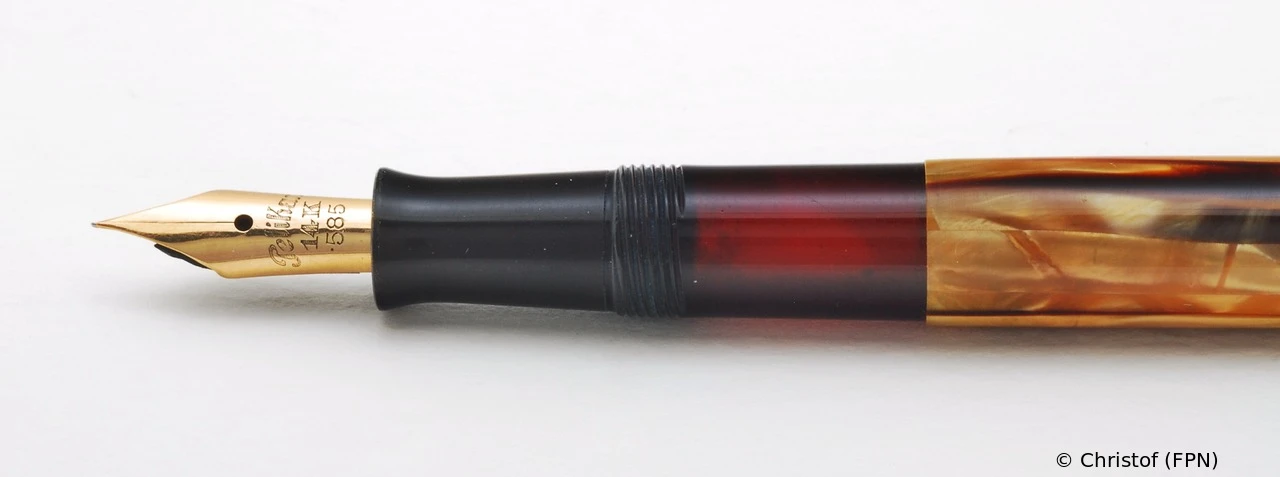

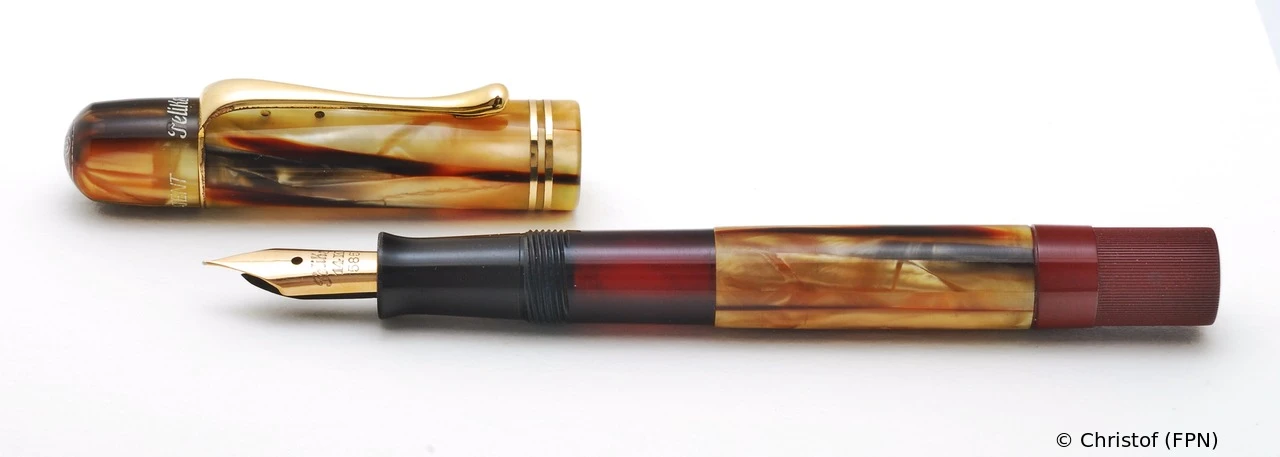

101 Tortoise Series Production Color
Production: 1935-1937Nib: 14 ct gold Leaflet: FranzösischLink opens PDF documentPelikan Liporello appr. 1936
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: tortoise brownCap Color: tortoise brownTrim: gold plated
101 Tortoise-Brown Series Production Color
Production: 1935Nib: 14 ct gold Leaflet: FranzösischLink opens PDF documentPelikan Liporello appr. 1936
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: tortoise brownCap Color: brownTrim: gold plated

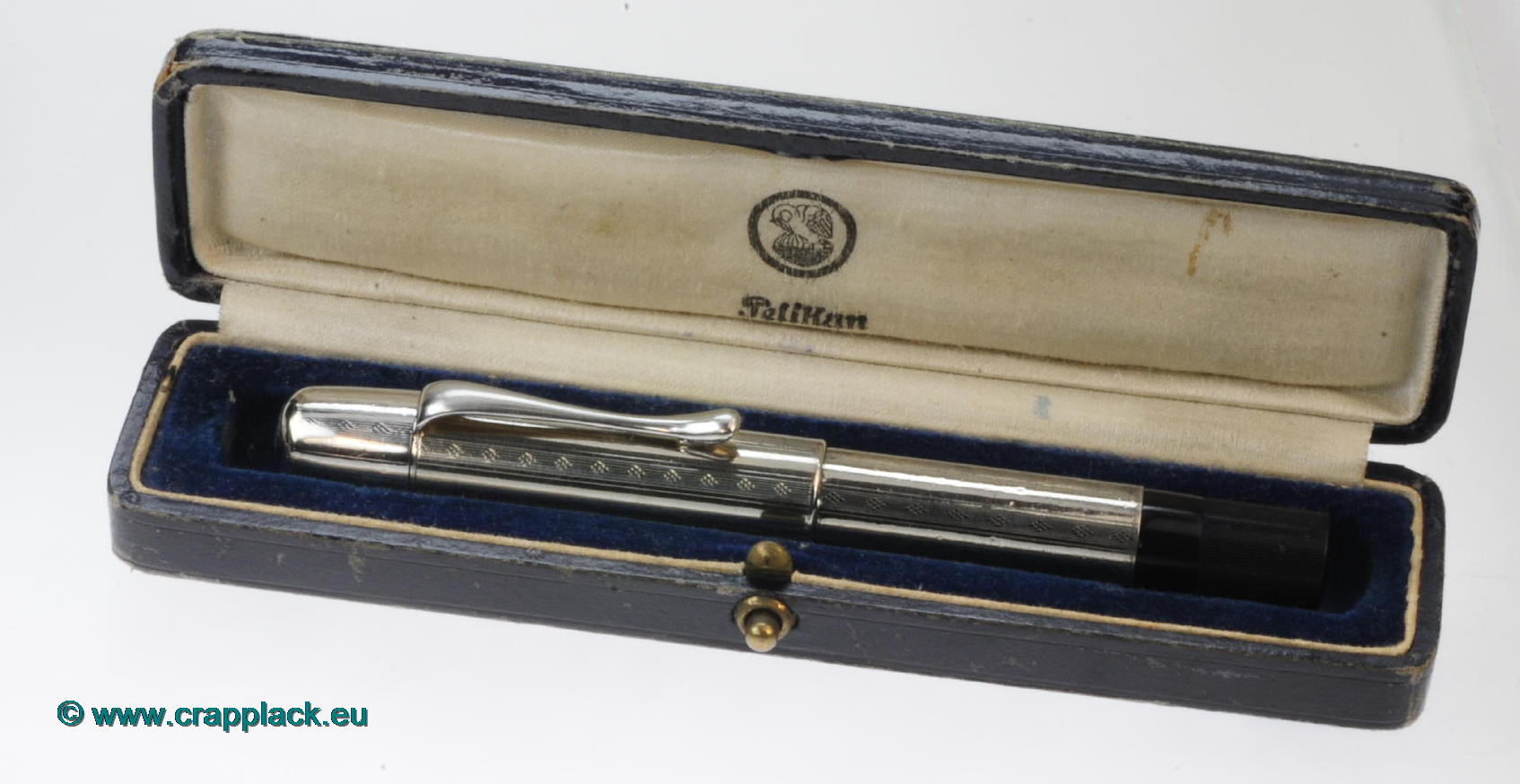

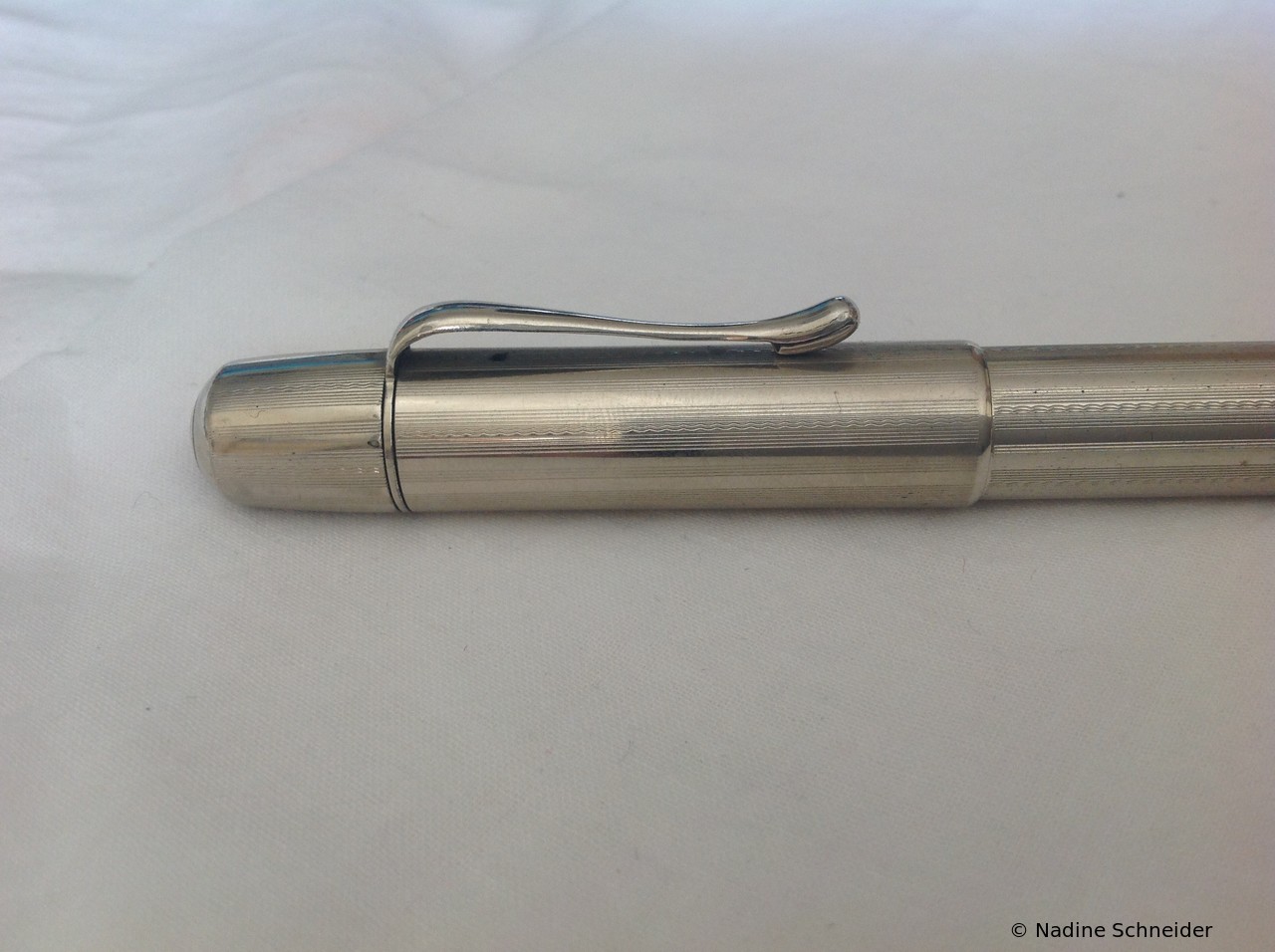

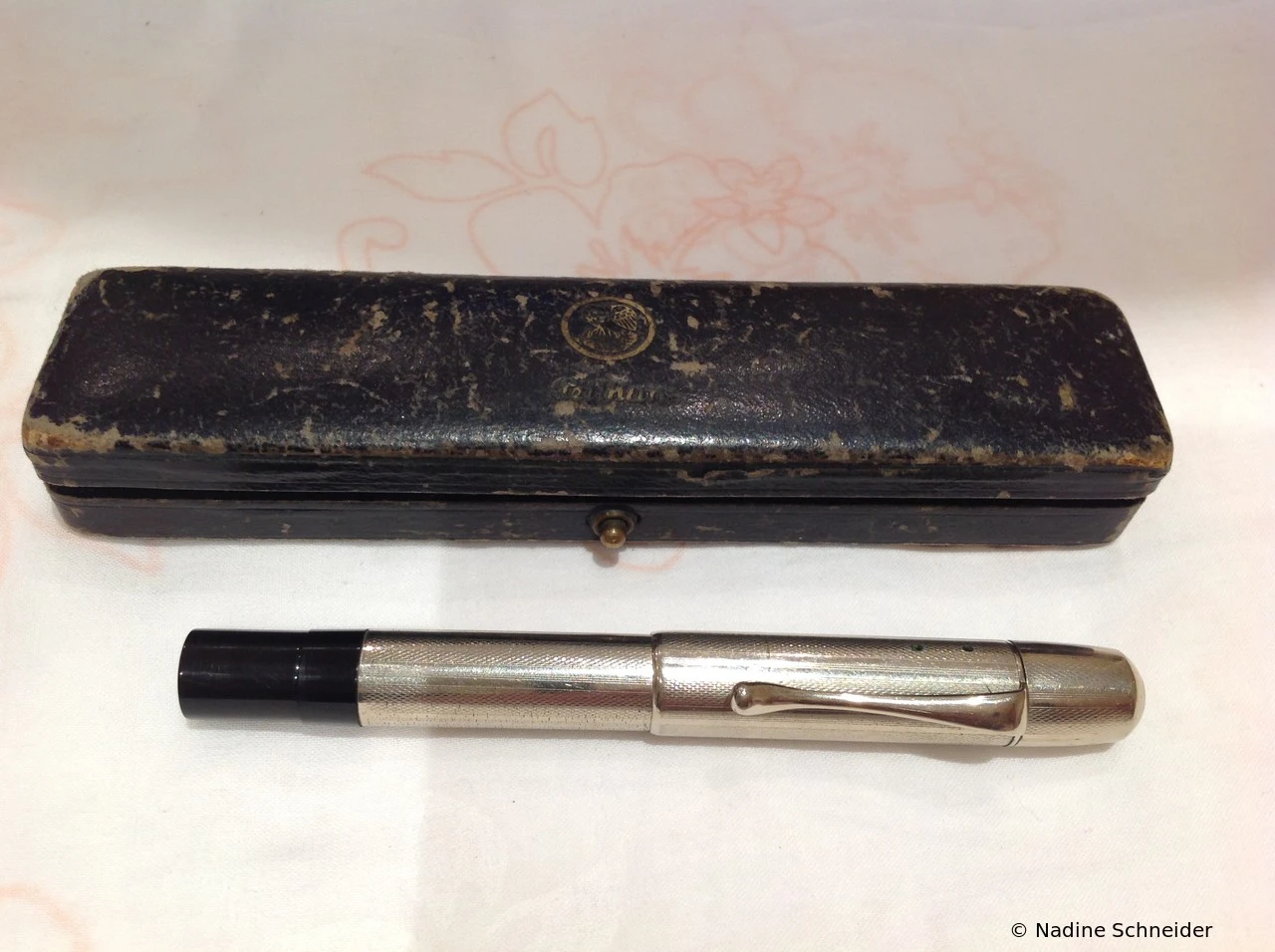

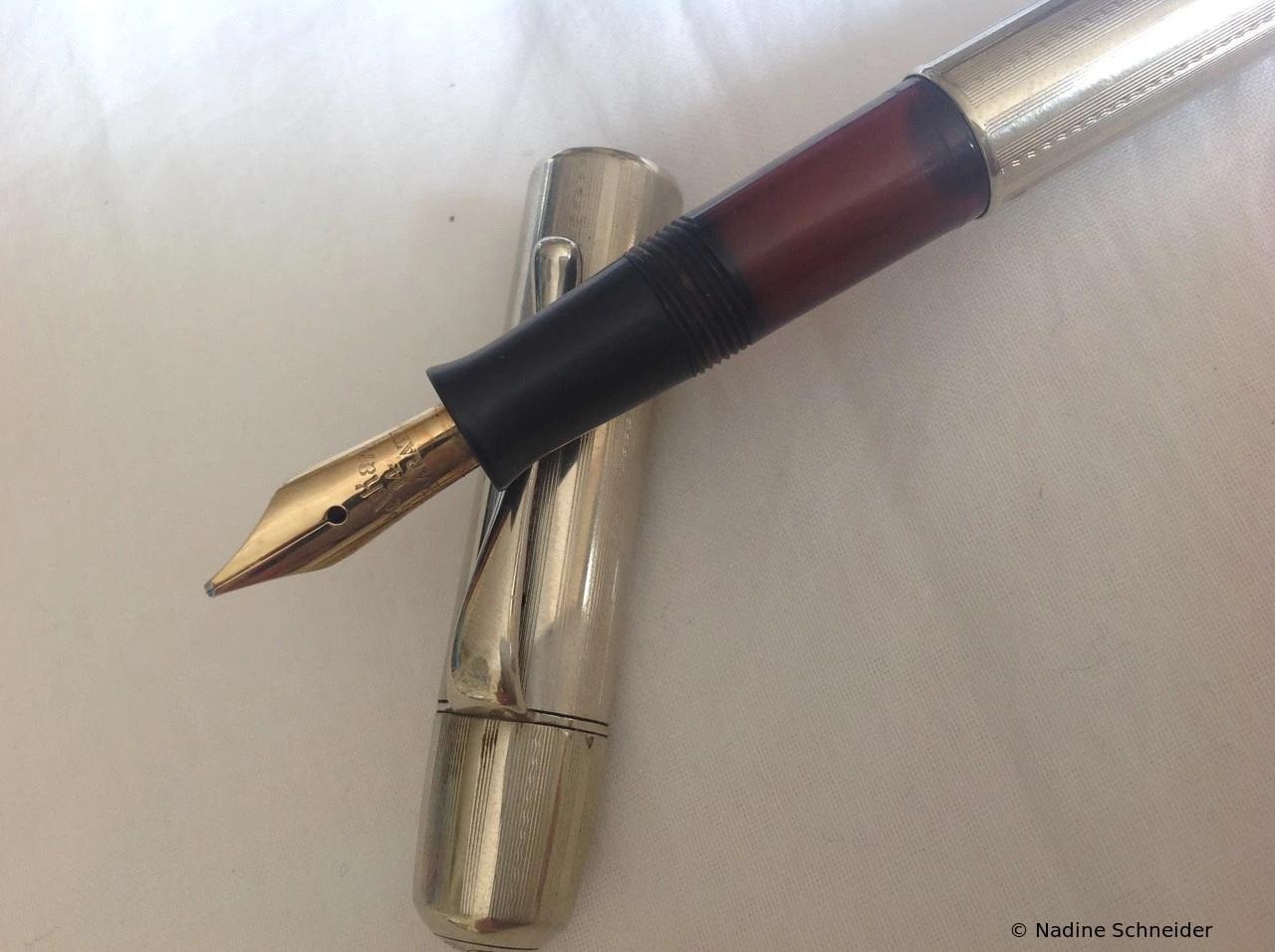

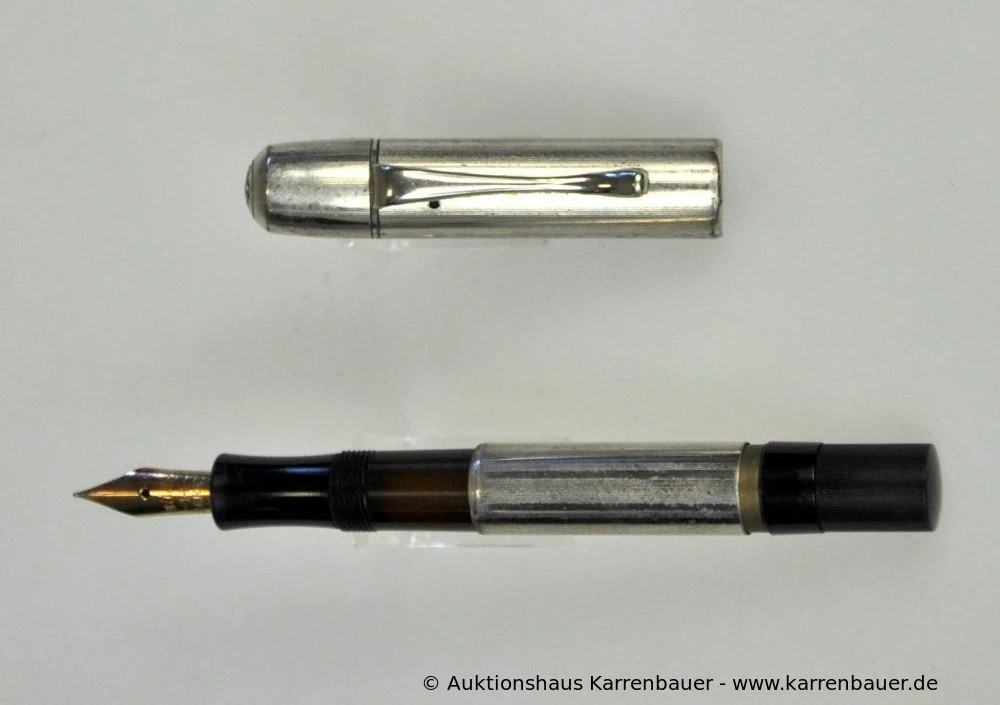

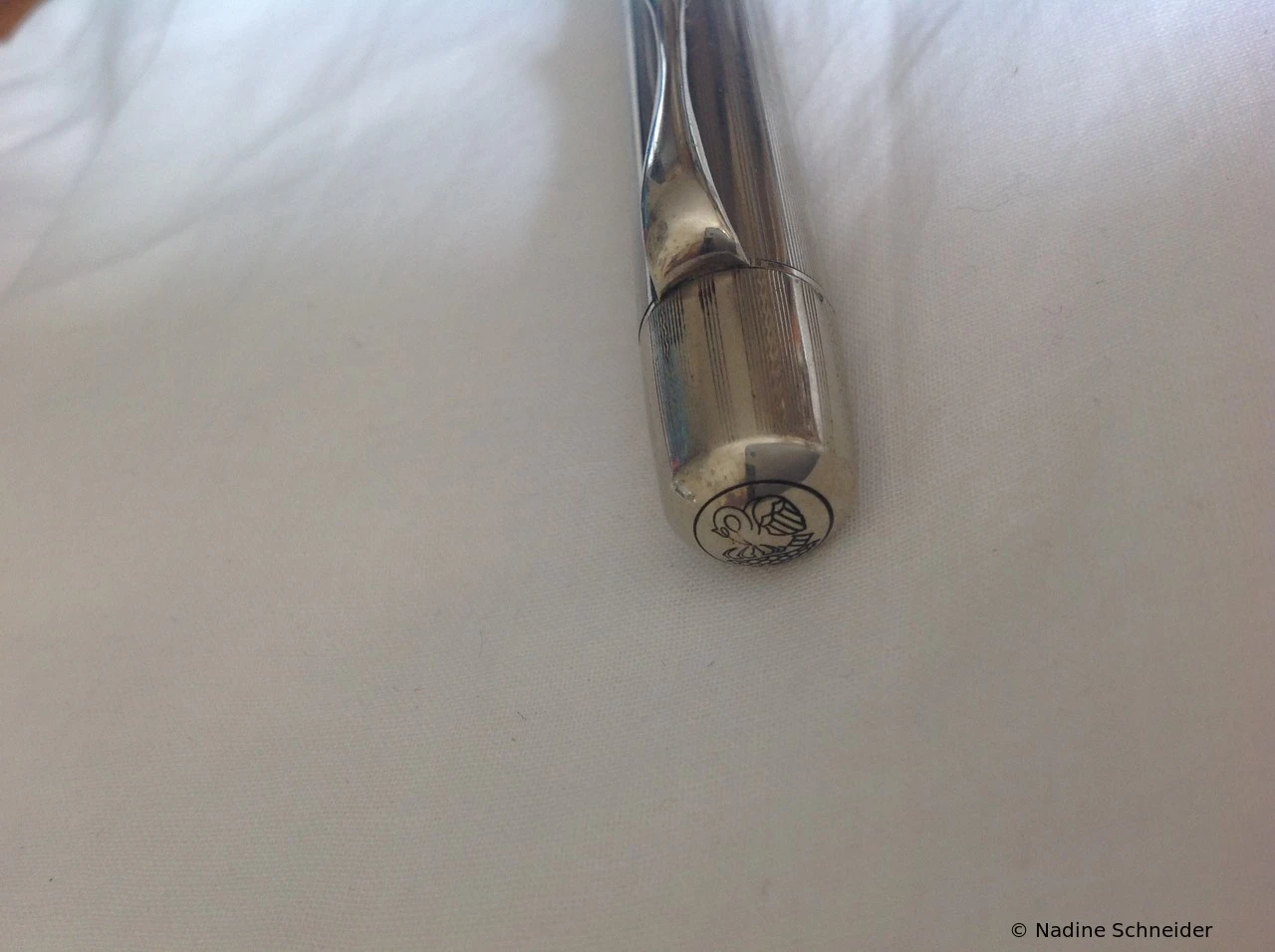

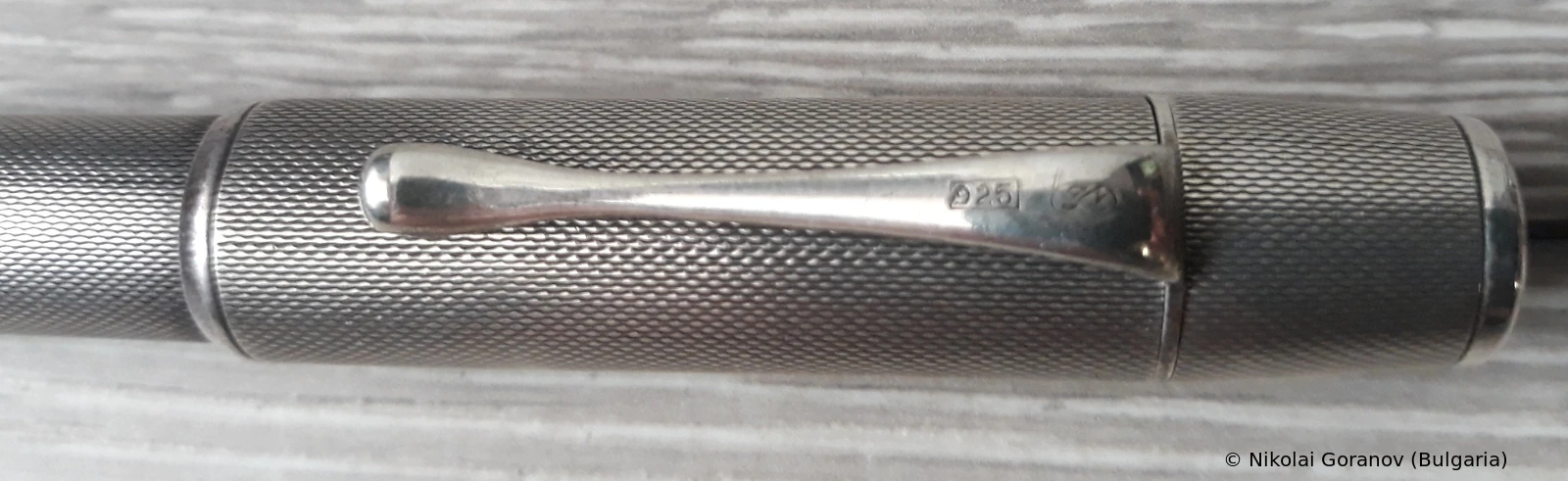

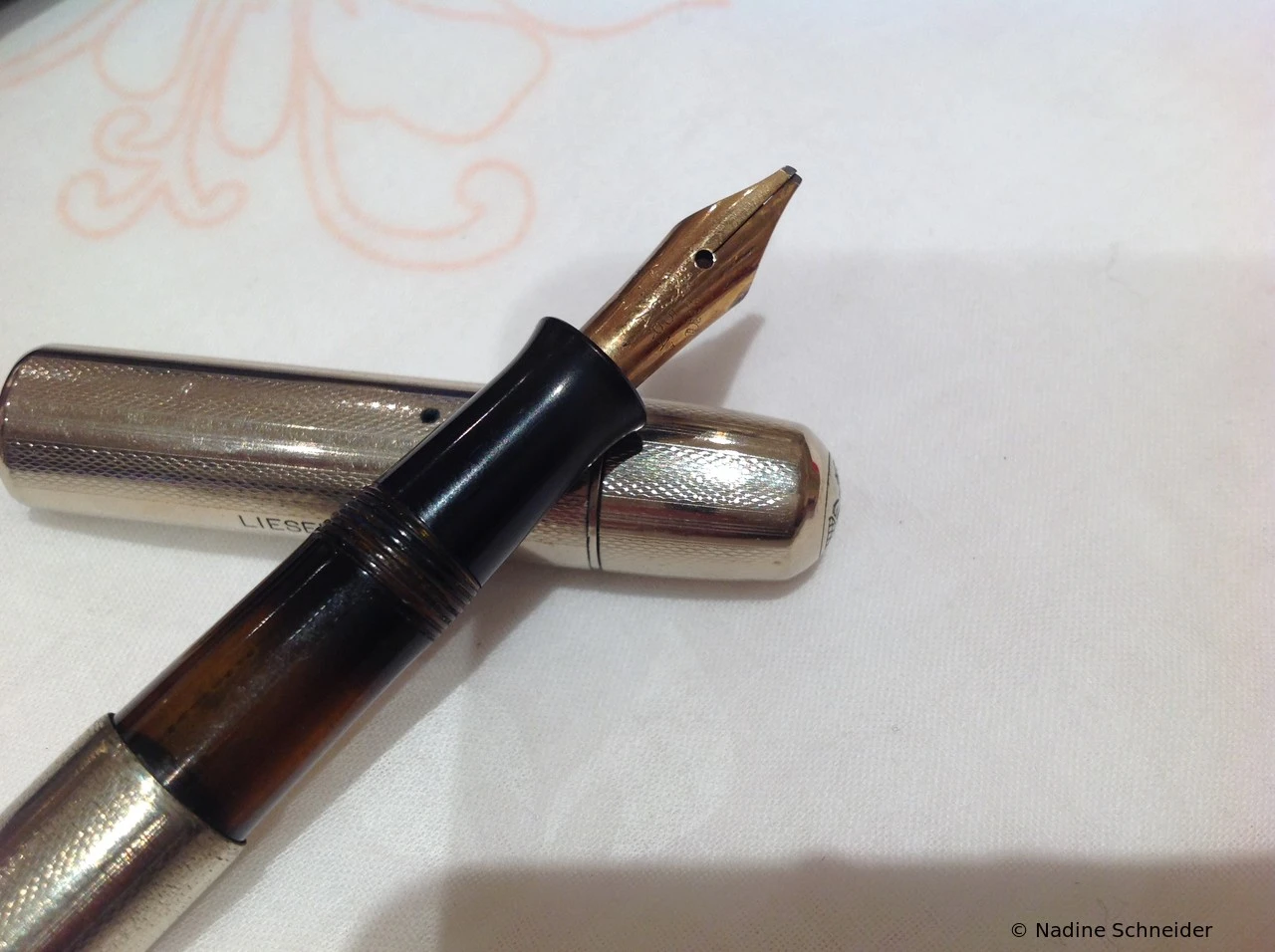

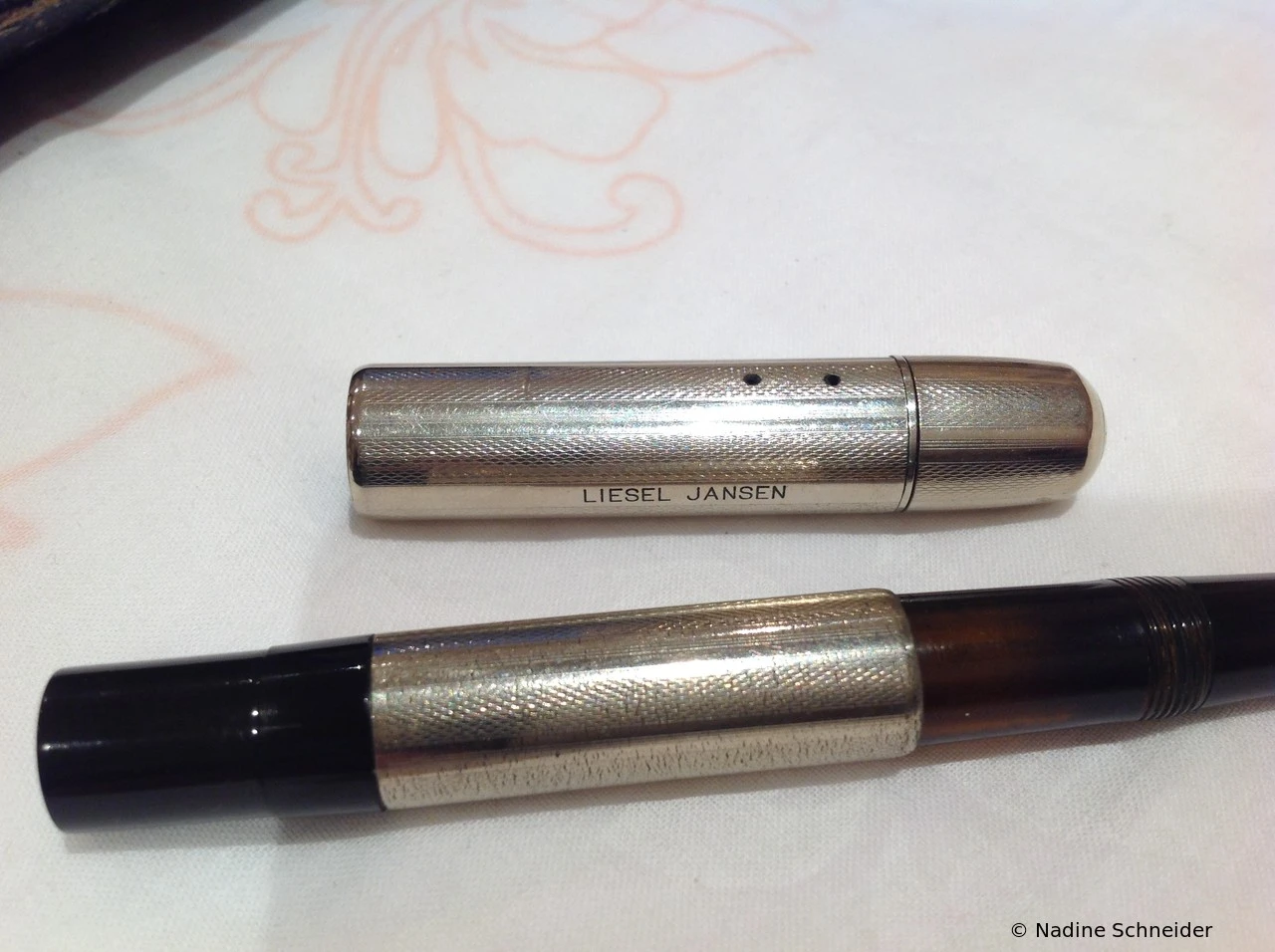

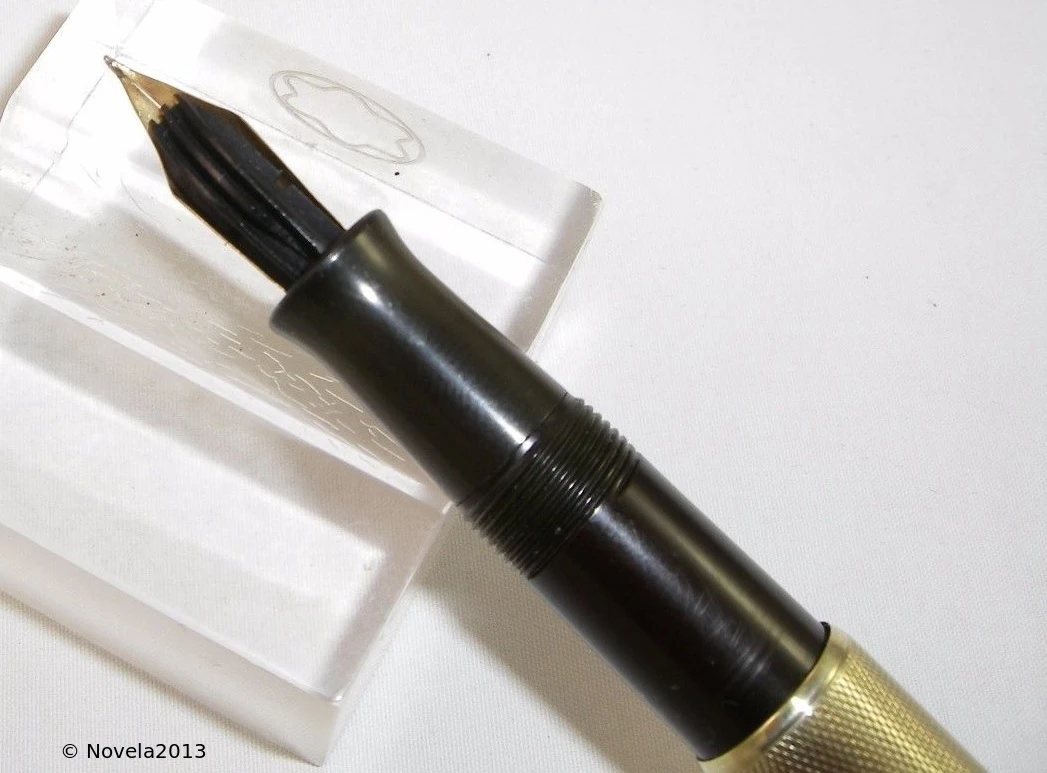

Pelikan 110

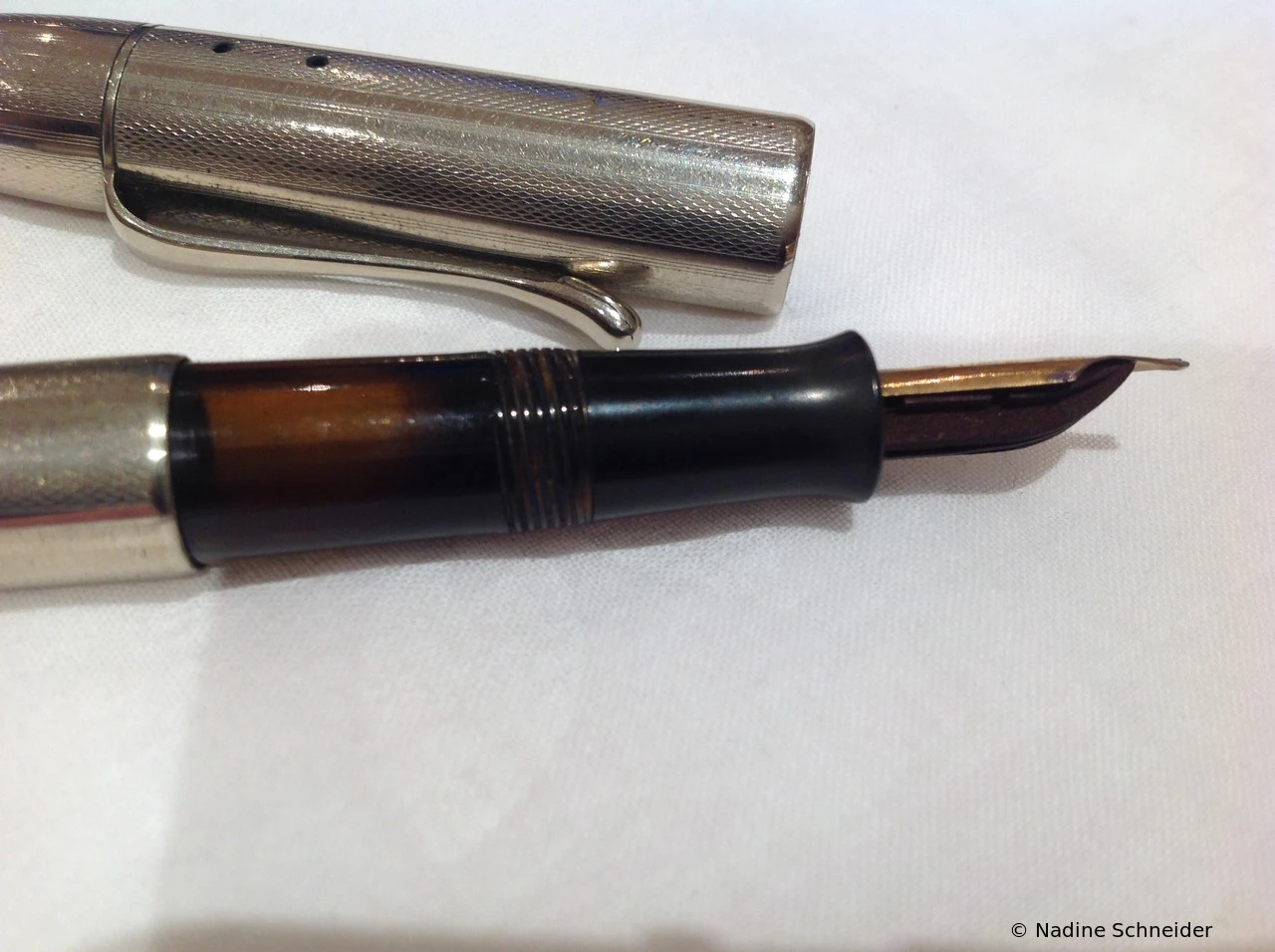

The Pelikan 110 has a white gold filled cap and barrel overlay with a beautiful guilloche.

Model Production Period Nib
110 1931-1938

14 ct gold nib / 18 ct gold nib for export

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
4.61 in 3.74 in 2.40 in 0.47 in 1.5 ml
117 mm 95 mm 61 mm 12 mm


110

110 White gold doublé Diamond Series Production Color Details
Production: 1931-1938Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPelikan Preisliste 60
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: white goldCap Color: white goldTrim: silver-colored

The model 110 with different ribbon guilloche. Here is shown a diamond guilloche.

110 White gold doublé Grain Series Production Color Details
Production: 1931-1938Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: white goldCap Color: white goldTrim: silver-colored

The model 110 with different ribbon guilloche. Here a grain guilloche is shown.

110 White gold doublé Wave Series Production Color Details
Production: 1931-1938Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: white goldCap Color: white goldTrim: silver-colored

The model 110 with different ribbon guilloche. Shown here is a wave guilloche.

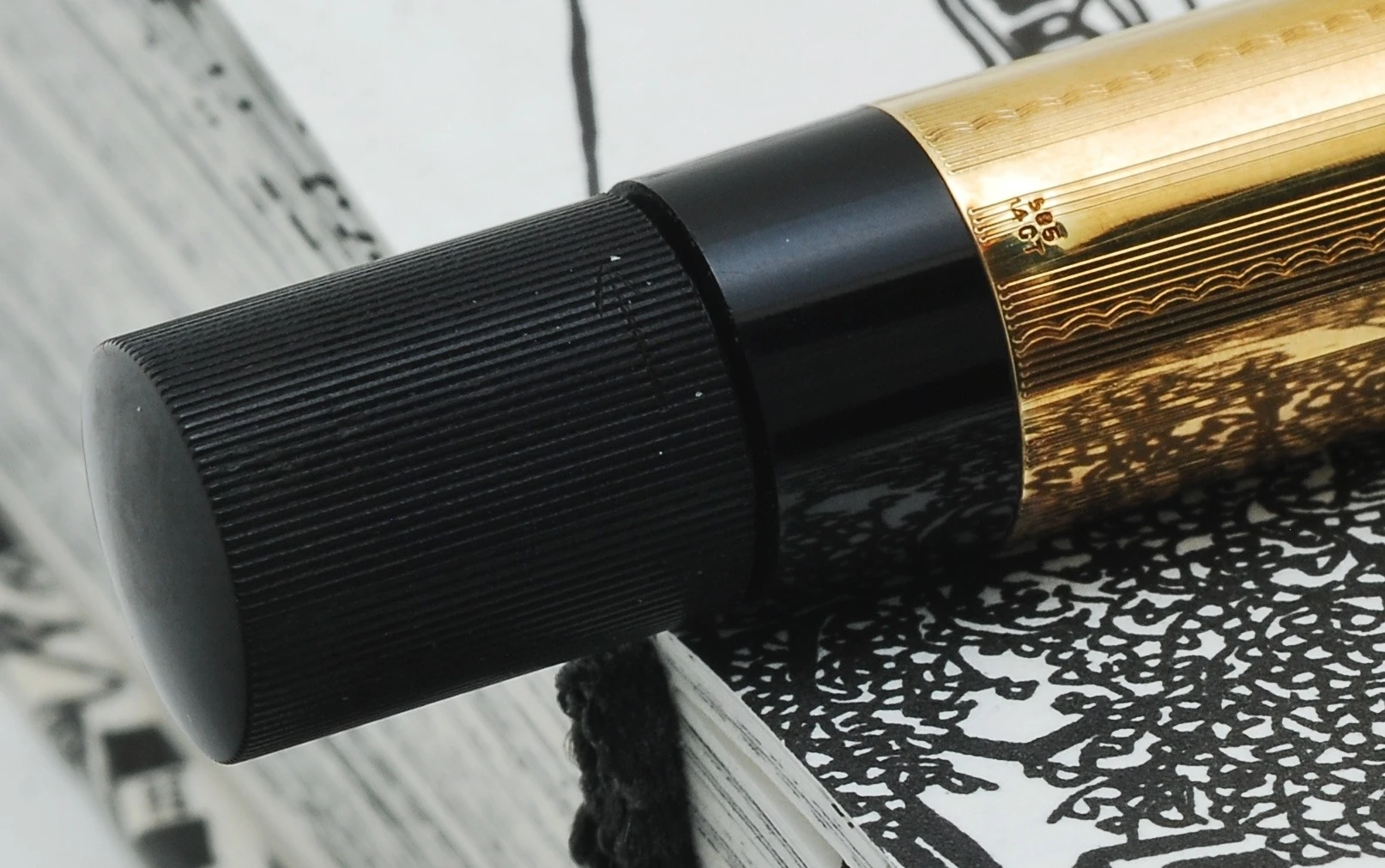

Pelikan 111

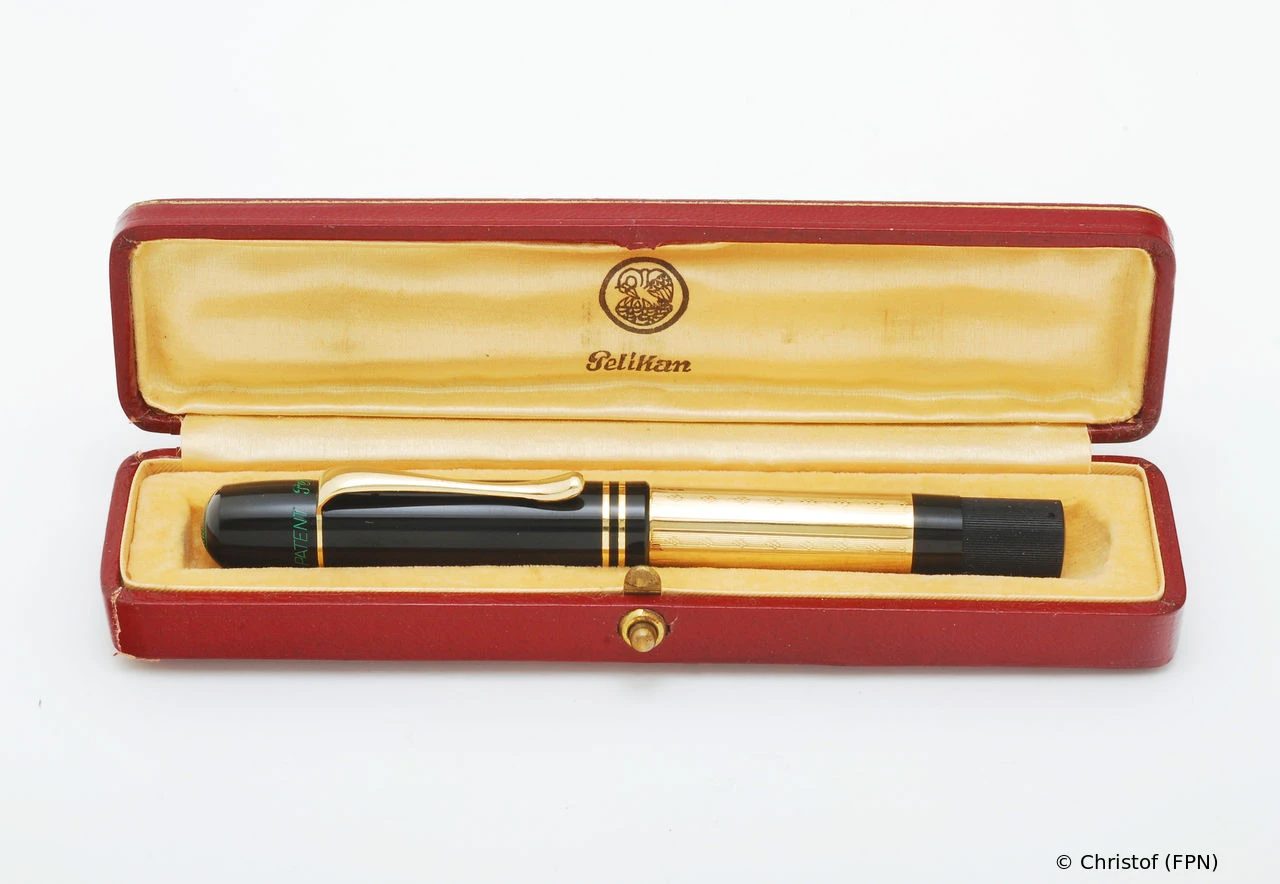

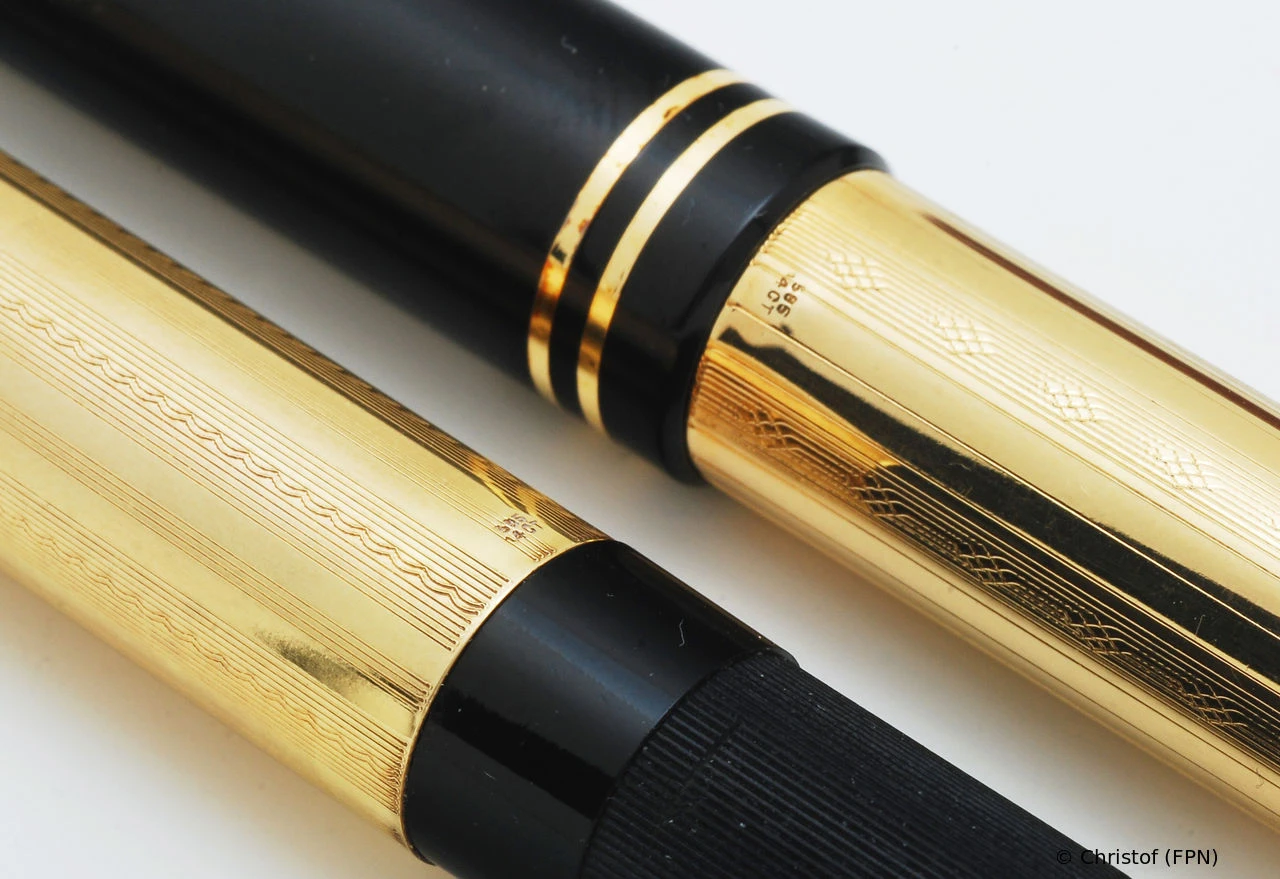

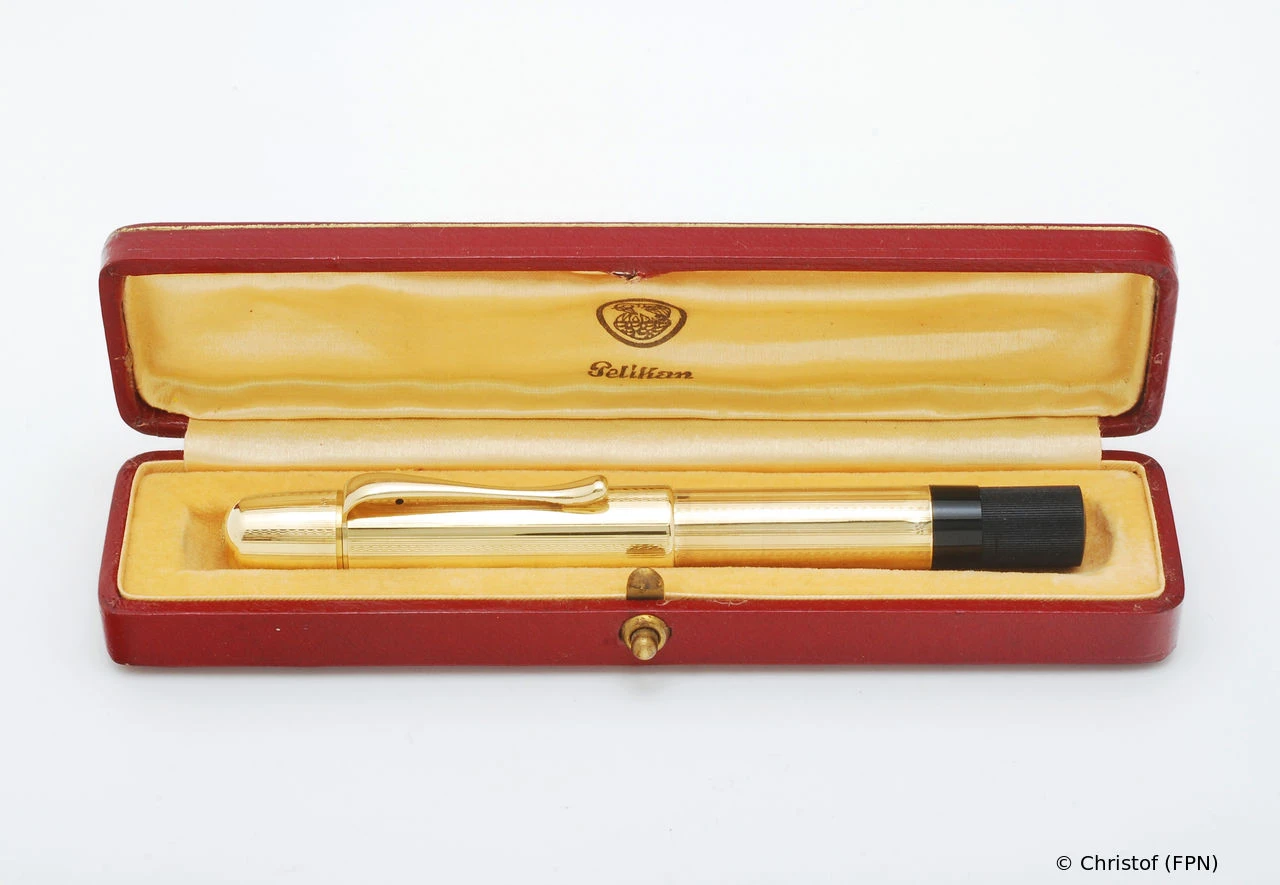

Pelikan 111 has a black cap, but the barrel is made from 14 carat yellow gold. The cap bands are also made from 14 carat gold.

Model Production Period Nib
111 1931-1938

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
4.61 in 3.74 in 2.40 in 0.47 in 1.5 ml
117 mm 95 mm 61 mm 12 mm


111

111 Gold Series Production Color

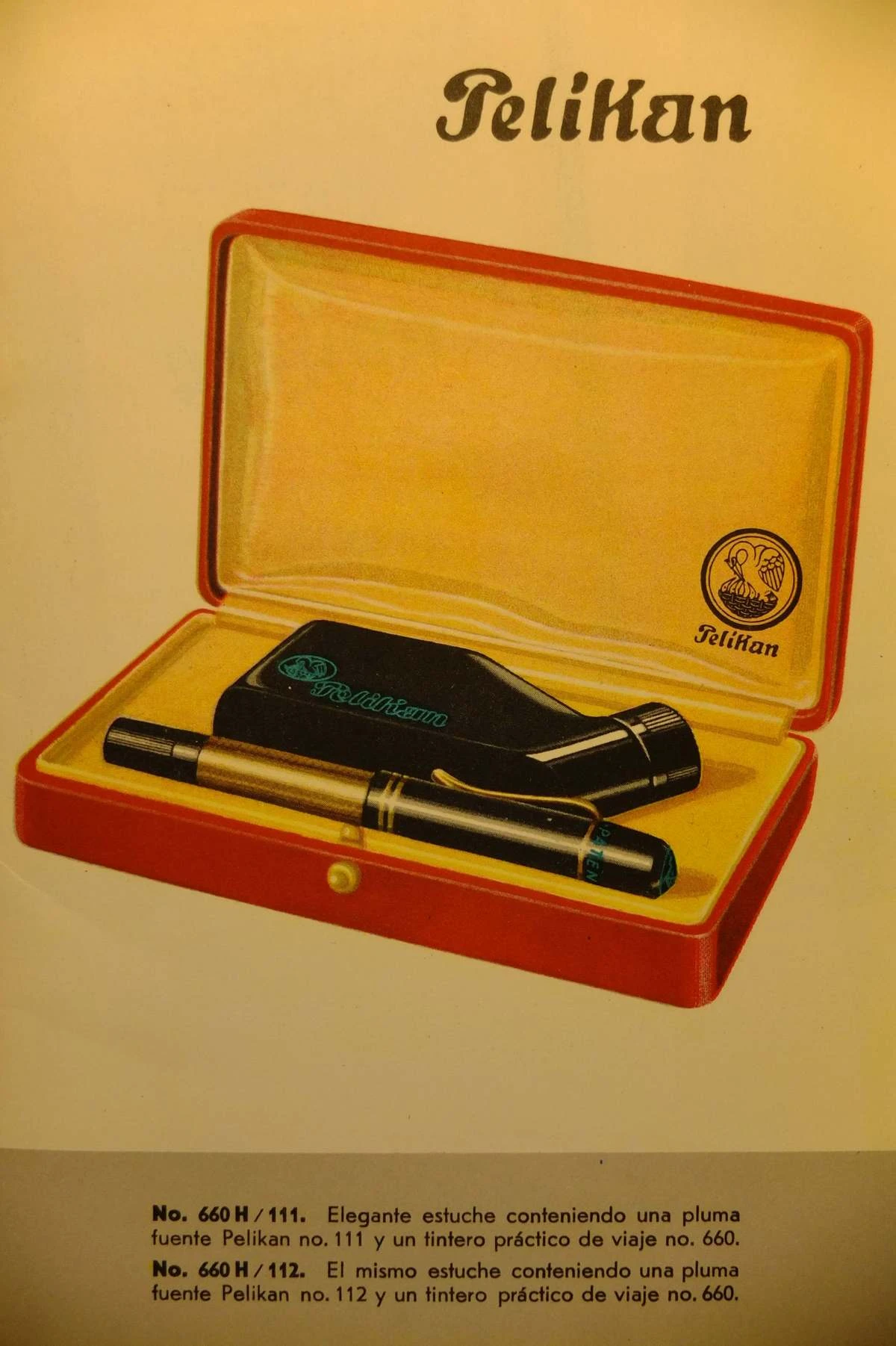

Production: 1931-1938Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPelikan Blätter 01/1931 DeutschLink opens PDF documentPelikan Preisliste 60
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: goldCap Color: blackTrim: 585 gold

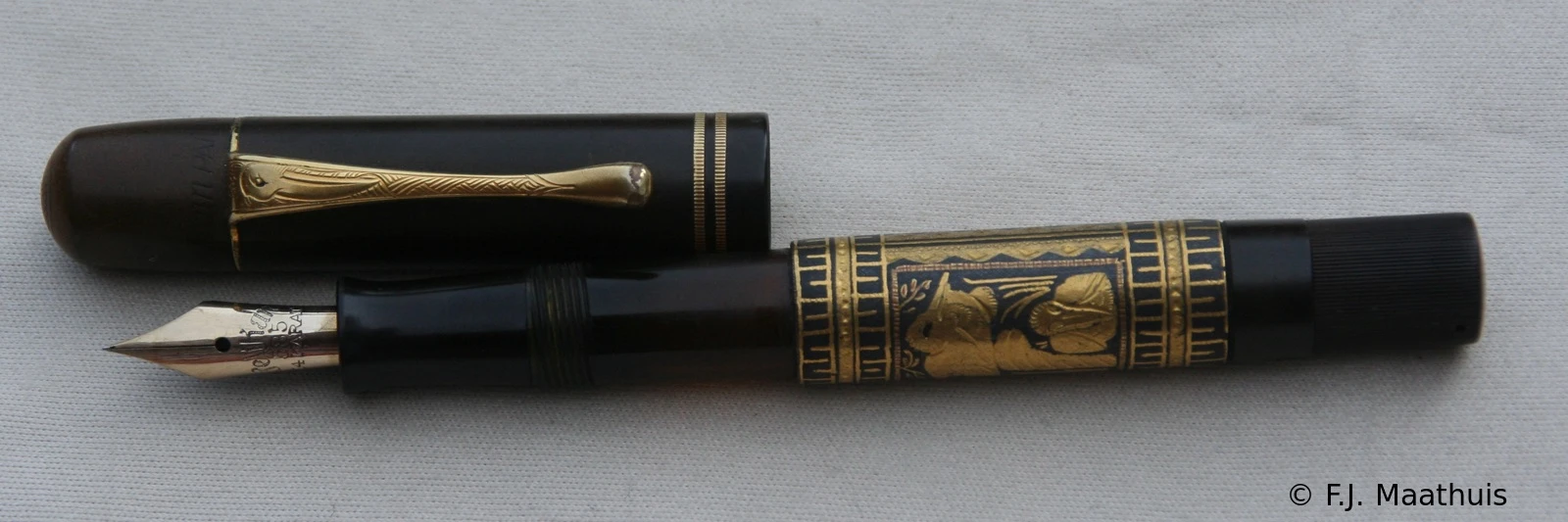

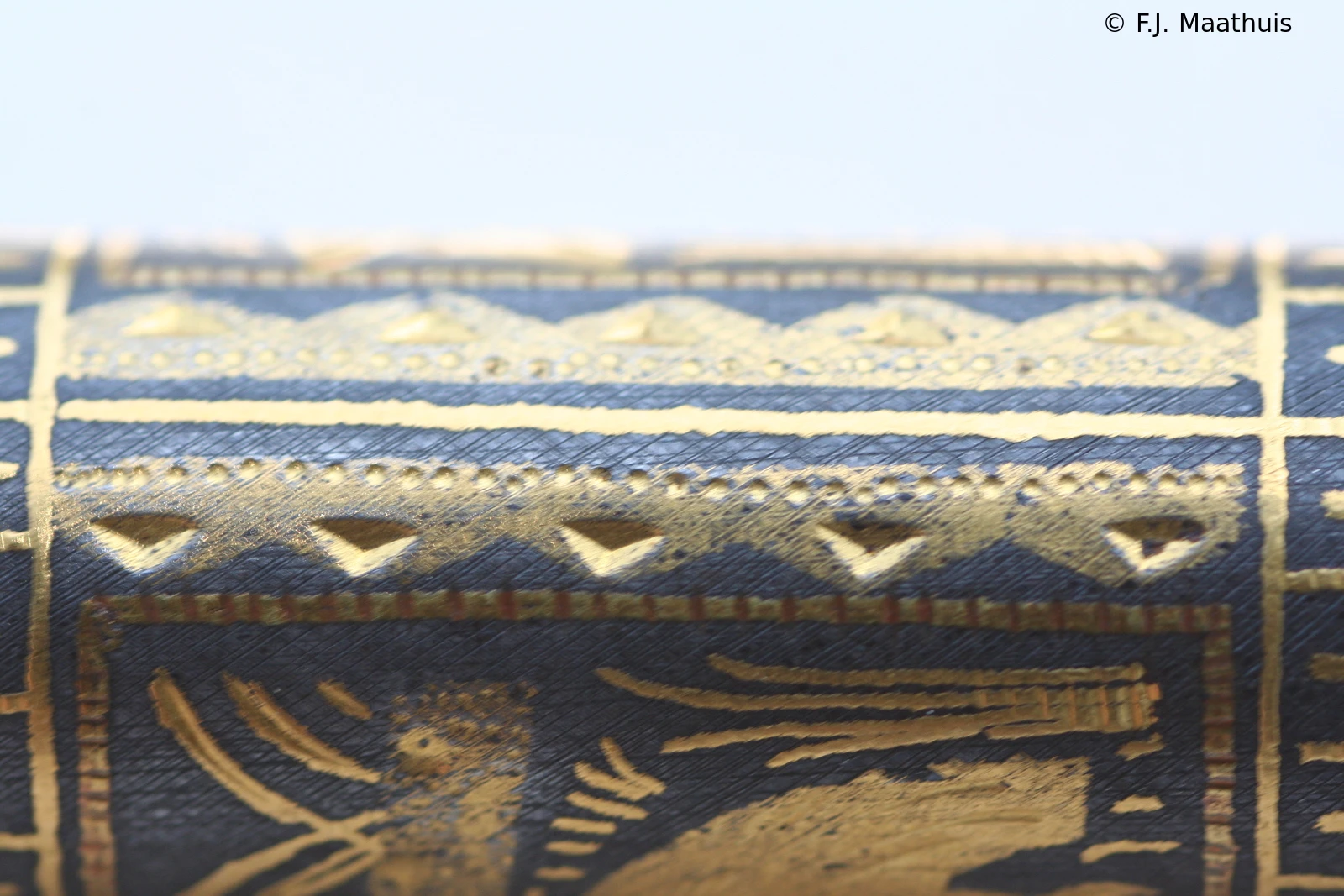

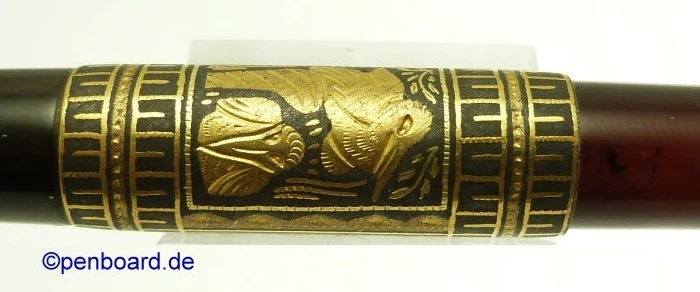

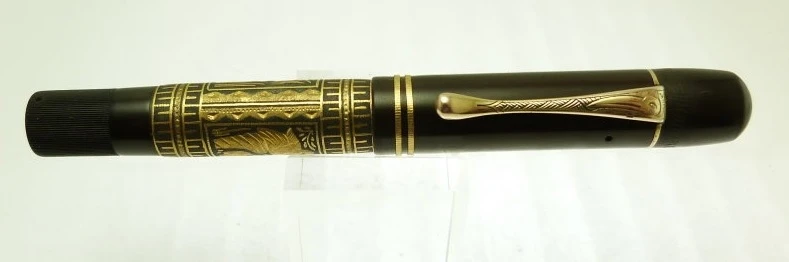

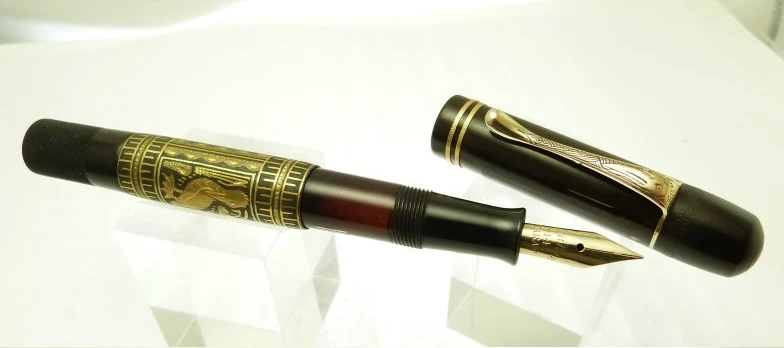

Pelikan 111T Toledo

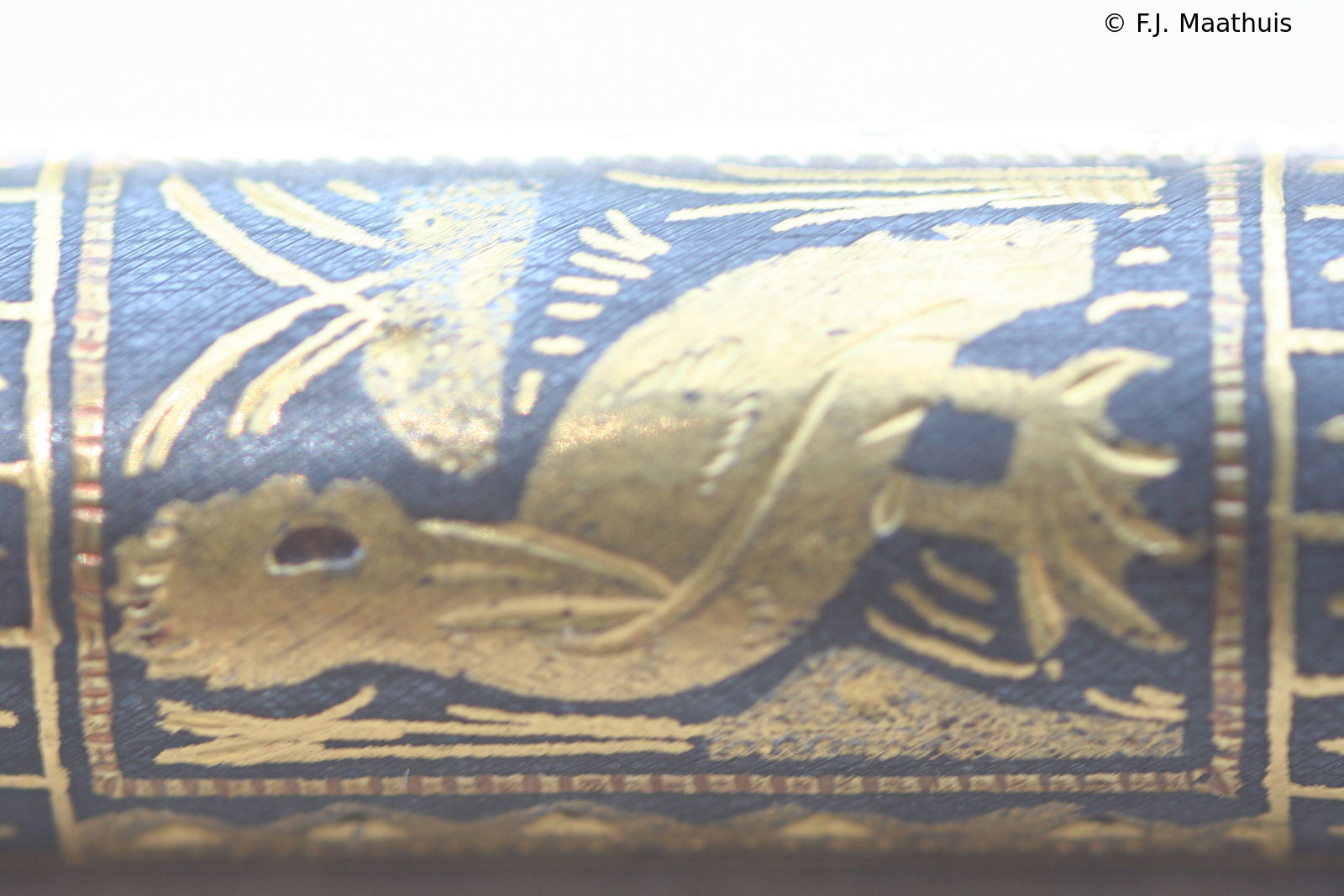

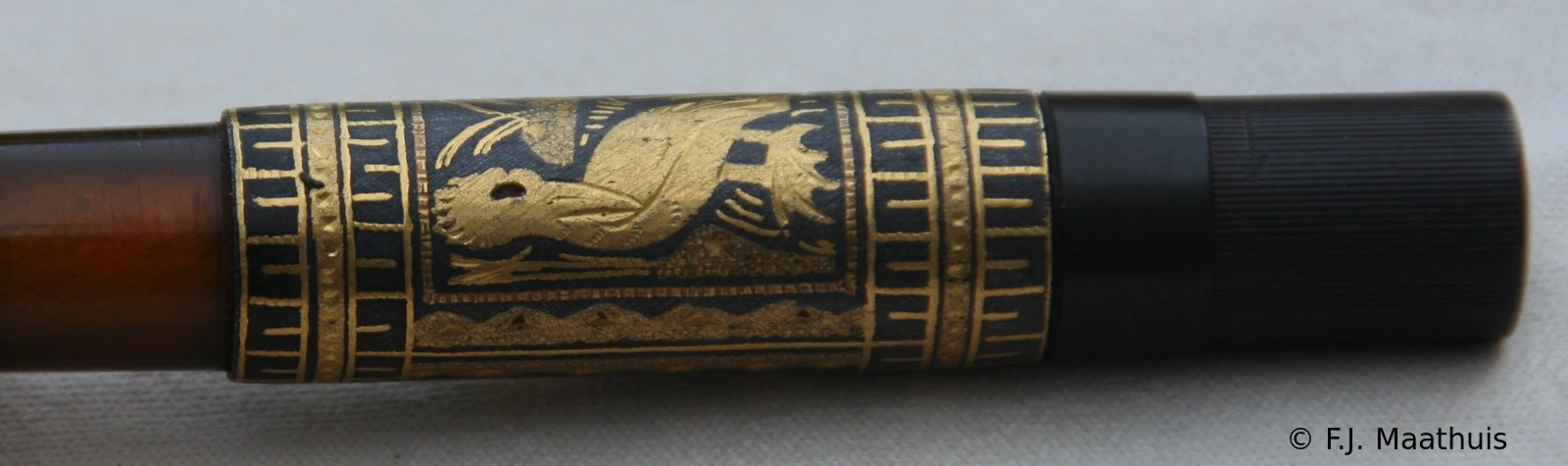

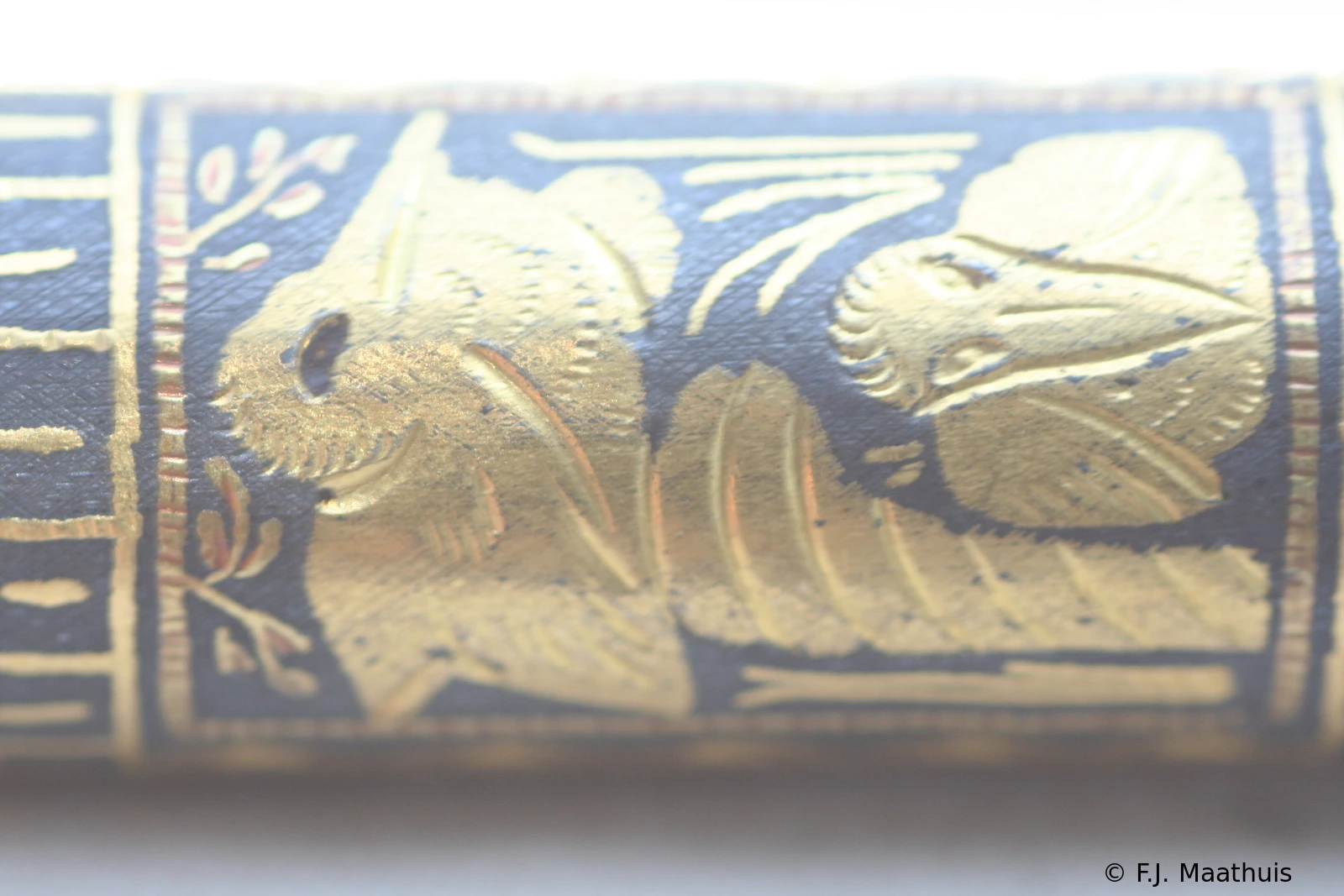

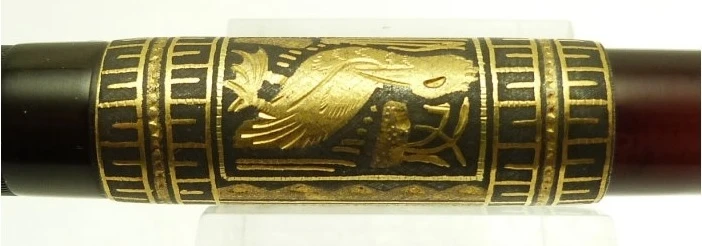

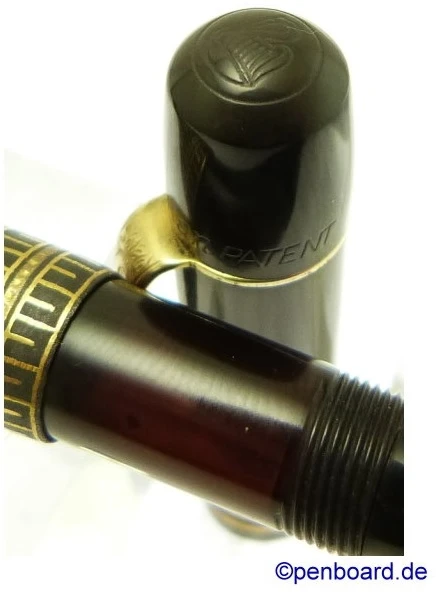

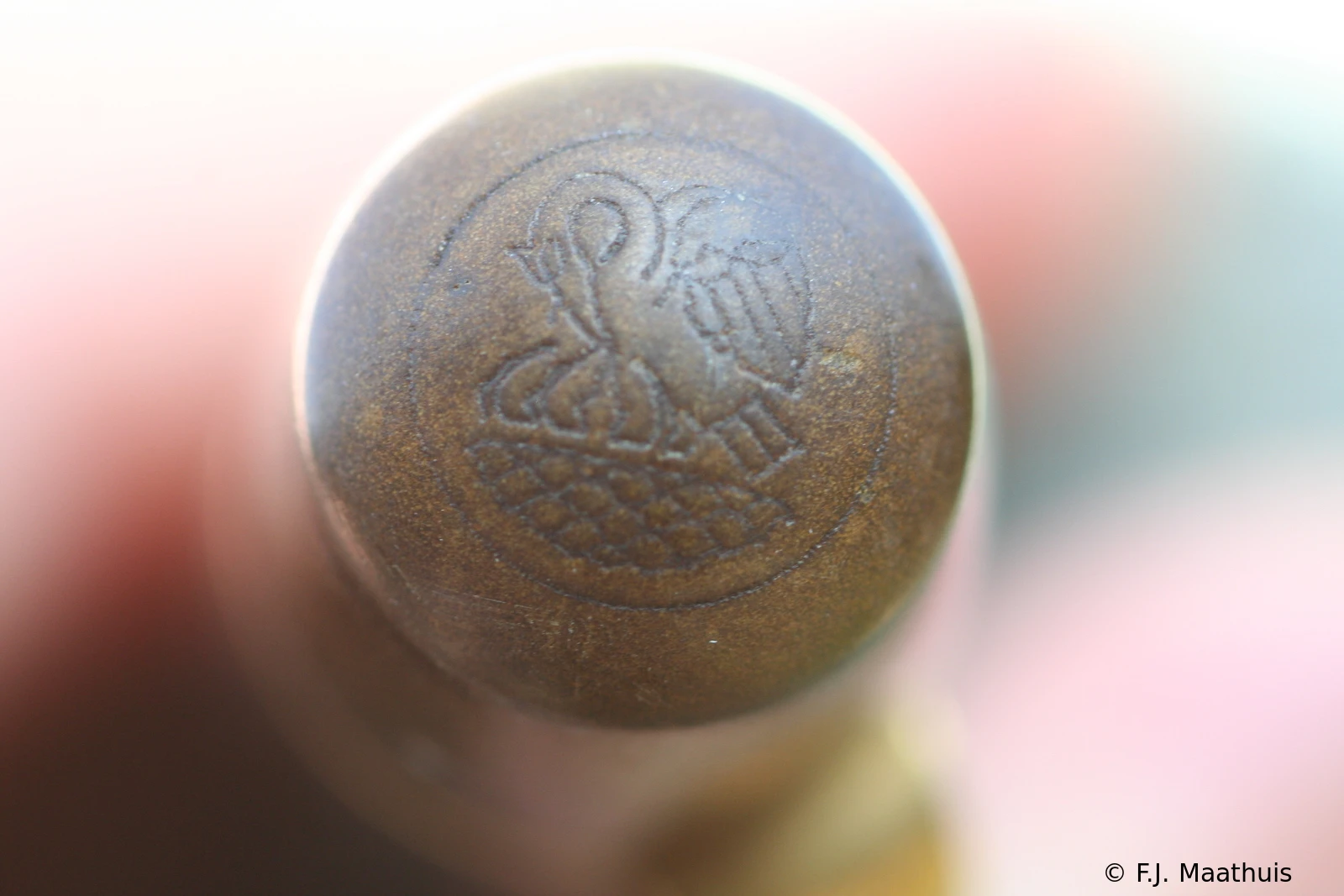

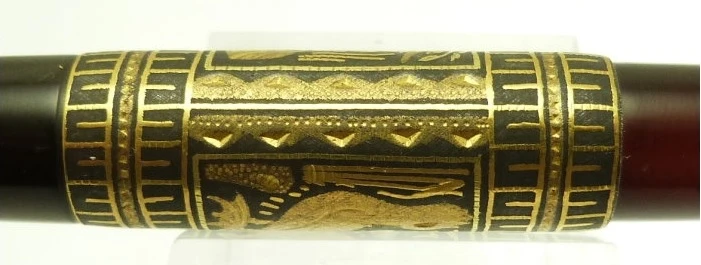

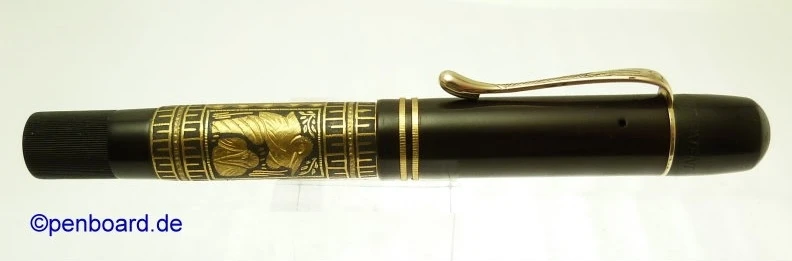

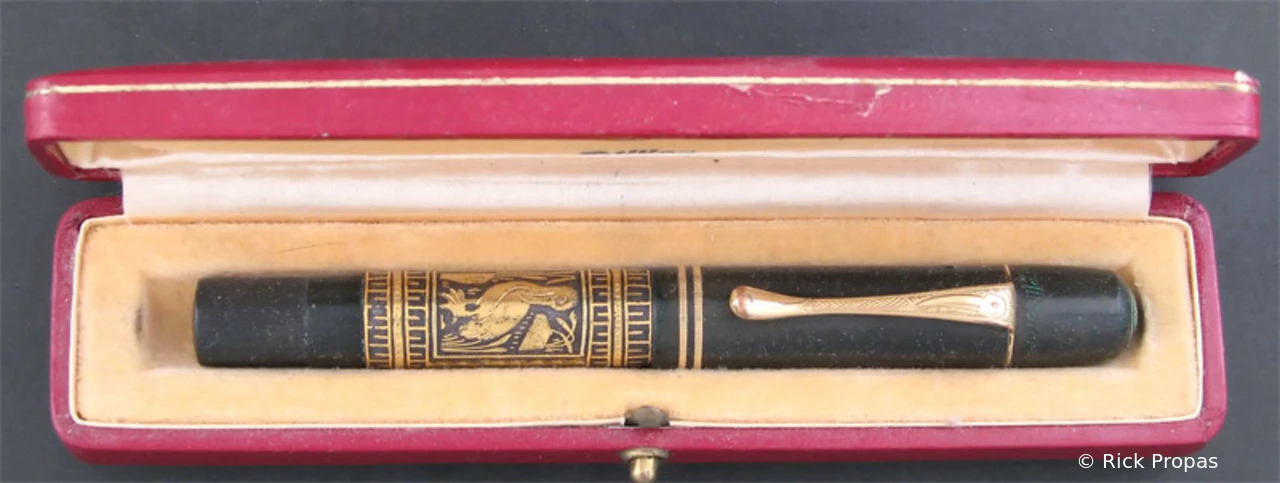

Pelikan Toledo with pelican motifs on a gold-plated steel sleeve. Also, the clip is decorated with a pelican motif and the cap rings are milled.

Model Production Period Nib
111T Toledo 1931-1937

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
4.61 in 3.74 in 2.40 in 0.47 in 1.5 ml
117 mm 95 mm 61 mm 12 mm


111T

111T Toledo Series Production Color
Production: 1931-1938Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPelikan Preisliste 60
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: goldCap Color: blackTrim: gold plated

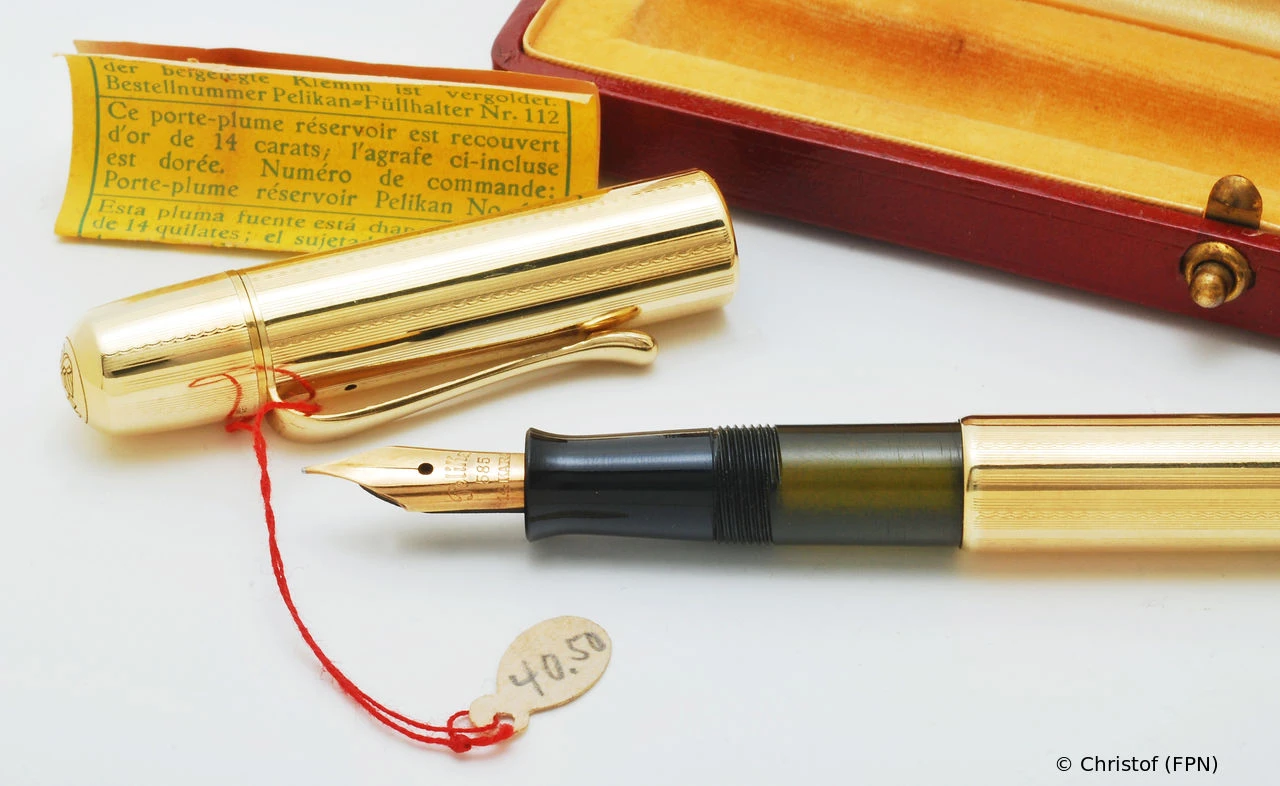

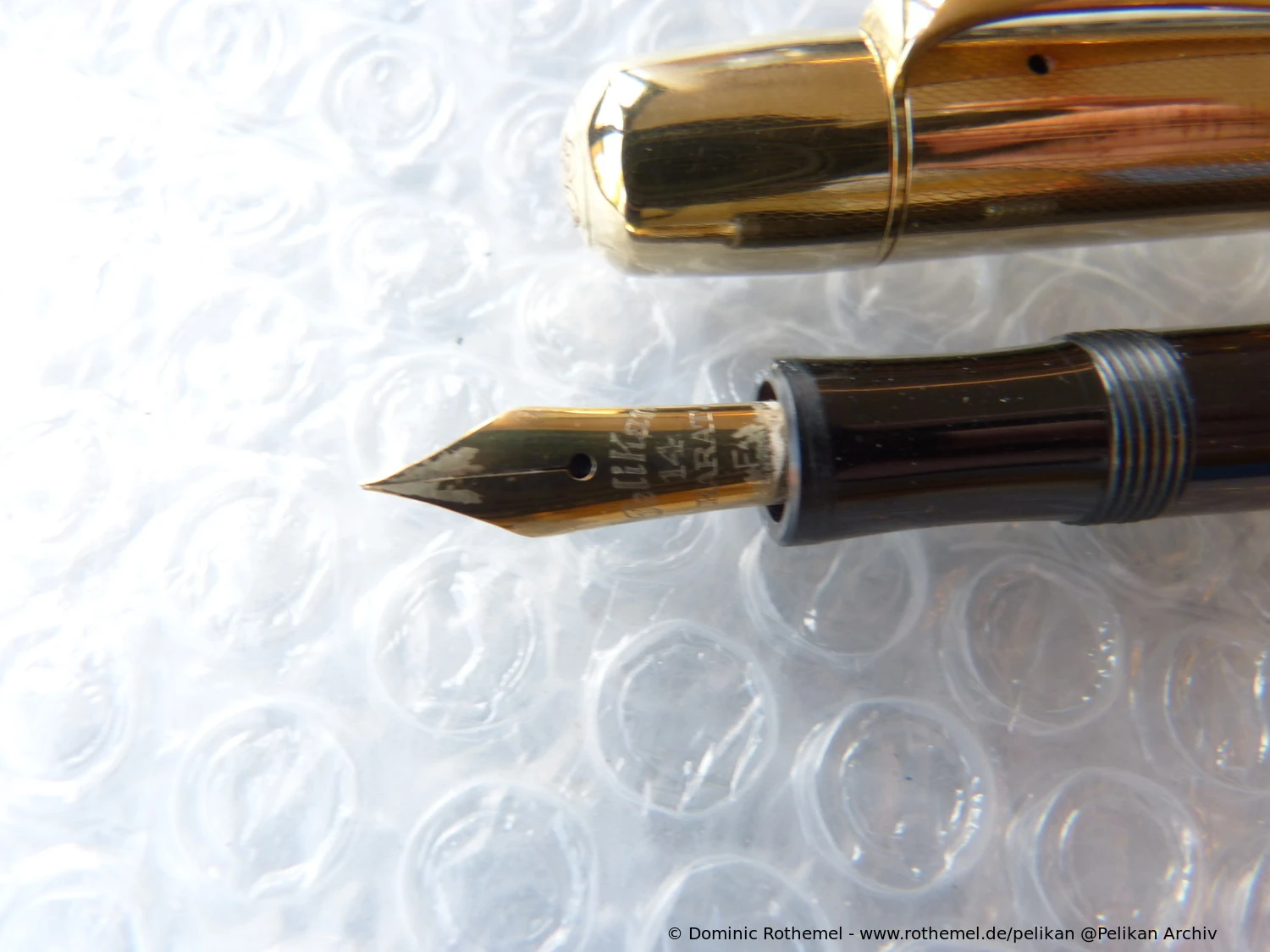

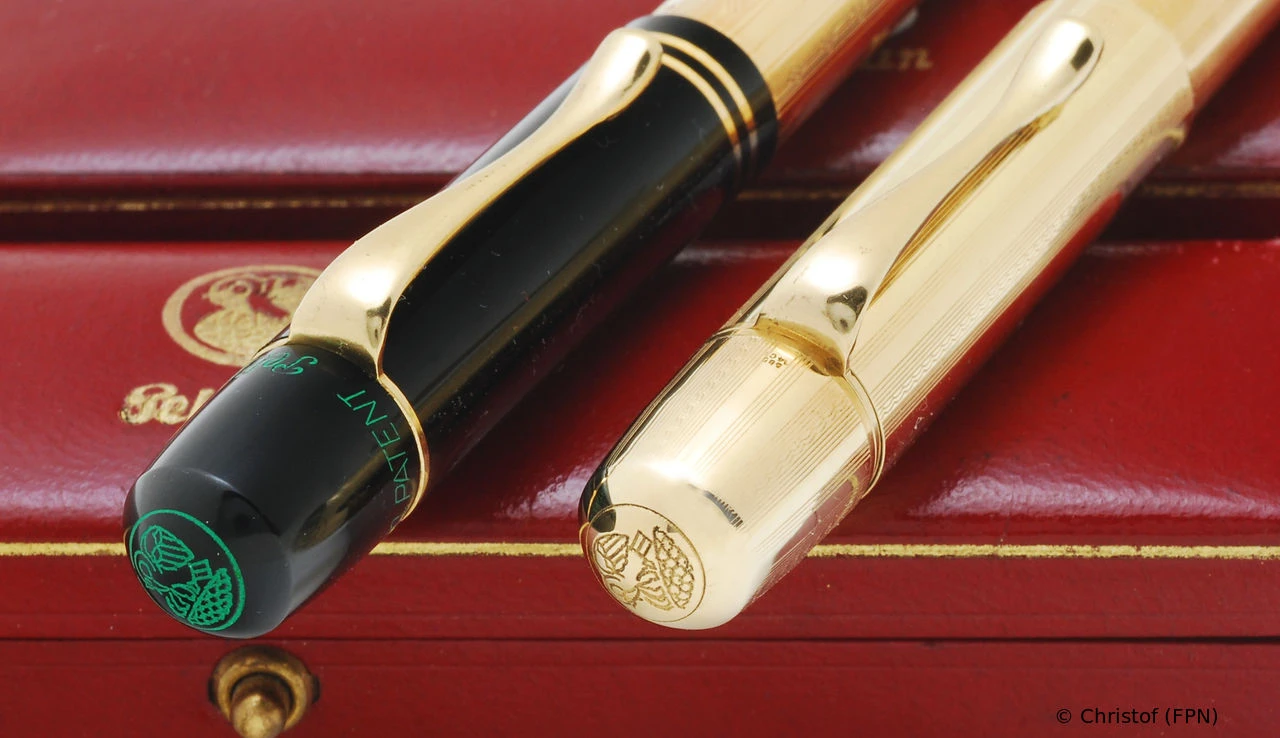

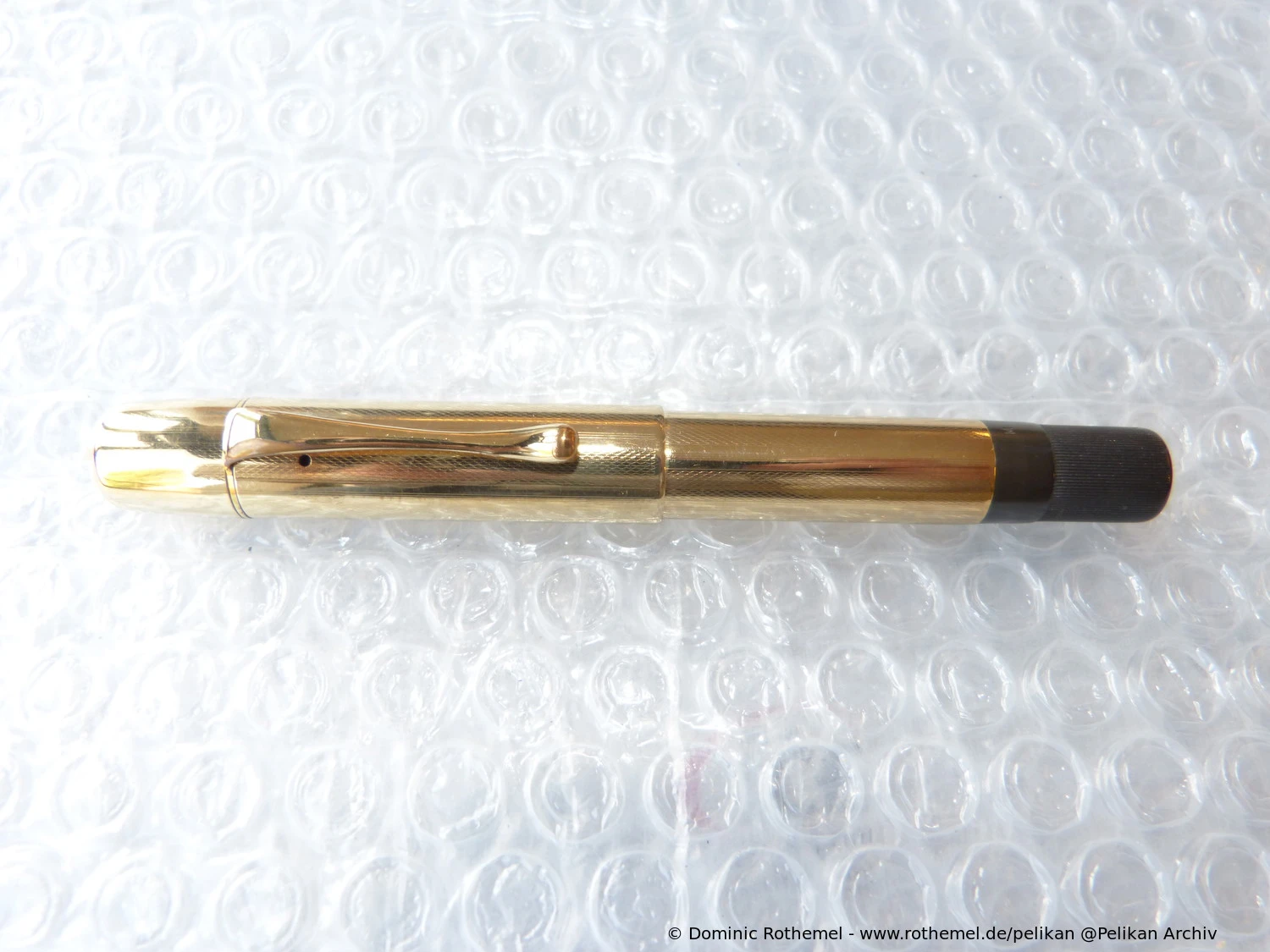

Pelikan 112

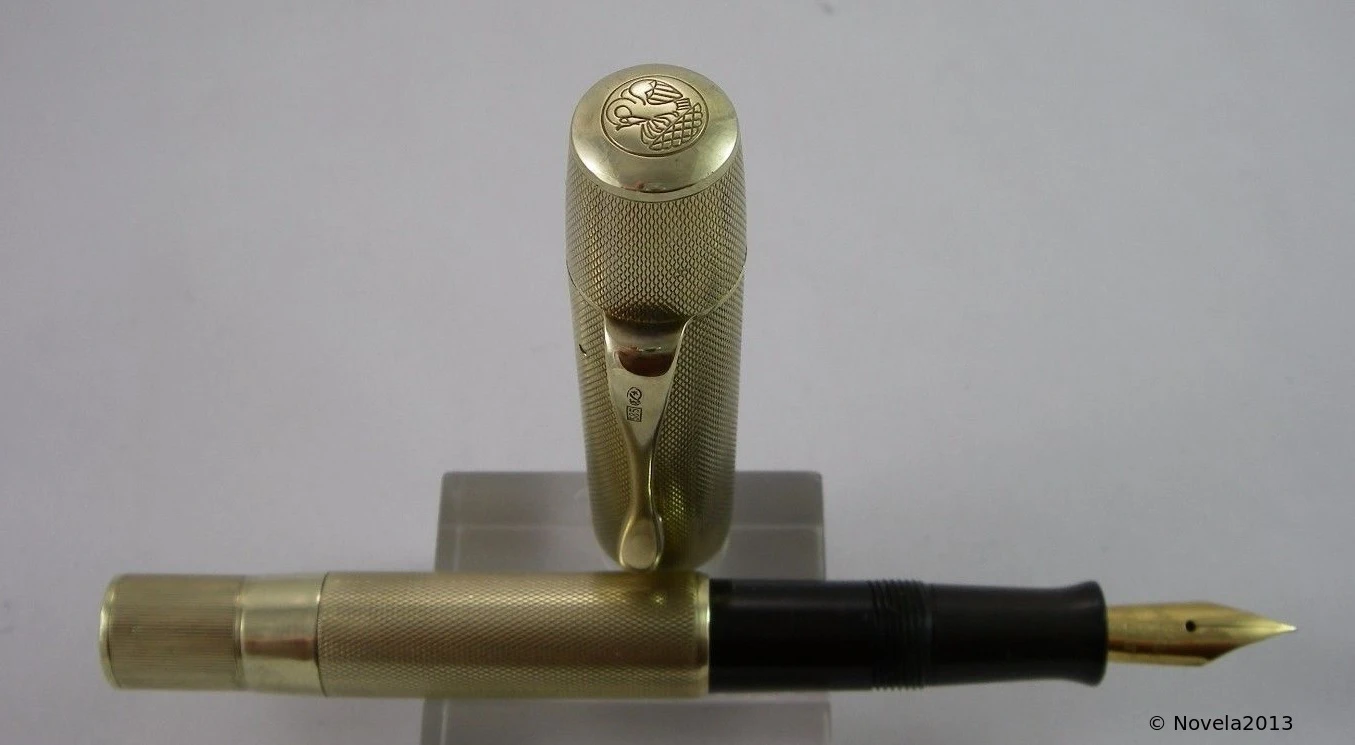

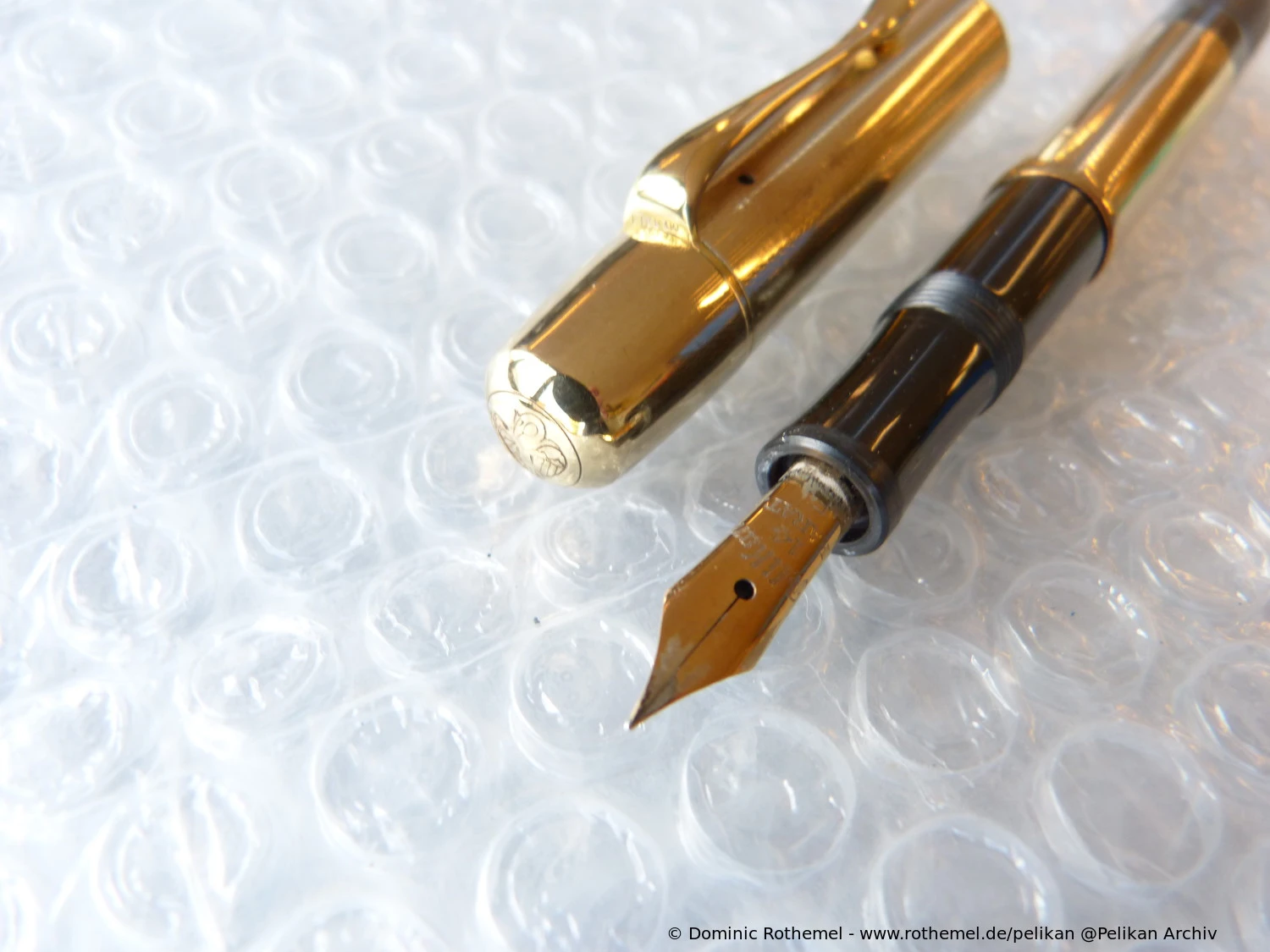

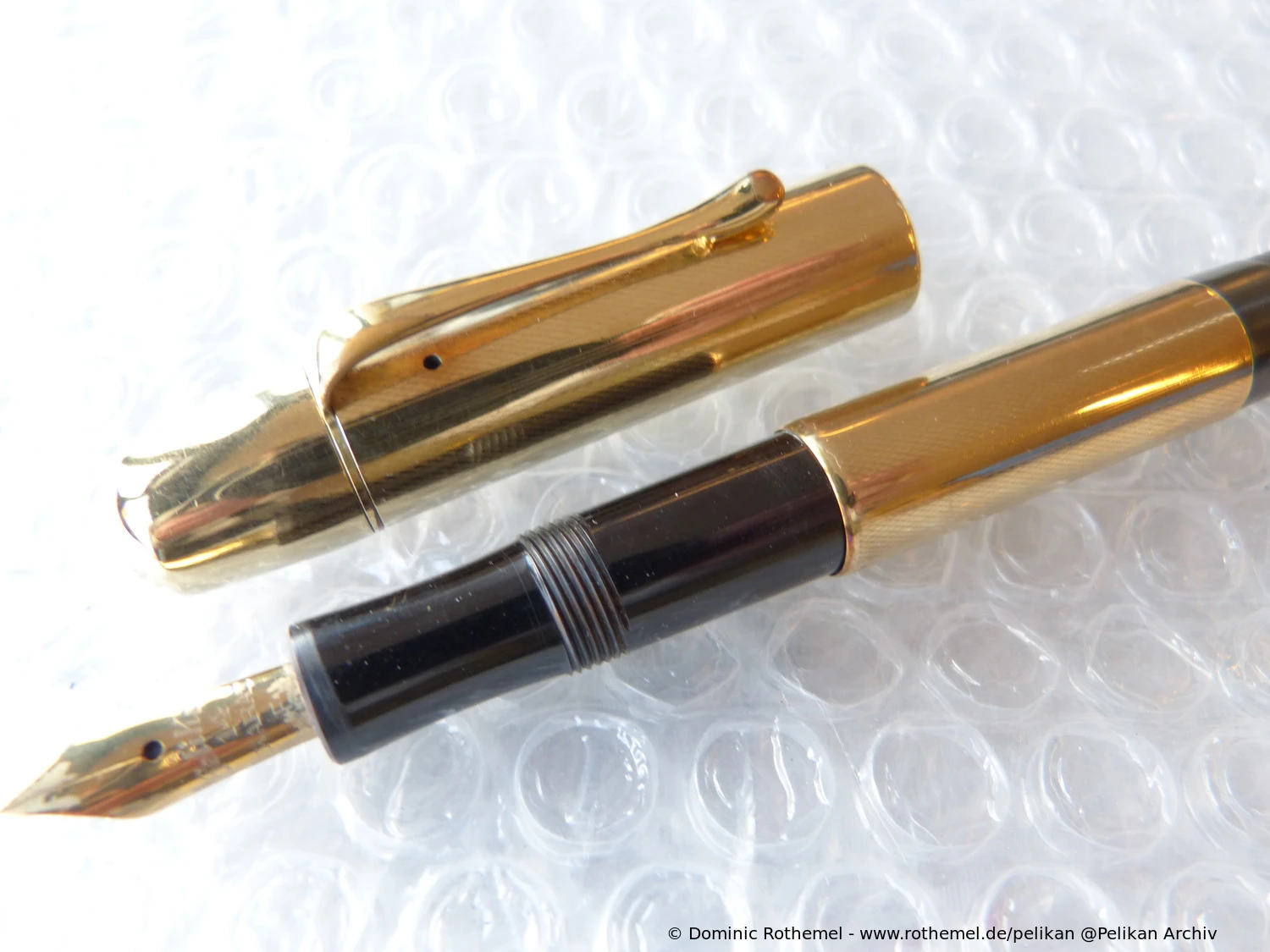

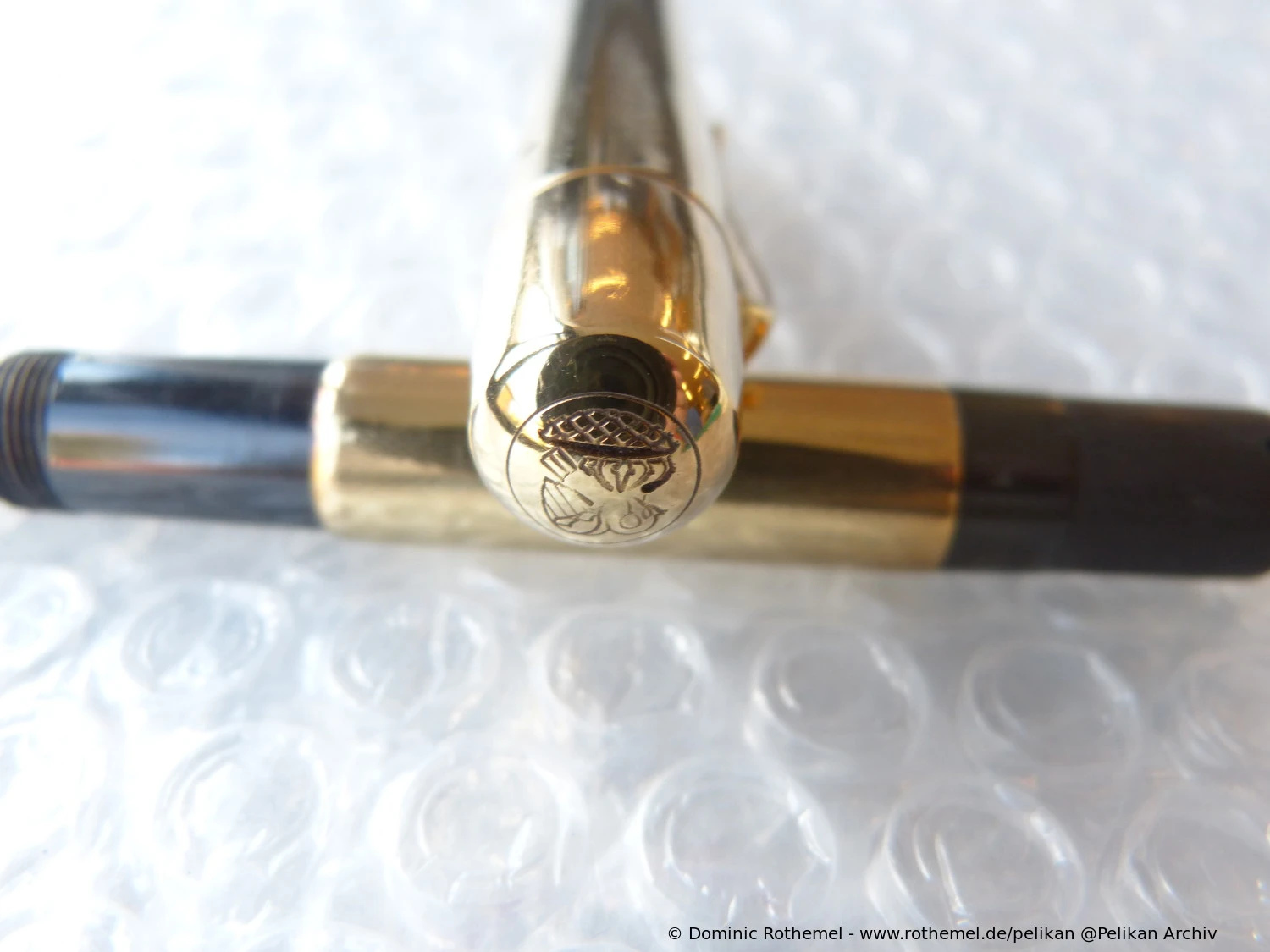

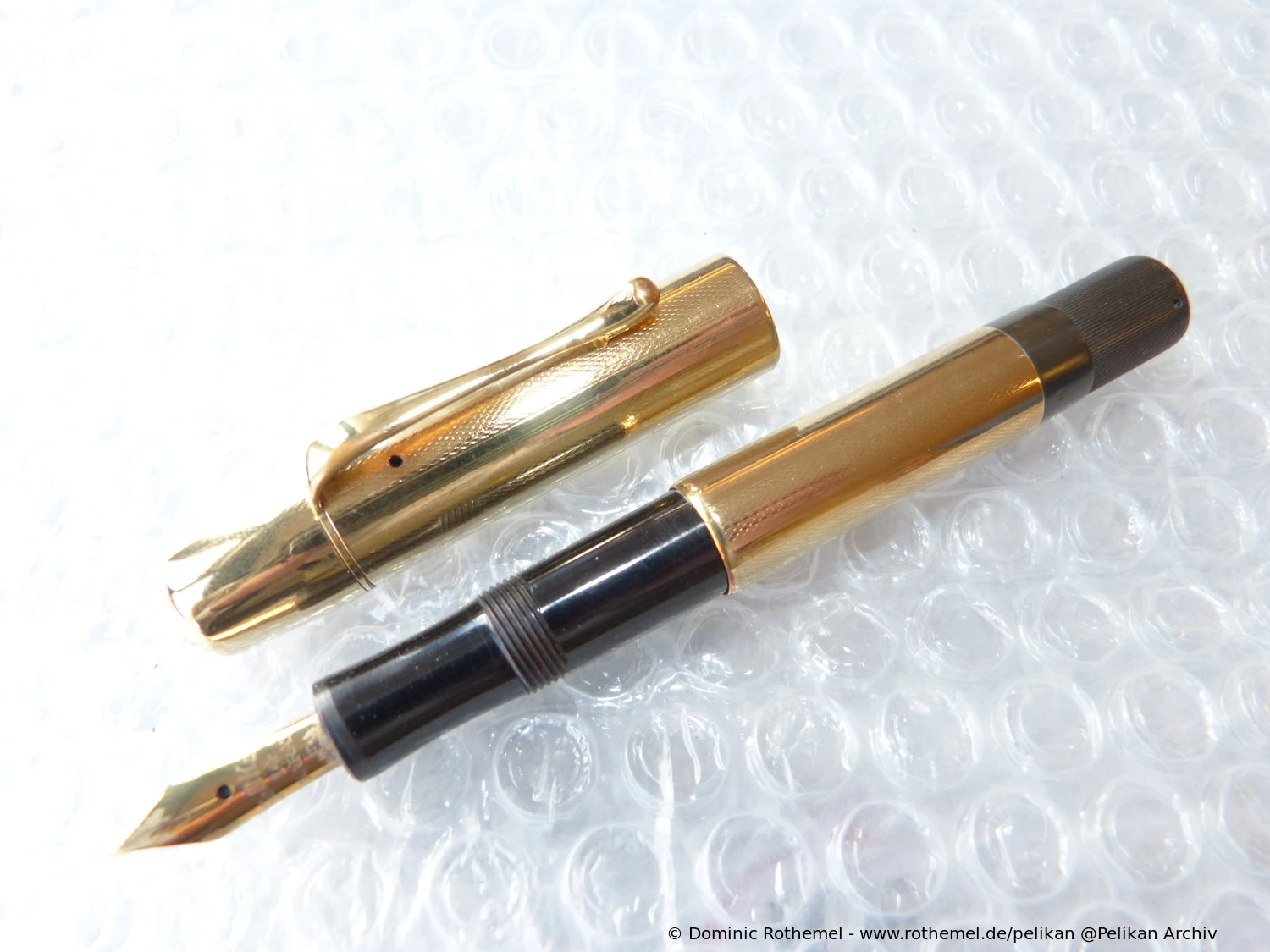

The cap and sleeve of the model Pelikan 112 is made from 14 carat yellow gold.

Model Production Period Nib
112 1931-1938

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.71 oz 4.61 in 3.74 in 2.40 in 0.47 in 1.5 ml
20.0 g 117 mm 95 mm 61 mm 12 mm


112

112 Gold Diamond Series Production Color Details
Production: 1931-1938Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPelikan Preisliste 60
Logo: Logo as of 1924 (four chicken) Logo as of 1938 (two chicken) Series Production
Barrel Color: goldCap Color: goldTrim: 585 gold

It is the model 112 with different ribbon guilloche, here with diamond guilloche.

112 Gold Grain Series Production Color Details
Production: 1931-1938Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: goldCap Color: goldTrim: 585 gold

It is the model 112 with different ribbon guilloche, here with grain guilloche.

112 Gold Wave Series Production Color Details
Production: 1931-1938Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Series Production
Barrel Color: goldCap Color: goldTrim: 585 gold

It is the model 112 with different ribbon guilloche, here with wave guilloche.

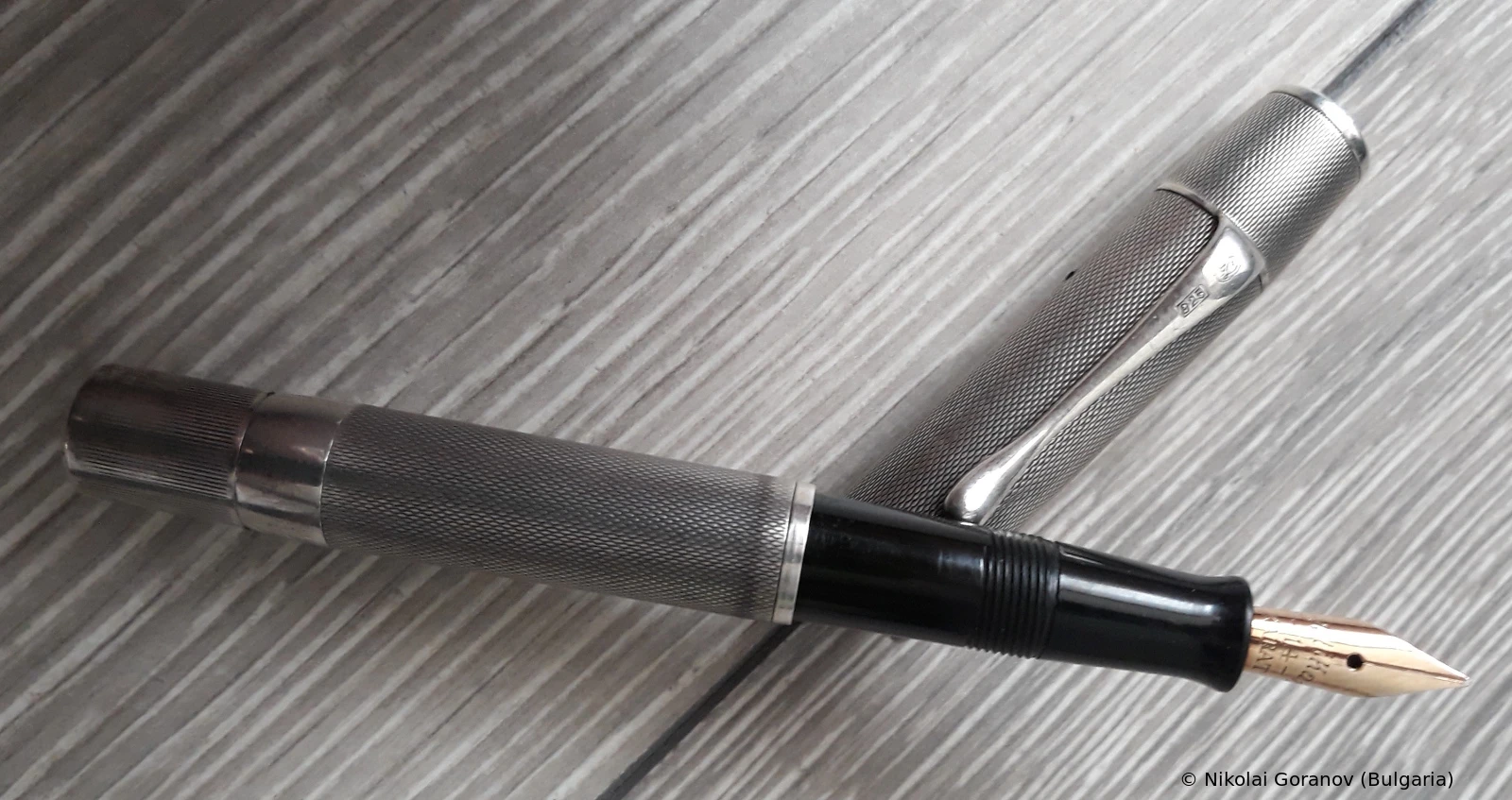

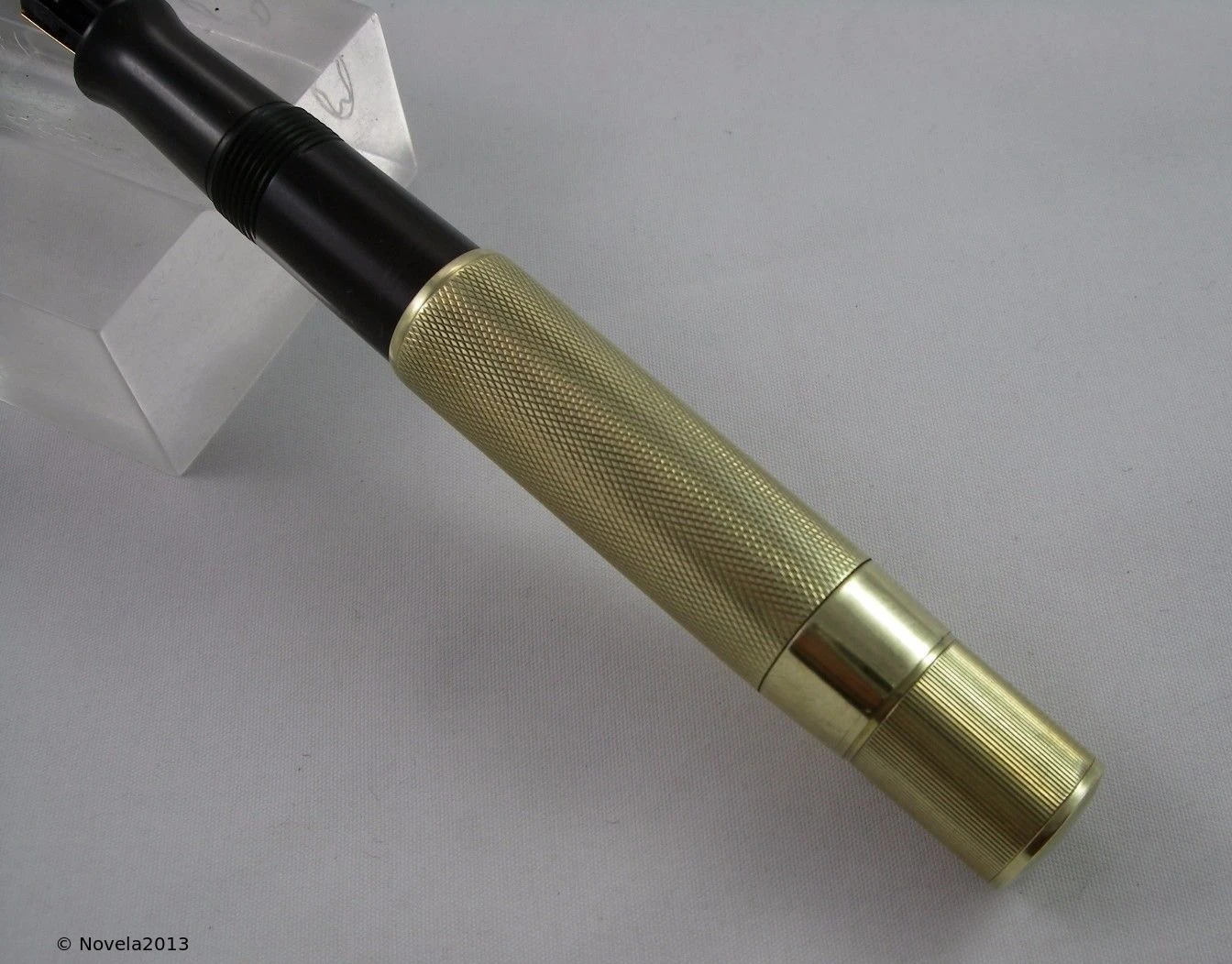

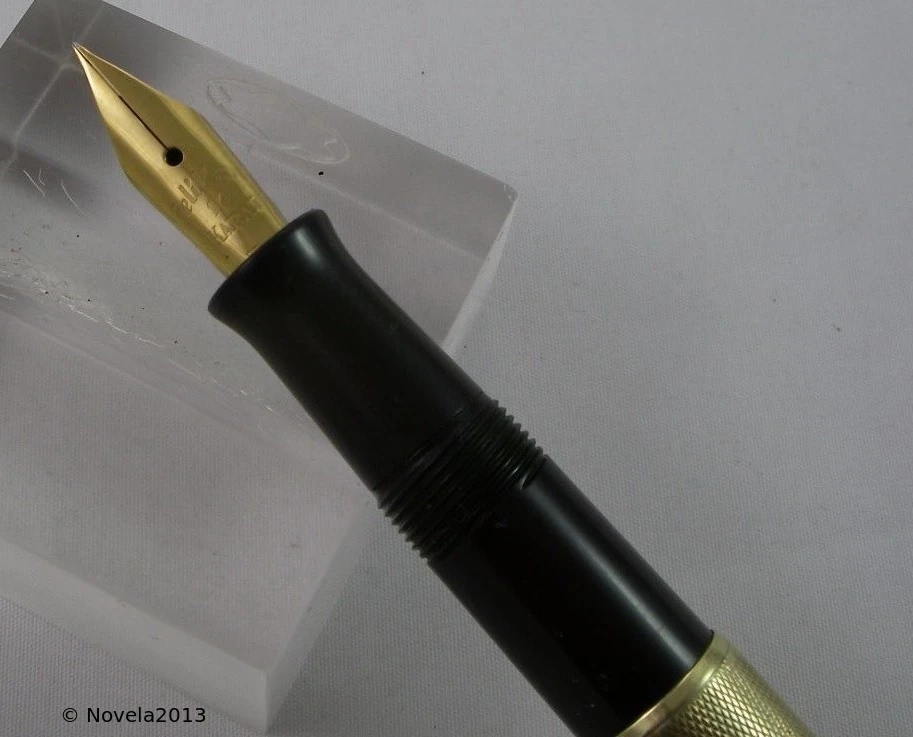

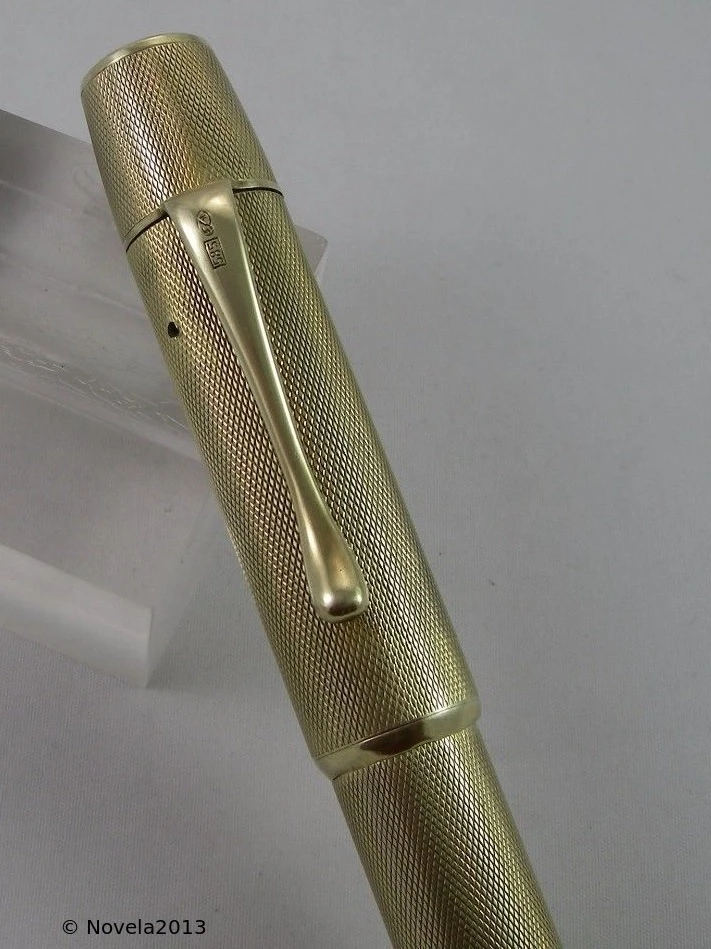

Pelikan 100 Overlay

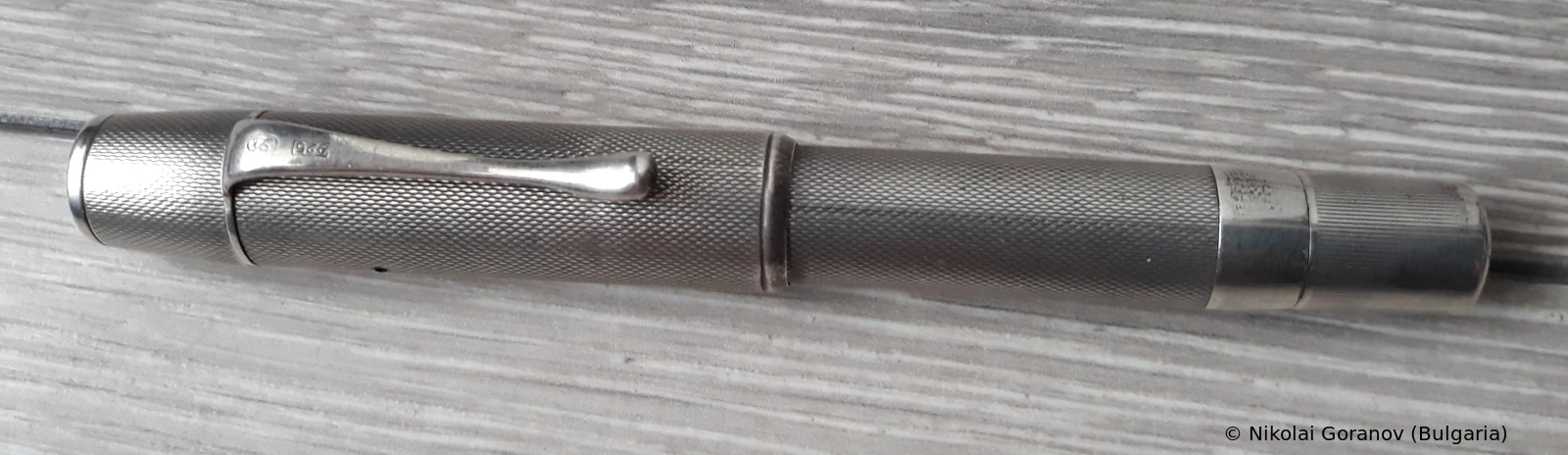

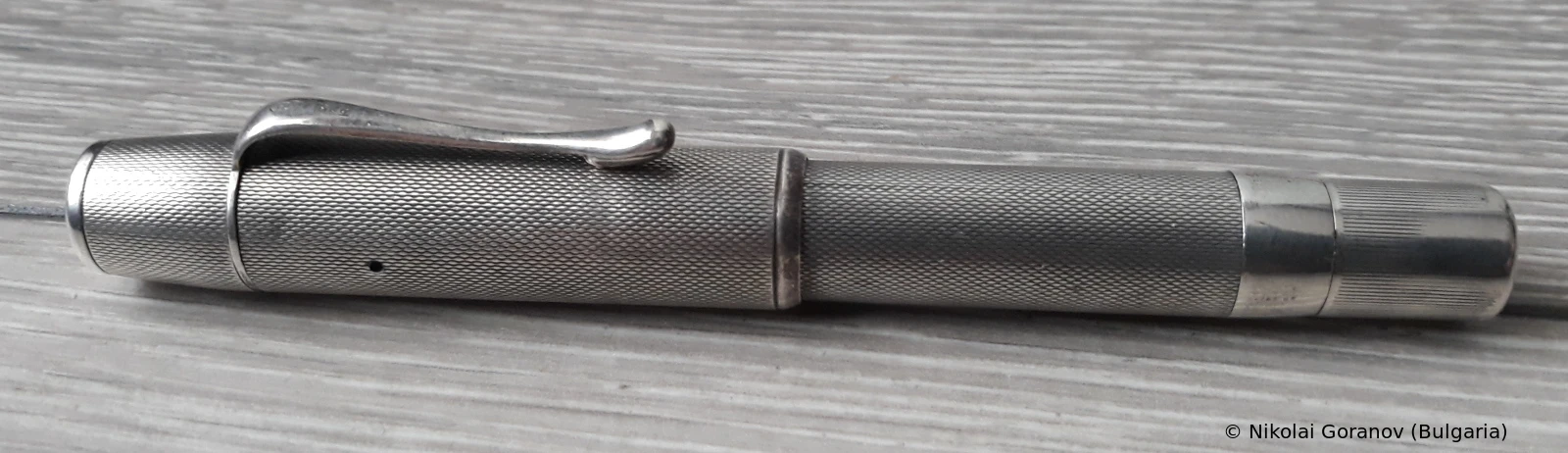

The fountain pen model shown here is a regular Pelikan 100, which has been refined with a metal overlay. It is not about individual products, this model can be found back and forth in online marketplaces or forums.

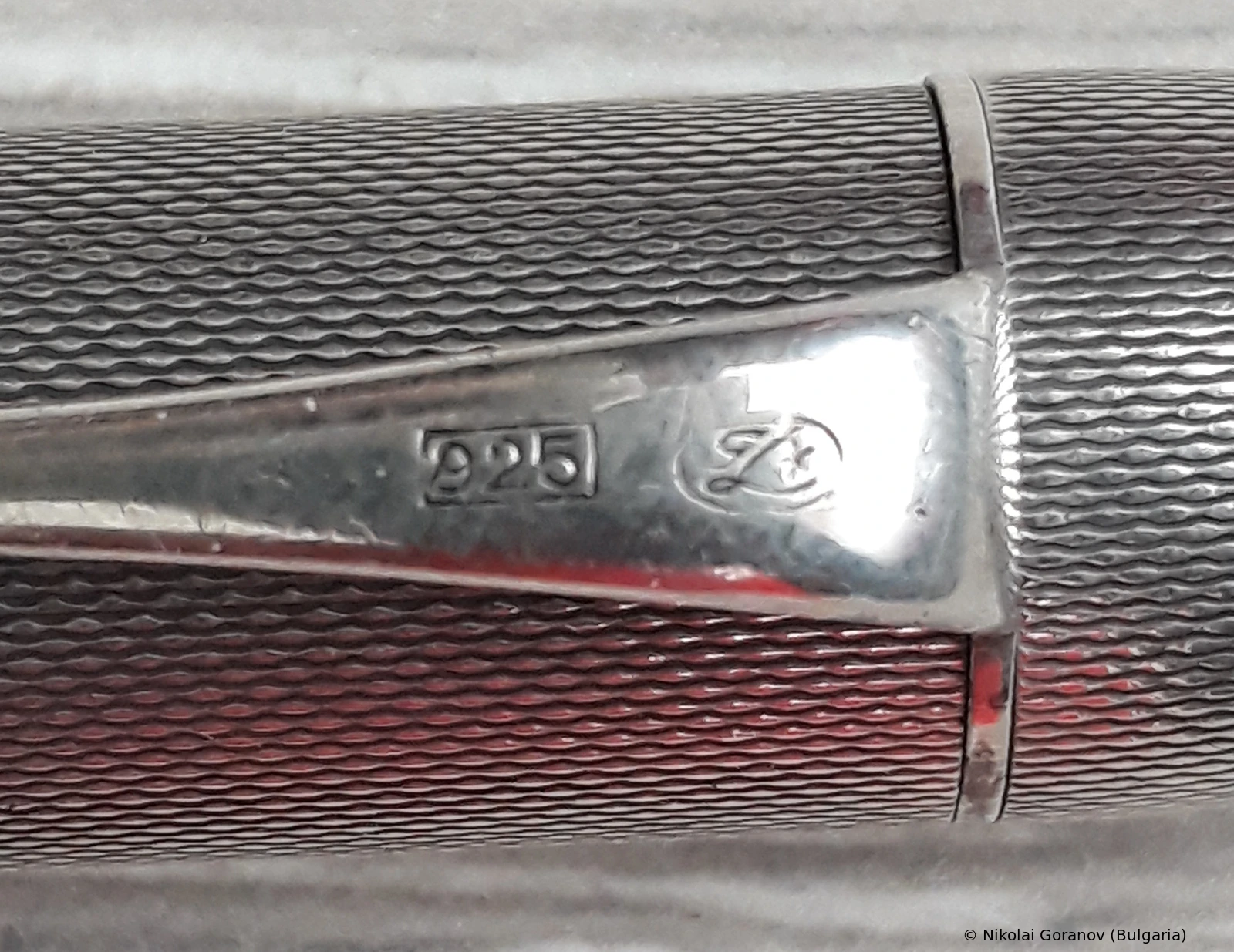

These fountain pens are often referred to as Maenner-Pelikan, because they were long held for works by the jeweler Maenner from Stuttgart, but this corresponds to a persistent error. The mark clearly shows who carried out the refinement, it was the company Georg Lauer from Pforzheim.

Later the model 100N was also used as a basis.

Model Production Period Nib
100 Overlay

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
1.06 oz¹ 1,5 ml
30 g¹
¹ Gold overlay

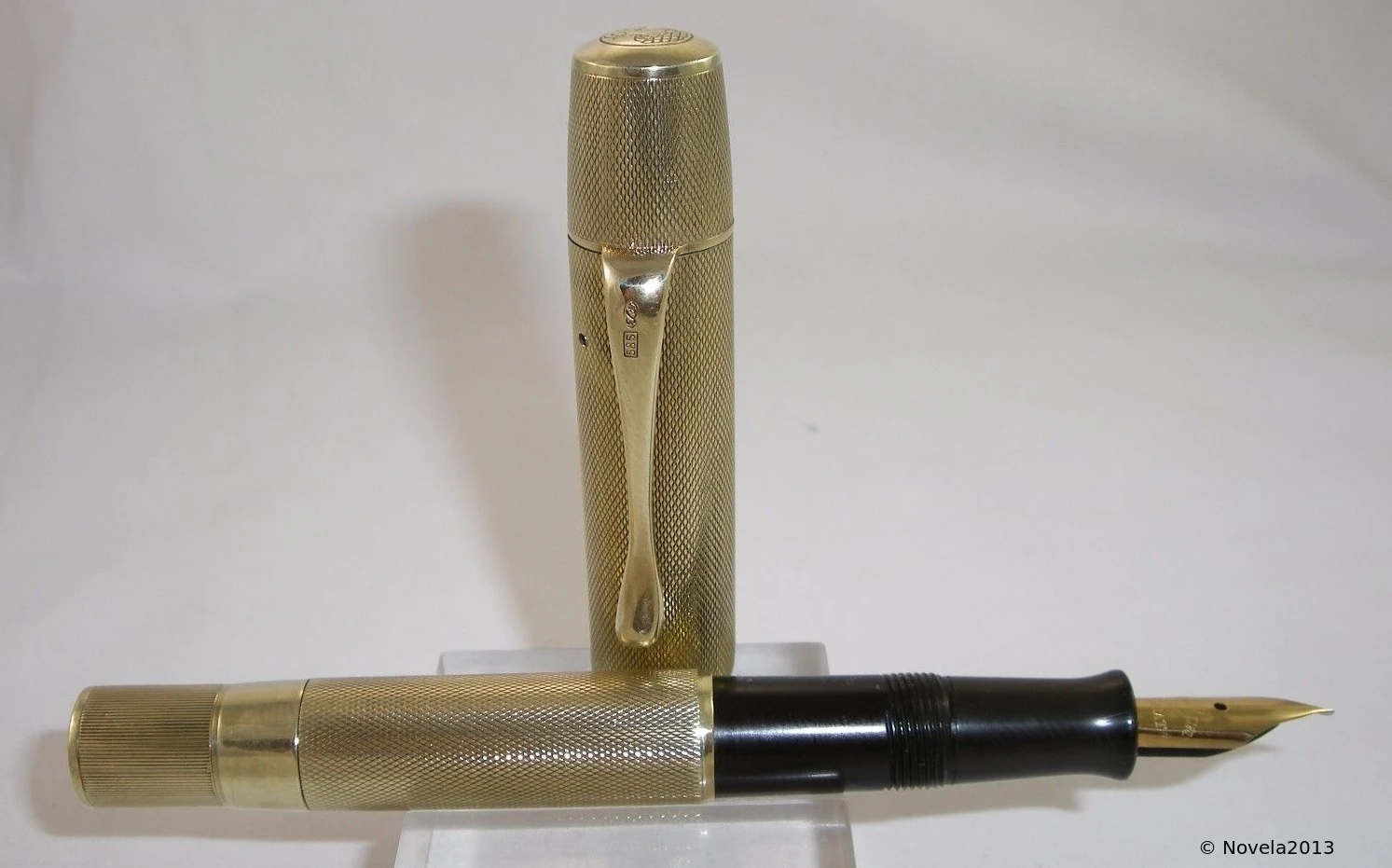

100 Overlay gold Jewellery Color
 Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Jewellery
Barrel Color: goldCap Color: goldTrim: 585 gold

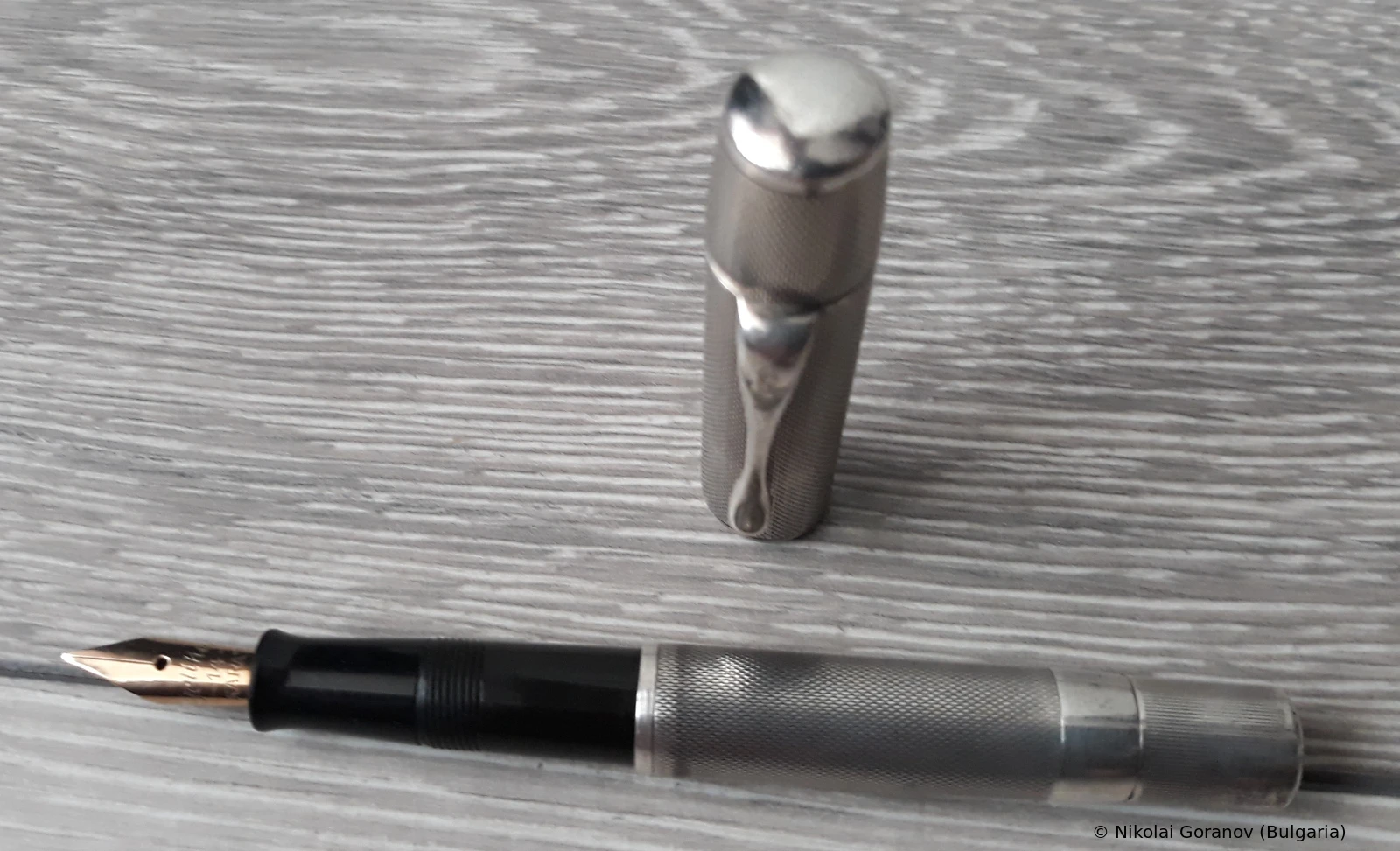

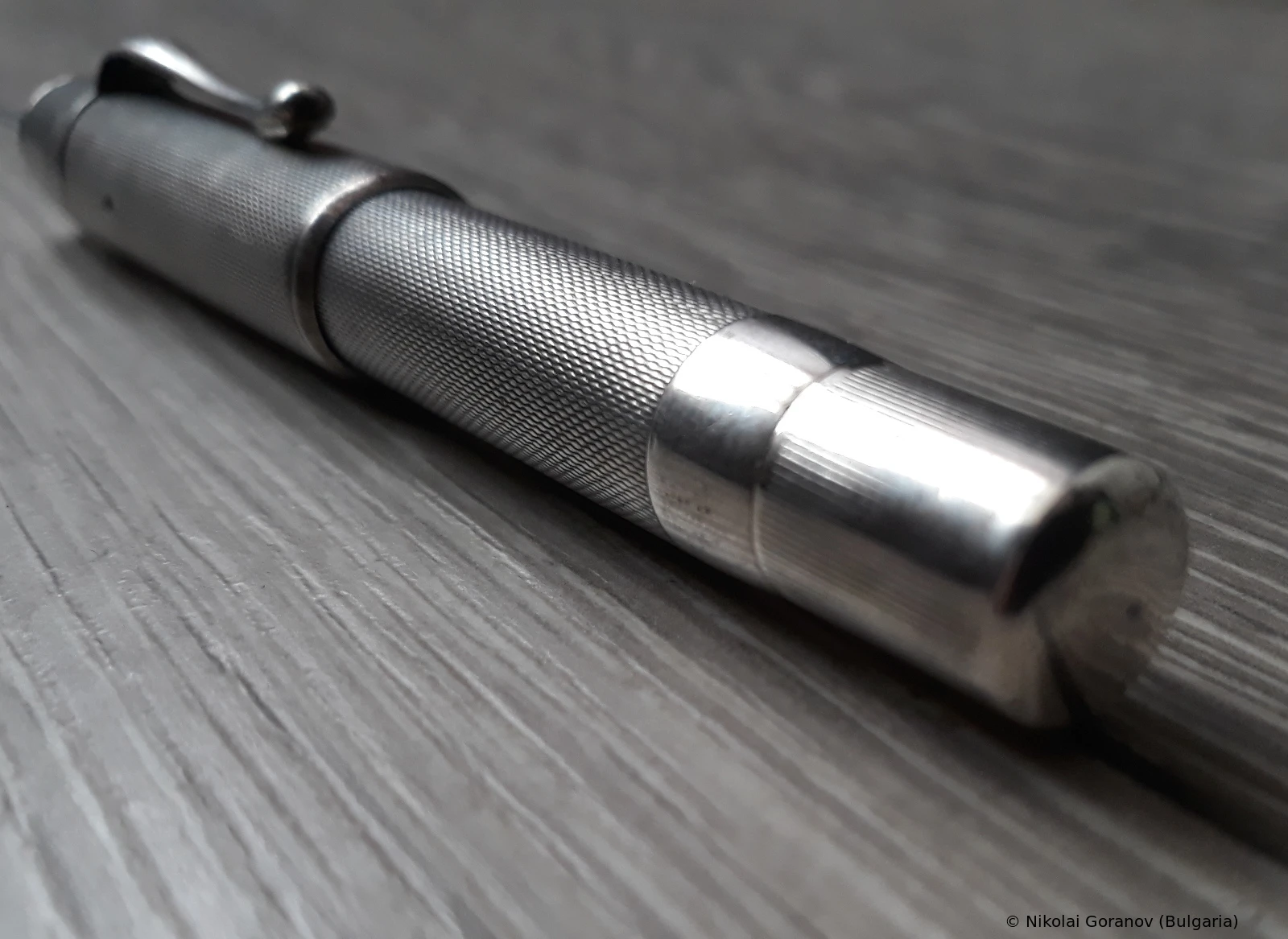

100 Overlay silver Jewellery Color
 Nib: 14 ct gold
Logo: Logo as of 1924 (four chicken) Without Logo Jewellery
Barrel Color: silverCap Color: silverTrim: silver-colored
Scroll Back to Top
