Pelikan School and youngsters' fountain pens

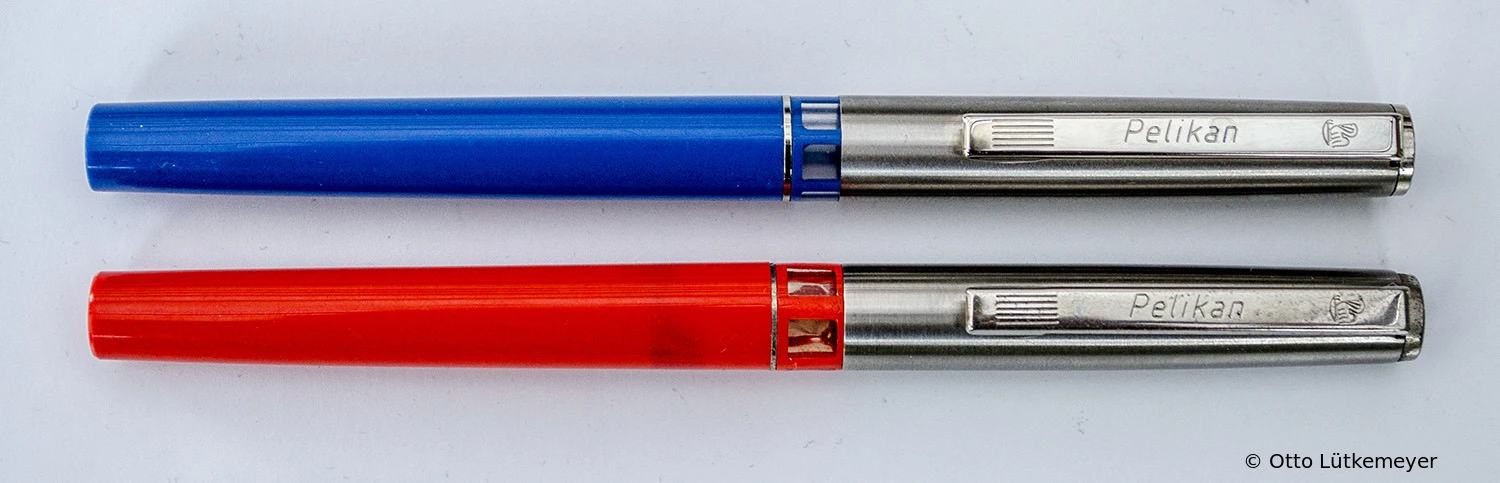

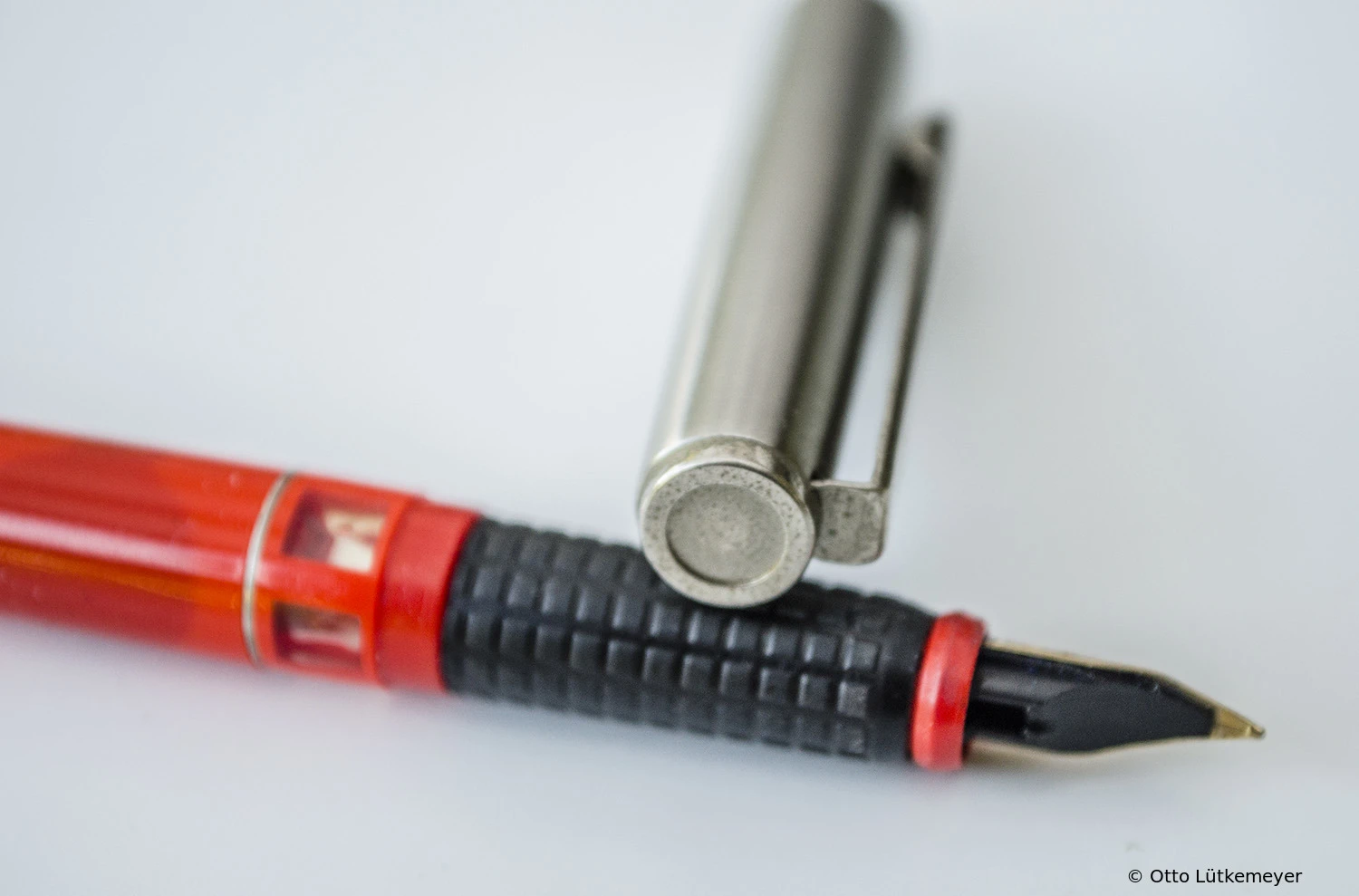

A conspicuous feature of these two fountain pens are 5 ink windows in the barrel that indicate the level of the inserted ink cartridges.
You might think at first sight that these are two identical models in different colors. But taking a closer look we have already seen some differences. If both fountain pens are put side by side, you can see that the decorative ring between the end of the barrel and the grip section does not lie at the same height. In fact, the barrel end of the red fountain pen is shorter, which is offset by a longer ink window in the barrel, so that both fountain pens have the same overall length. Also, the cap top of the pen is slightly different.
These two models appear to be pure export models. They were found in Italy and the Netherlands.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.49 oz	5.31 mm	4.21 mm	2.32 in	0.43 in	2 x 0.8 ml (cartridge)
14 g	135 mm	107 mm	59 mm	11 mm

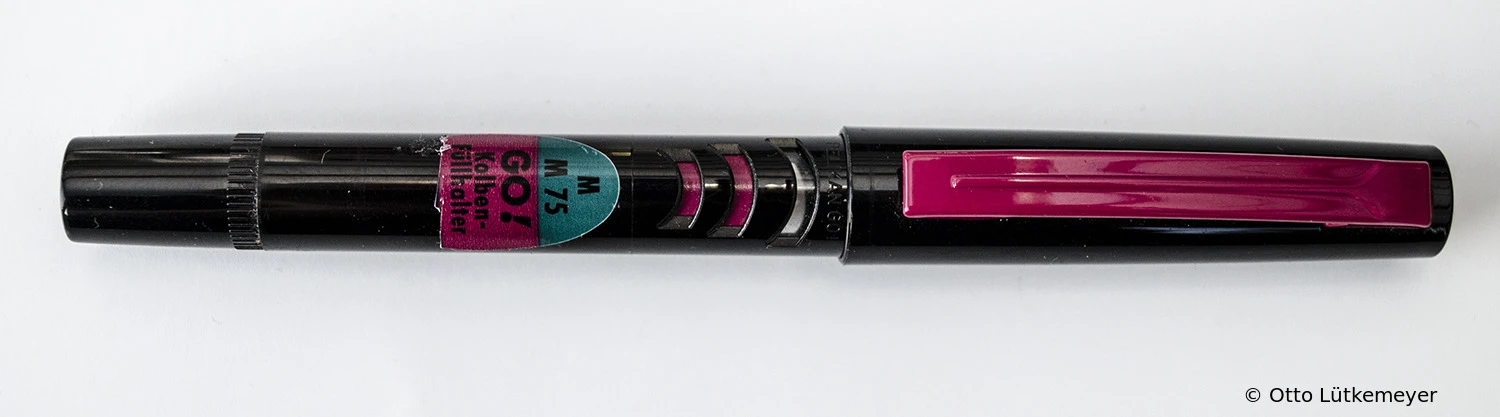

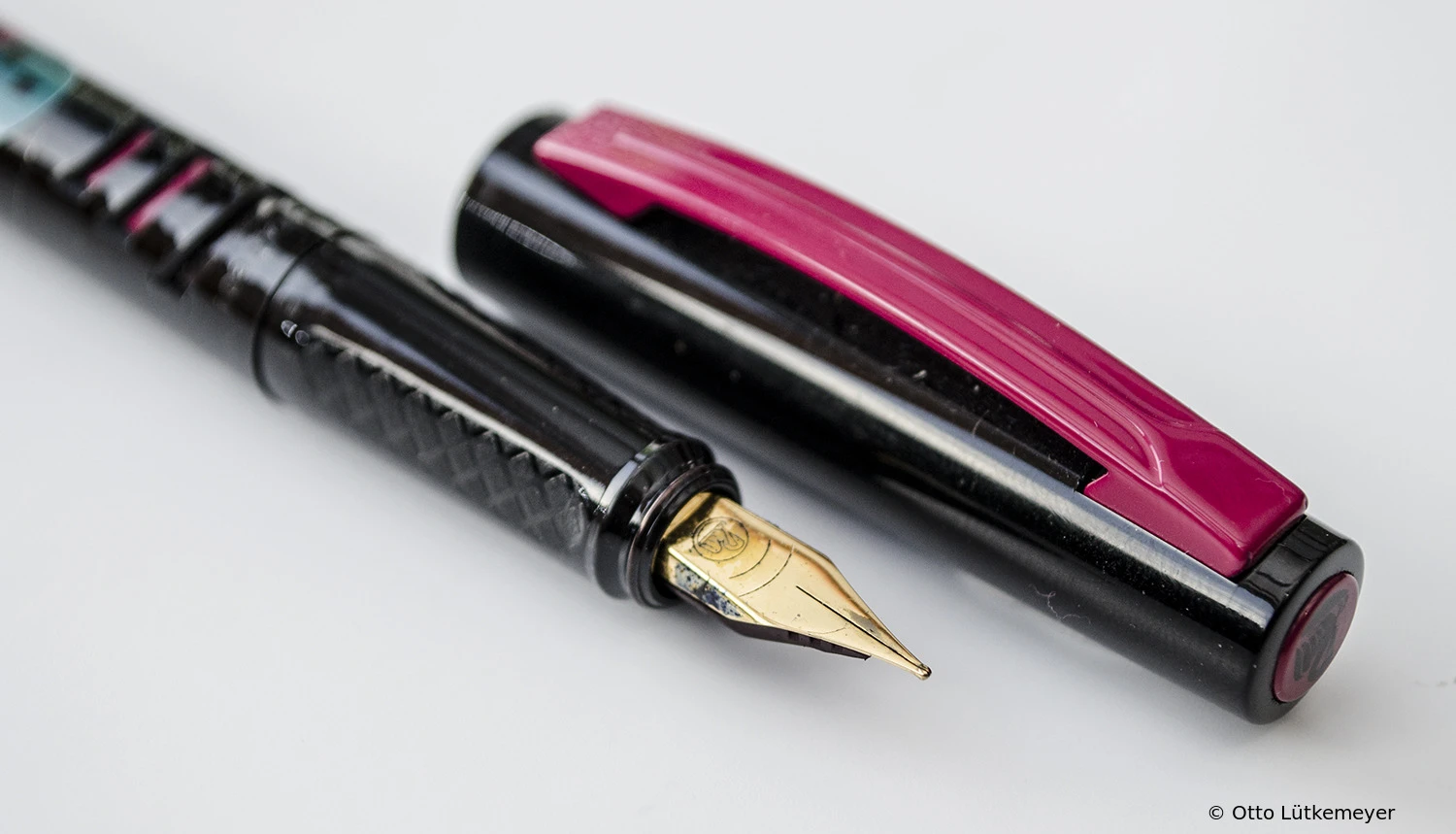

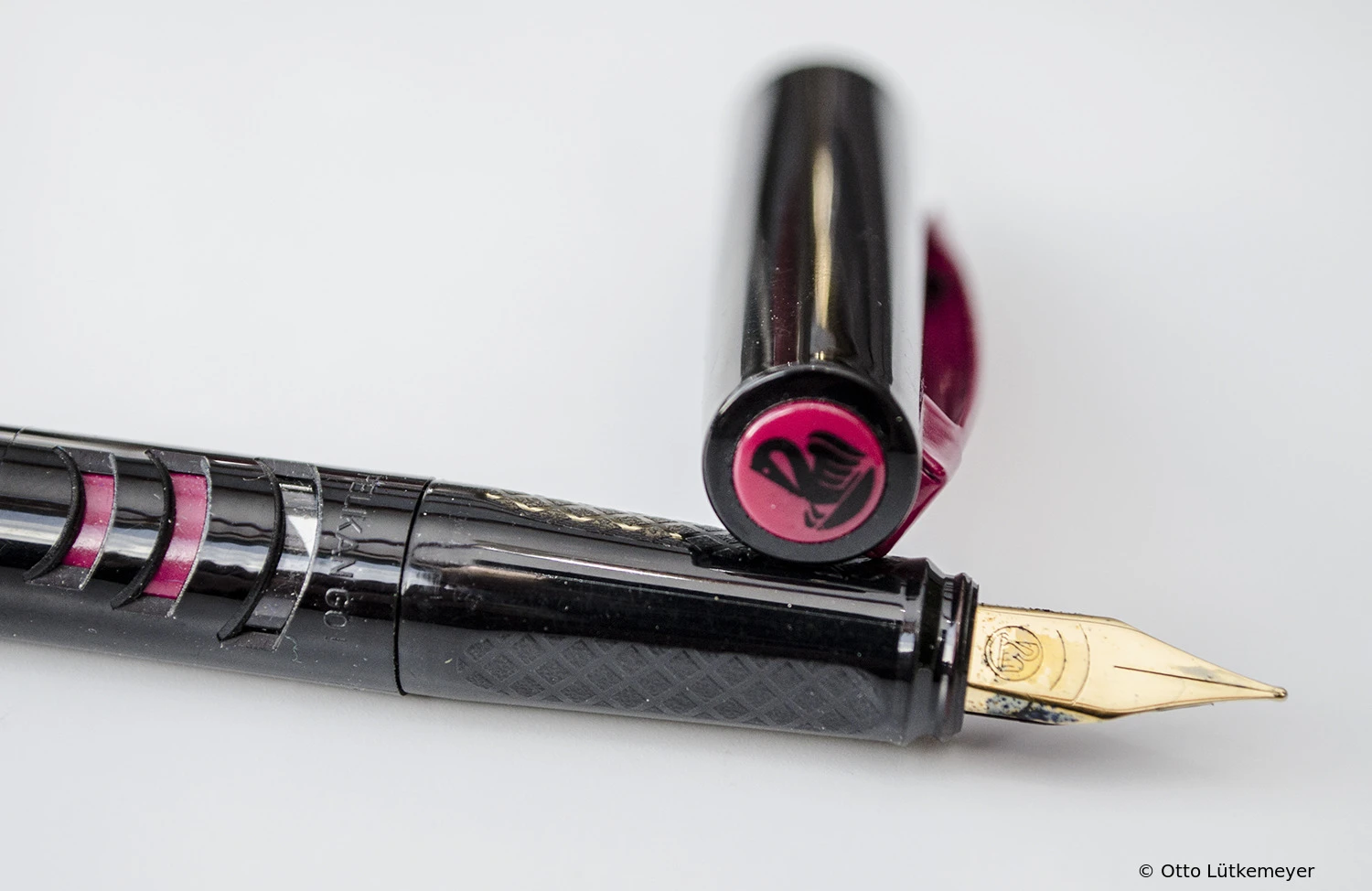

In 1992 Pelikan produced a new fountain pen model appealing to the youth market. In addition to the cartridge pen which was offered in three colors there were also two piston fillers offered in the same design and colors (the white was offered only as a cartridge pen). After a long absence, this was Pelikan´s first piston filler to address the low-price segment again.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.59 oz	5.43 in	4.29 in	2.40 in	0.47 in	1.4 ml
16.8 g	138 mm	109 mm	61 mm	12 mm

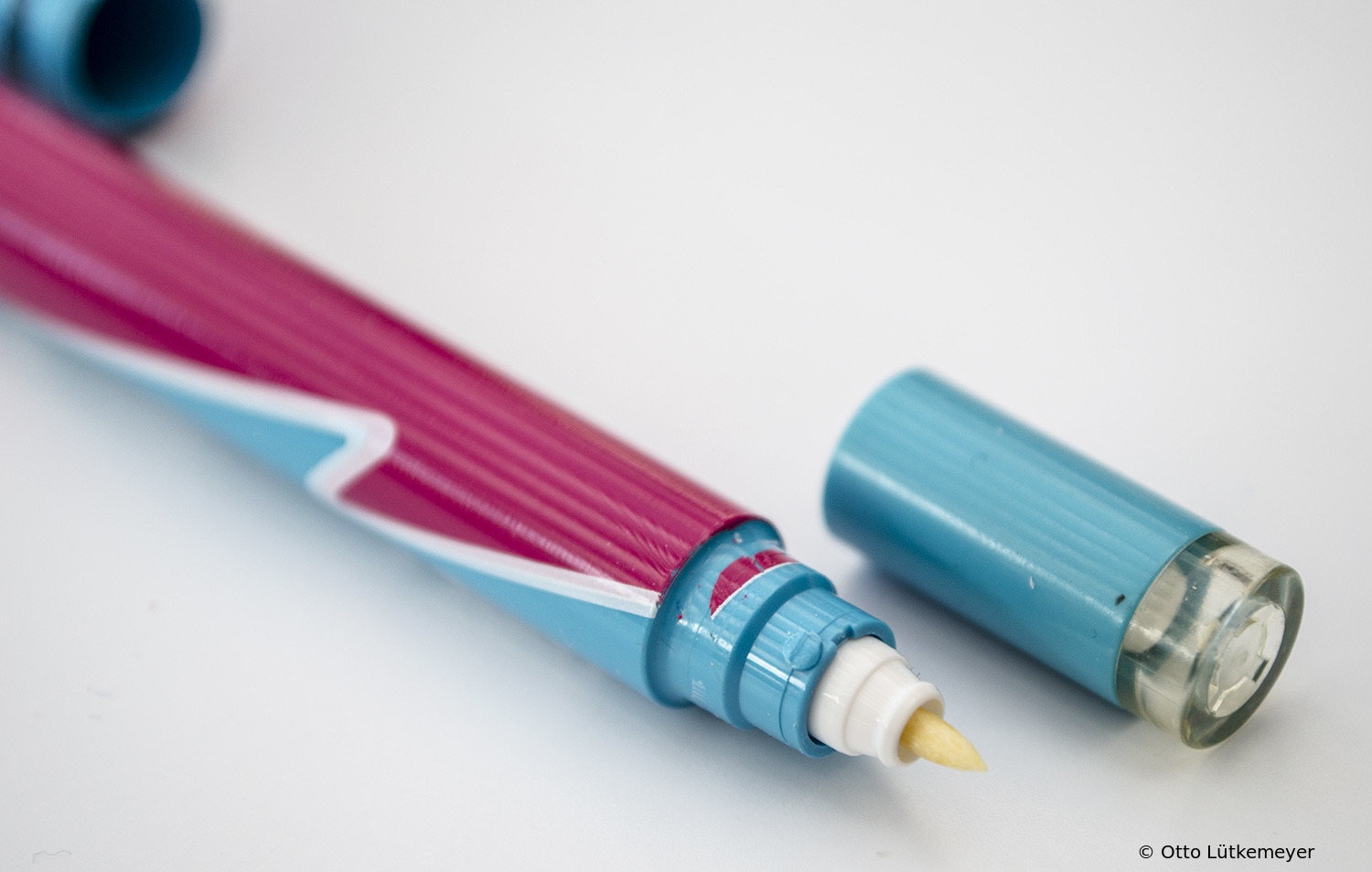

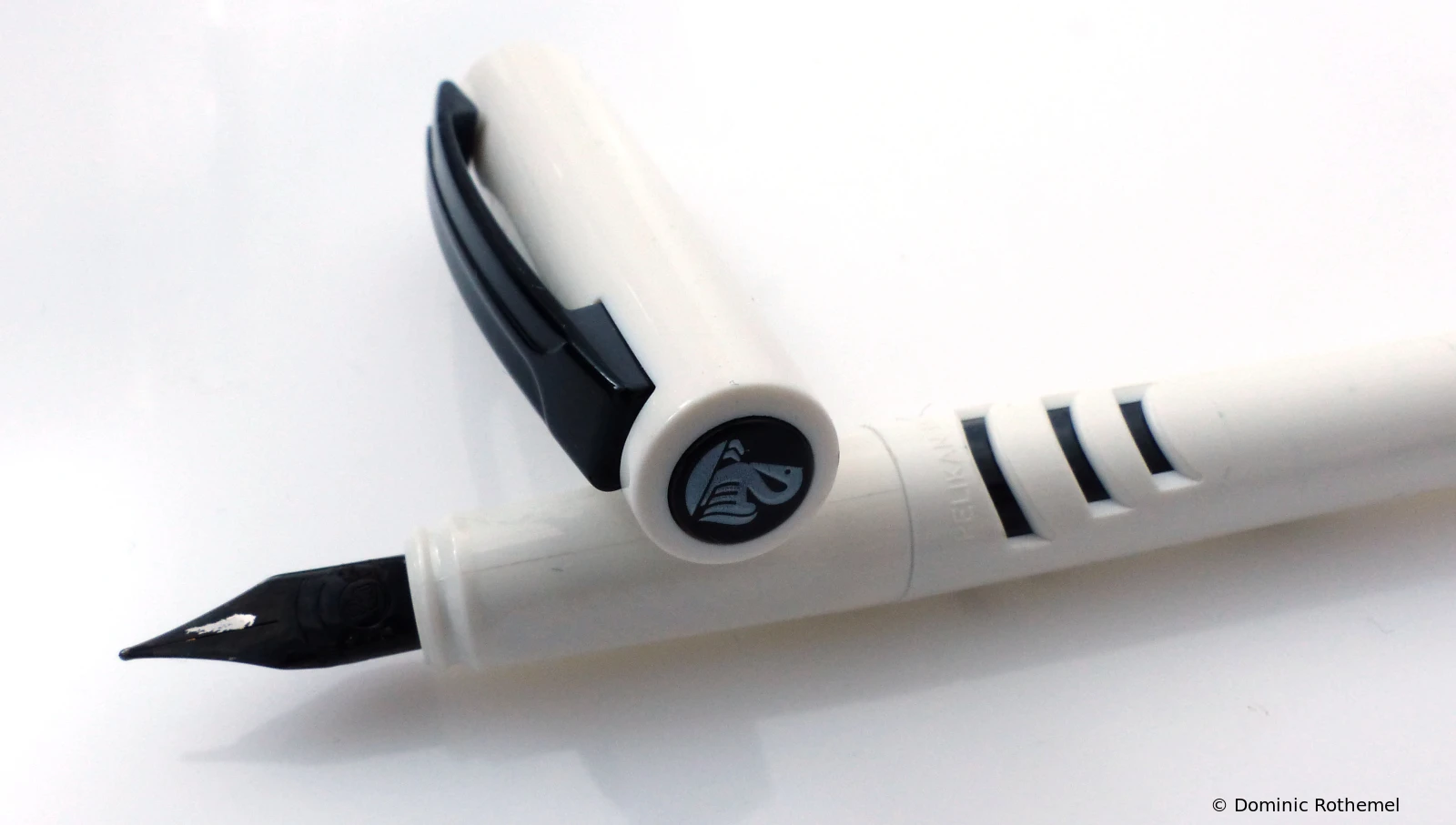

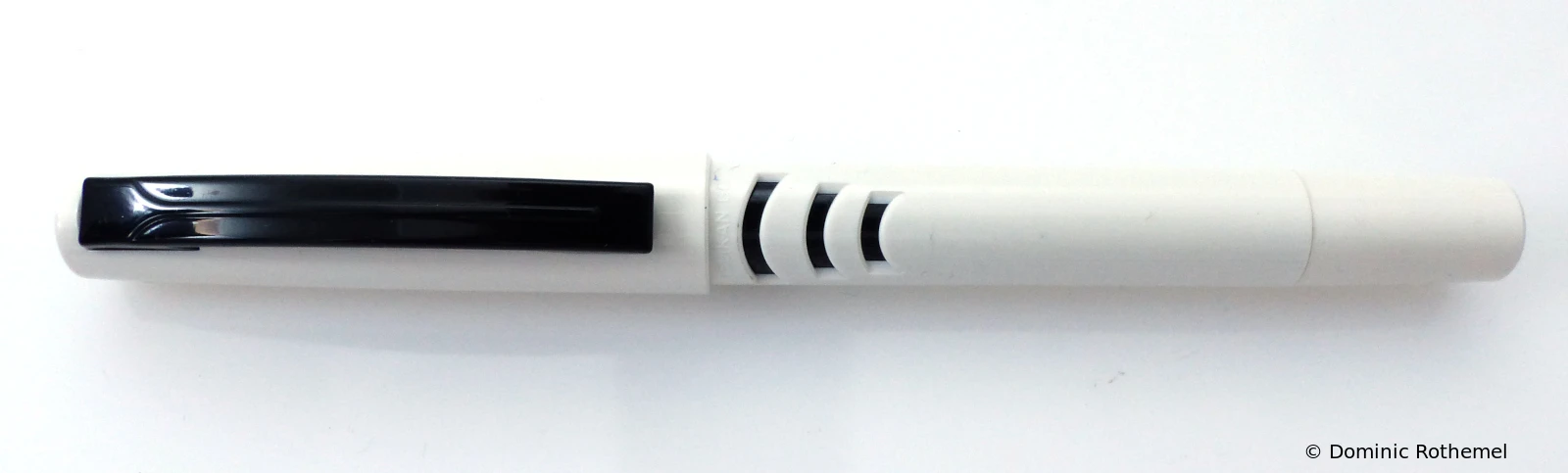

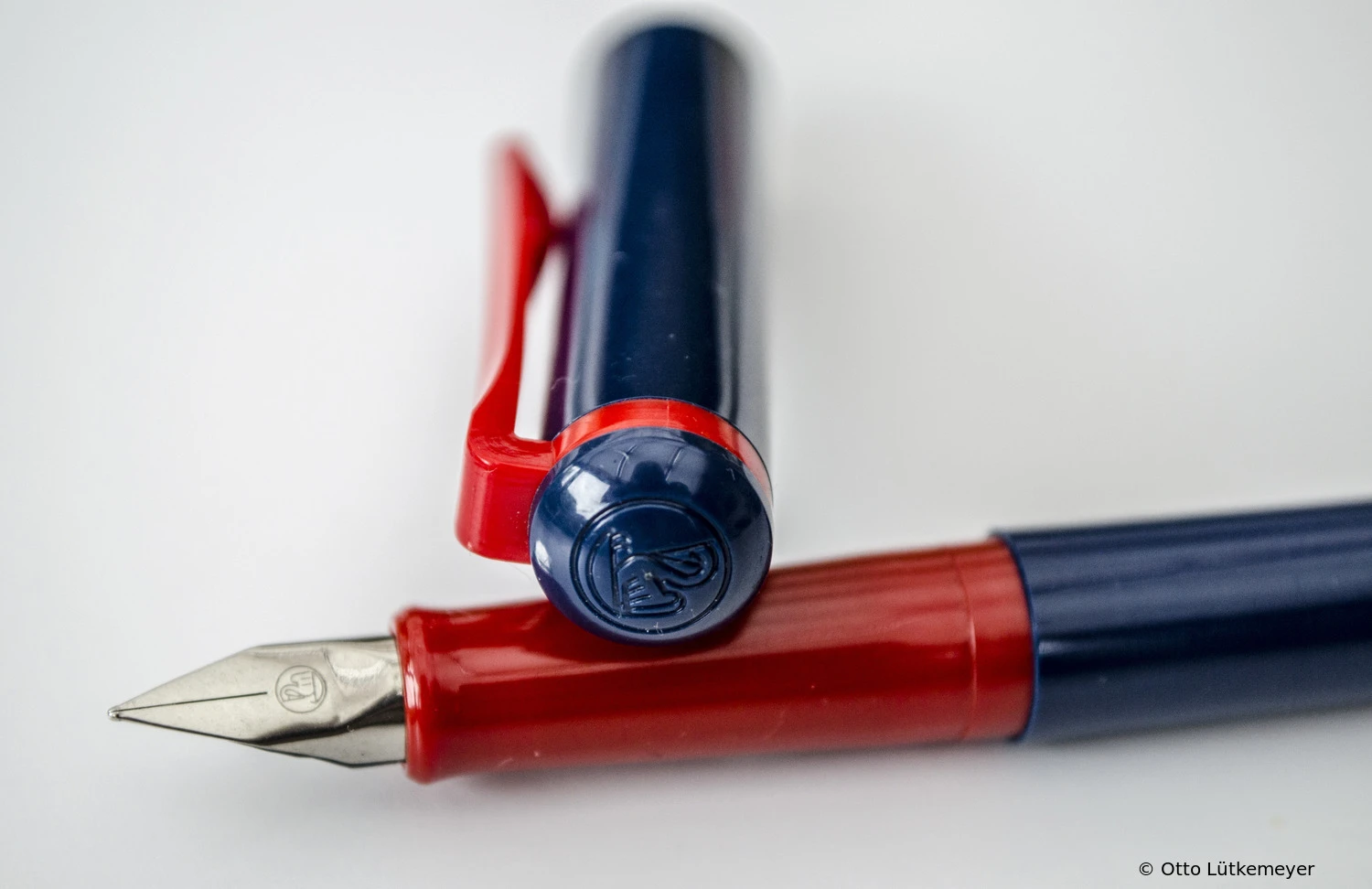

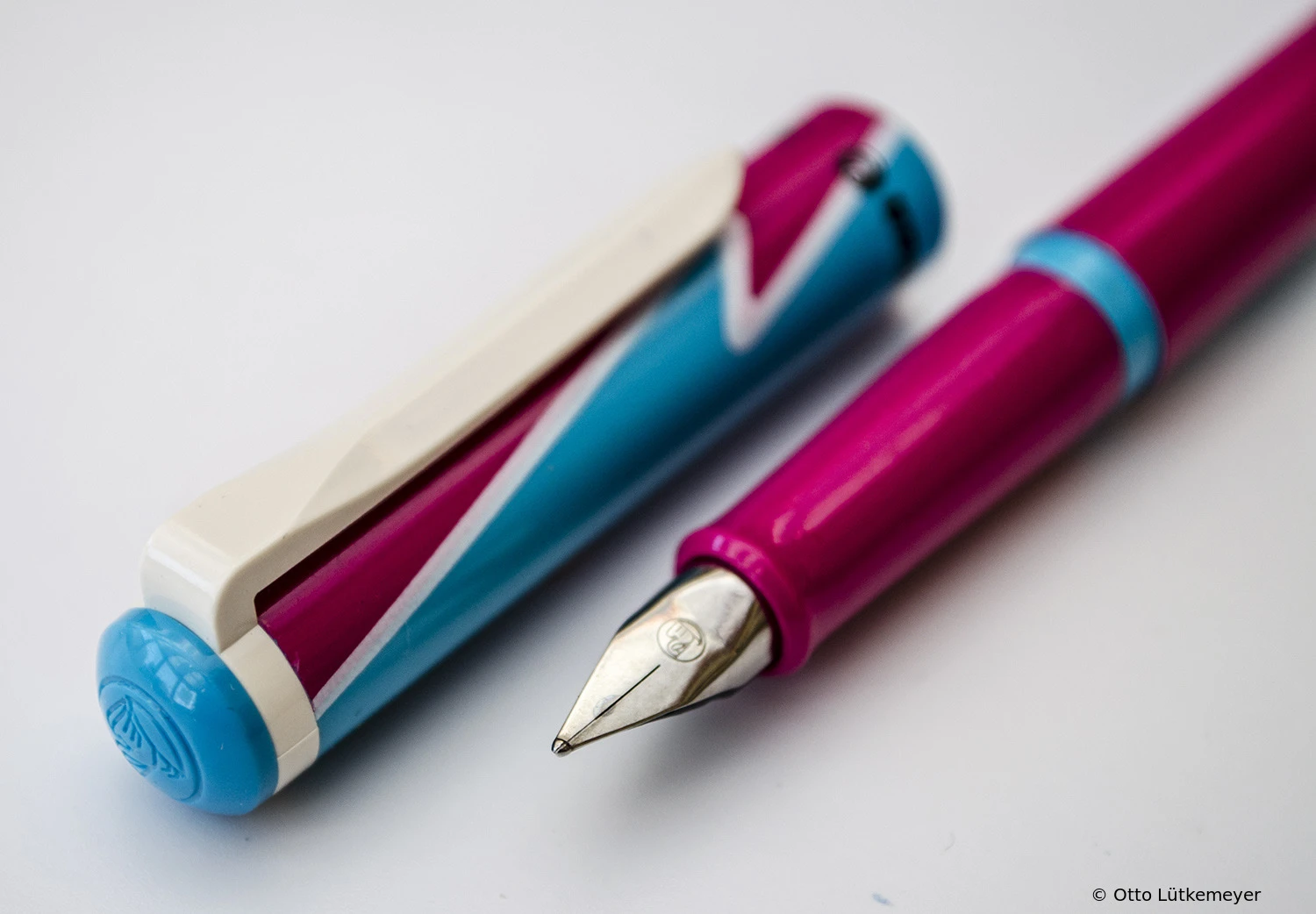

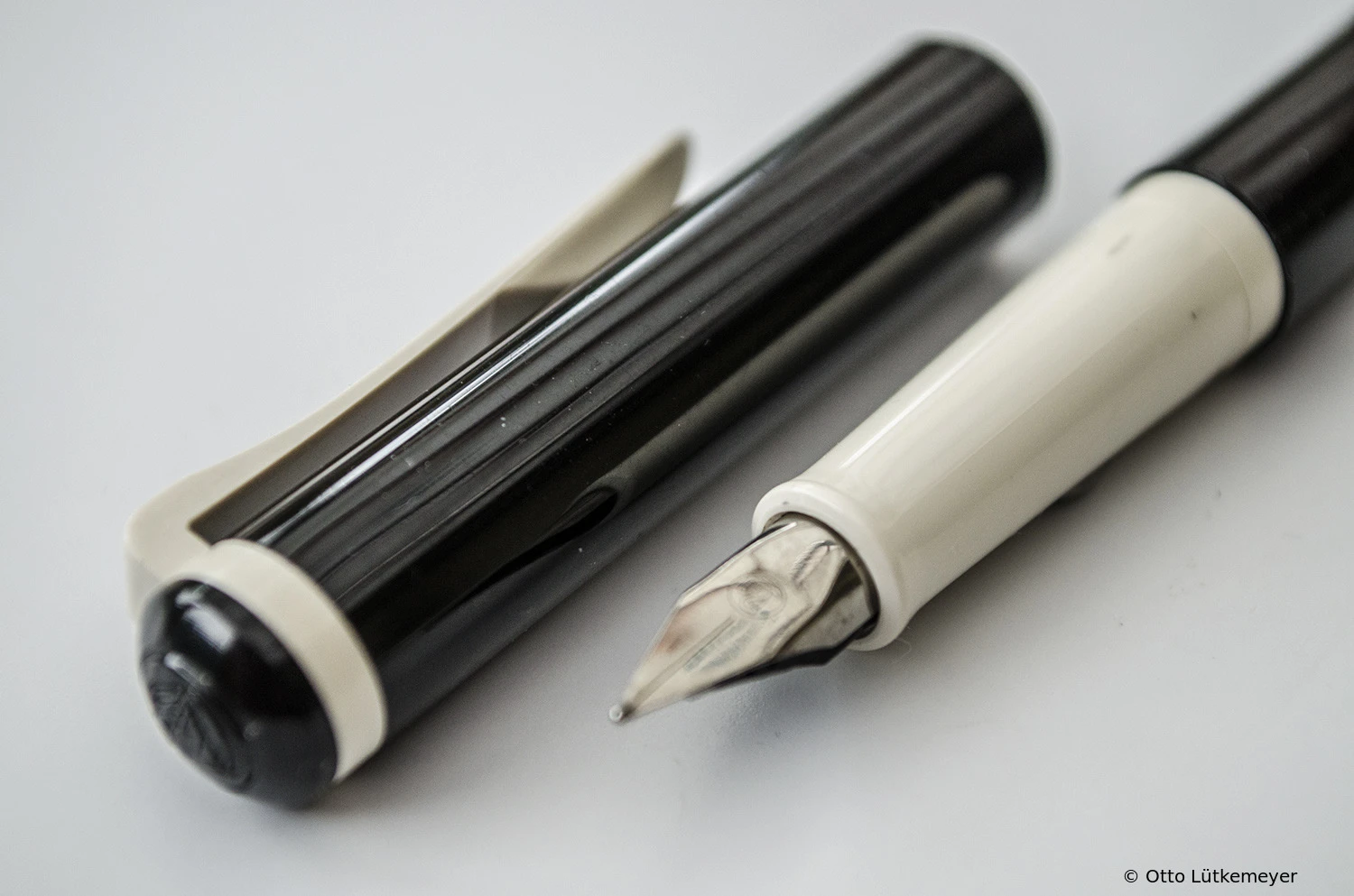

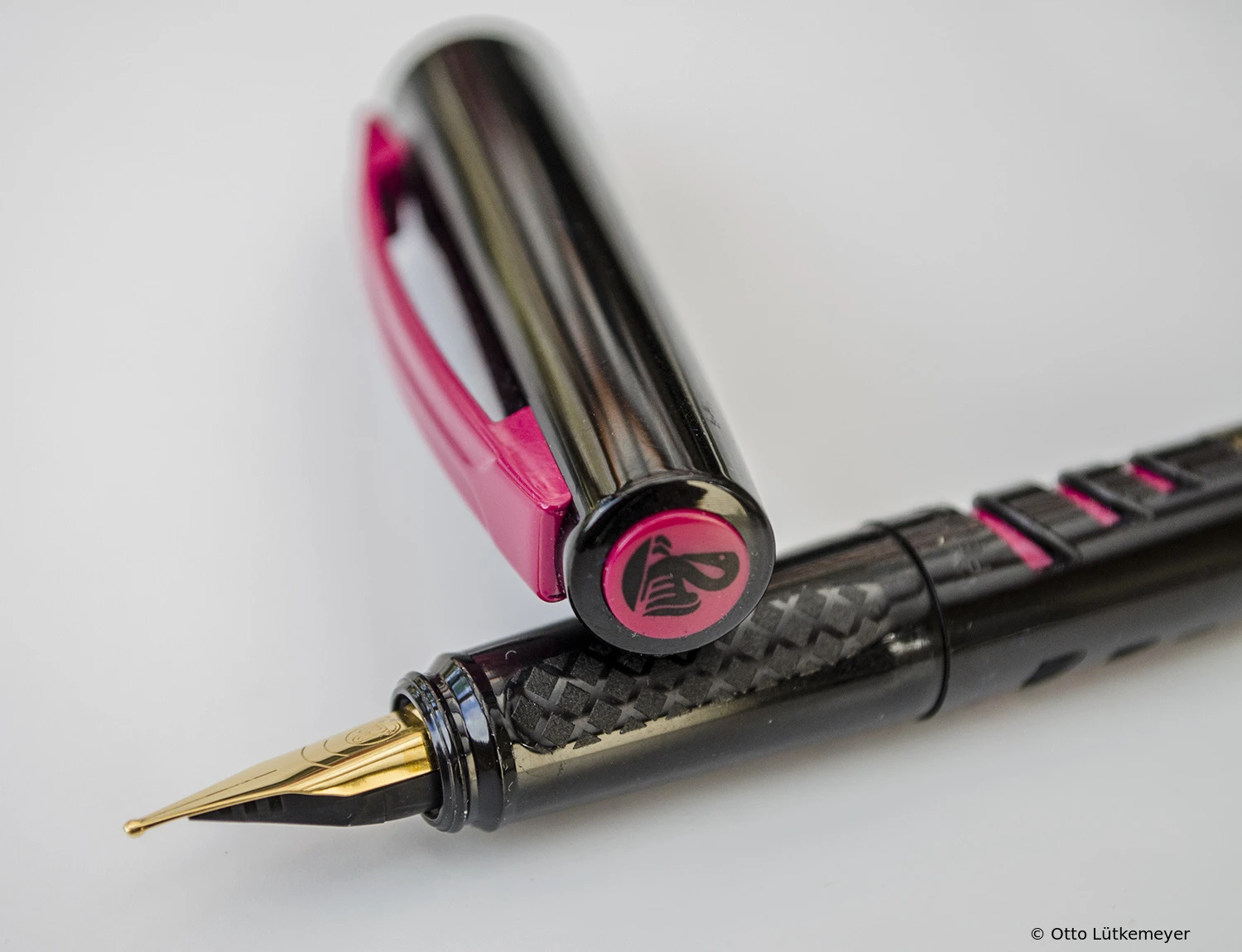

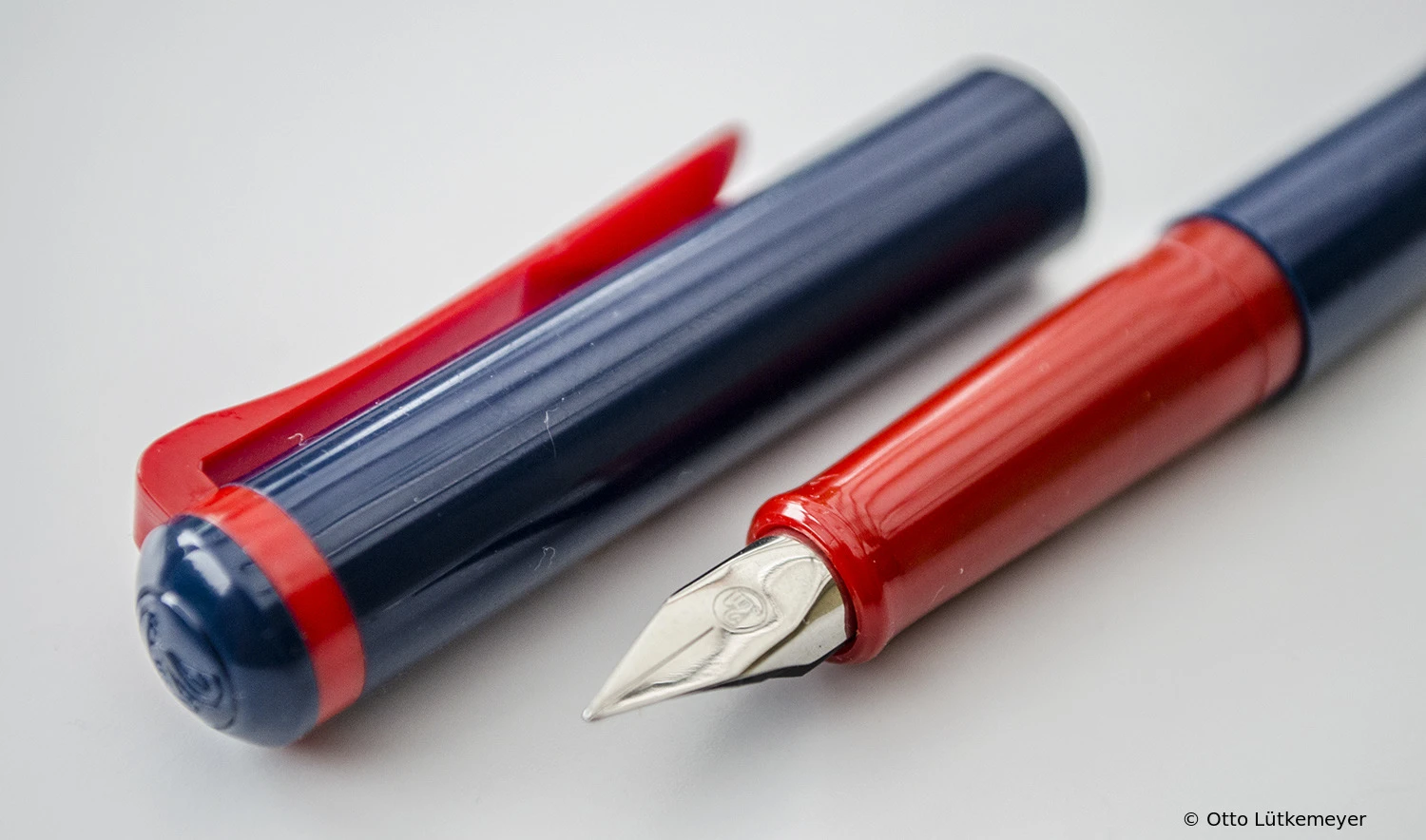

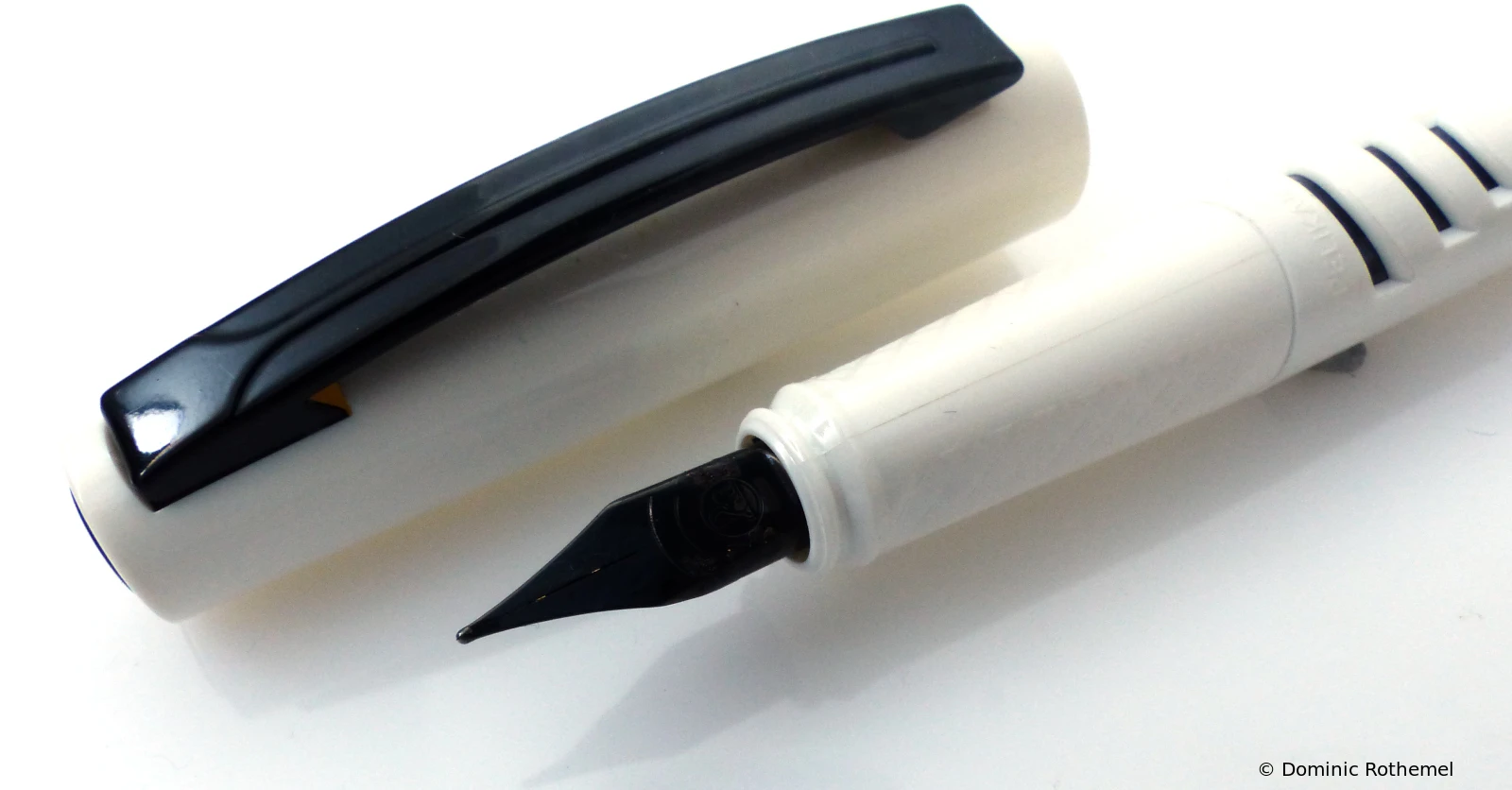

Analogous to the Super Pirate Pen P25 also the cartridge pen GO! P70 can be equipped with an erase cartridge instead of the reserve ink cartridge. A small cap at the end of the barrel released the eraser tip.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.56 oz	5.51 in	4.37 in	2.40 in	0.47 in	2 x 0.8 ml (cartridge)
16.0 g	140 mm	111 mm	61 mm	12 mm

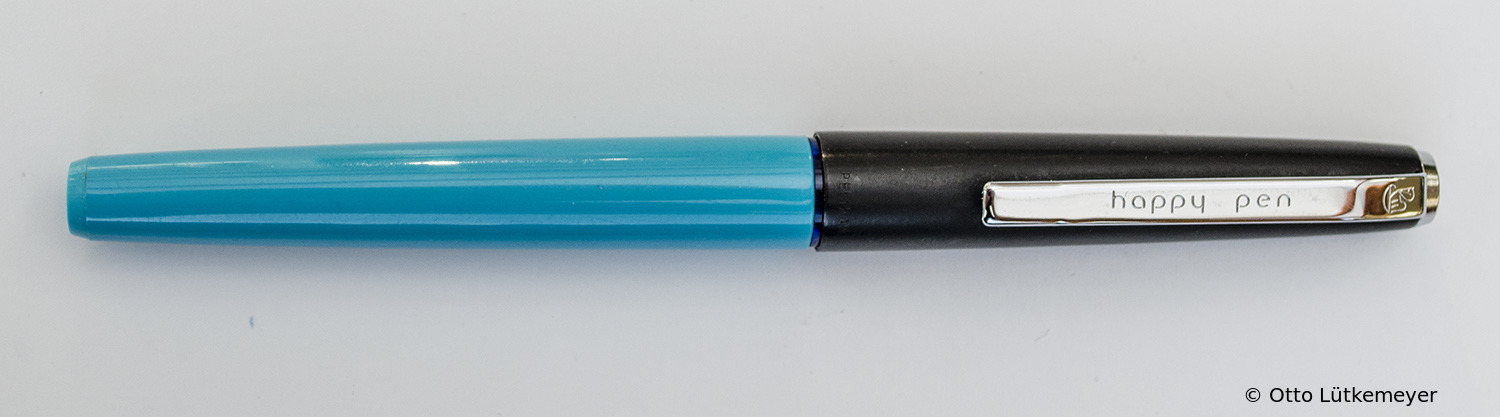

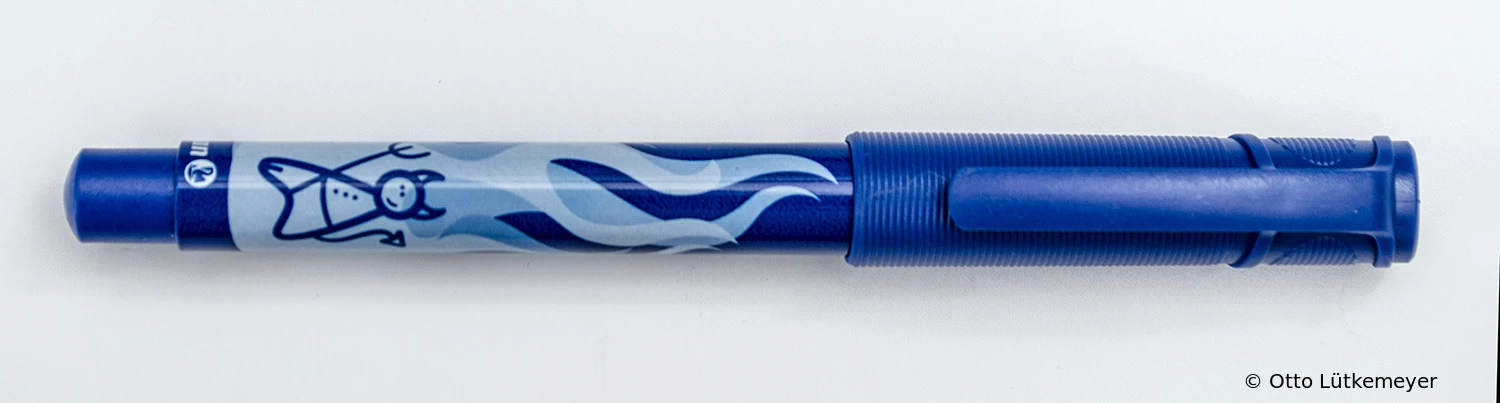

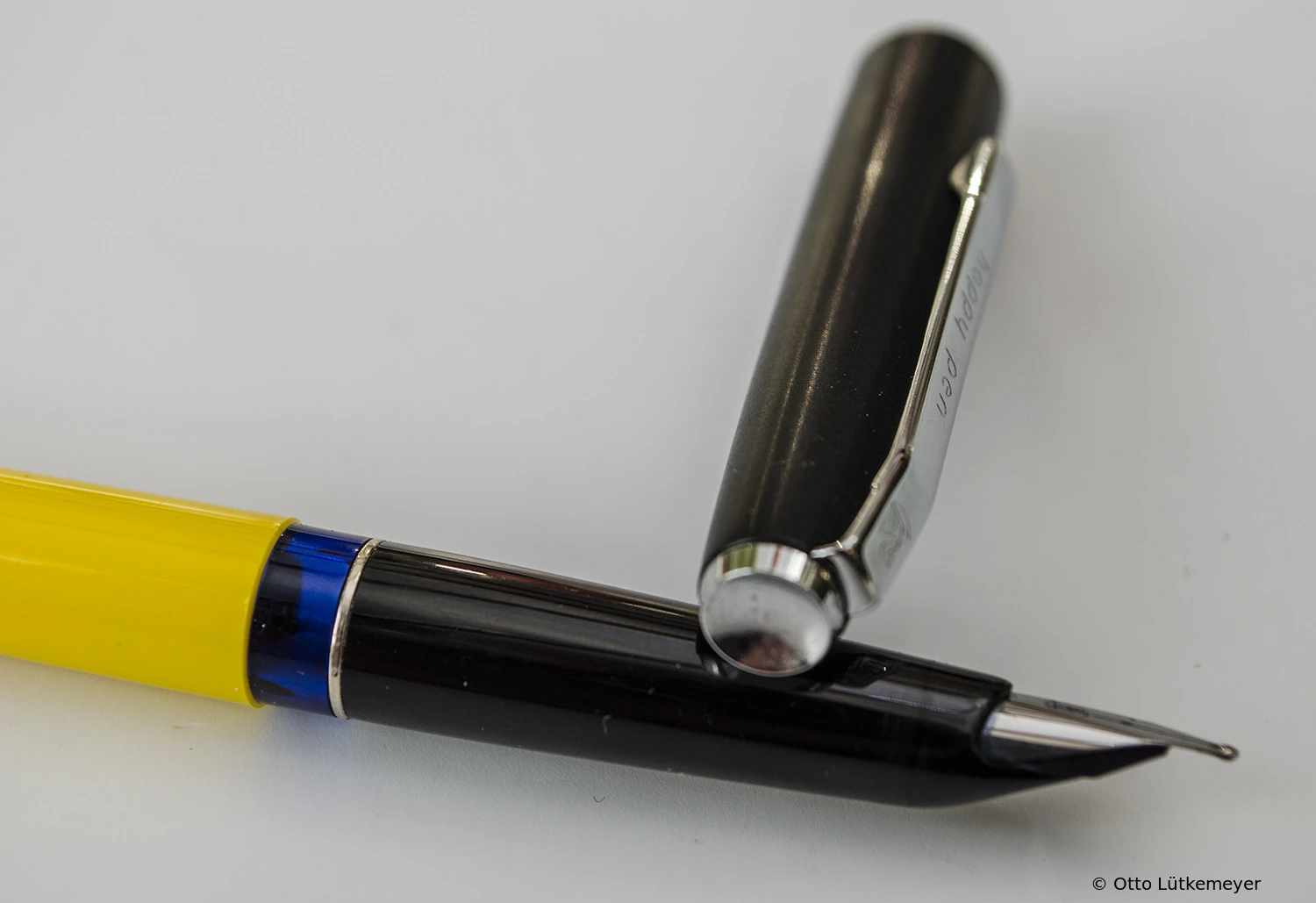

In 1973 Pelikan brought out a new series, specifically addressing the teenage market. The sophisticated technology corresponded to that of the Pelikanos. There was also a felt tip pen and ballpoint pen.

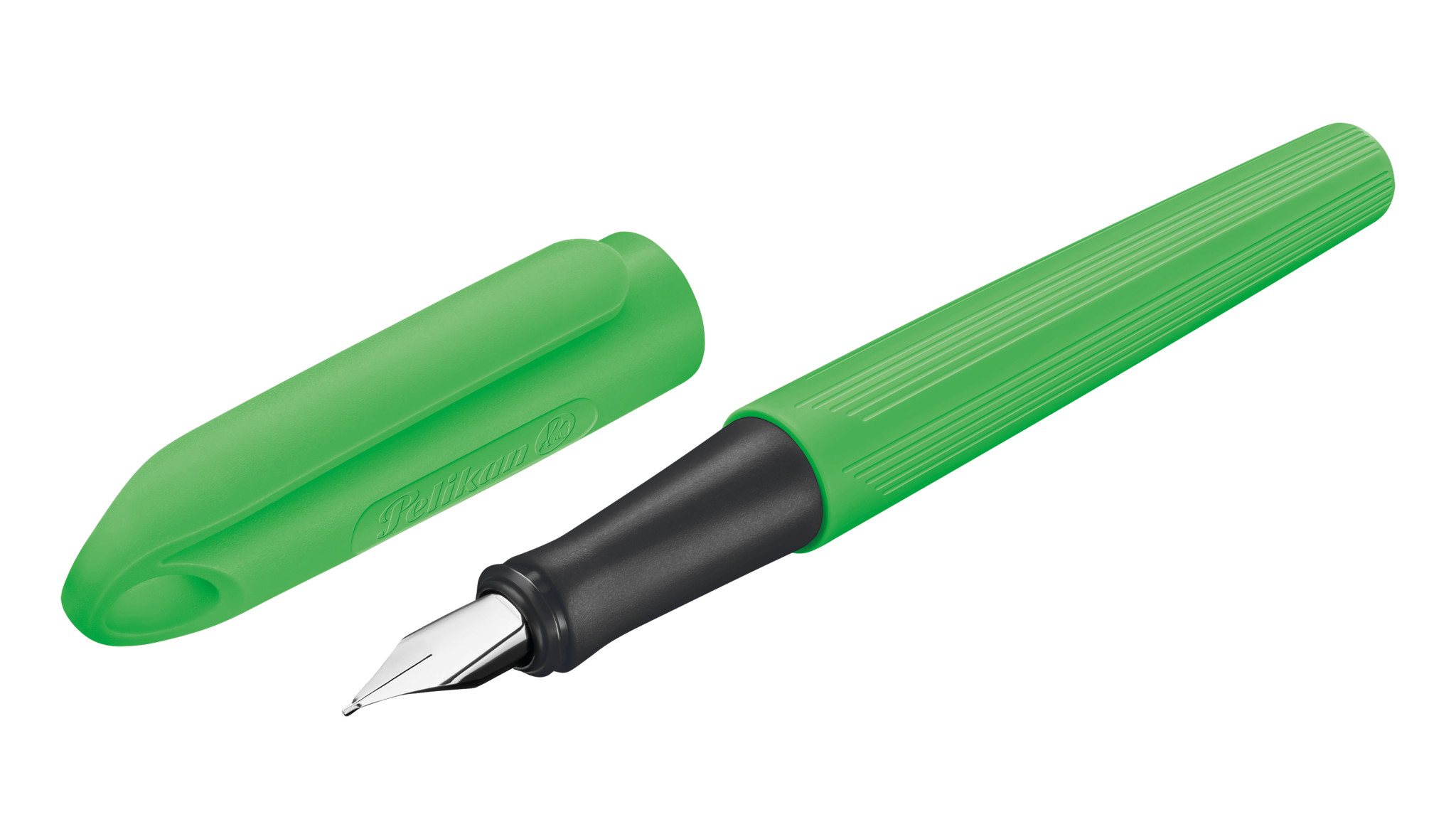

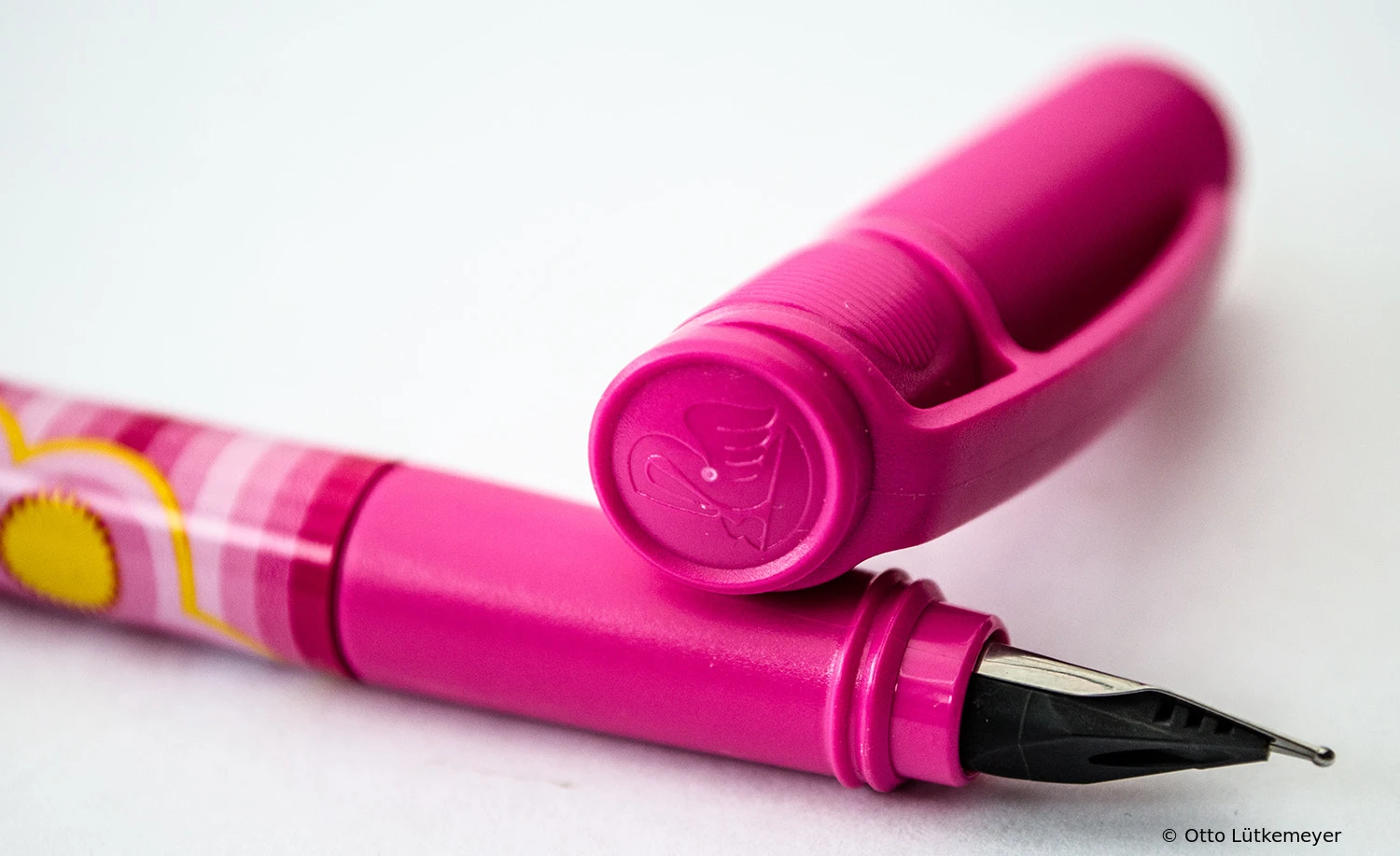

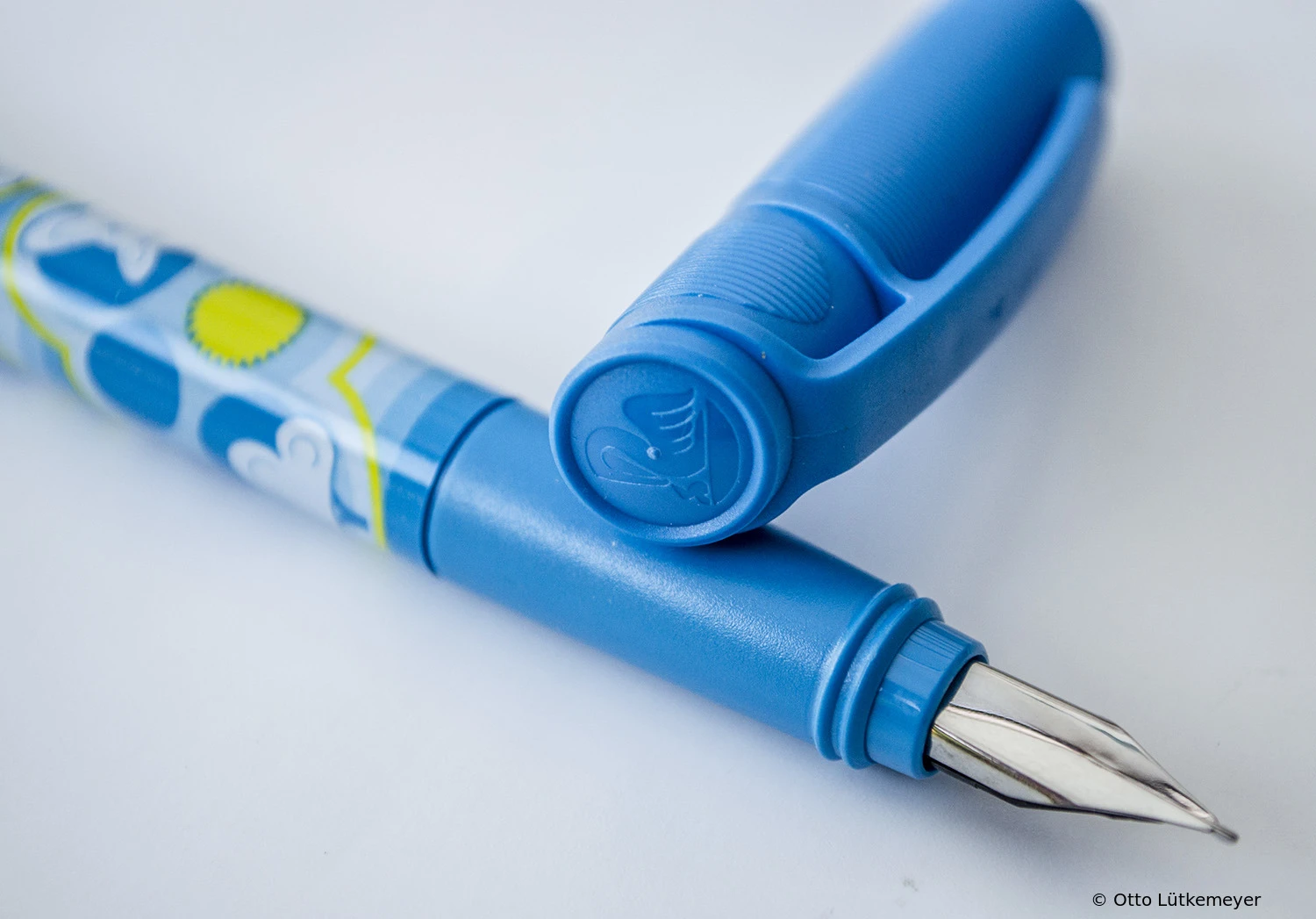

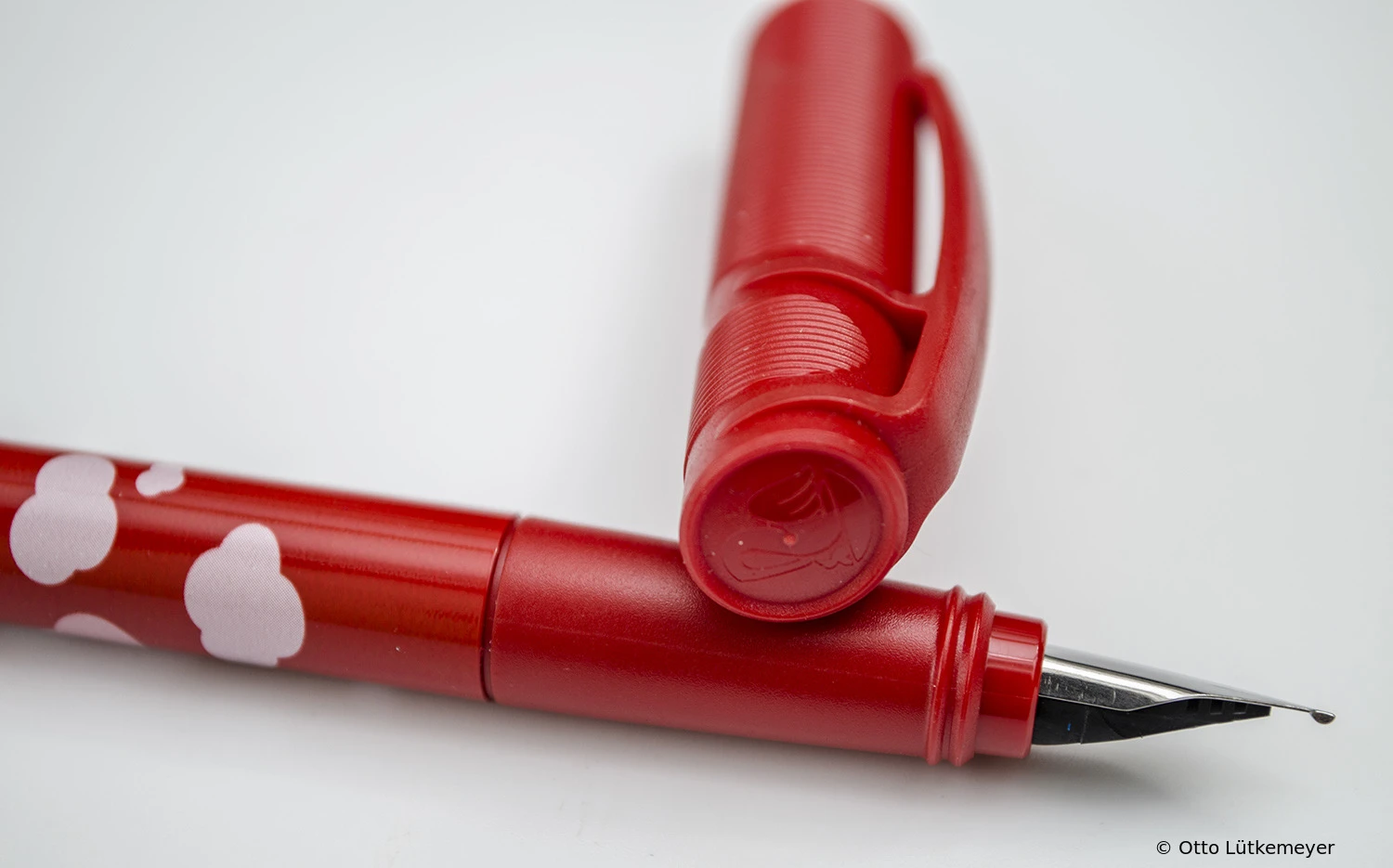

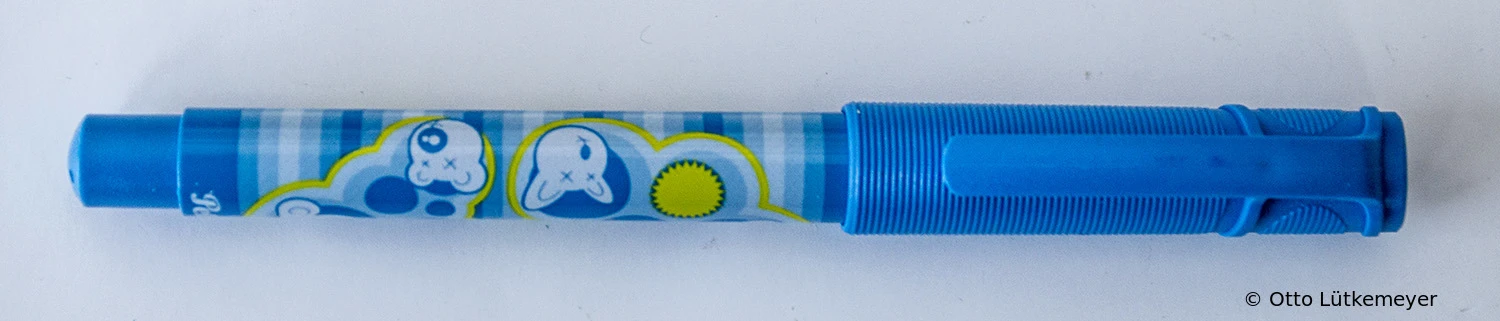

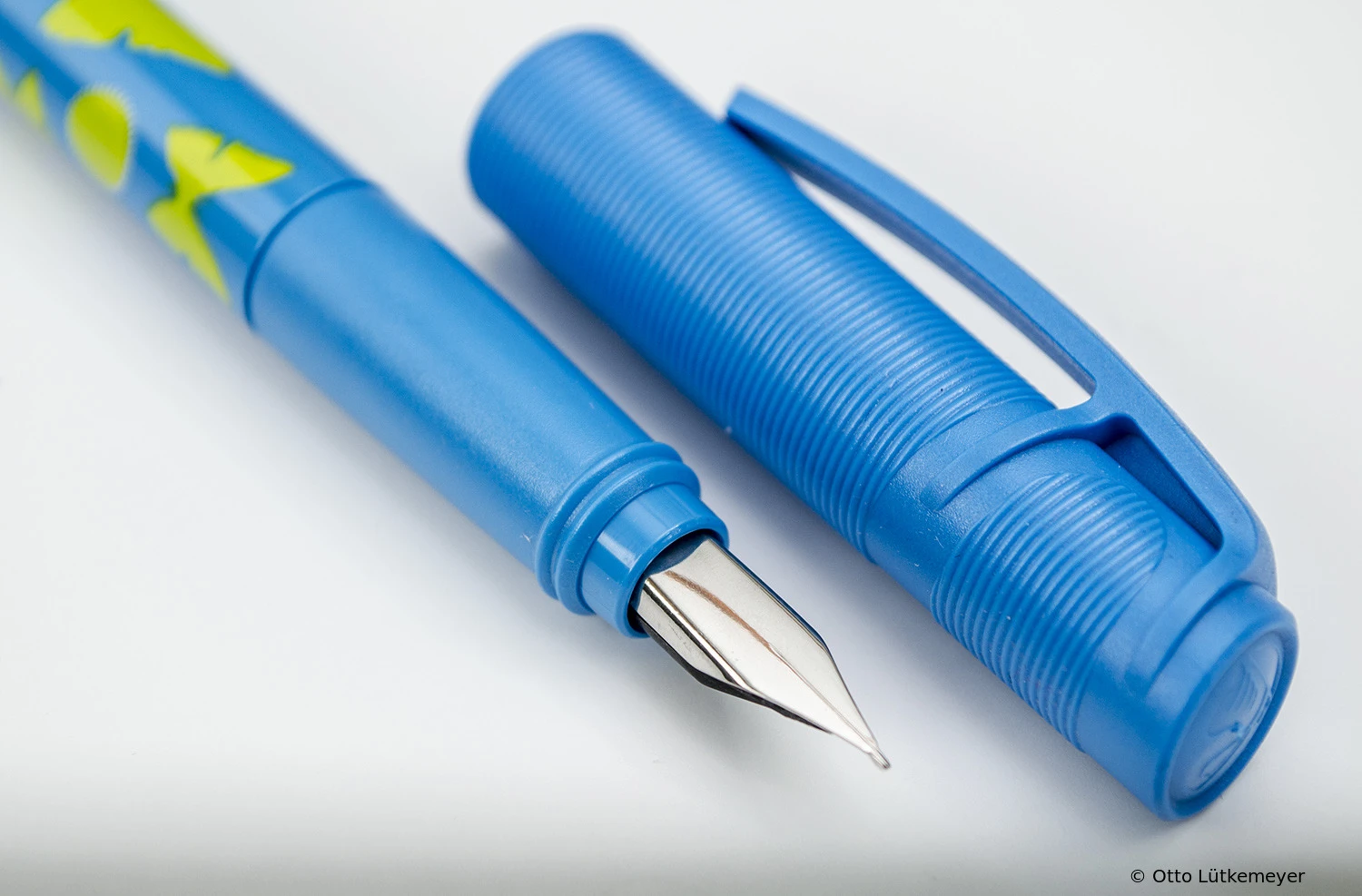

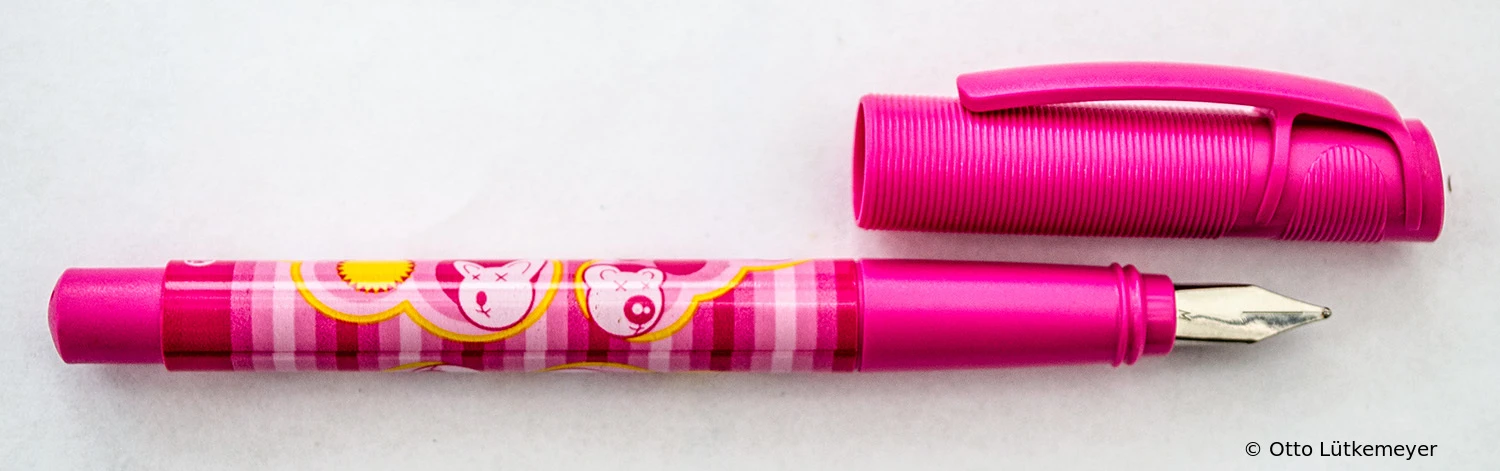

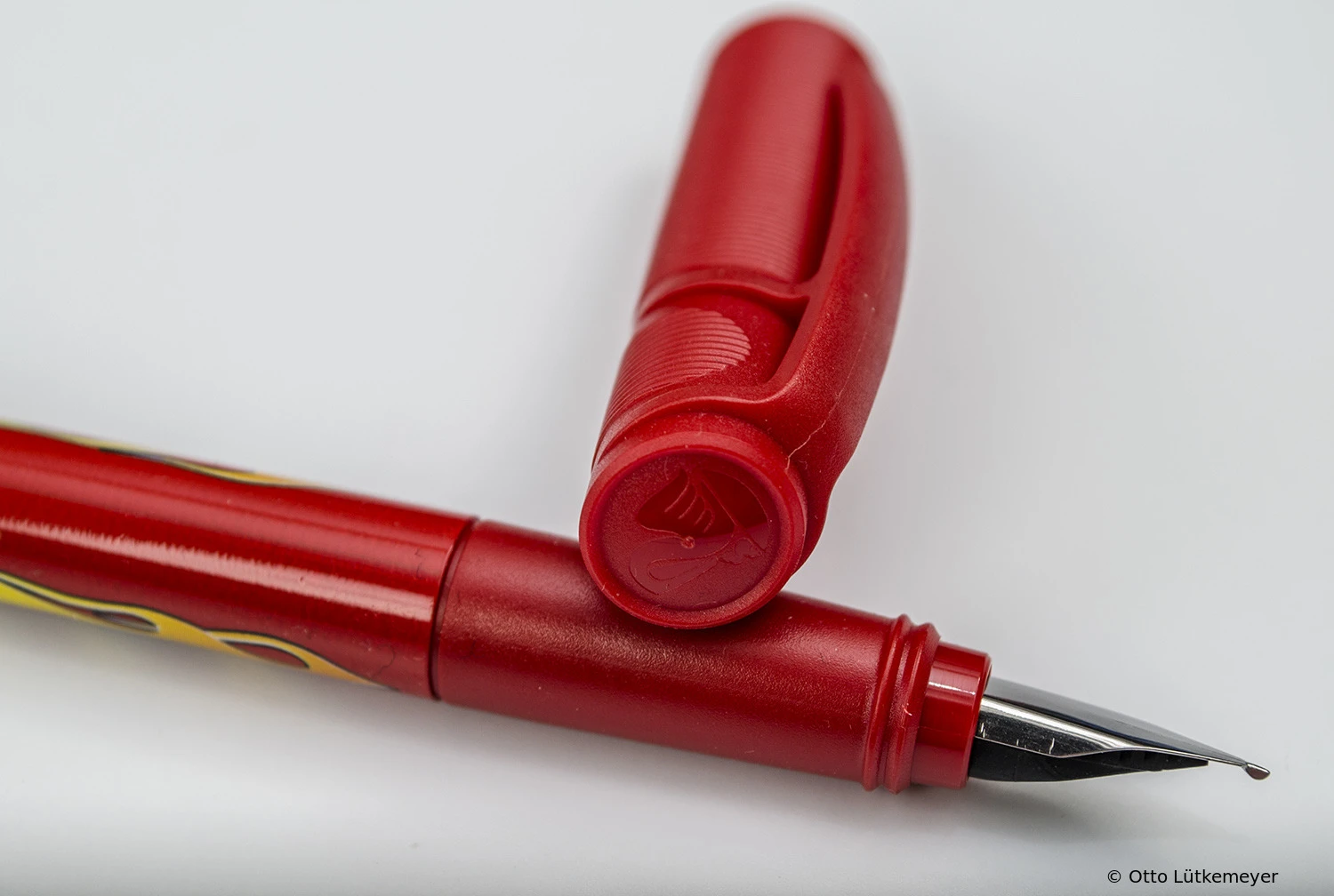

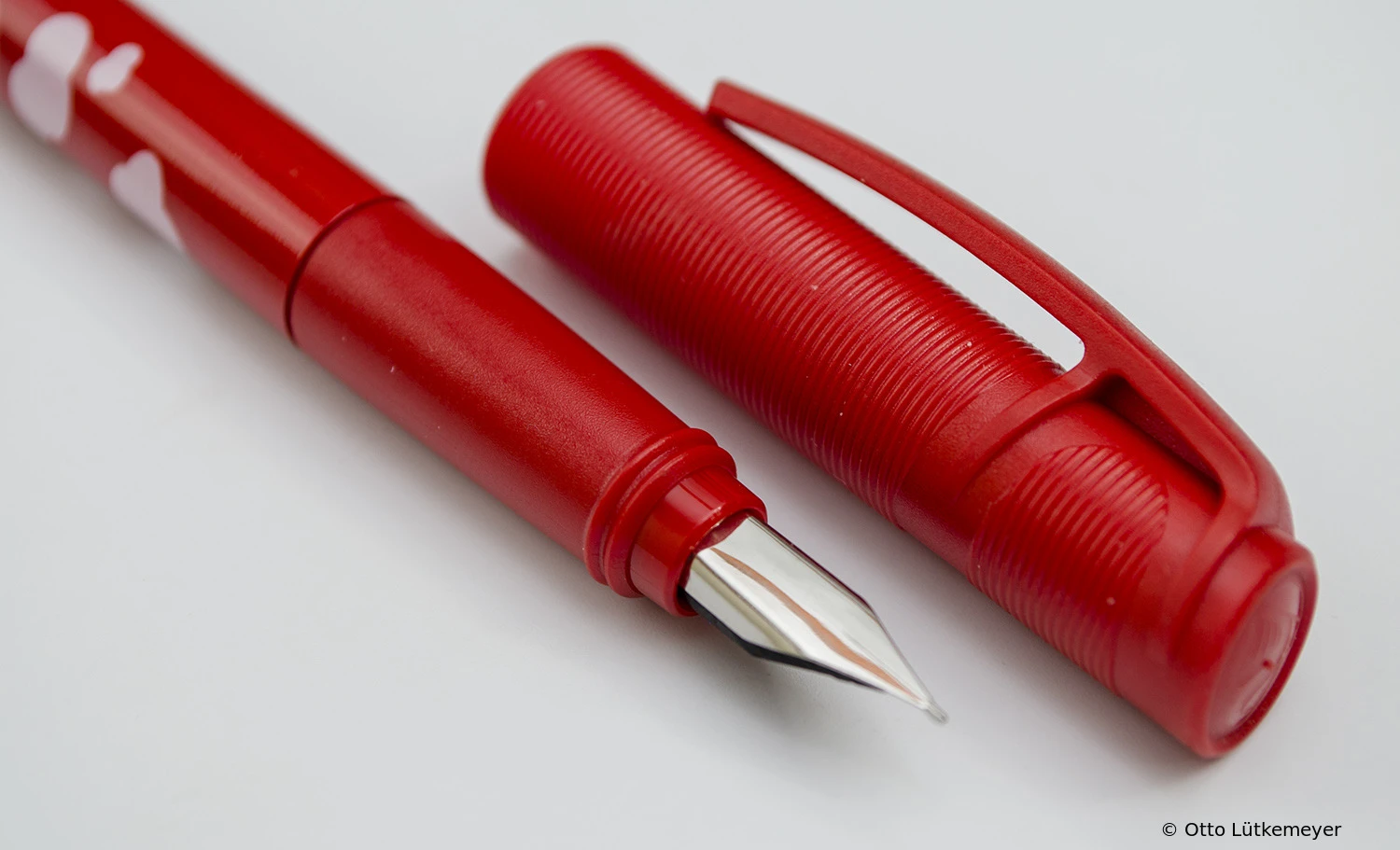

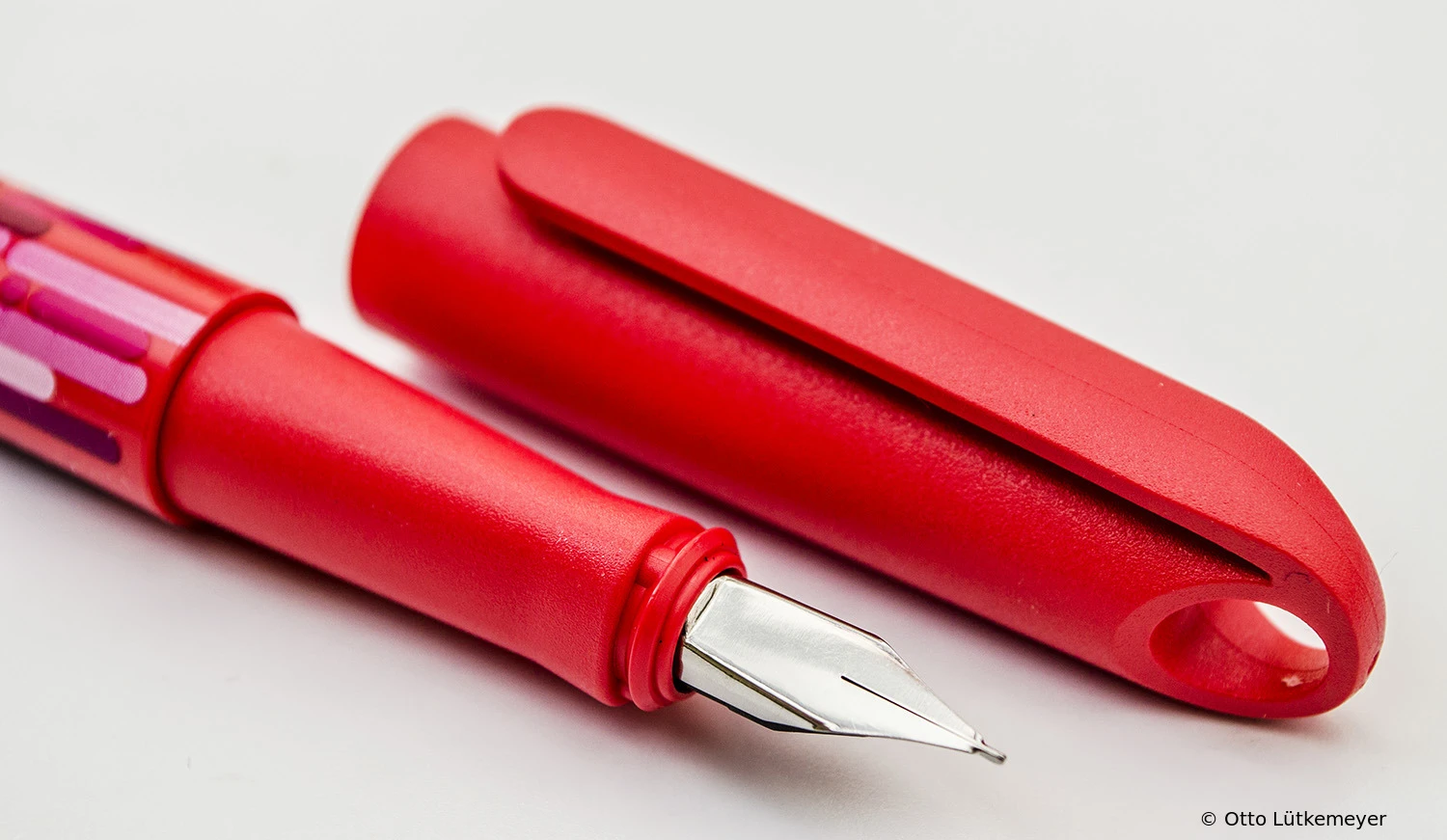

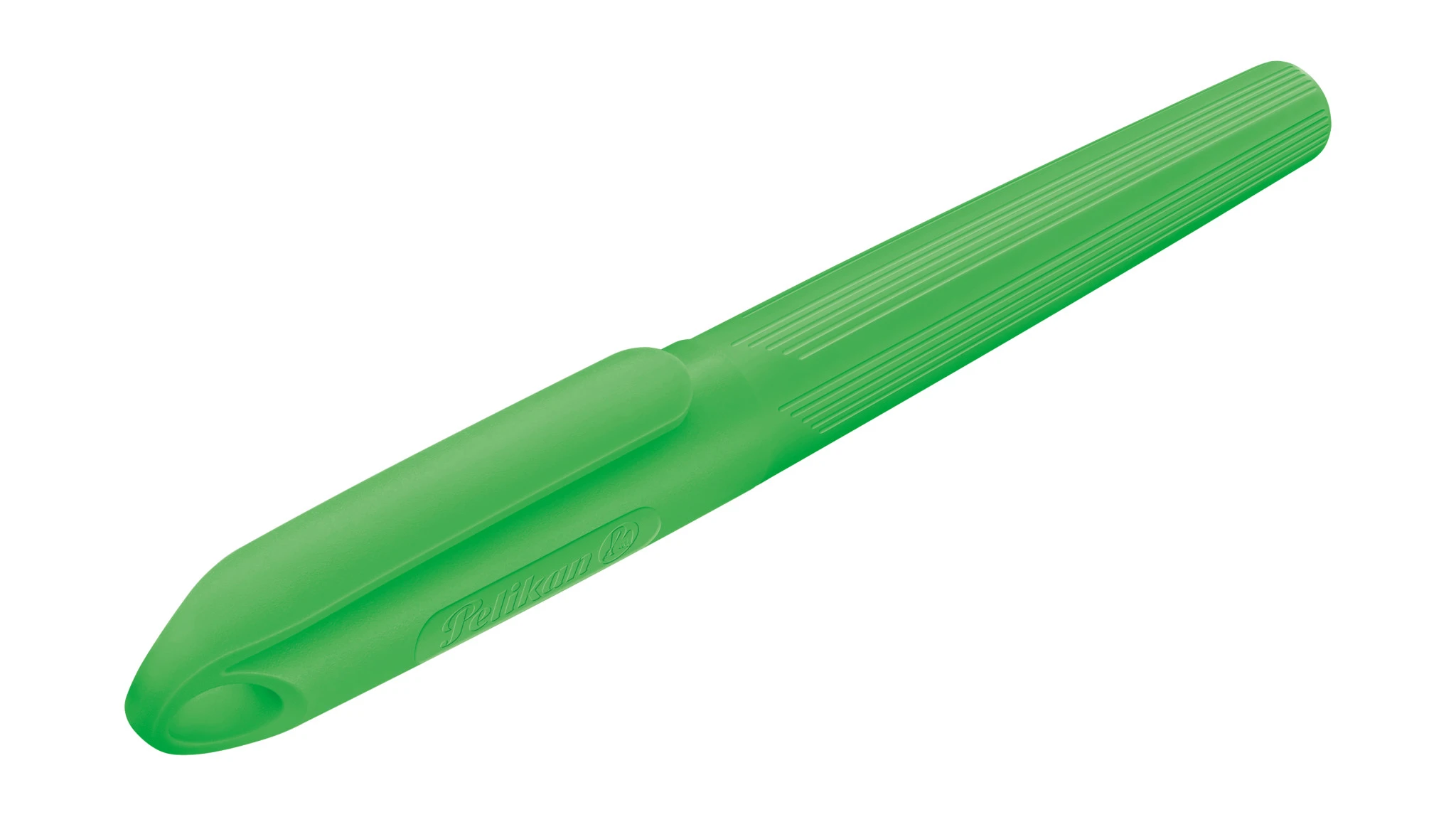

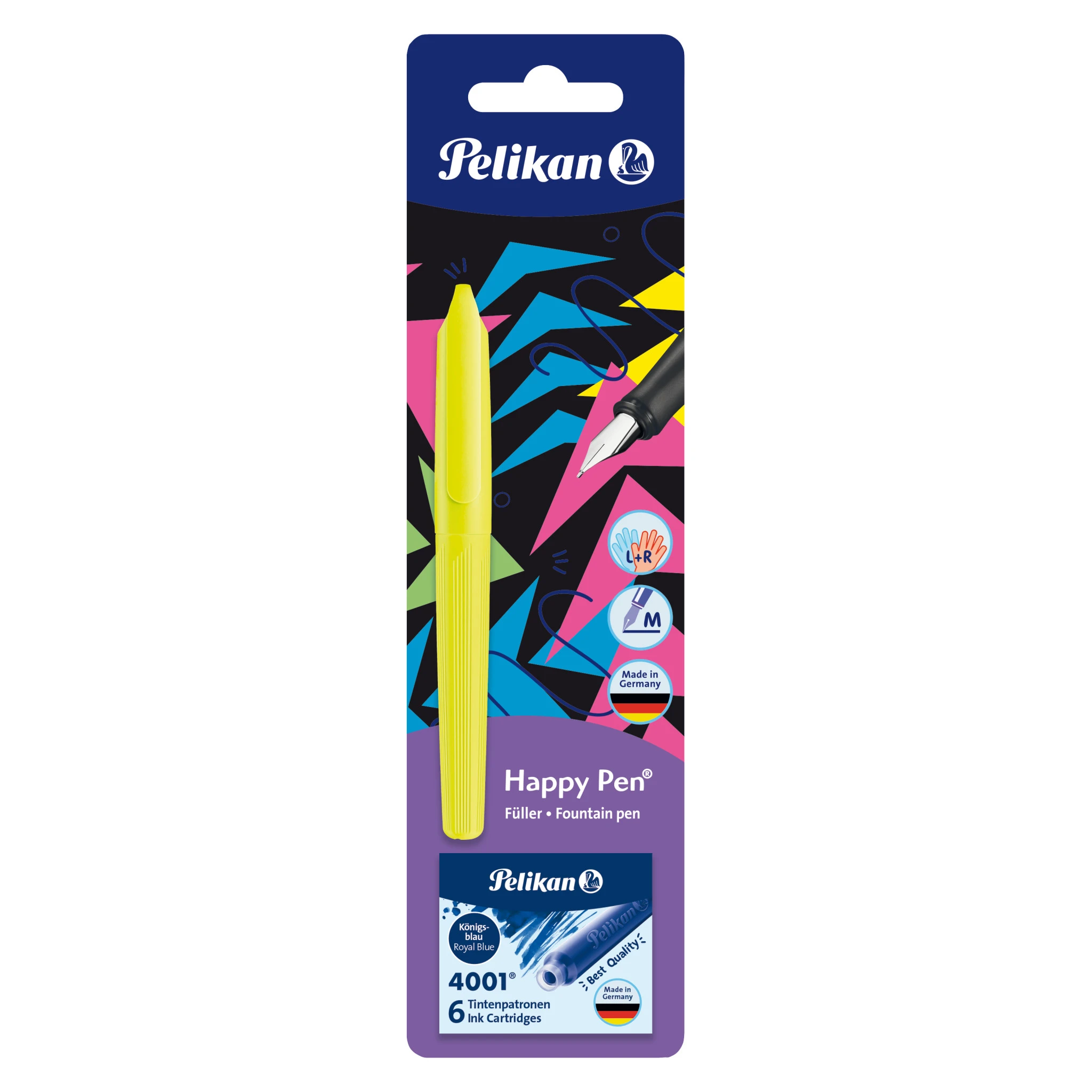

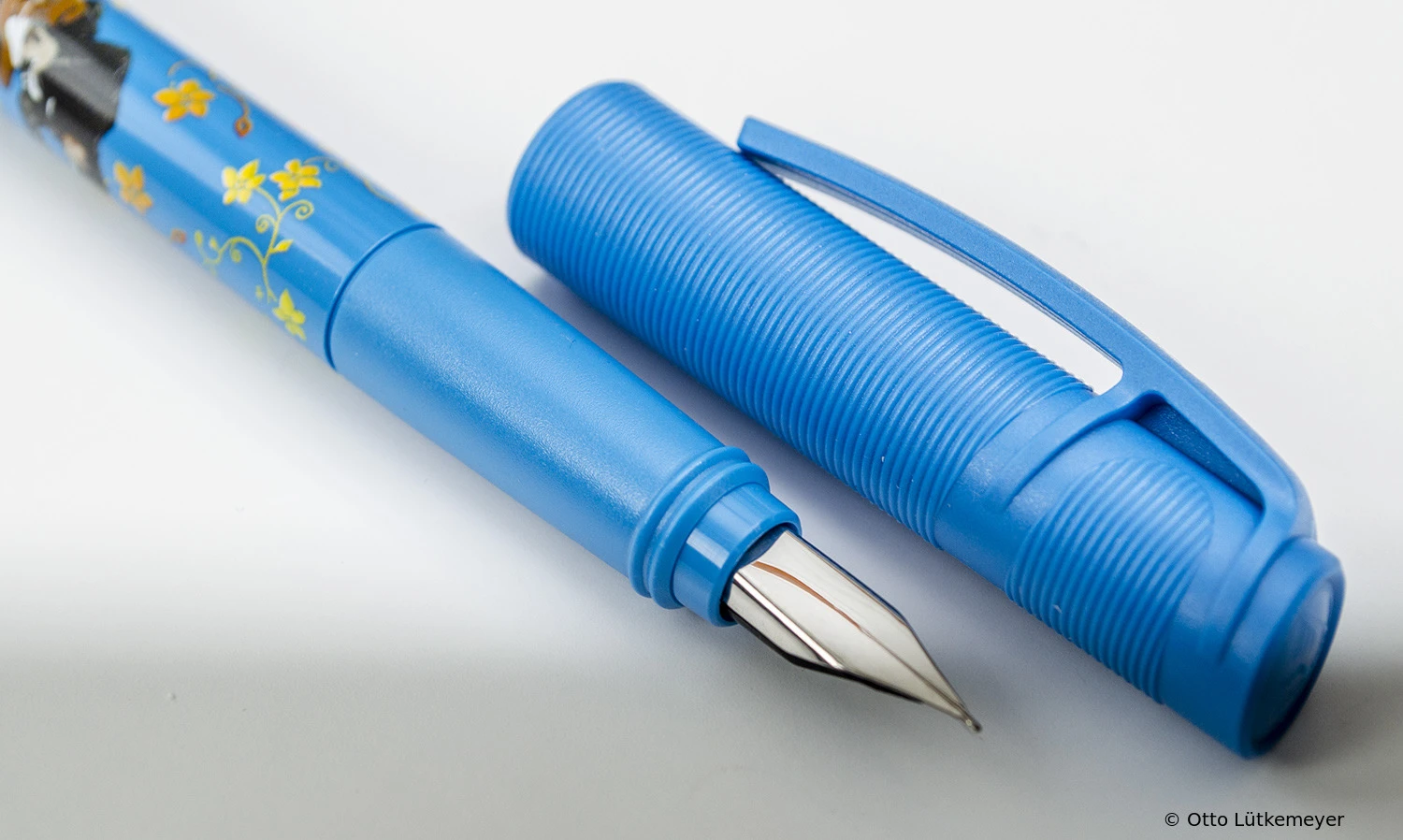

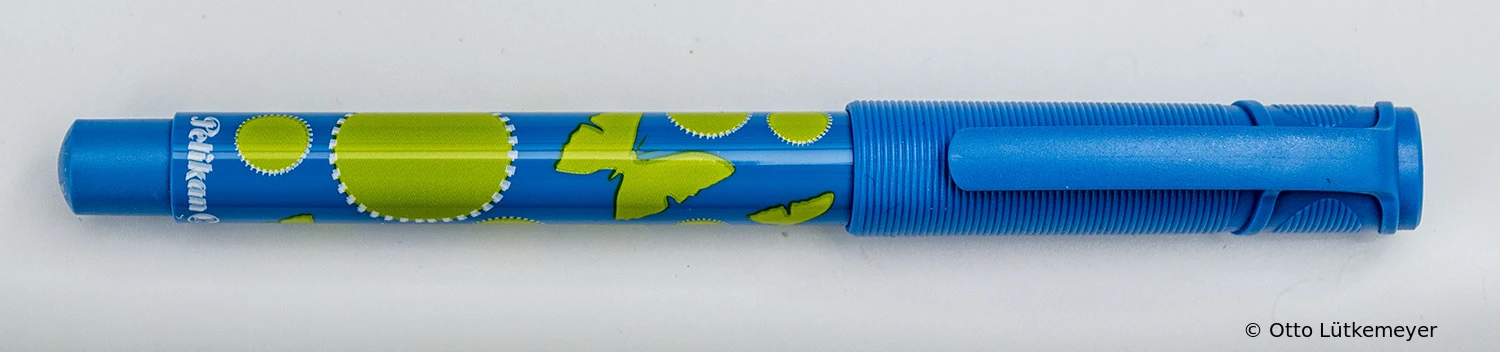

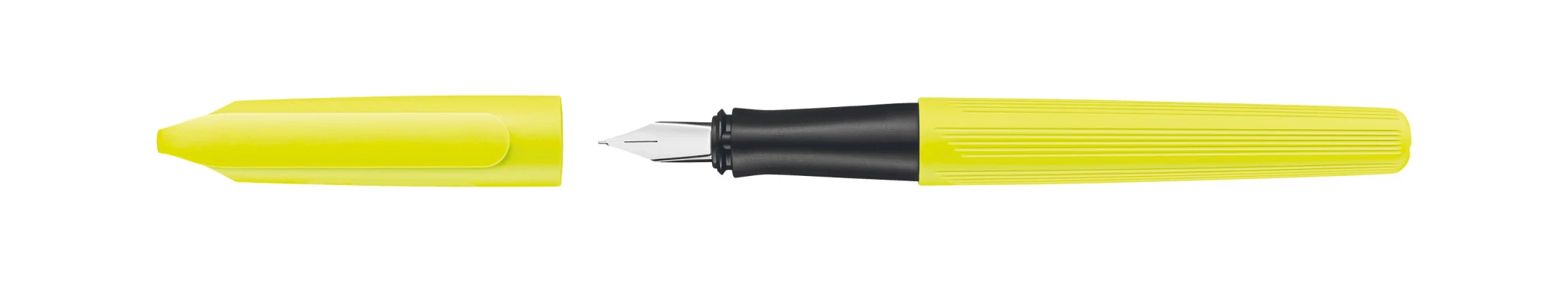

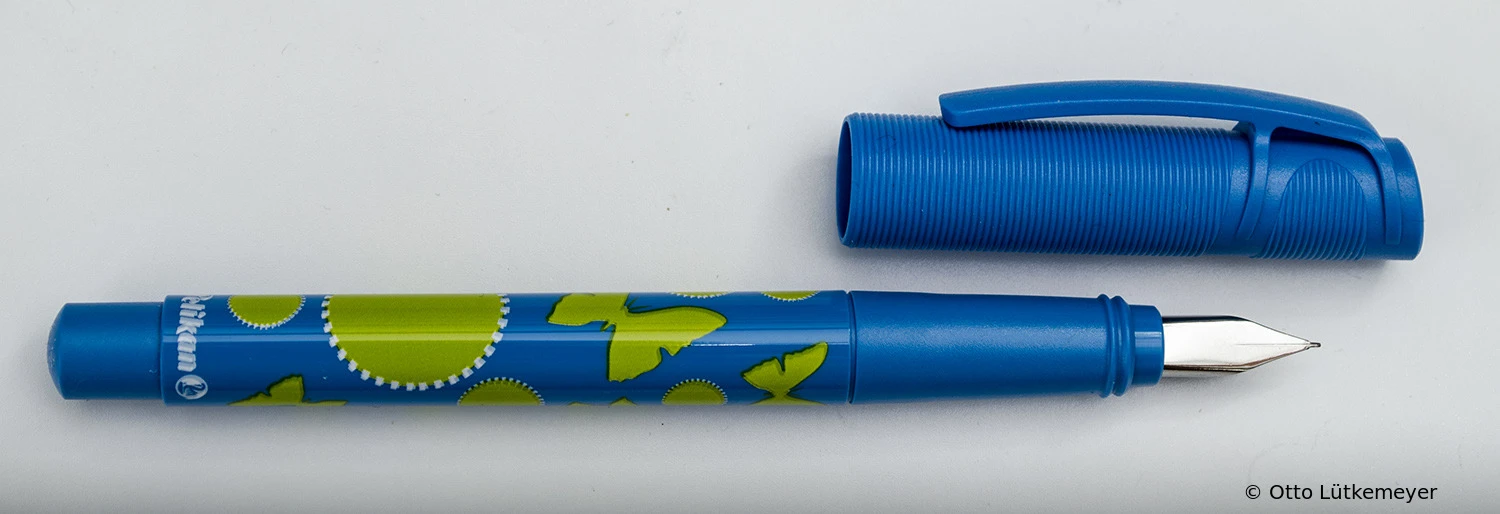

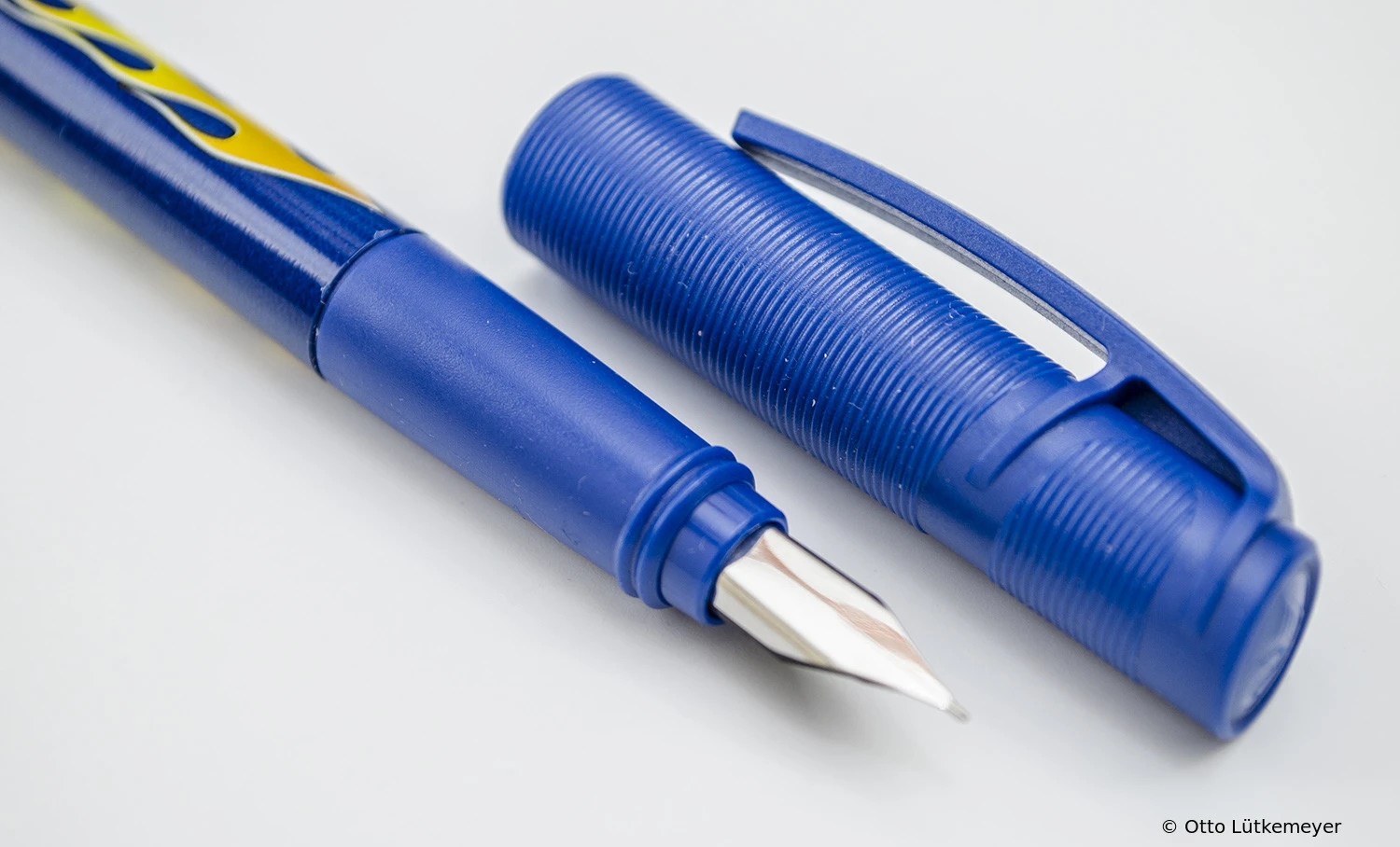

More than 30 years after the first version a new model was be launched, bearing the same name 'Happy Pen' and addressing the same target group. The shape and design were fundamentally changed. The plain colored barrels were printed with various designs.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.33 oz	5.26 in	4.23 in	2.26 in	0.43 in	2 x 0.8 ml (cartridge)
9.4 g	133.5 mm	107.5 mm	57.5 mm	11 mm

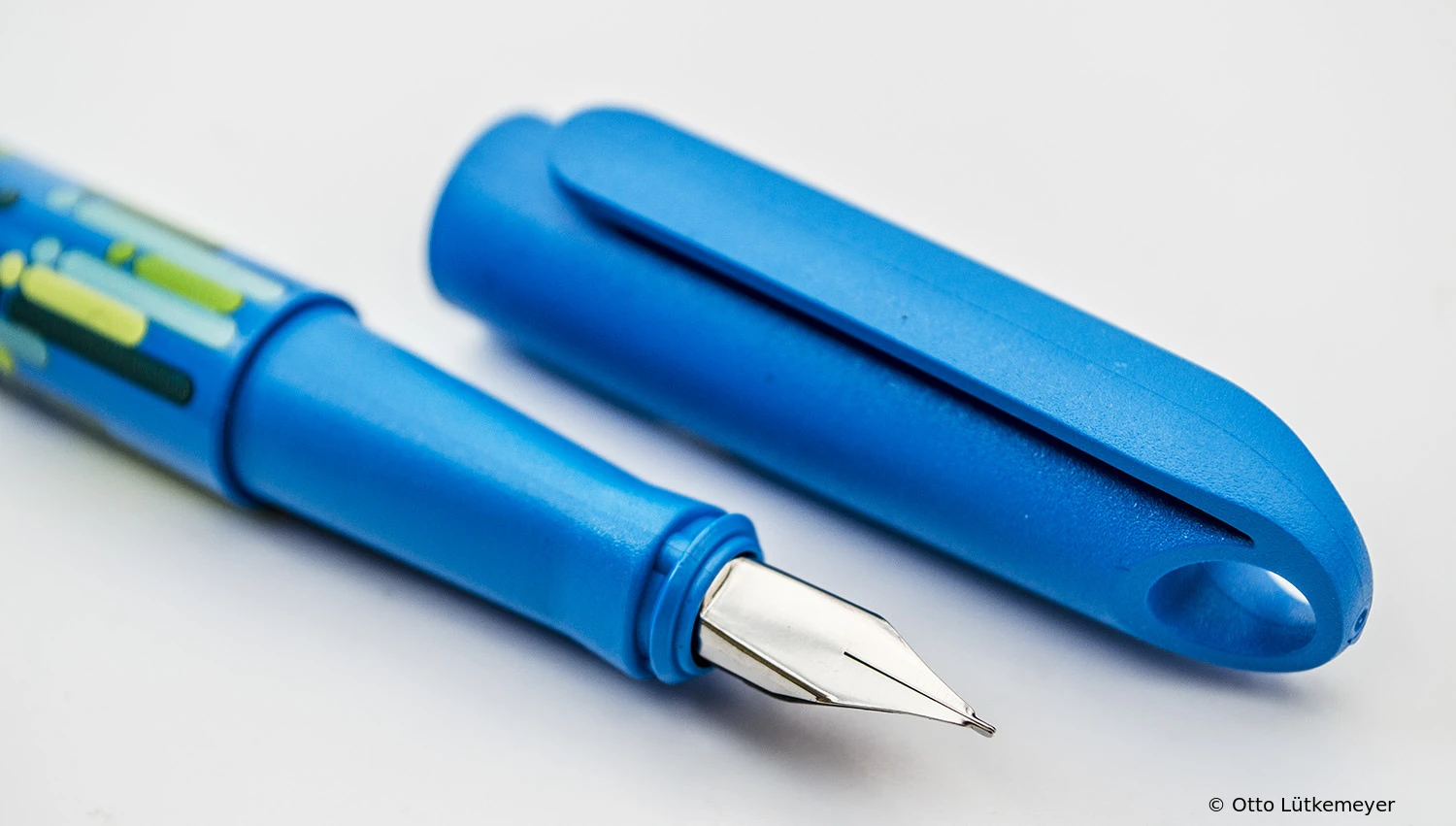

2014 saw a further revision of form and style.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.41 oz	5.18 in	4.02 in	2.32 in	0.53 in	2 x 0.8 ml (cartridge)
11.6 g	131.5 mm	102 mm	59 mm	13.5 mm

2014 saw a further revision of form and style.

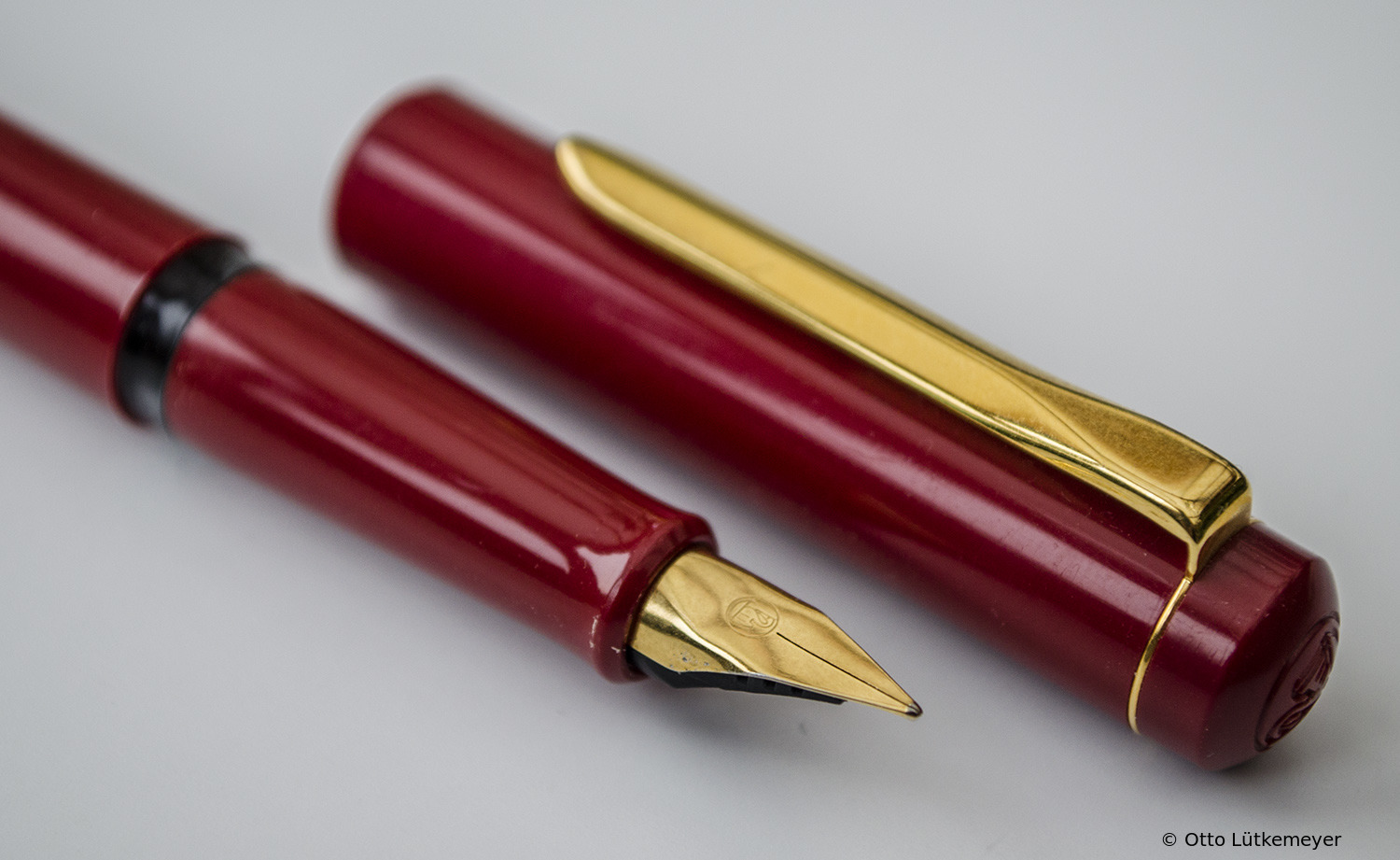

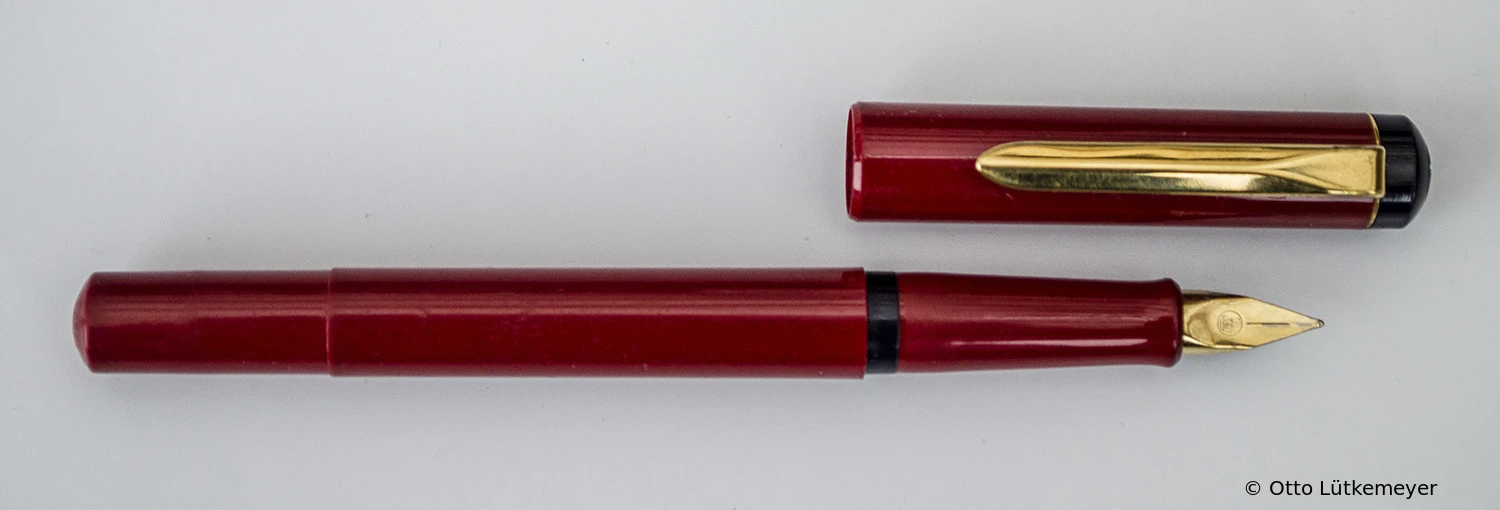

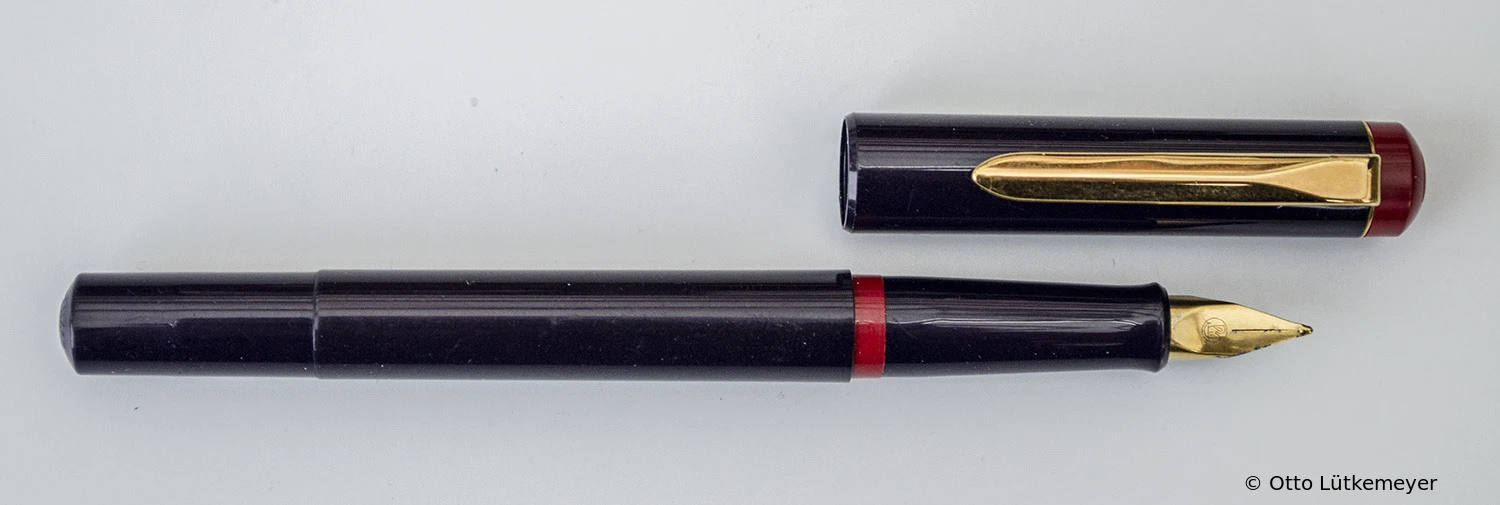

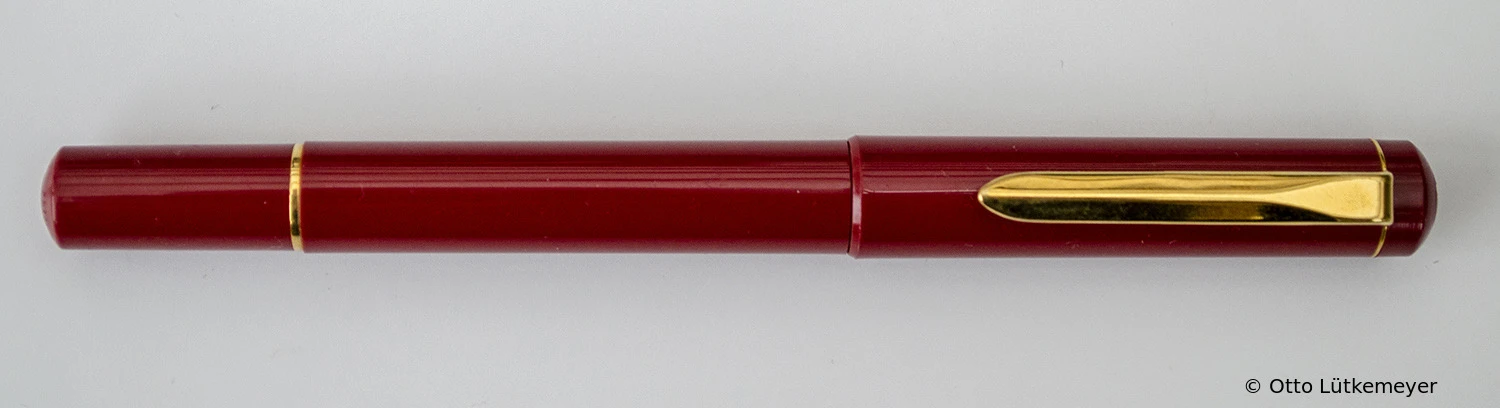

1987 Nobil P36 is produced in the Netherlands. It resembles the foutain pen for youngsters TWIST, but is made plain in Royal Blue or Burgundy with gold-plated clip and trim ring and is made of better material.

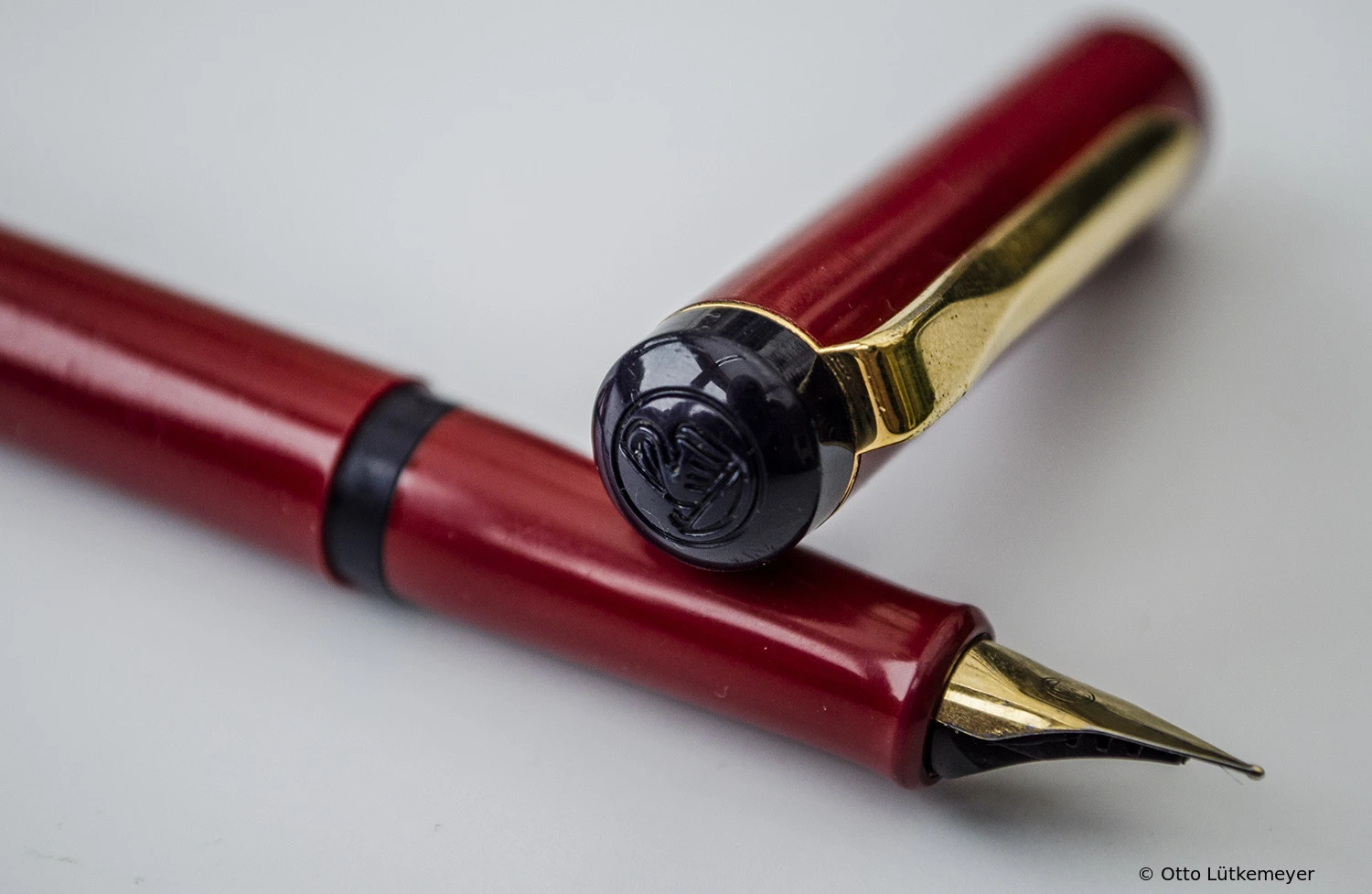

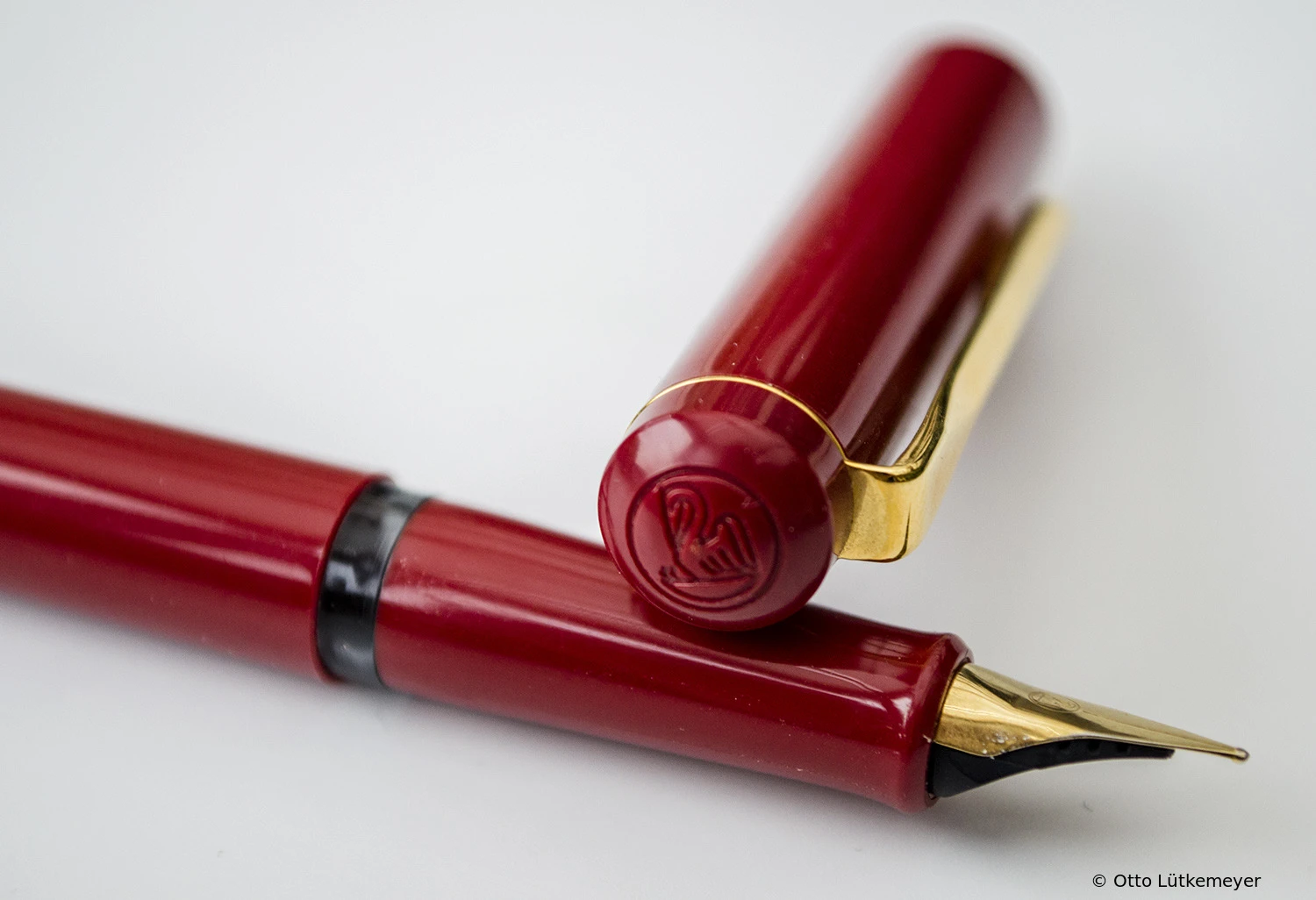

1988 is the P38 Nobil slightly changed and was sold on the overall market: he is now two-tone and the gold-plated trim ring is omitted.
The model P38 Nobil silver for export was conducted for Austria under the model designation 'Air Pen Royal P458' as successor to the 'Air Pen Silver P458'.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.33 oz	5.31 in	4.25 in	2.28 in	0.43 in	2 x 0.8 ml (cartridge)
9.3 g	135 mm	108 mm	58 mm	11 mm

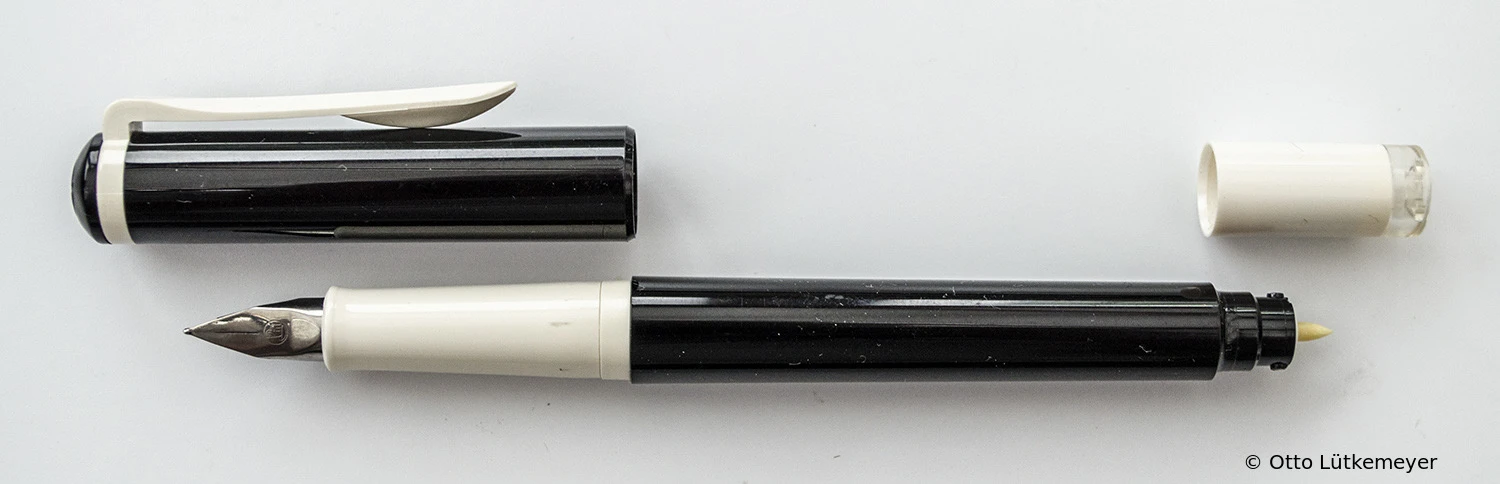

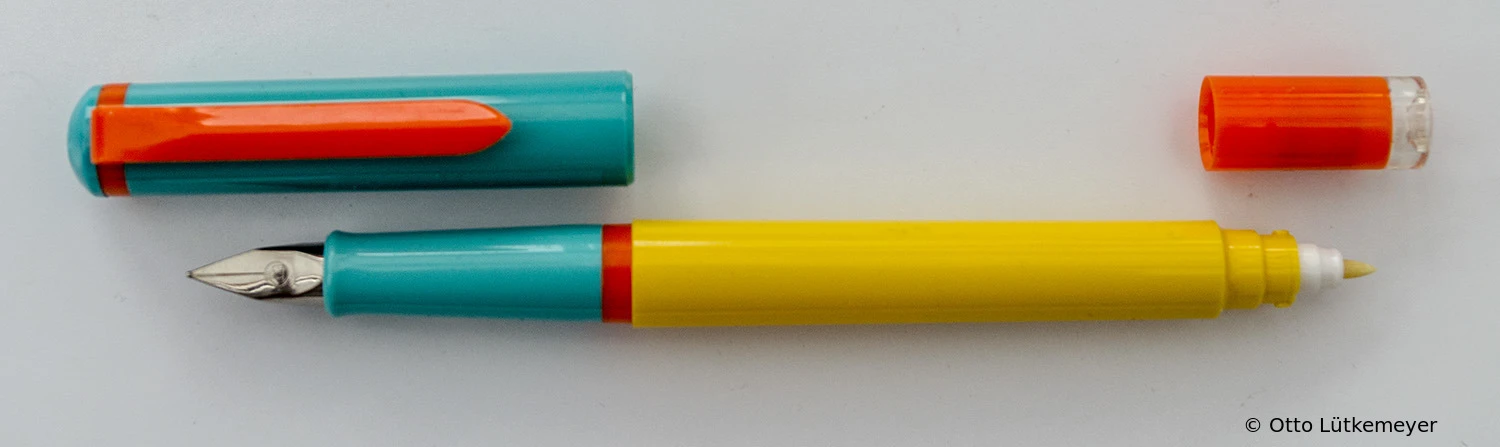

This fountain pen was combined with an eraser. Instead of the reserve ink cartridge, an erase cartridge was installed. A small cap at the end of the barrel released the eraser tip.

While the standard model in blue with white / pink print was very reminiscent of the youth fillers Twist P20, there was also a variant whose parts consisted only of different color pressings (analogous to the Twist P10). This model is probably an export variant, which was only offered for a short time on the market.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.31 oz	5.51 in	3.90 in	1) 2.26 in 2) 0.87 in	0.43 in	0.8 ml (ink cartridge) + erase cartridge
8.7 g	140 mm	99 mm	1) 57.5 mm 2) 22mm	11 mm

Measurements: 1) cap 2) rear cap

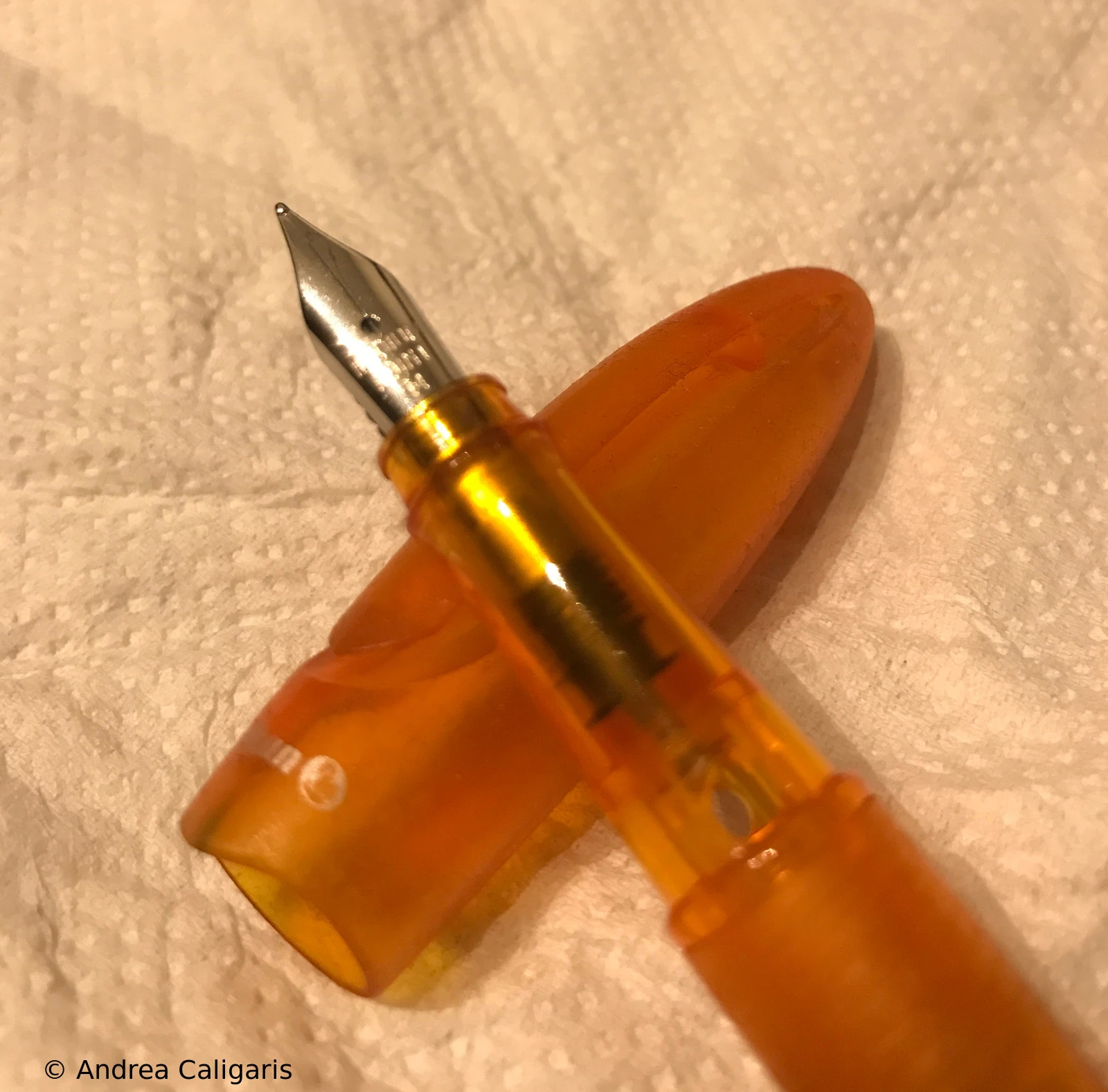

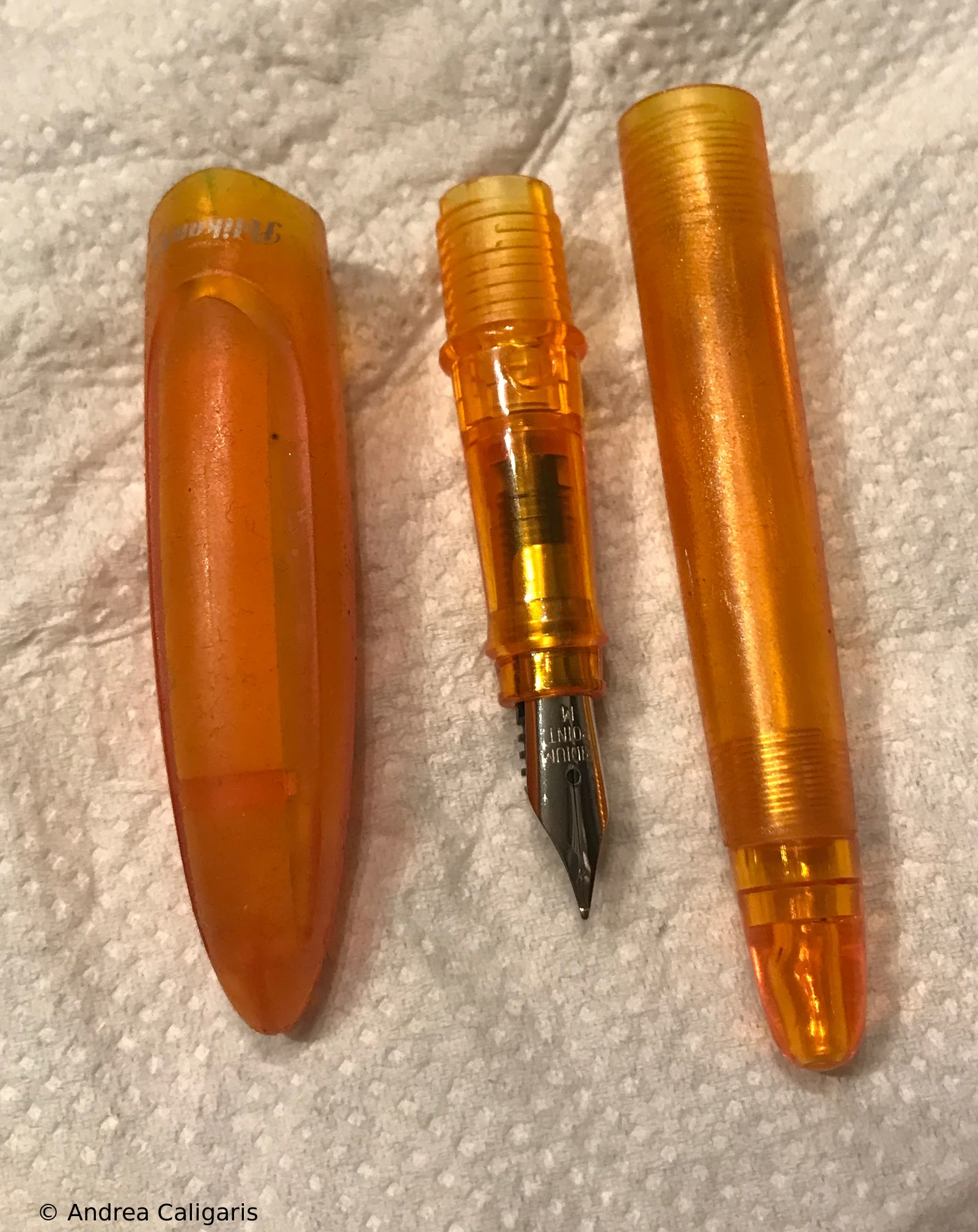

The Galaxia was a school and youth fountain pen from Pelikan Milan, which was made of transparent colored plastic.

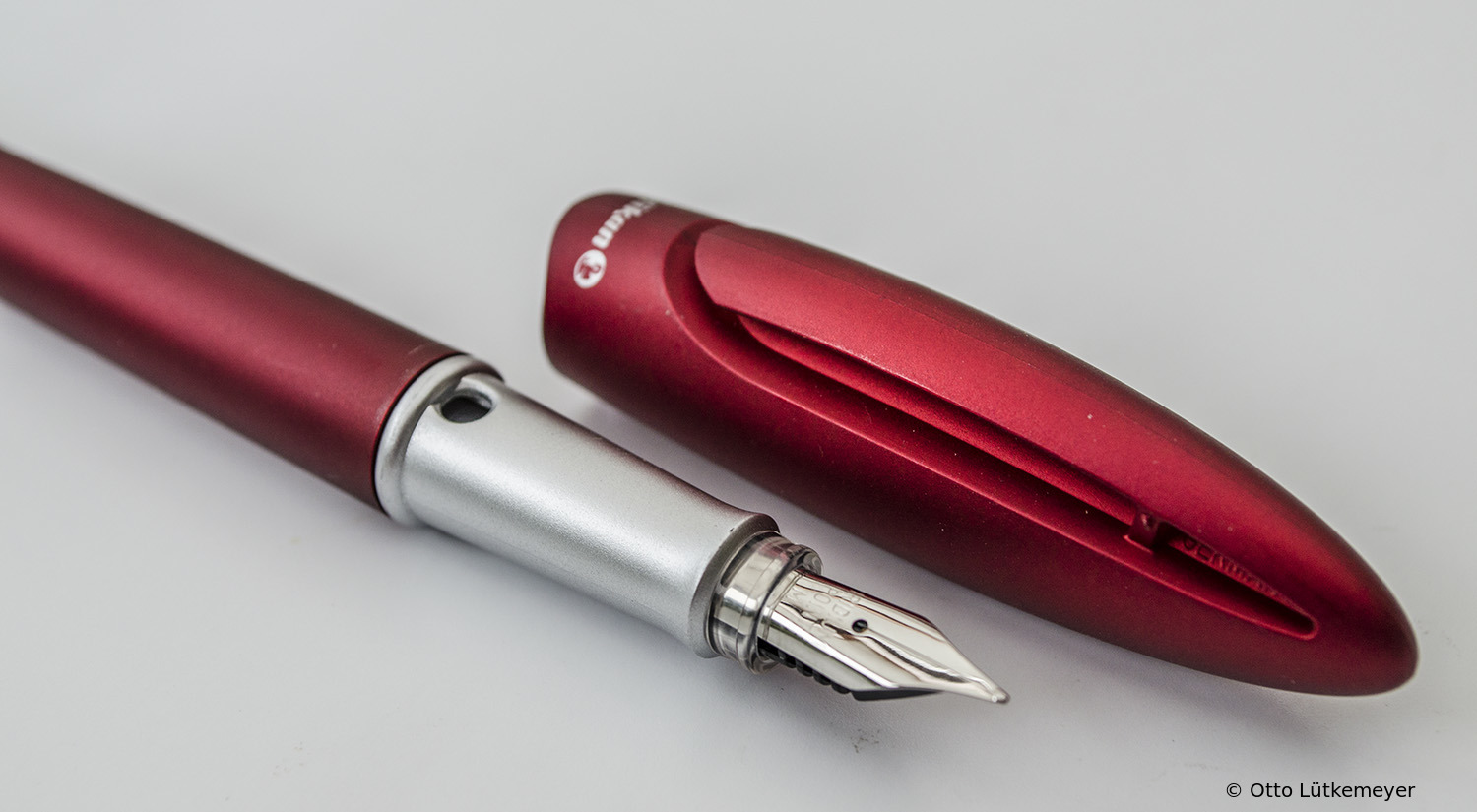

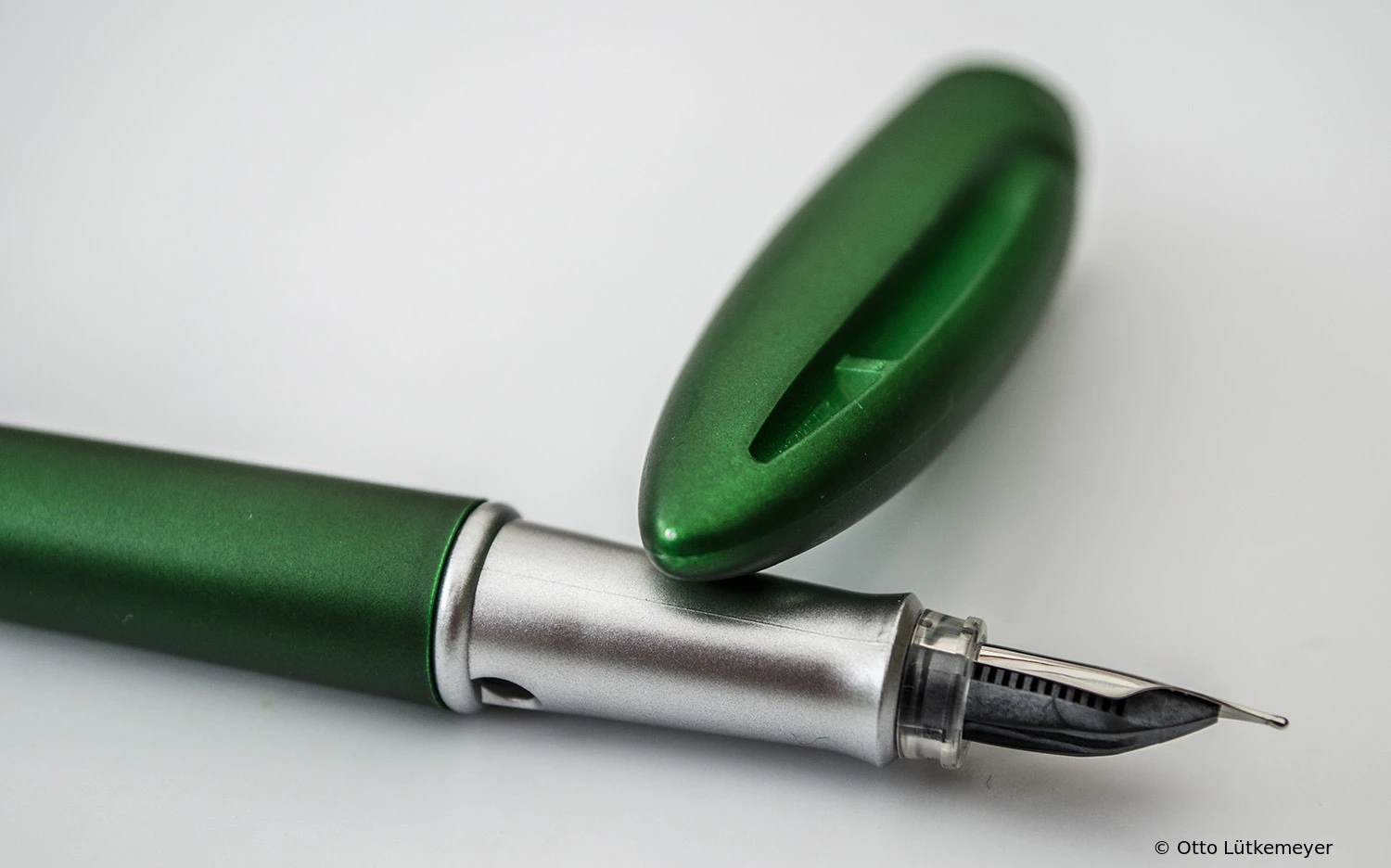

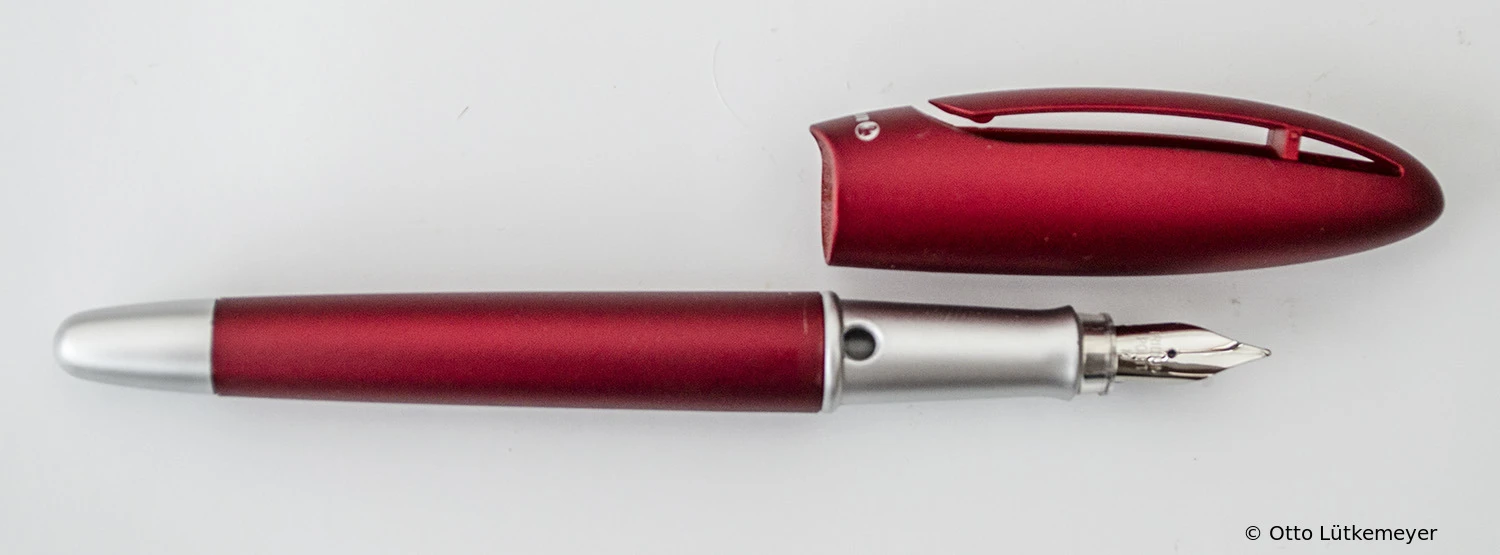

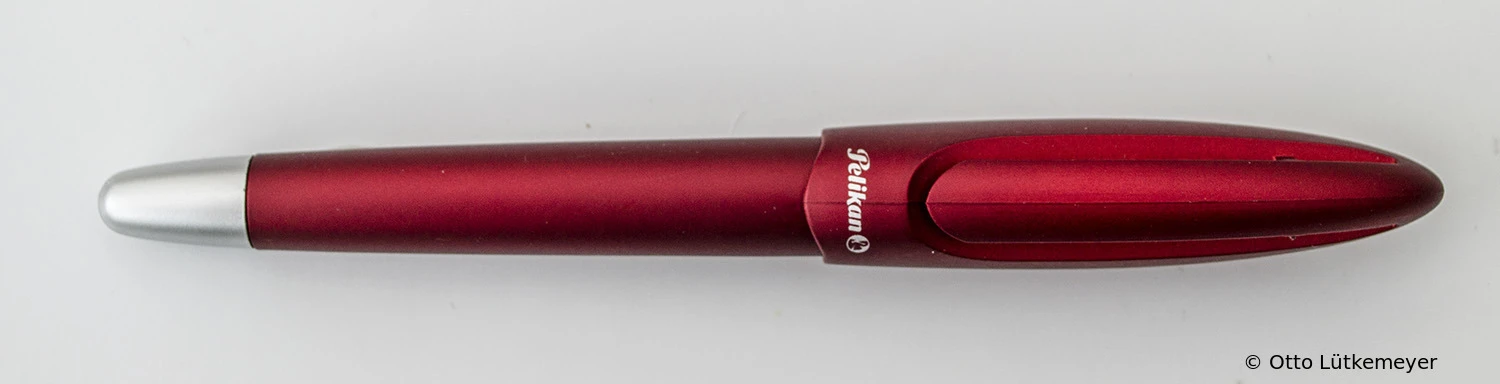

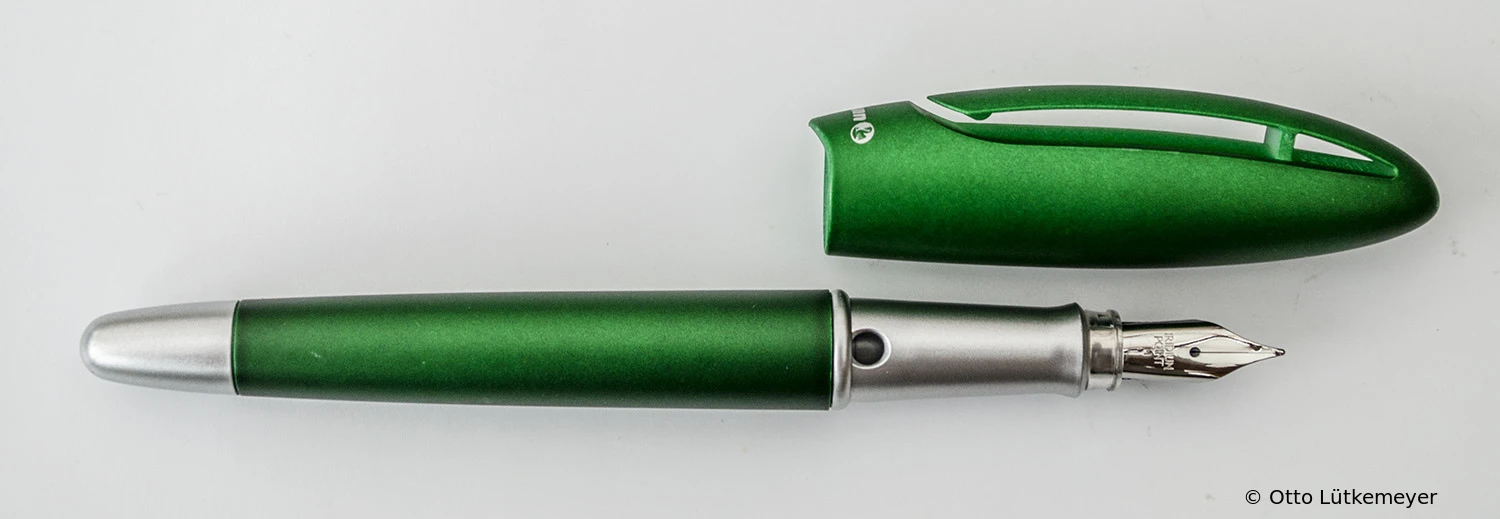

Successor of Galaxia was the Galaxia Iron. The barrel and cap are available in four different colors with metallic effect, barrel end and grip section are aluminum-colored. Two round cut-outs in the grip section reflect the views freely on the amount of ink remaining.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.38 oz	5.47 in	4.21 in	2.58 in	0.49 in	2 x 0.8 ml (cartridge)
10.8 g	139 mm	107 mm	65.5 mm	12.4 mm

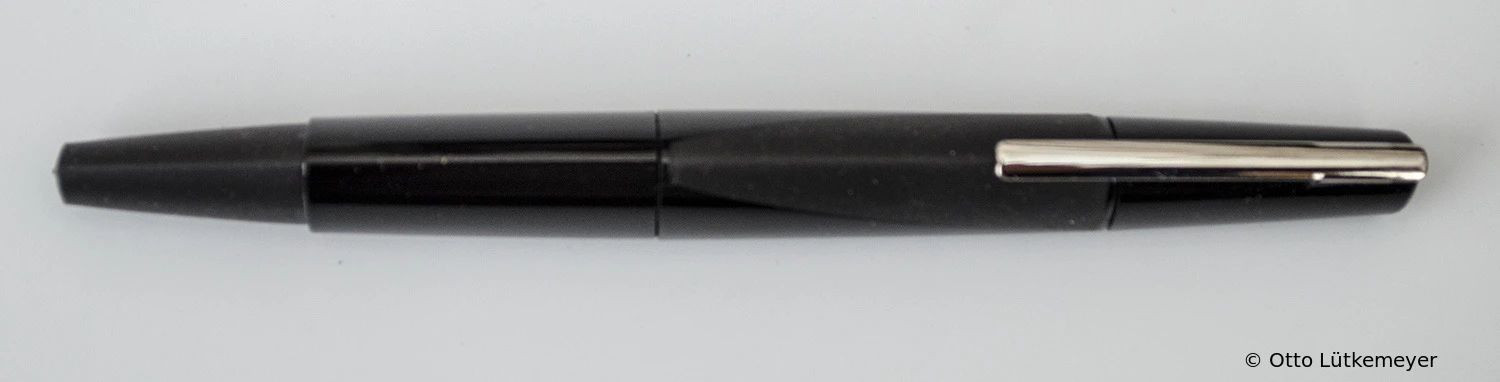

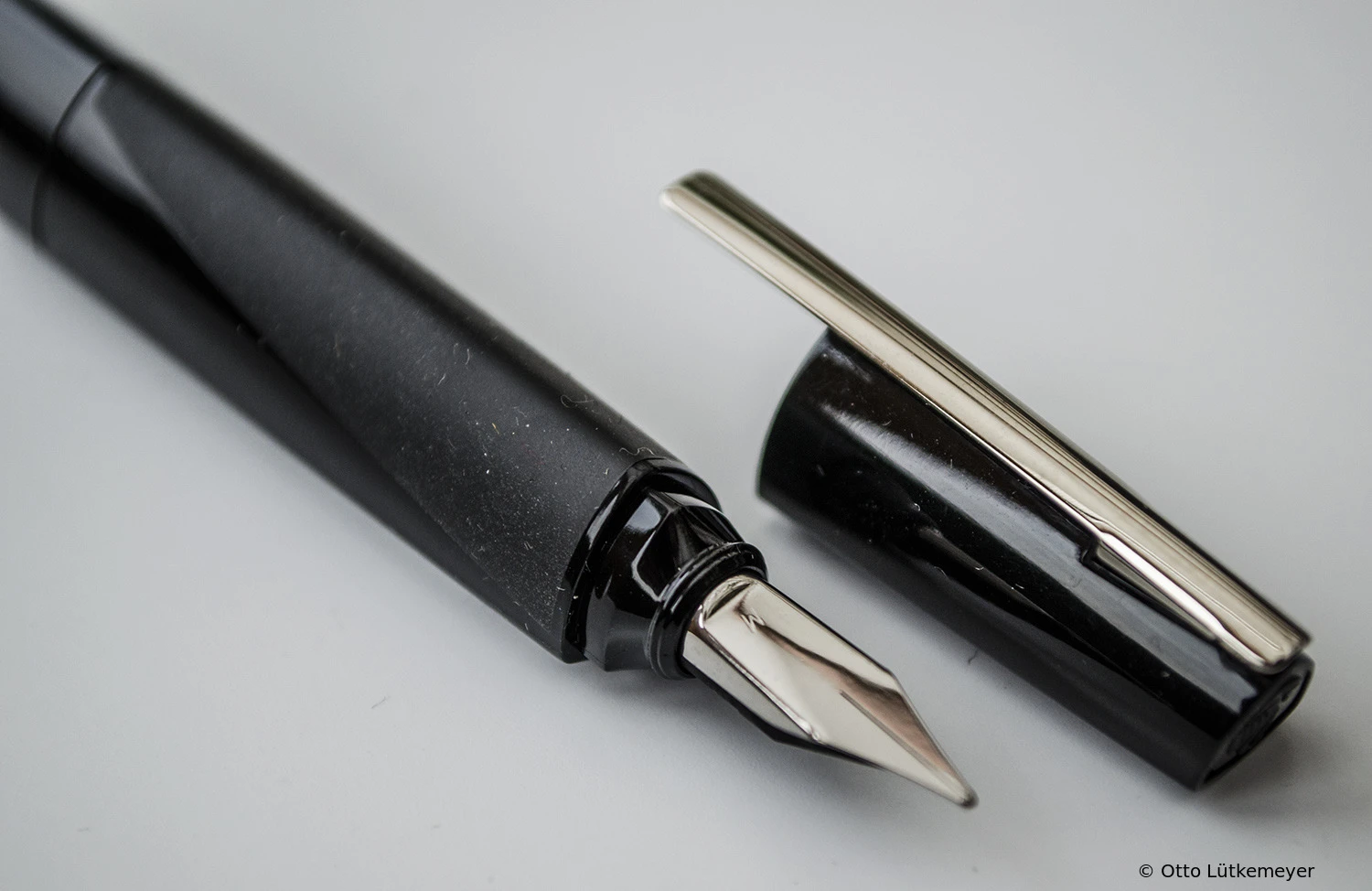

A combination of glossy and matte black elements is used to create a trendy look and feel. The economic triangular form makes the pen equally suitable for both right and left handers. The th.INK is offered as a fountain pen (P63), ballpoint pen (K63) and rollerball (R63).

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.42 oz	5.51 in	4.49 in	1.26 in (Clip: 1.77 in)	0.69 mm	1.4 ml giant ink cartridge
12 g	140 mm	114 mm	32 mm (Clip: 45 mm)	17.5 mm

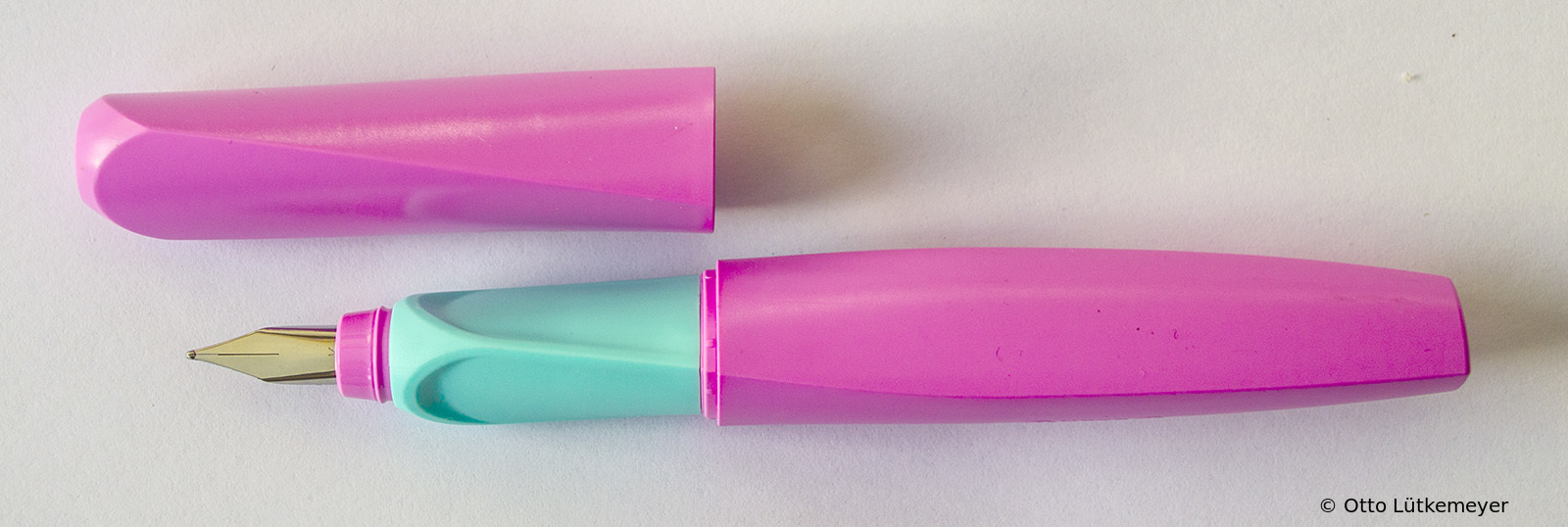

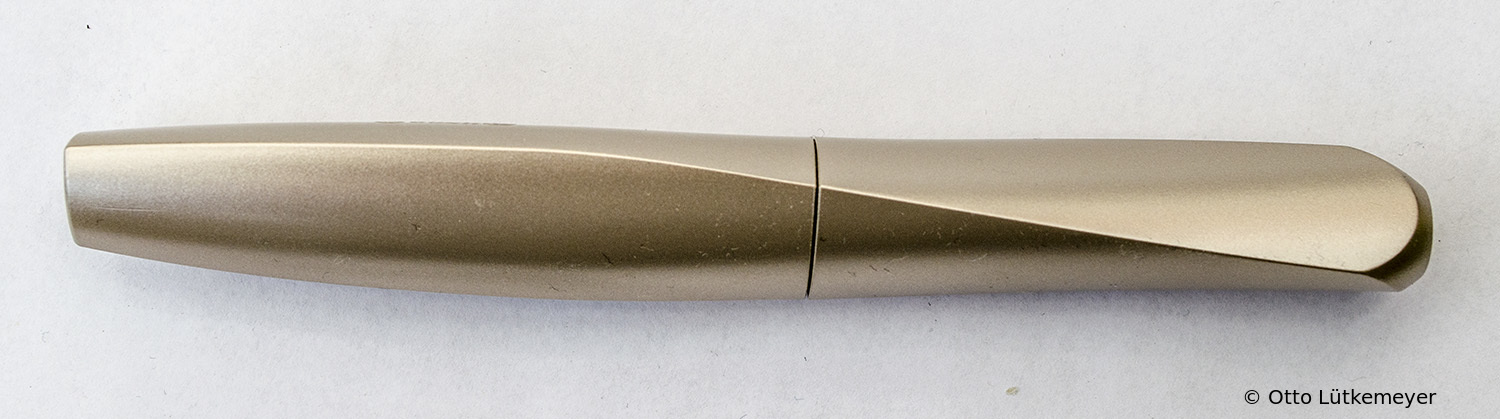

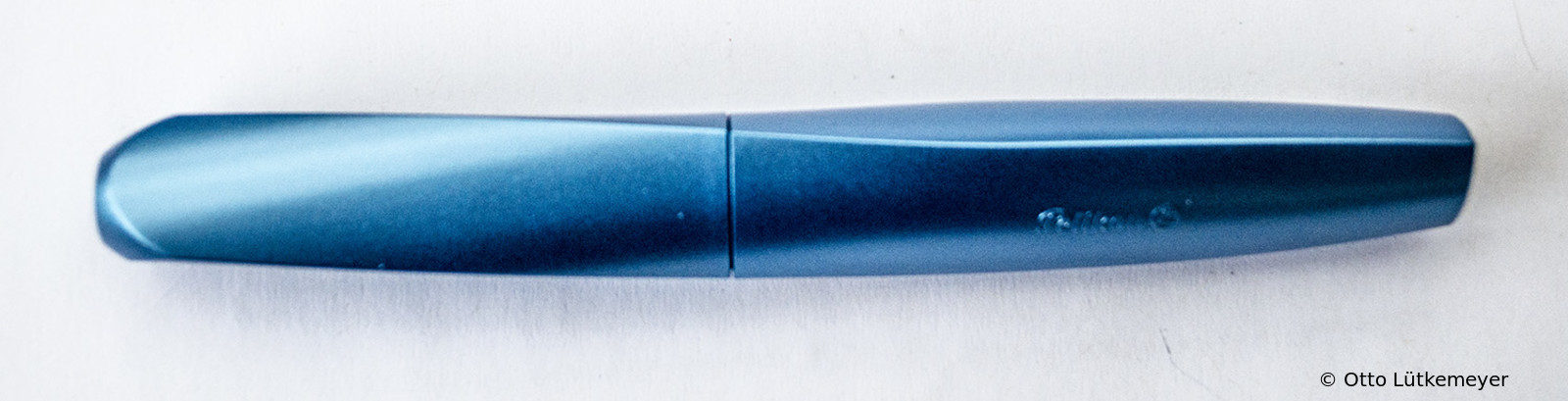

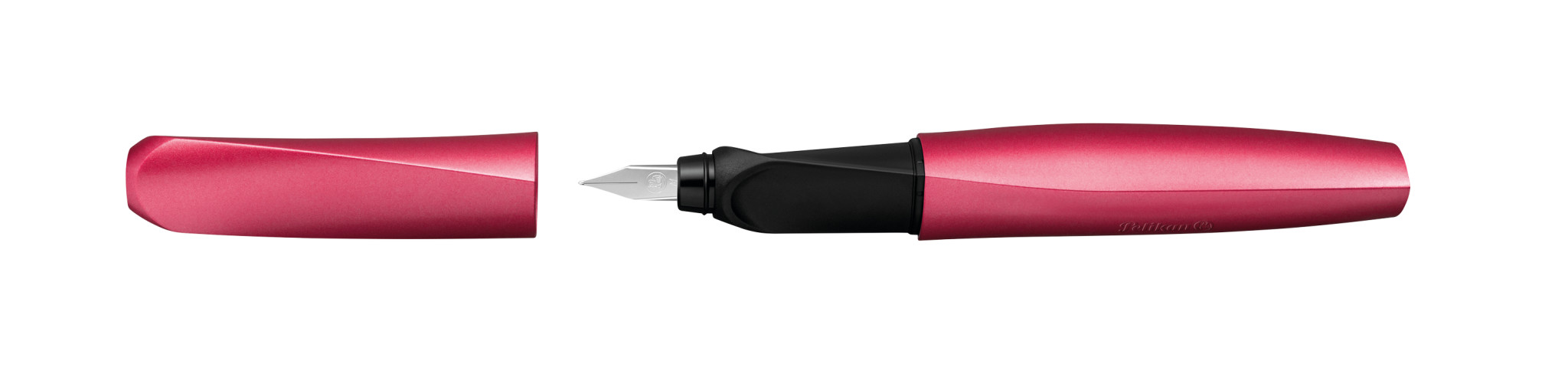

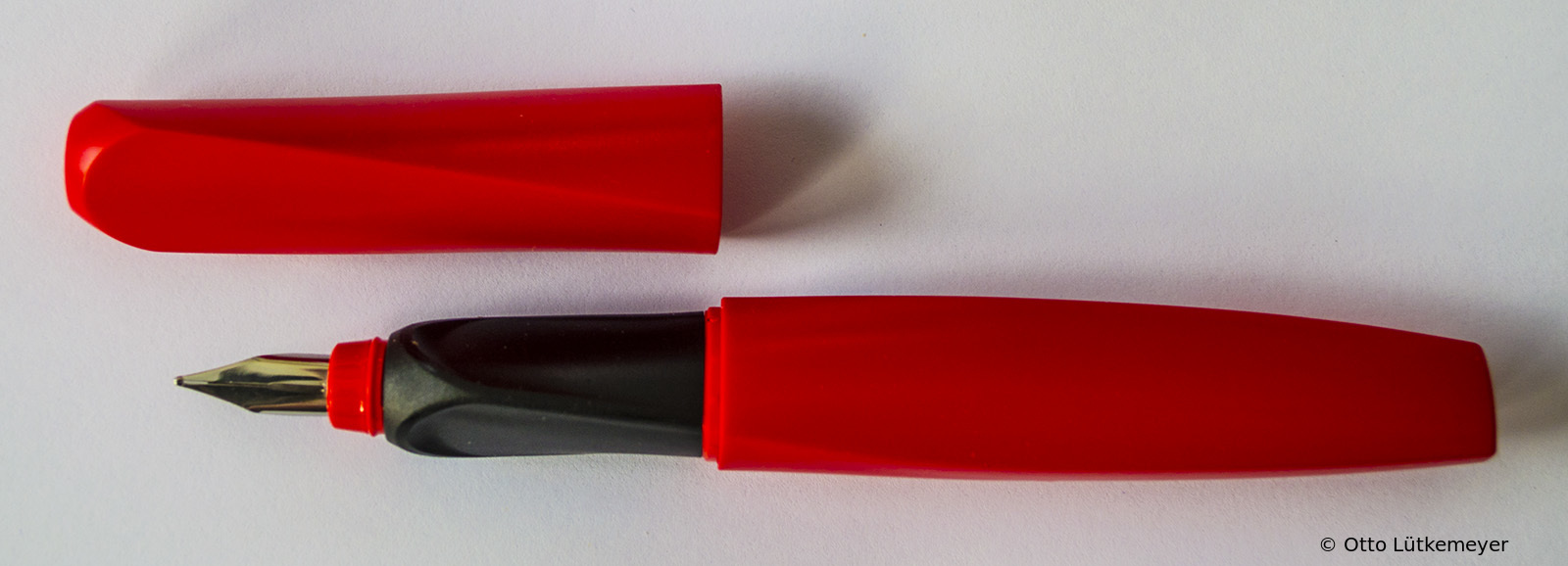

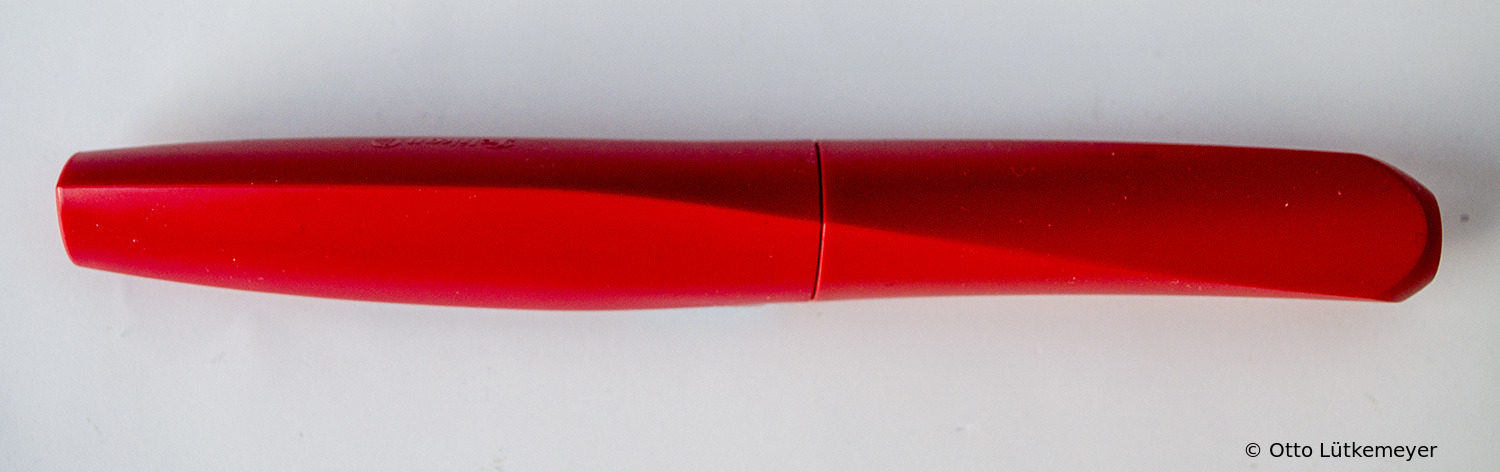

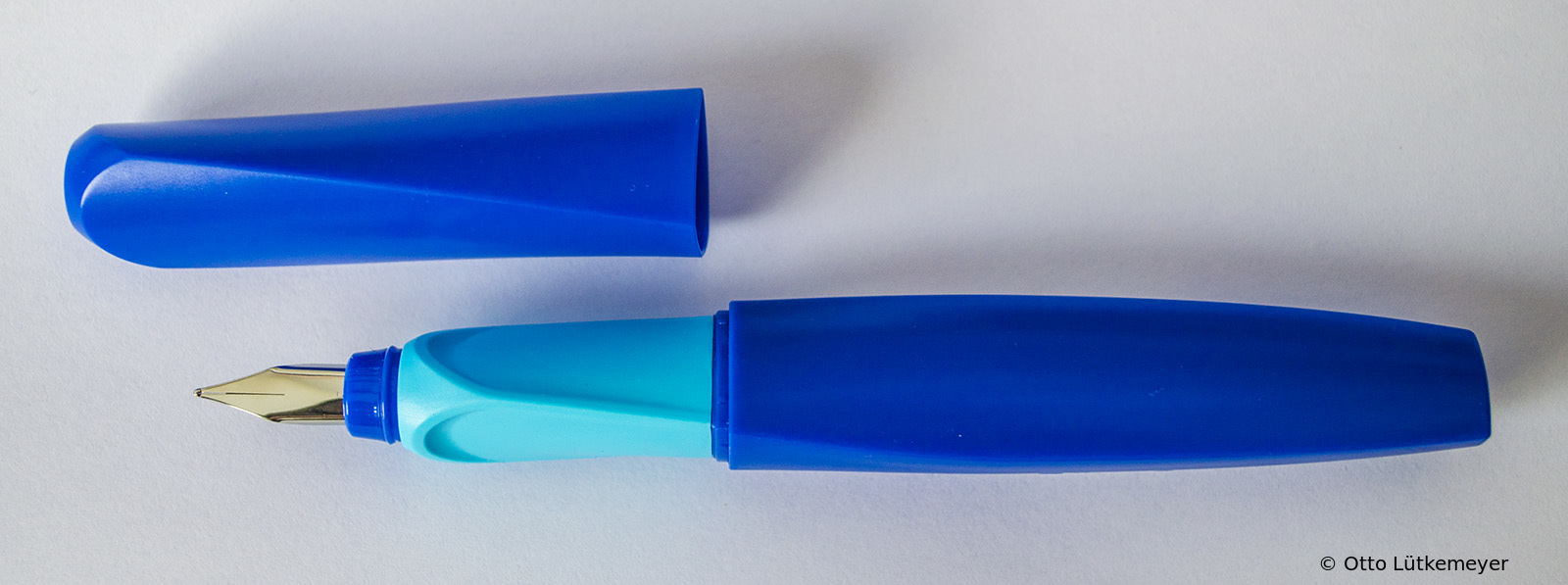

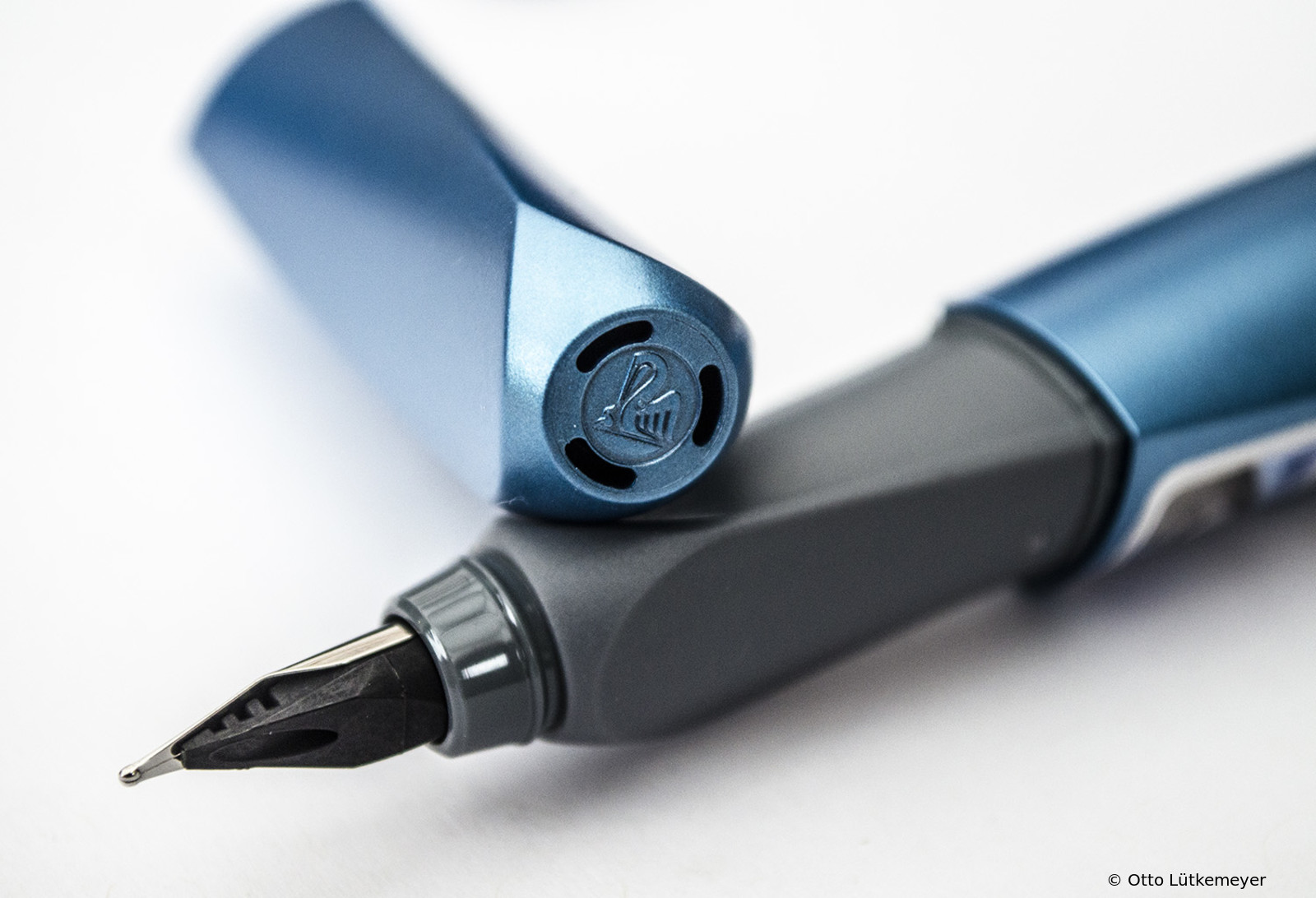

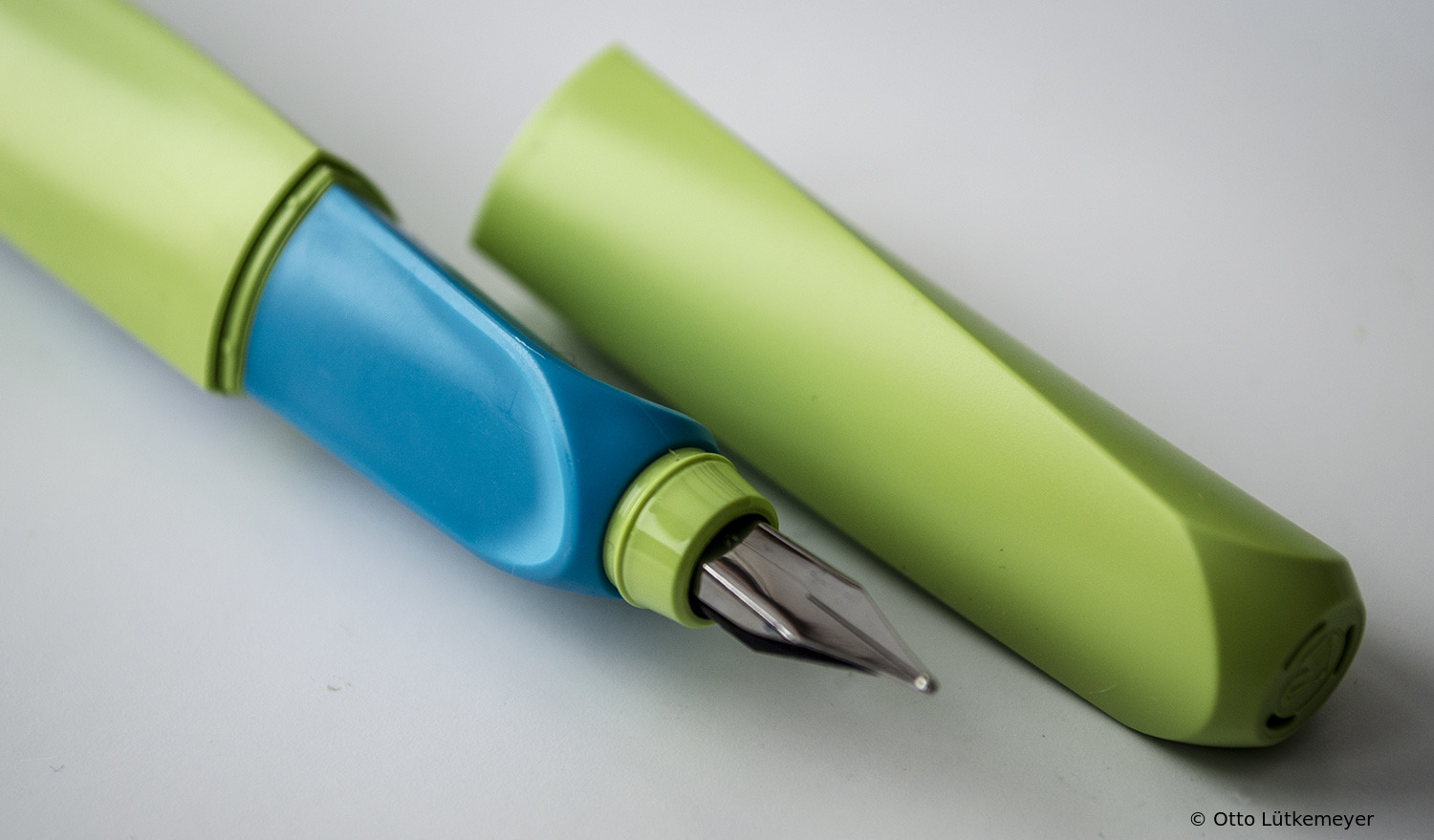

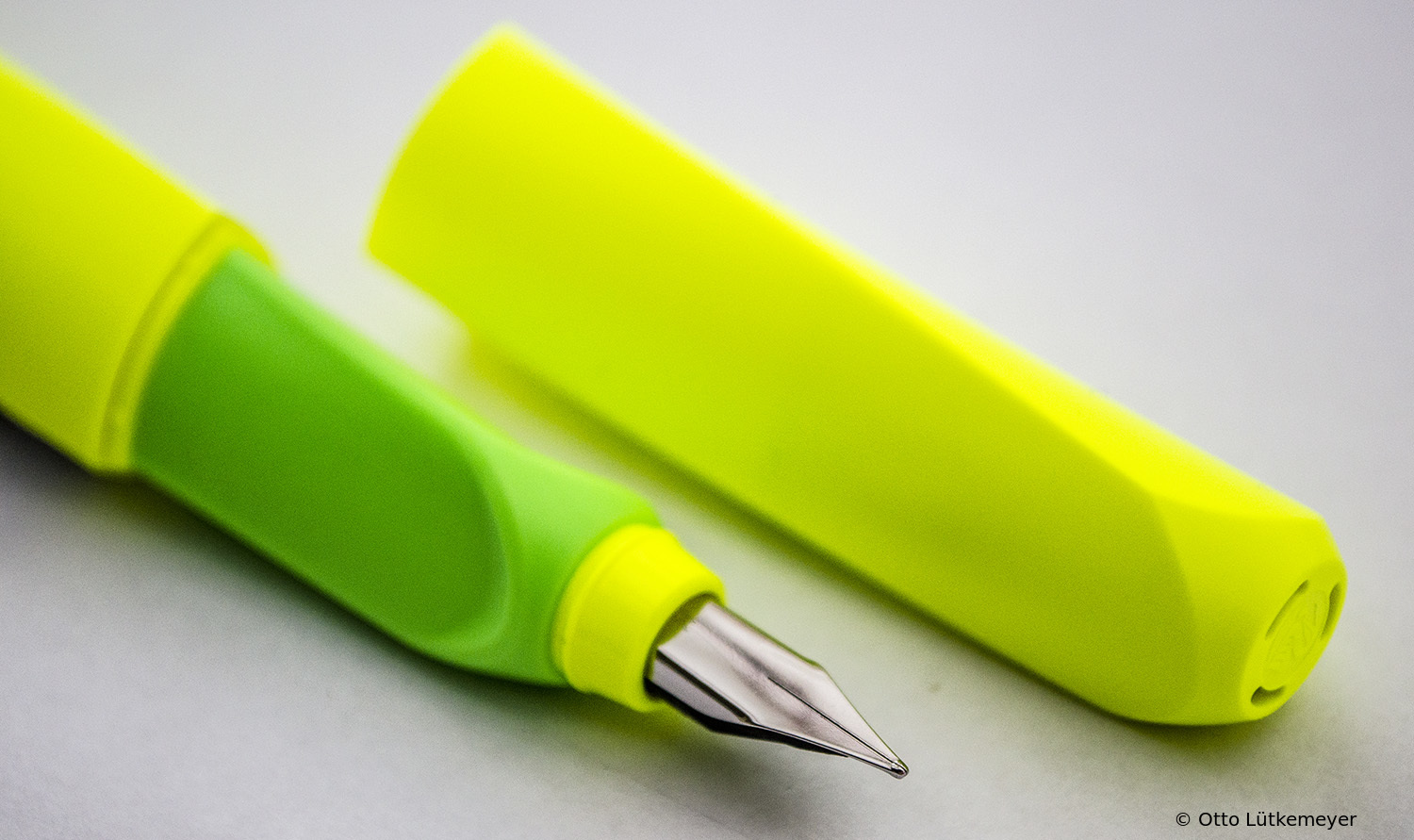

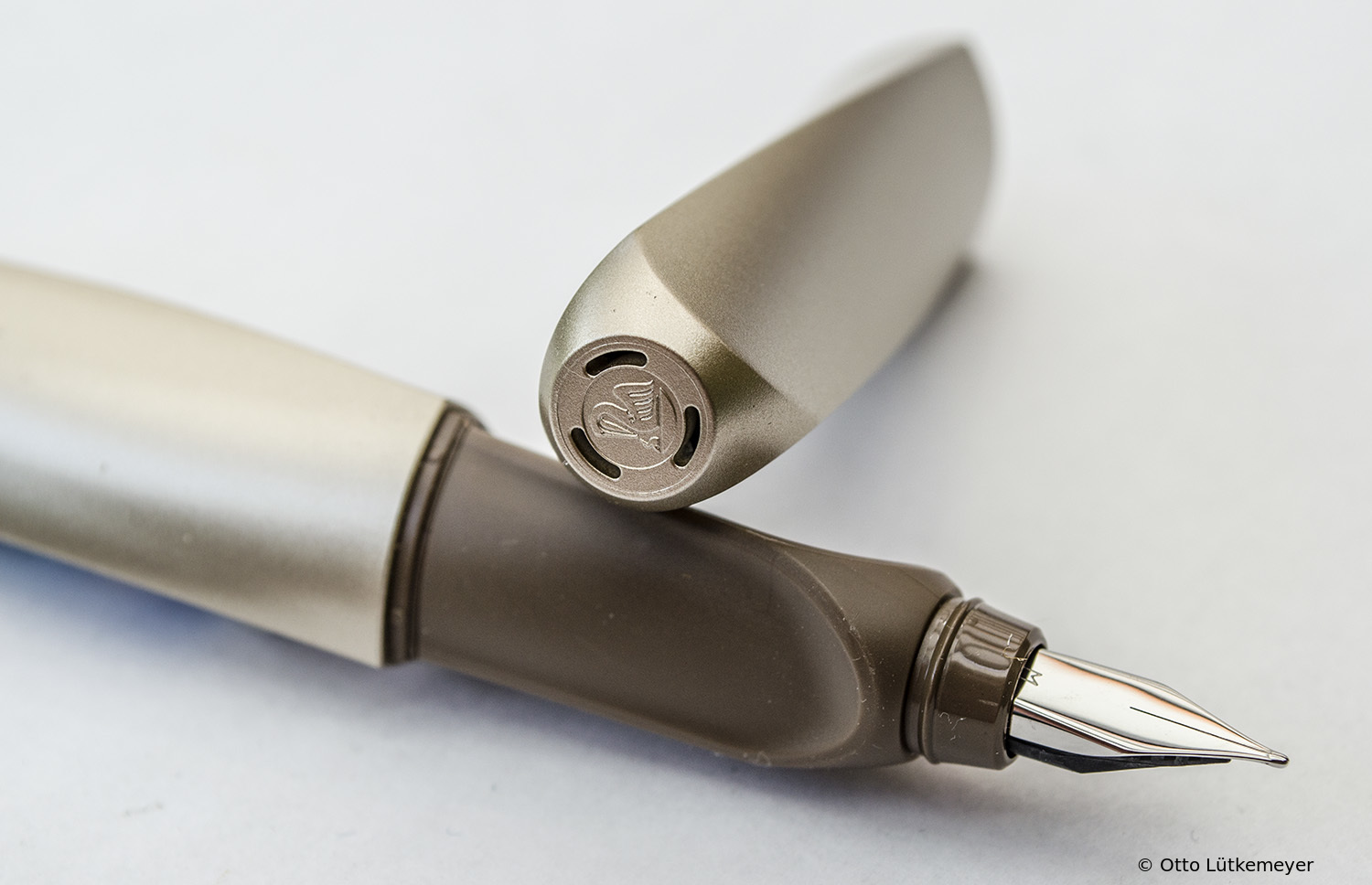

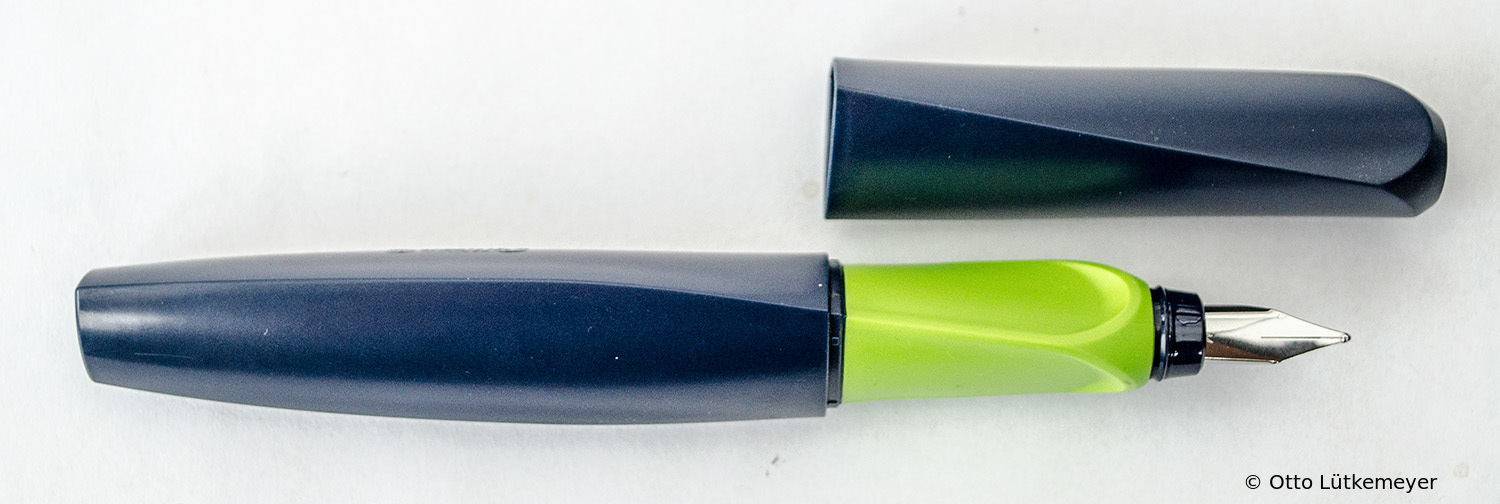

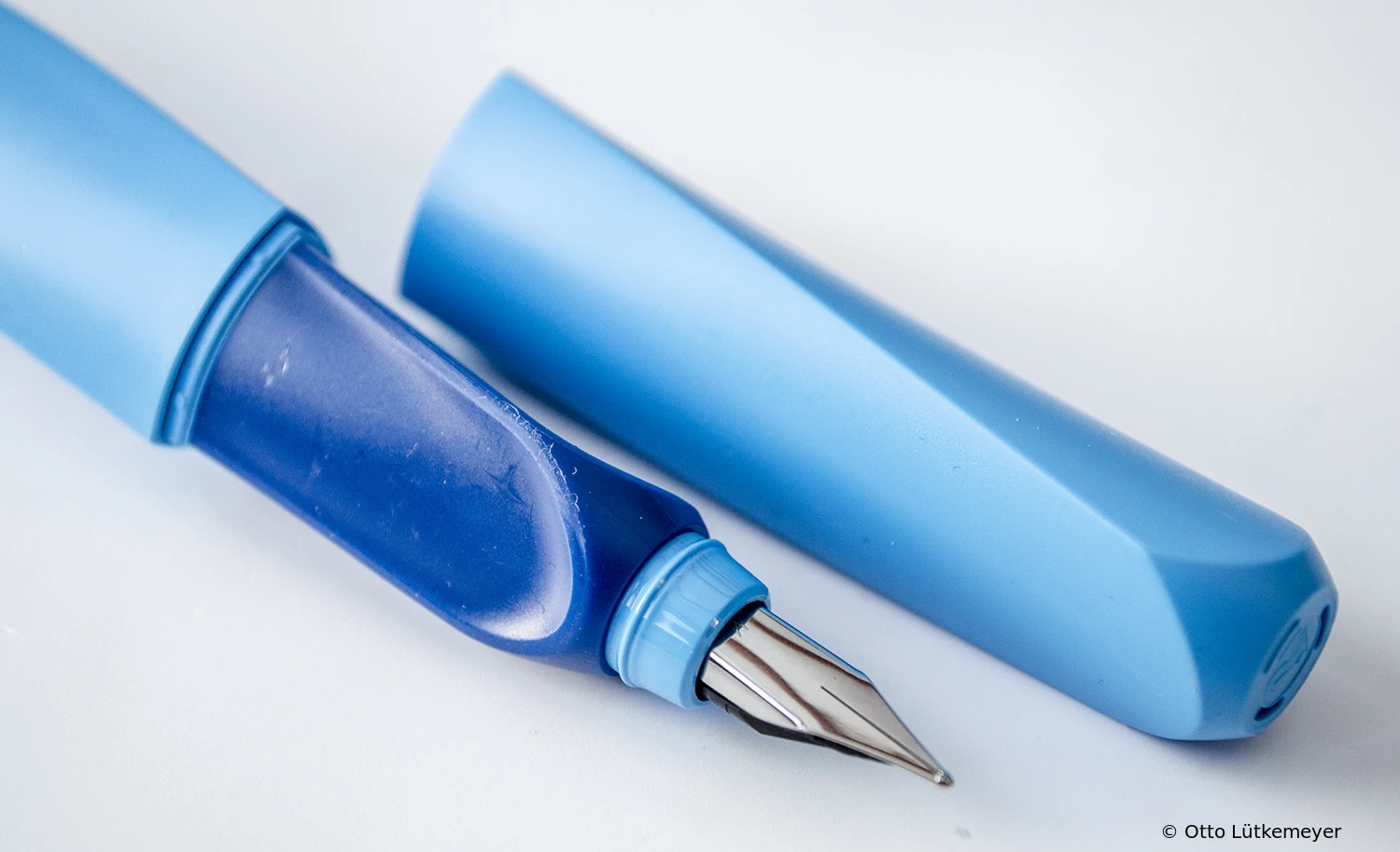

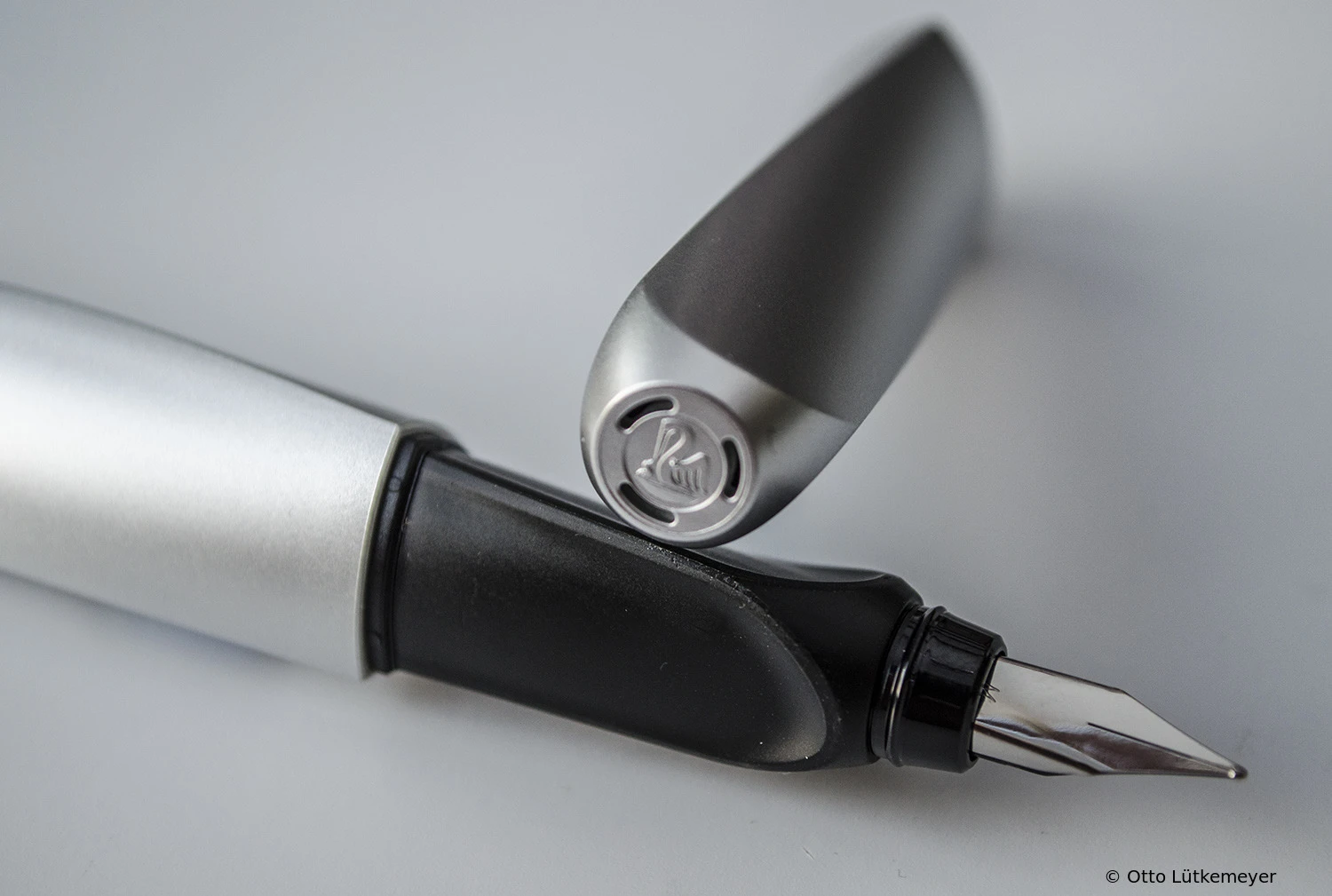

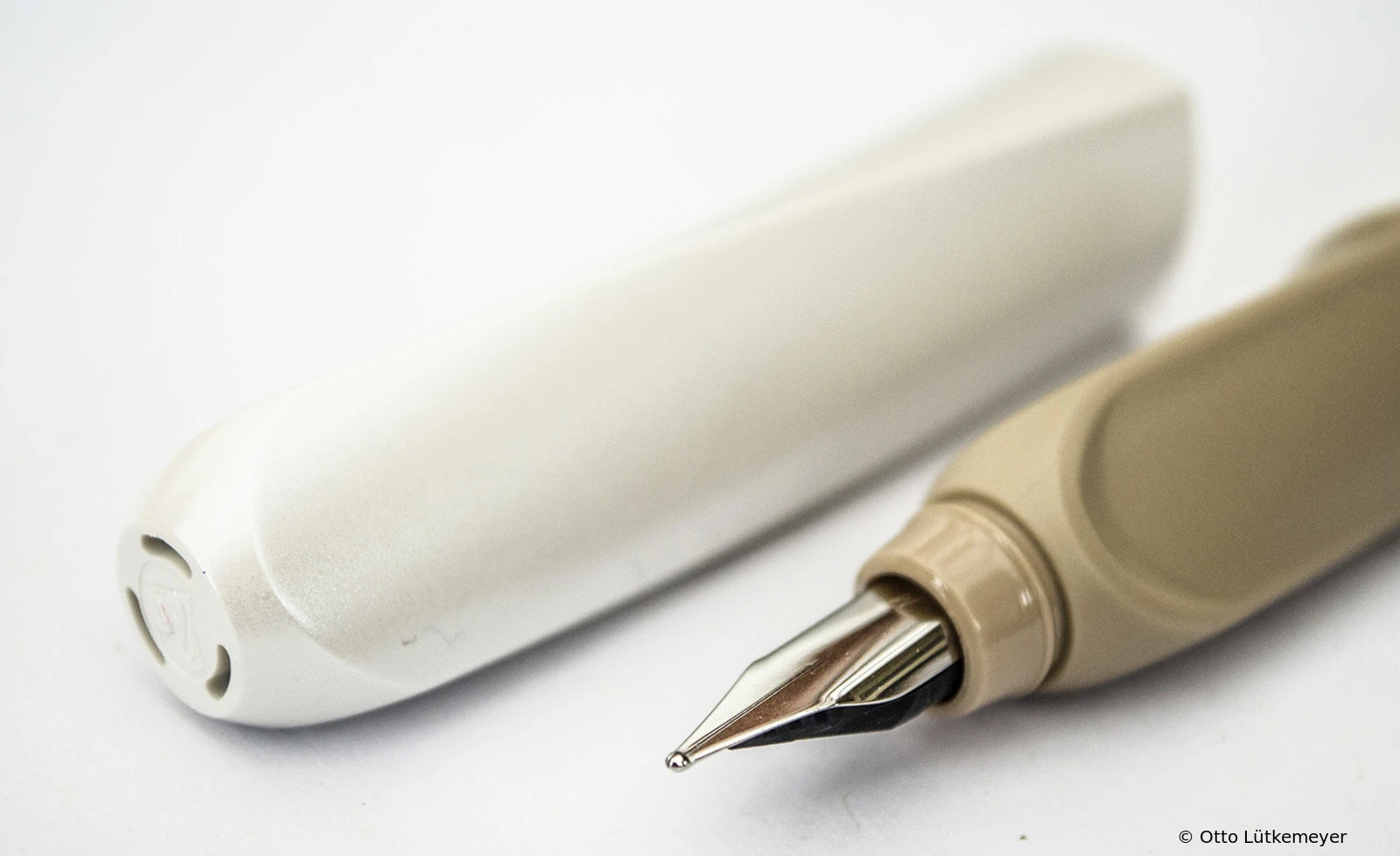

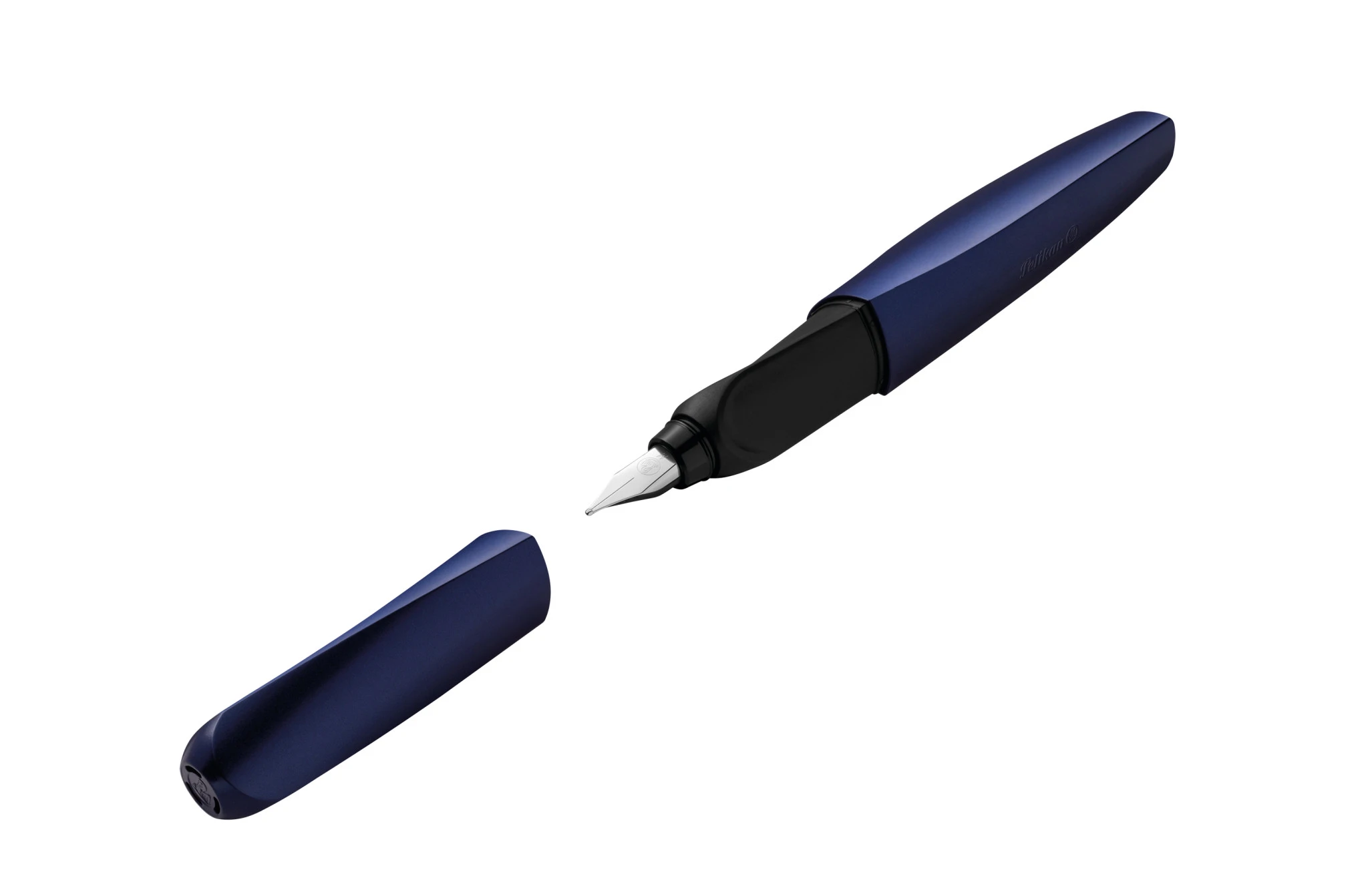

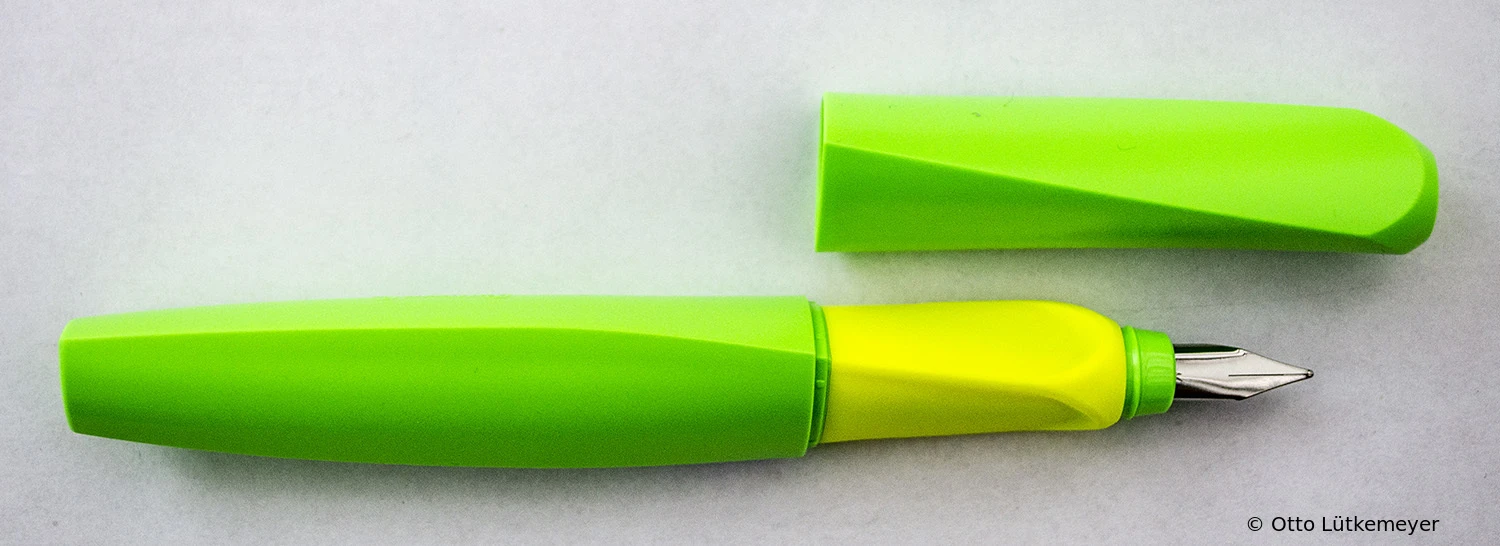

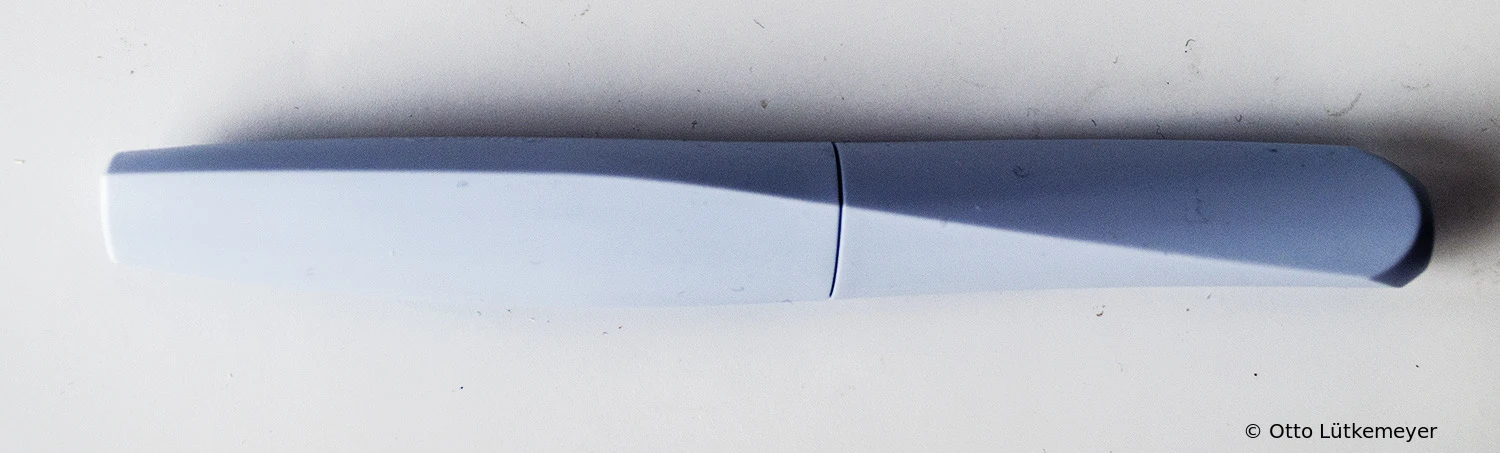

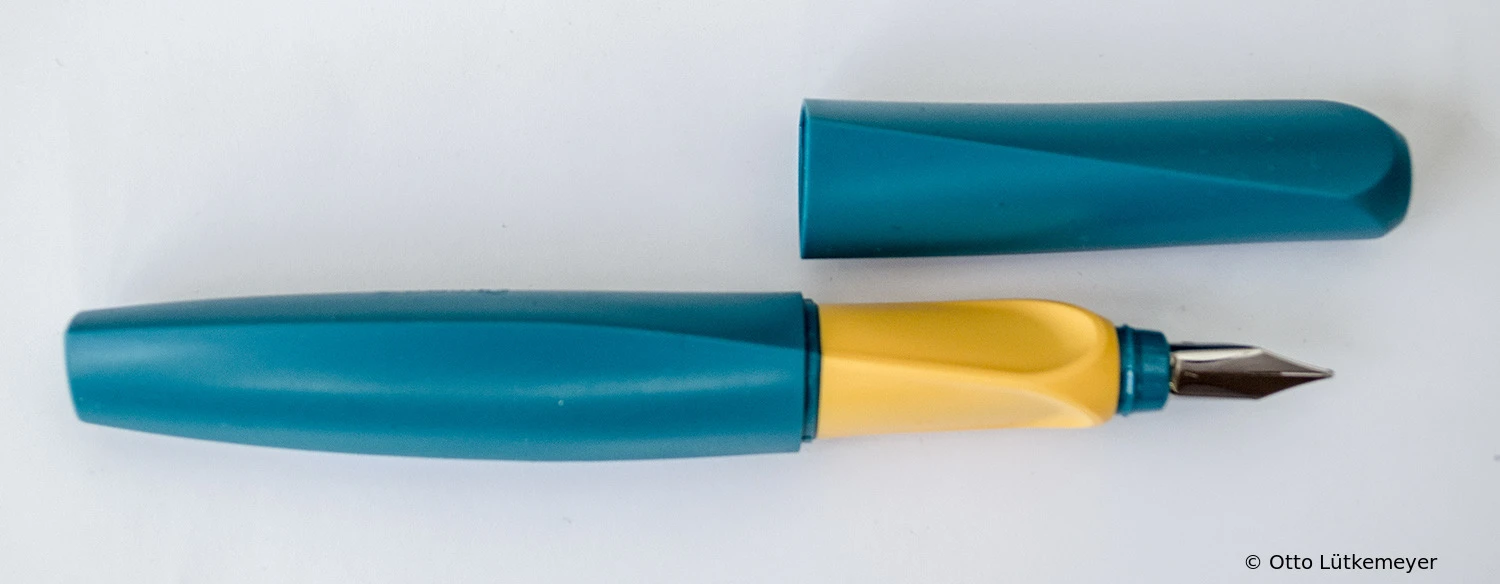

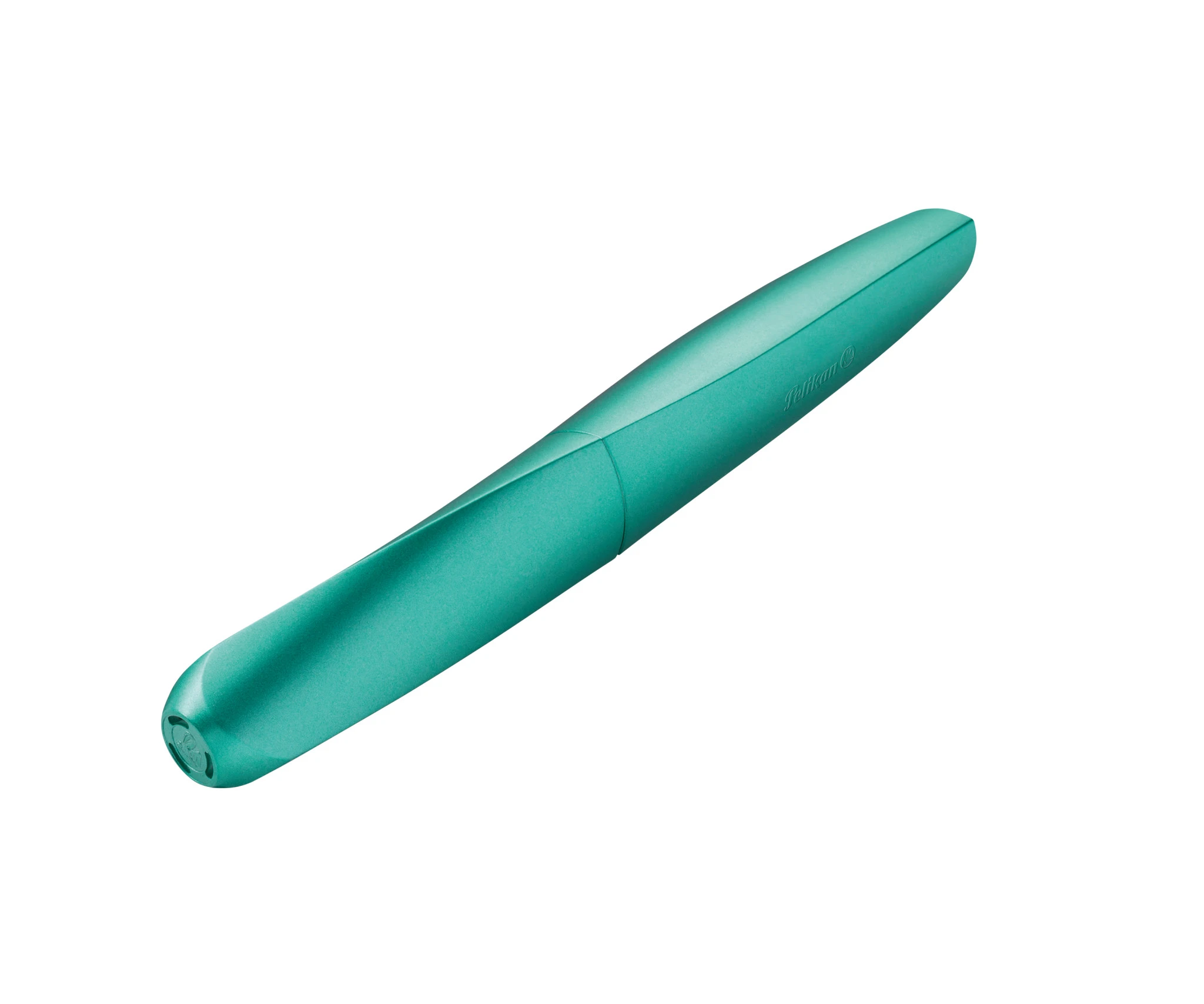

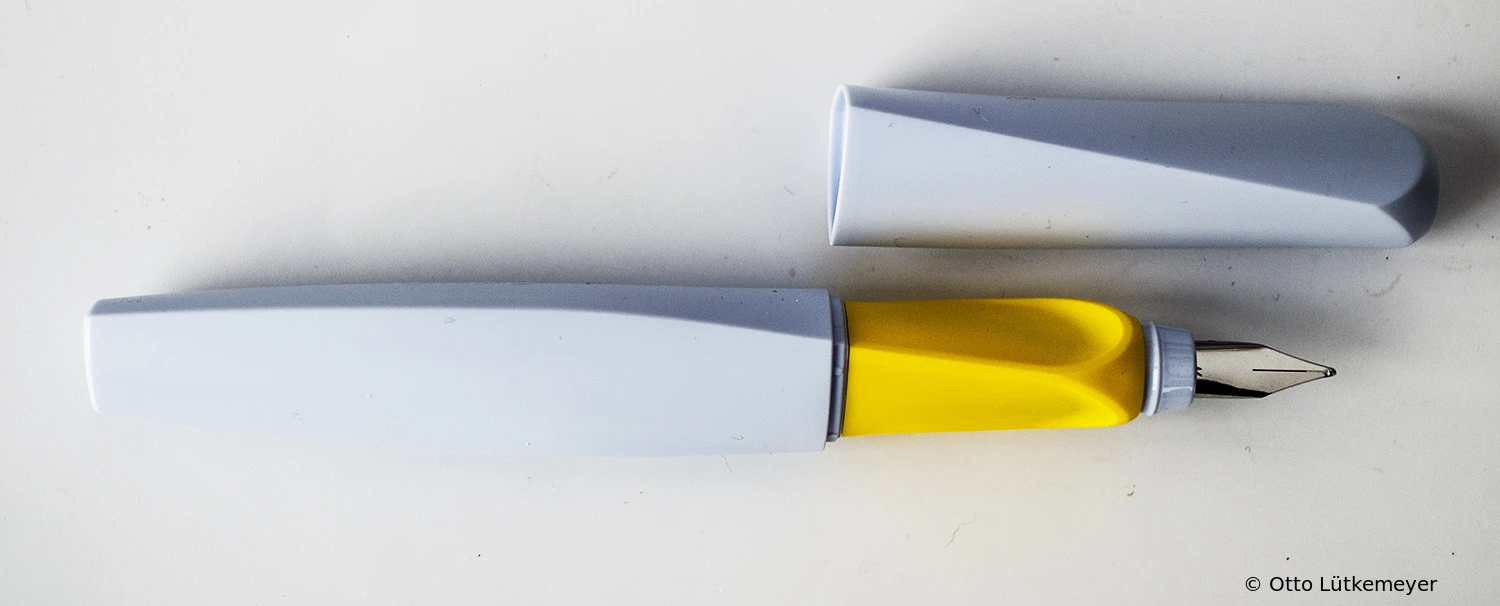

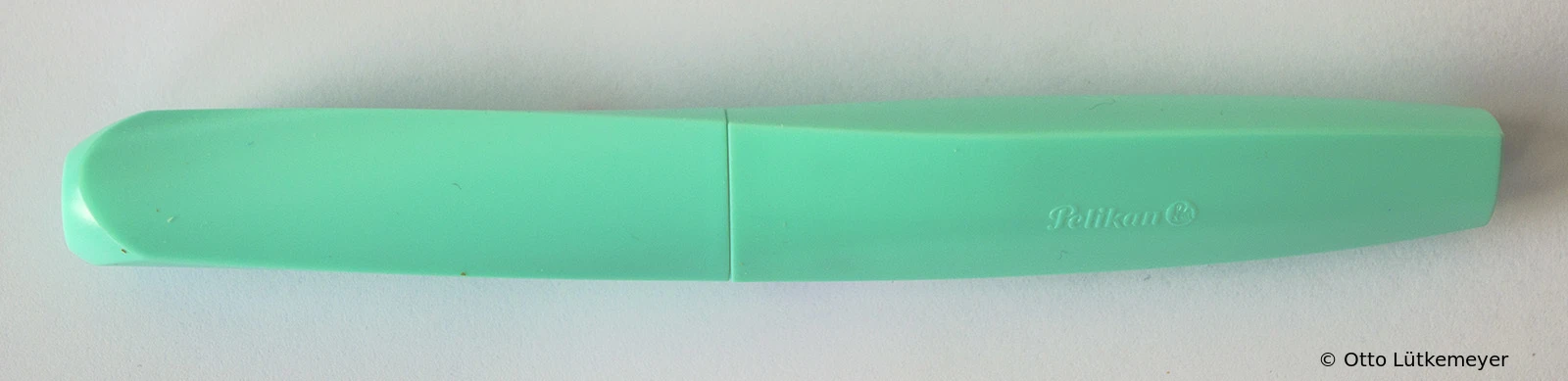

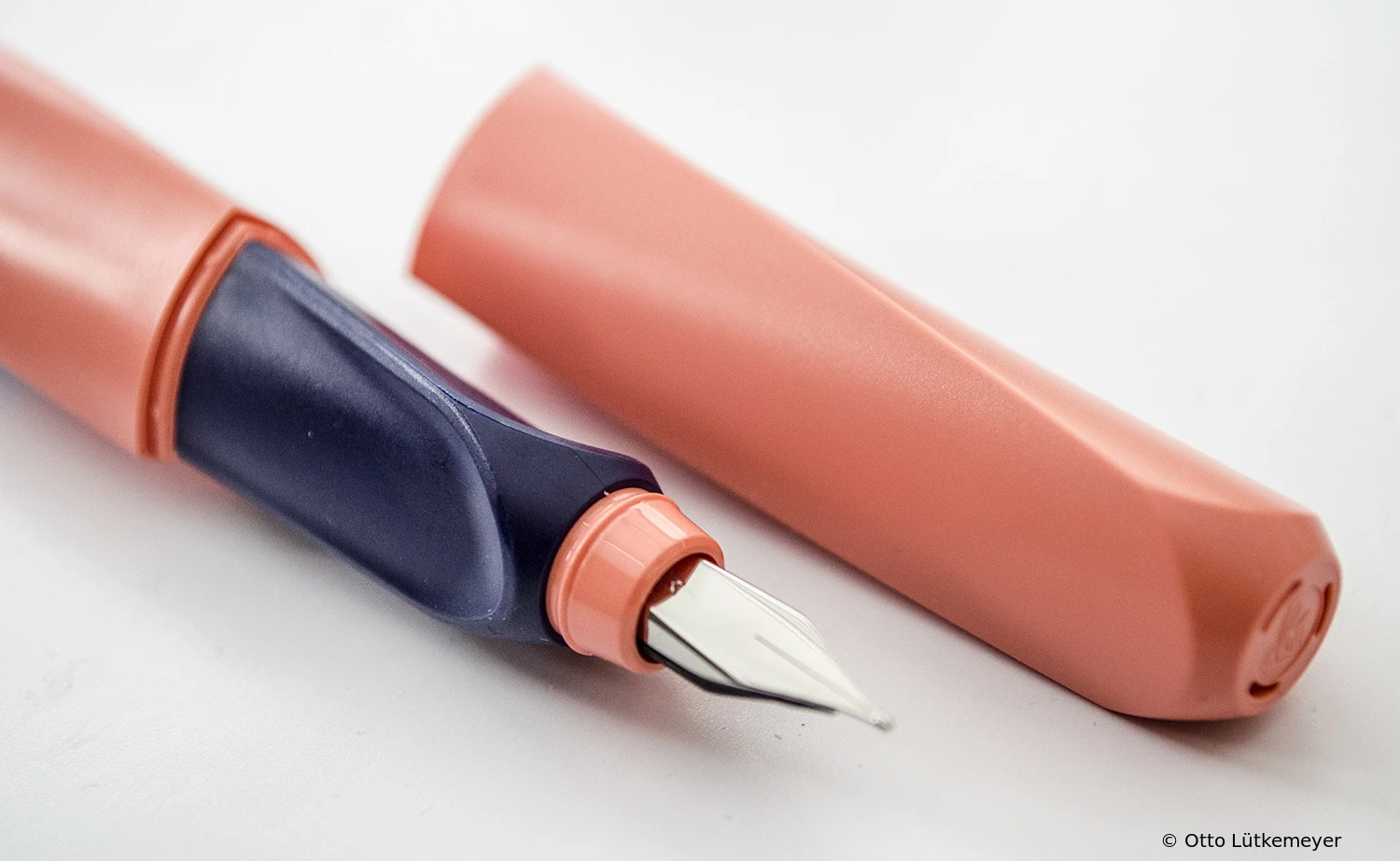

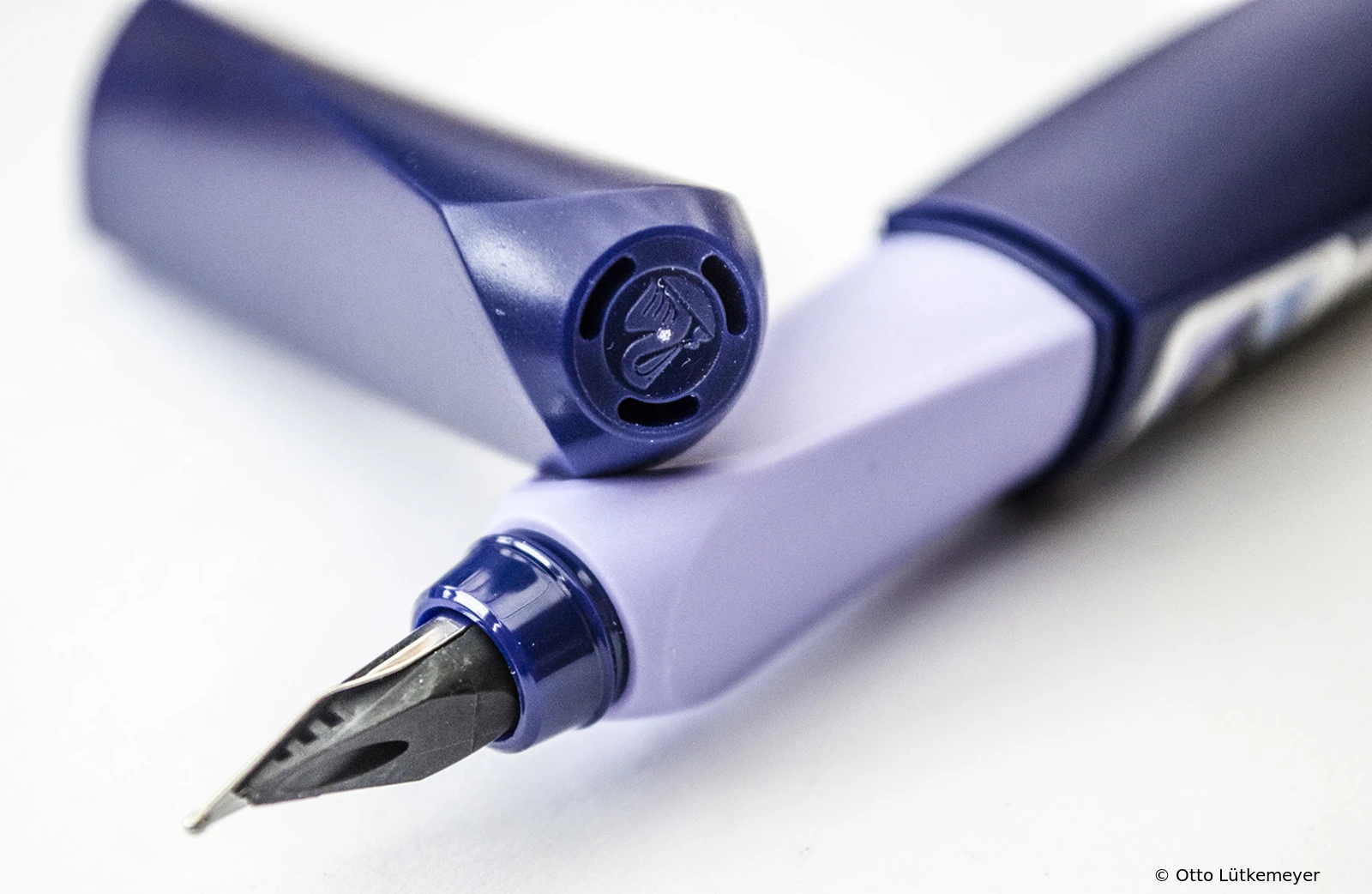

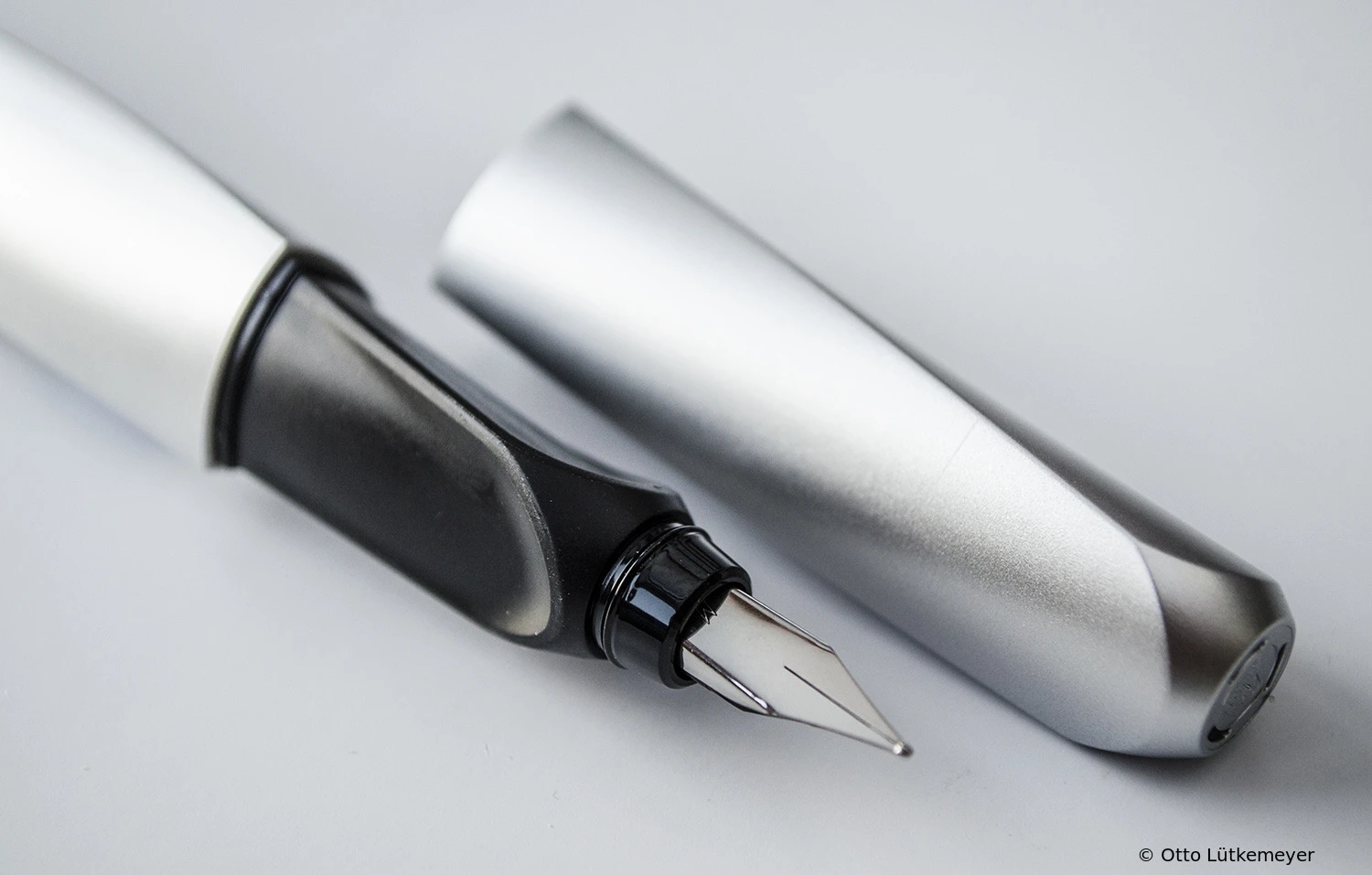

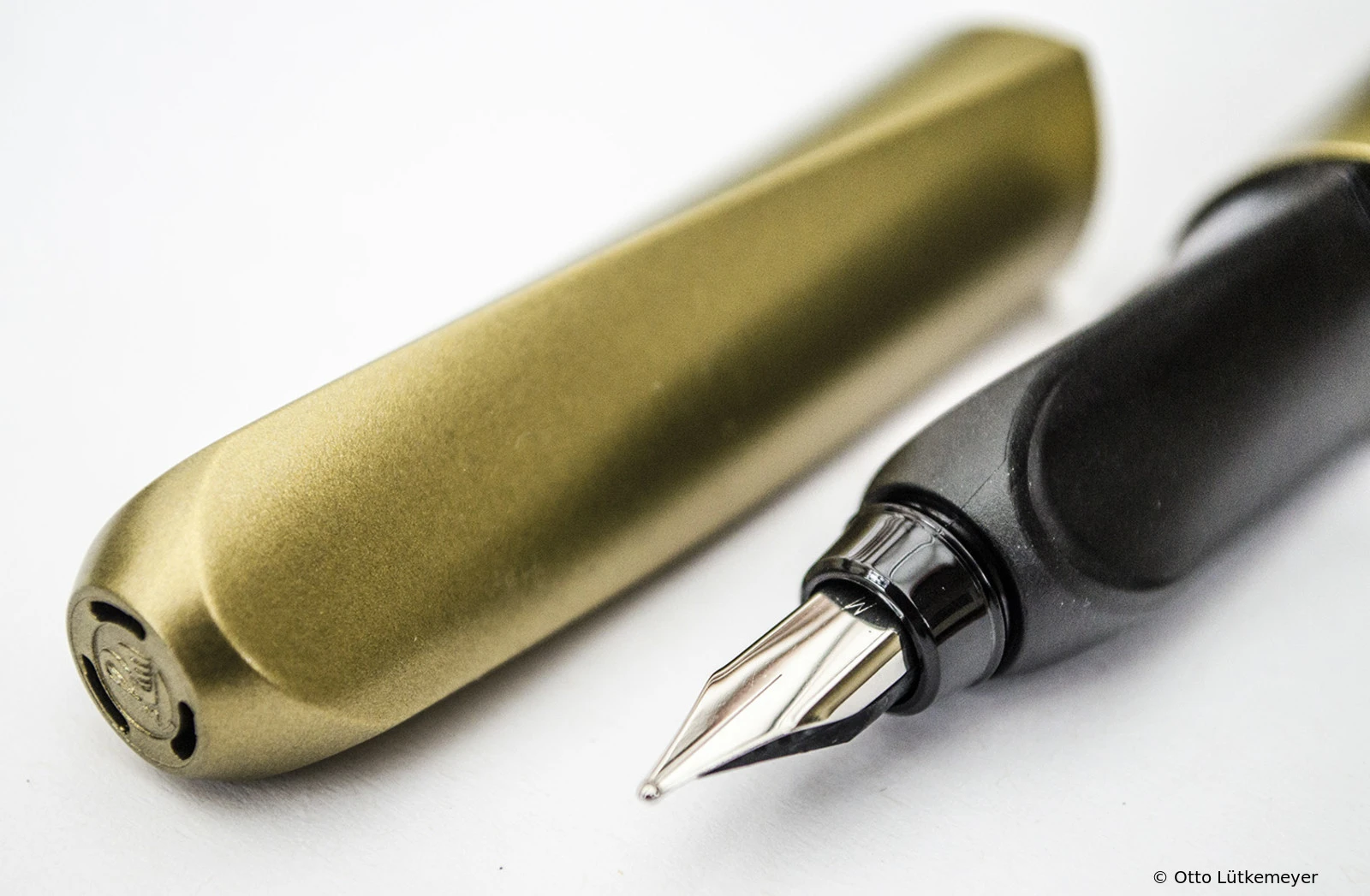

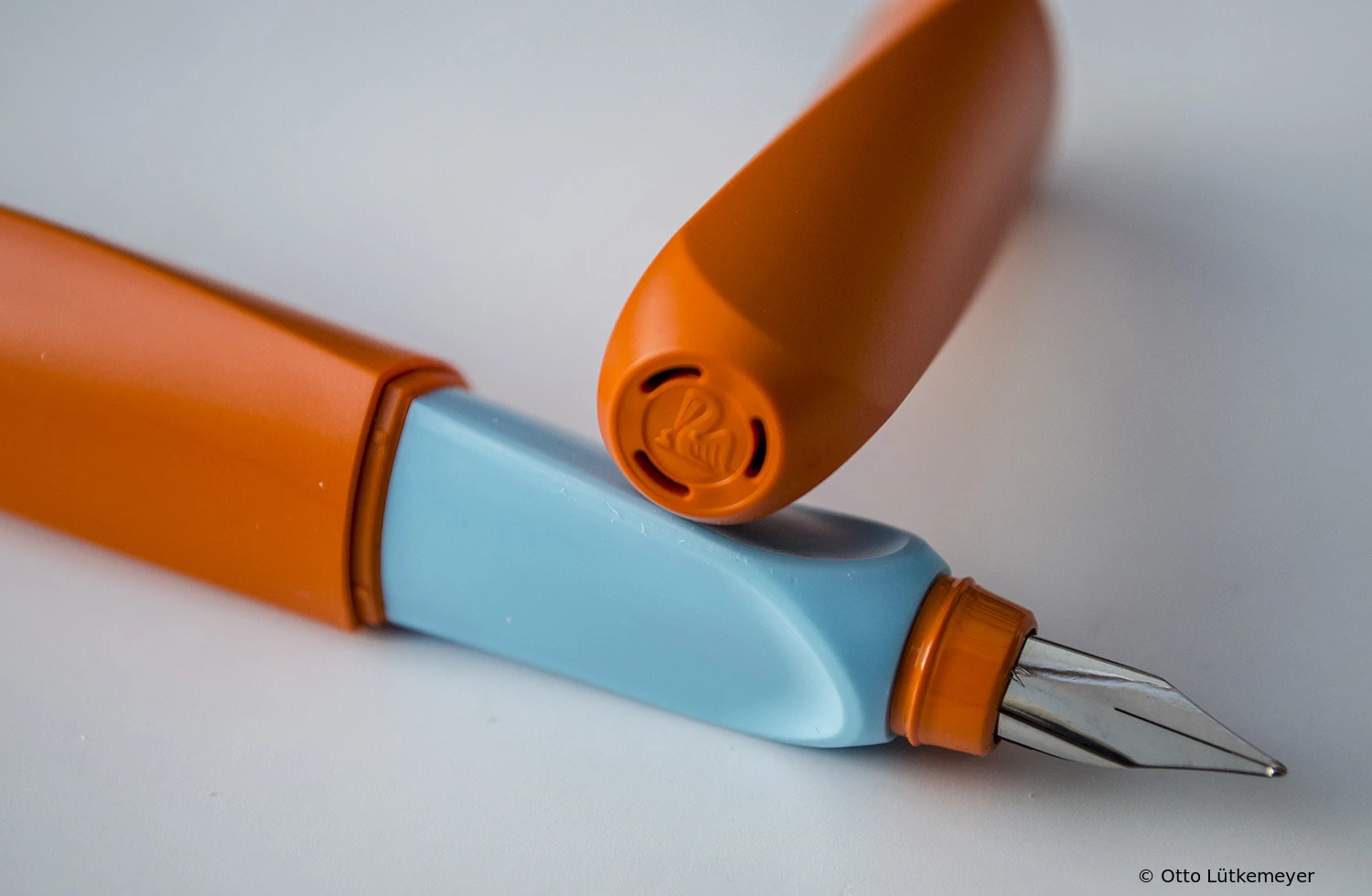

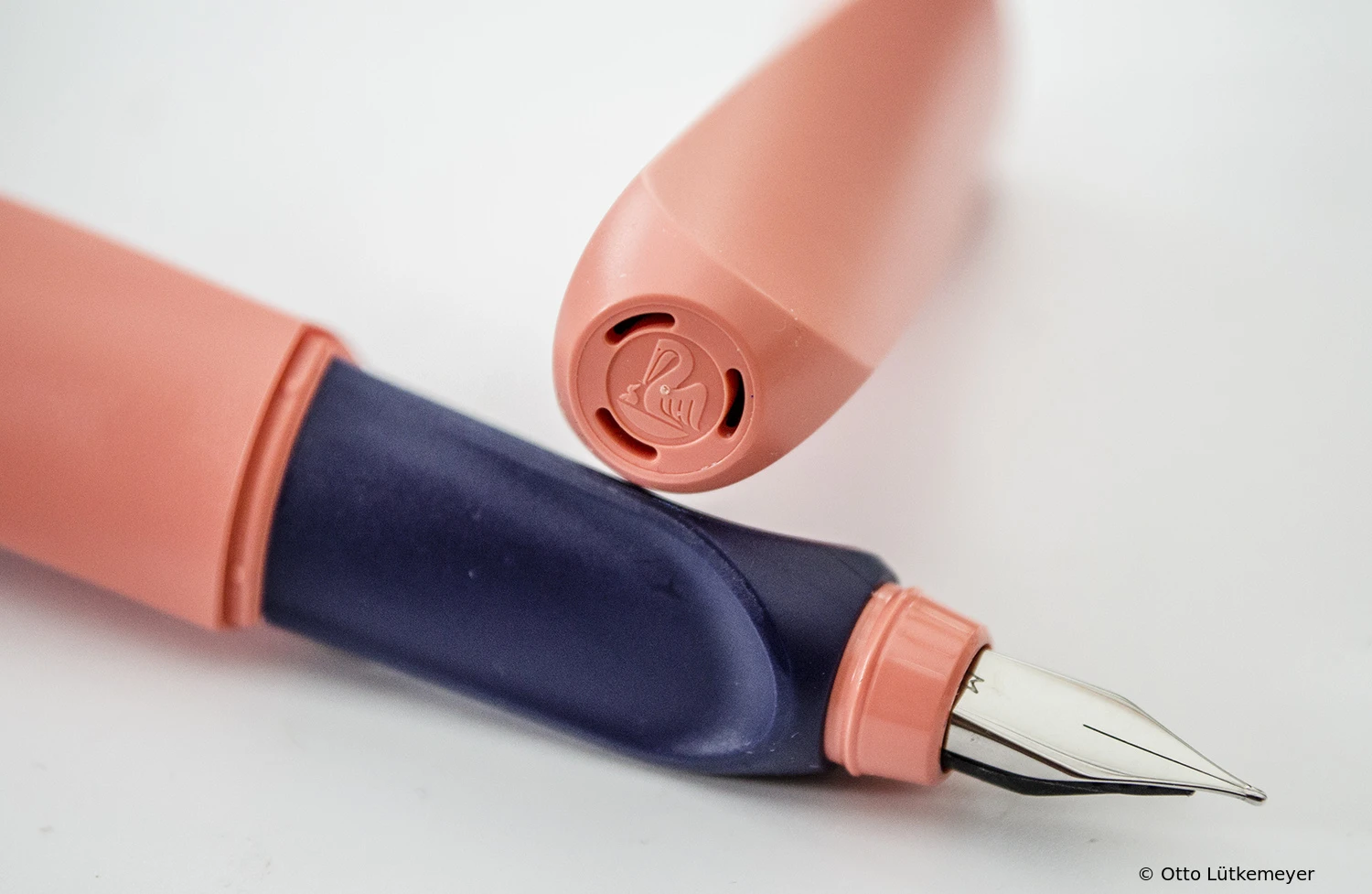

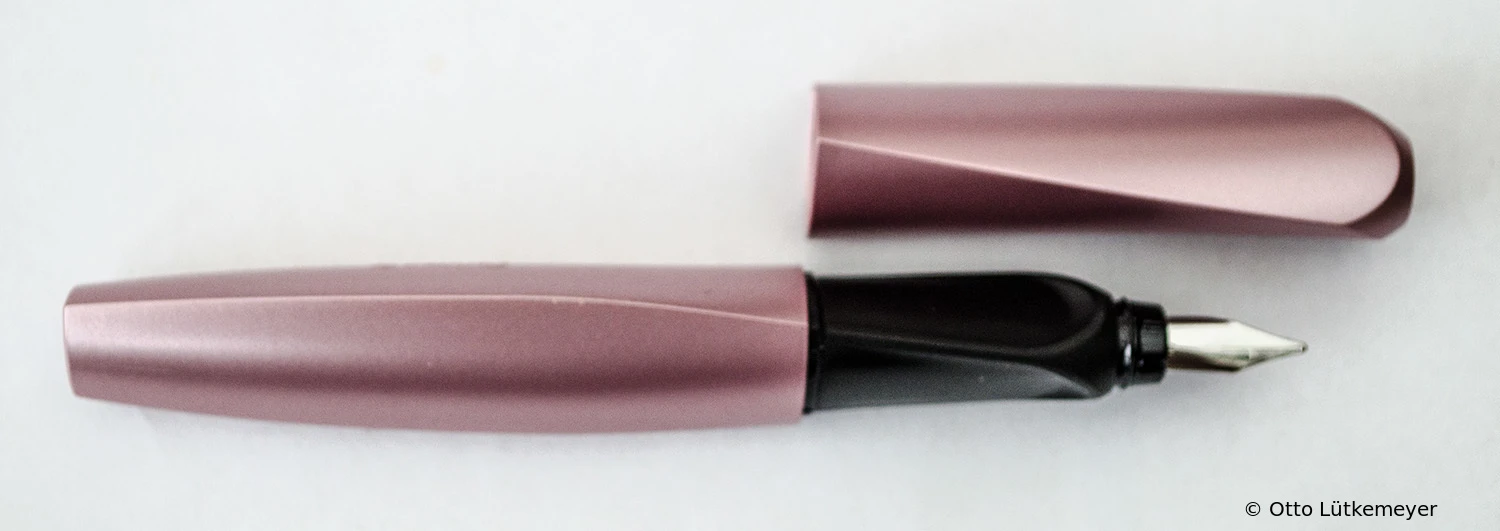

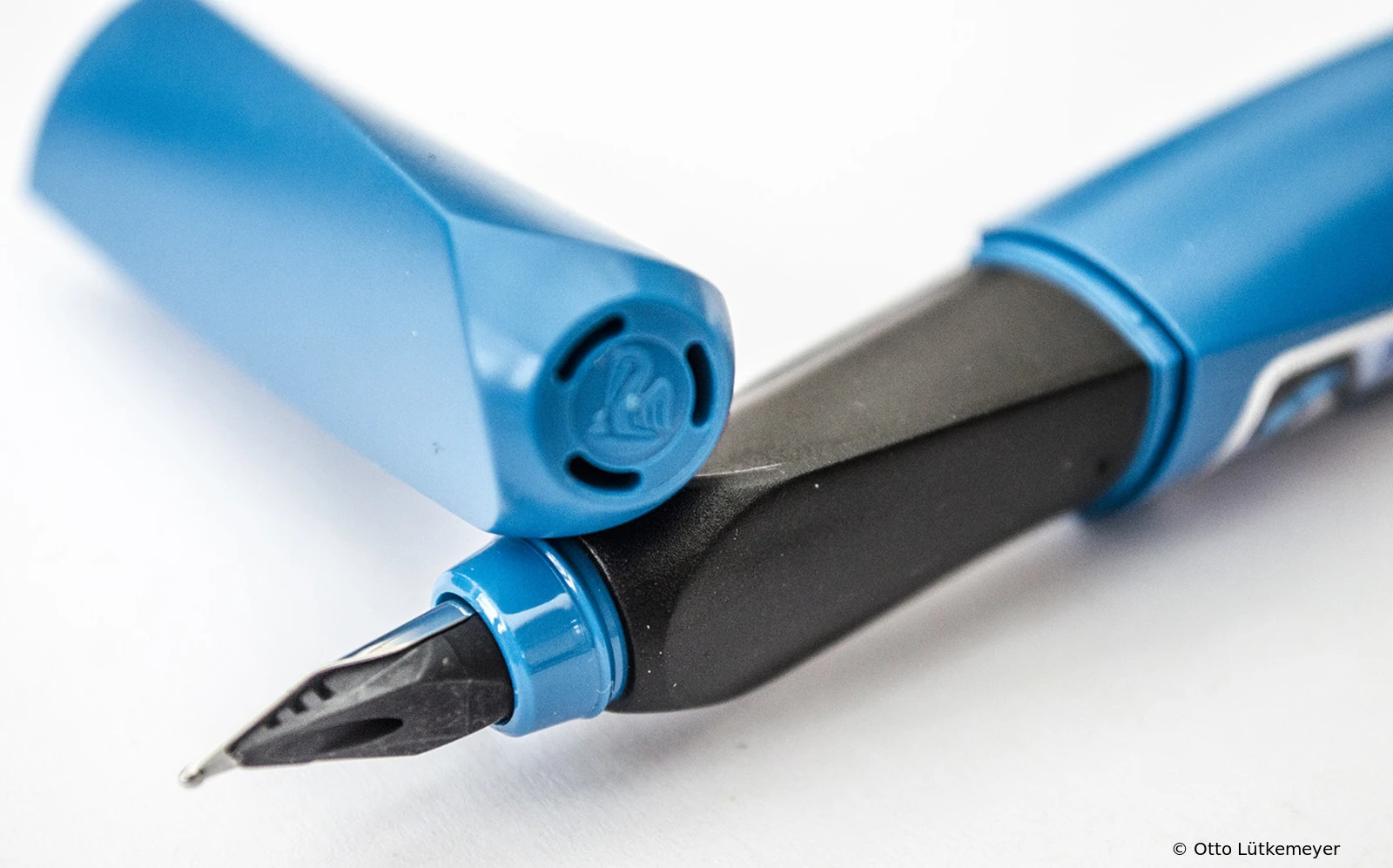

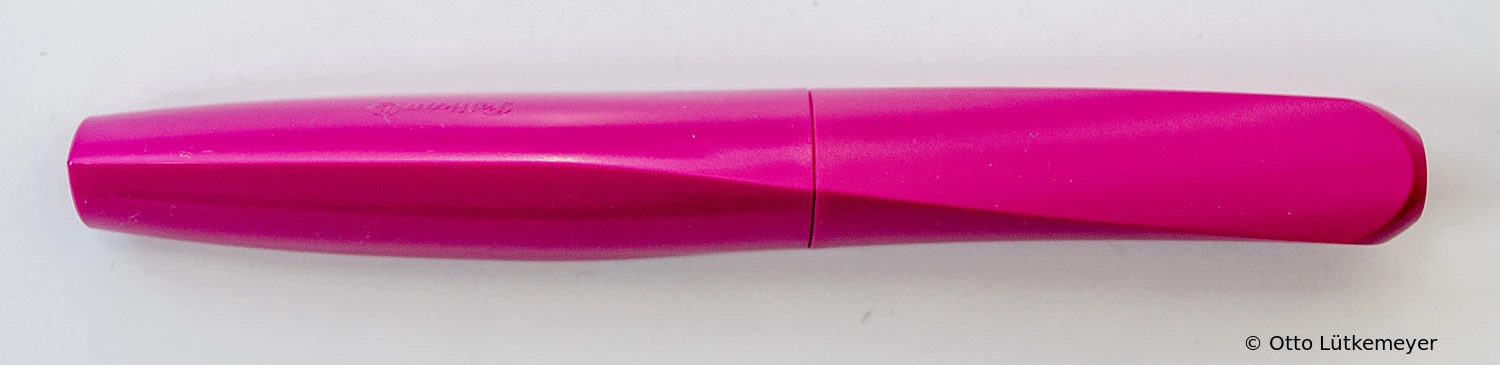

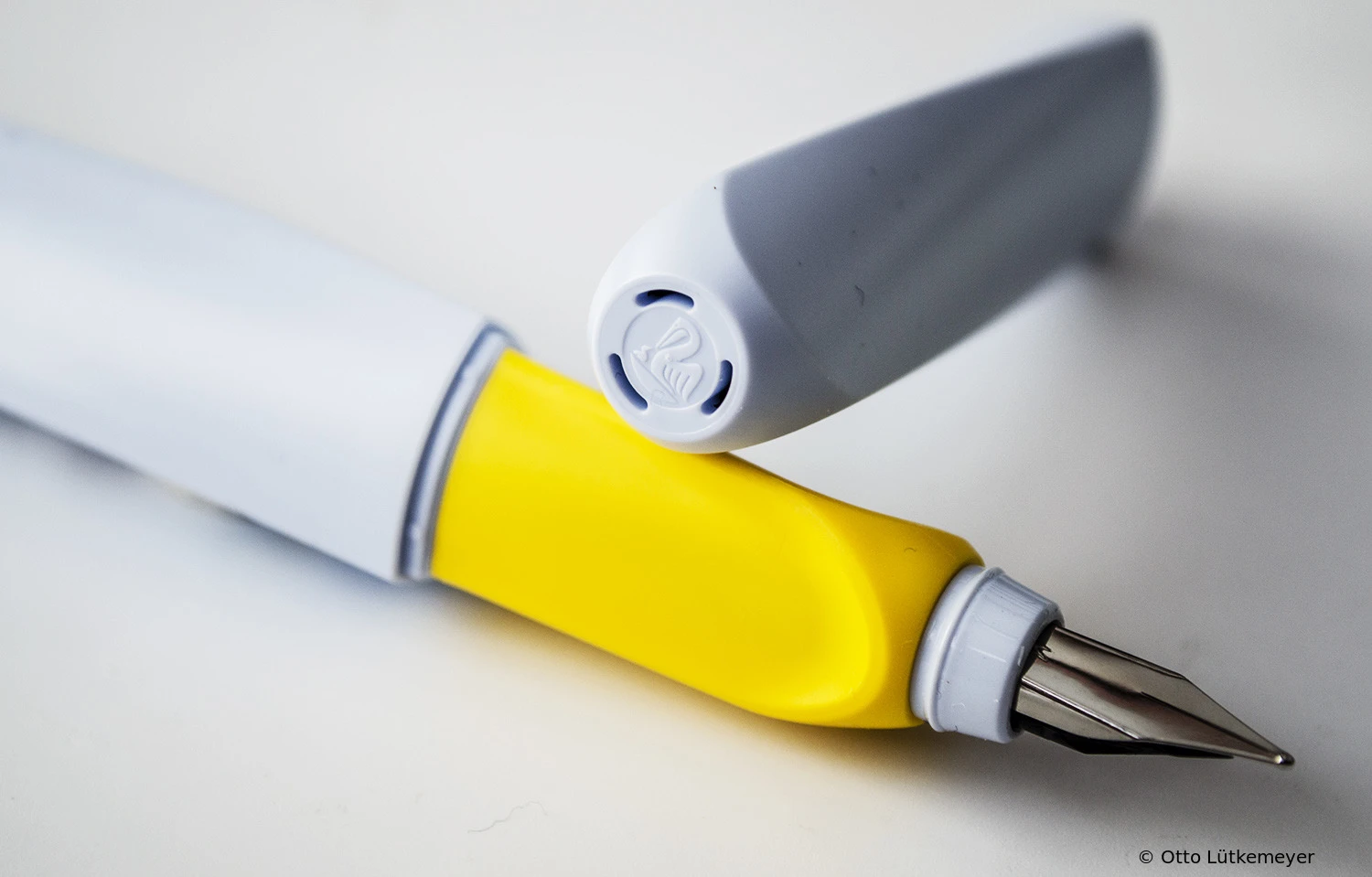

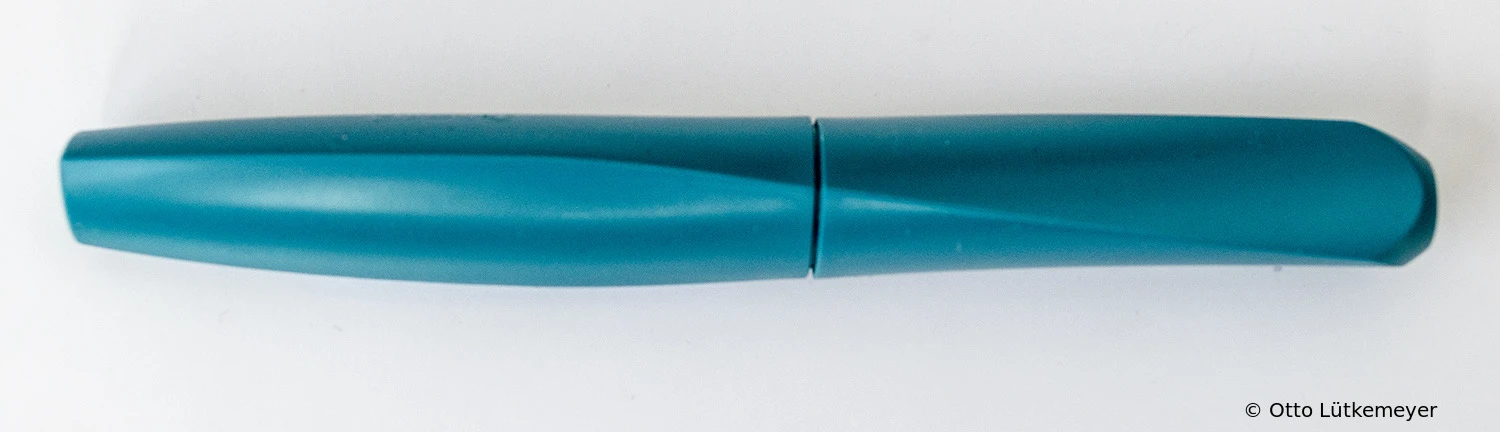

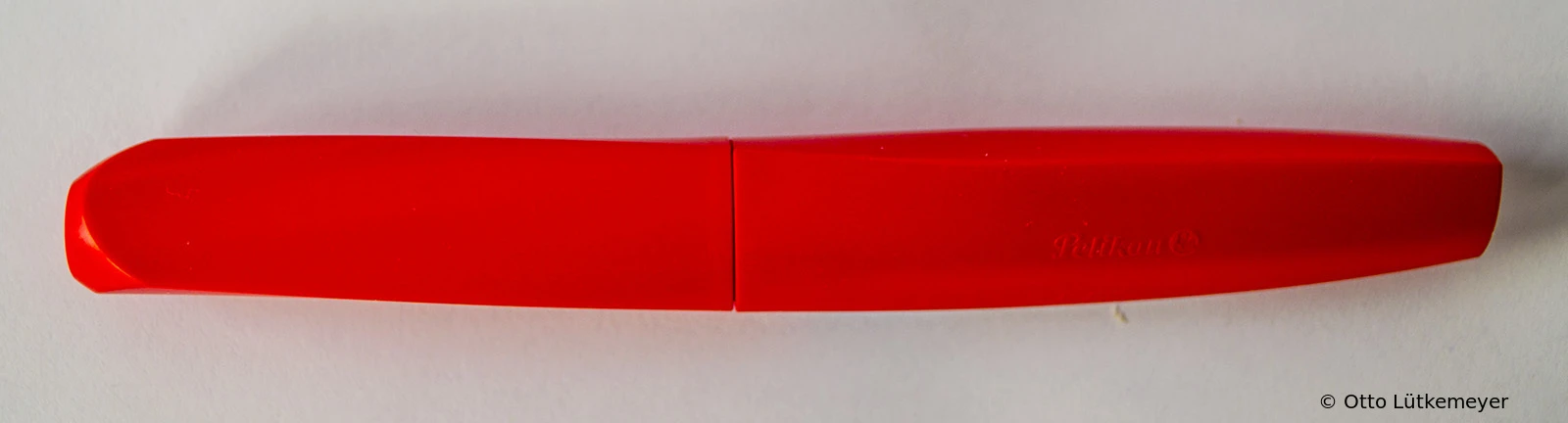

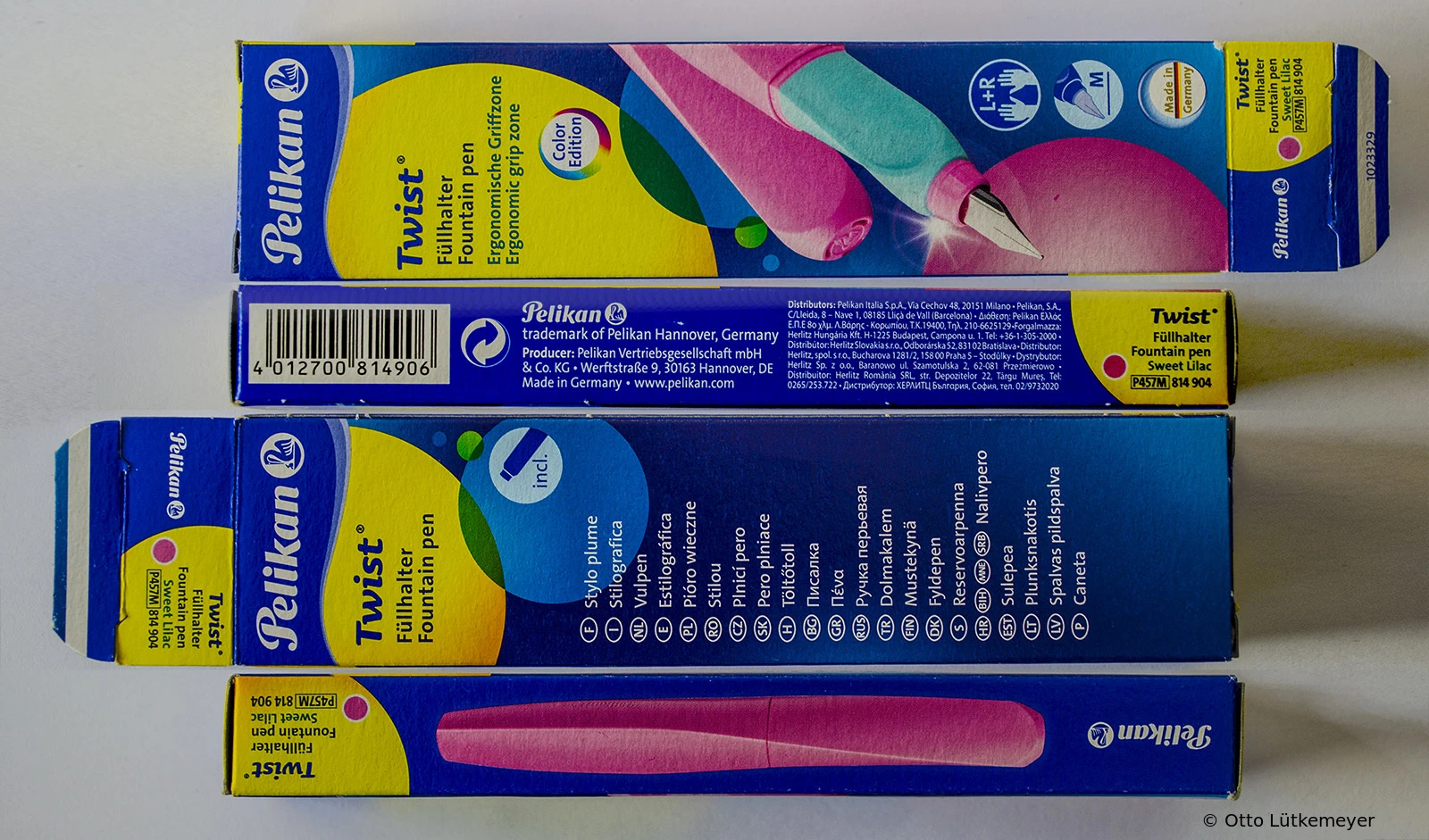

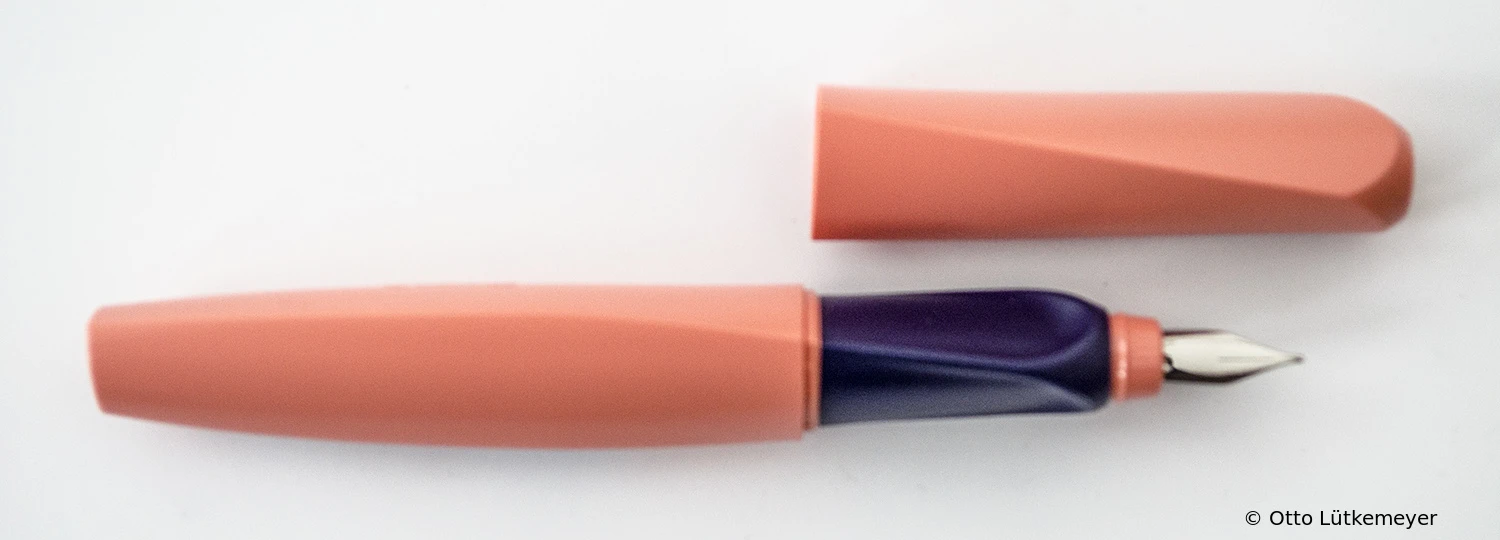

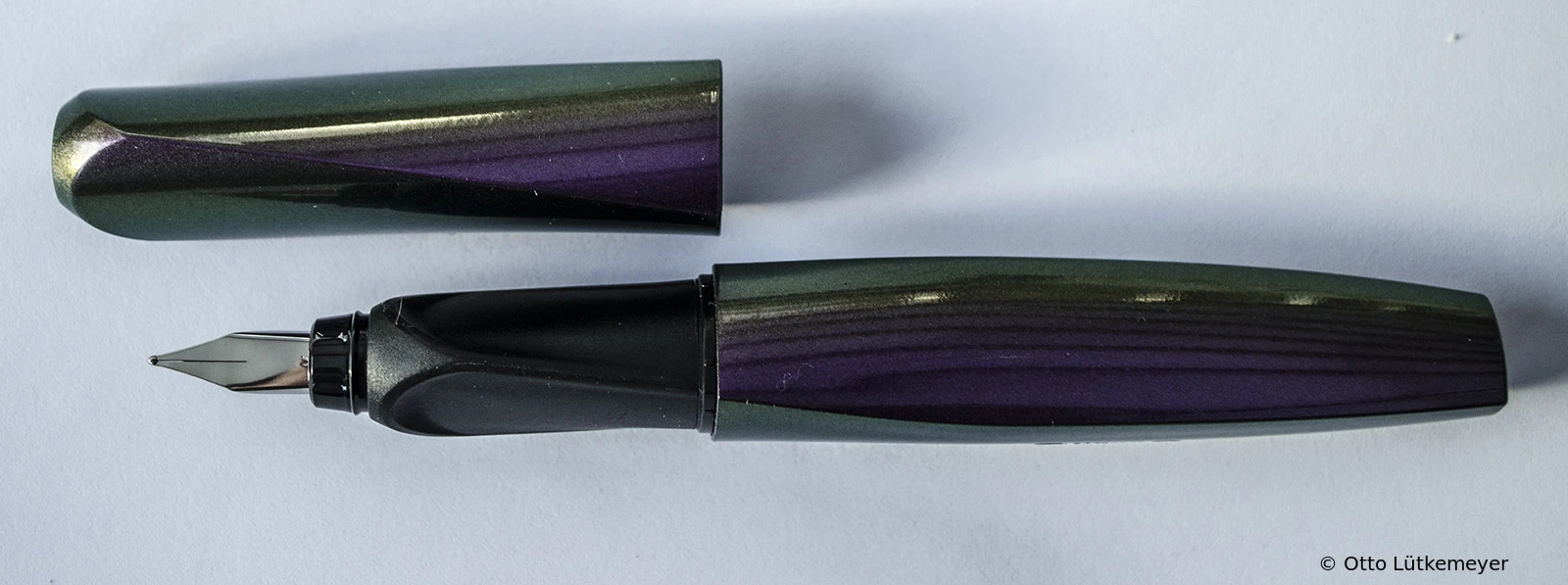

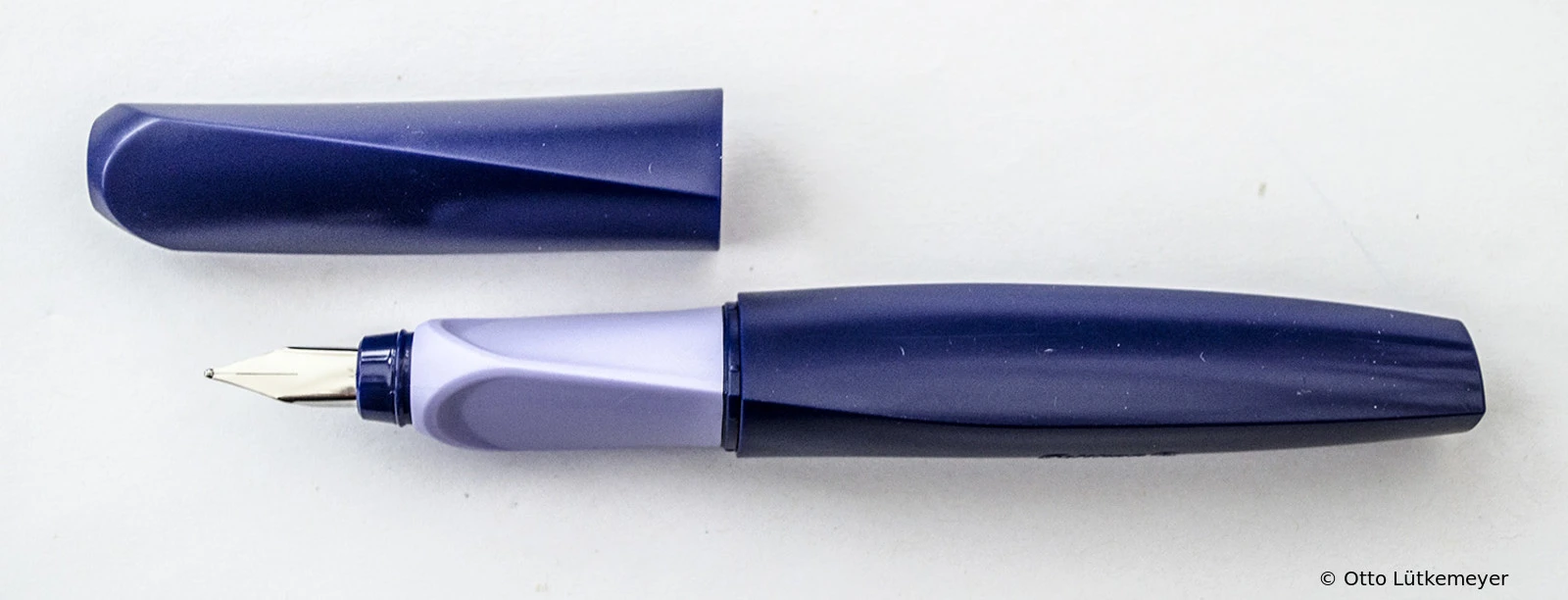

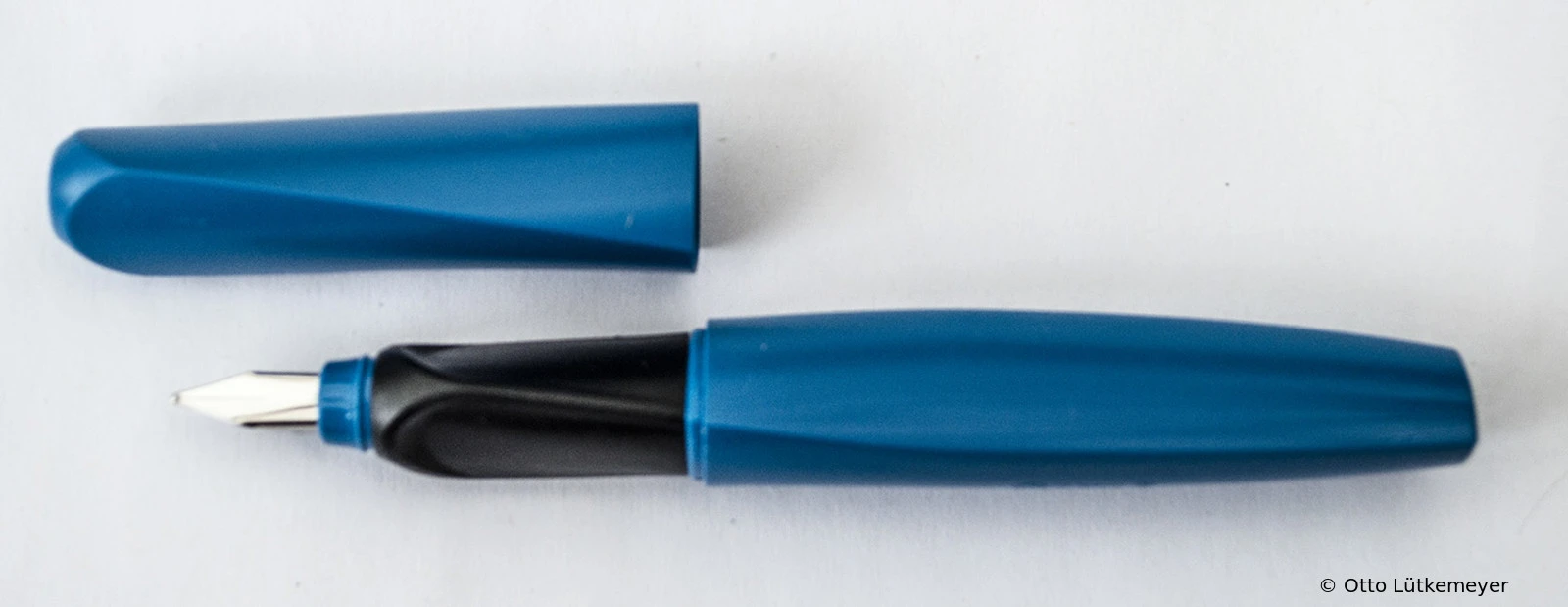

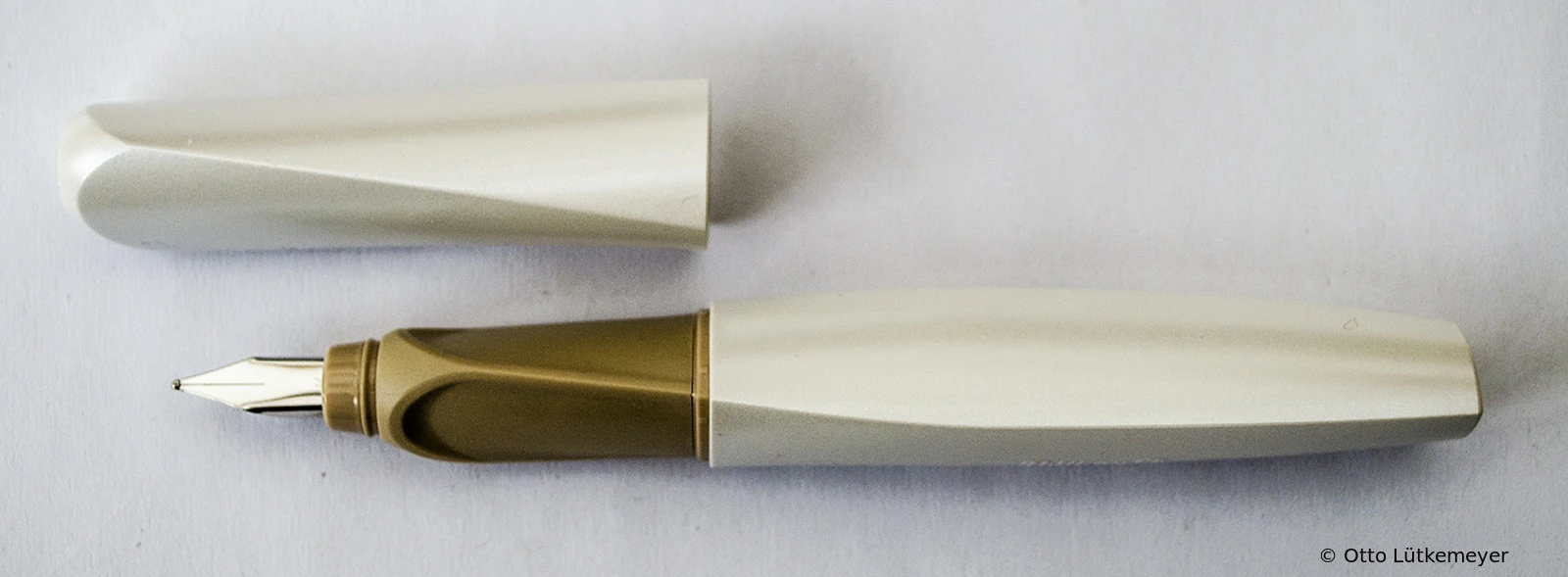

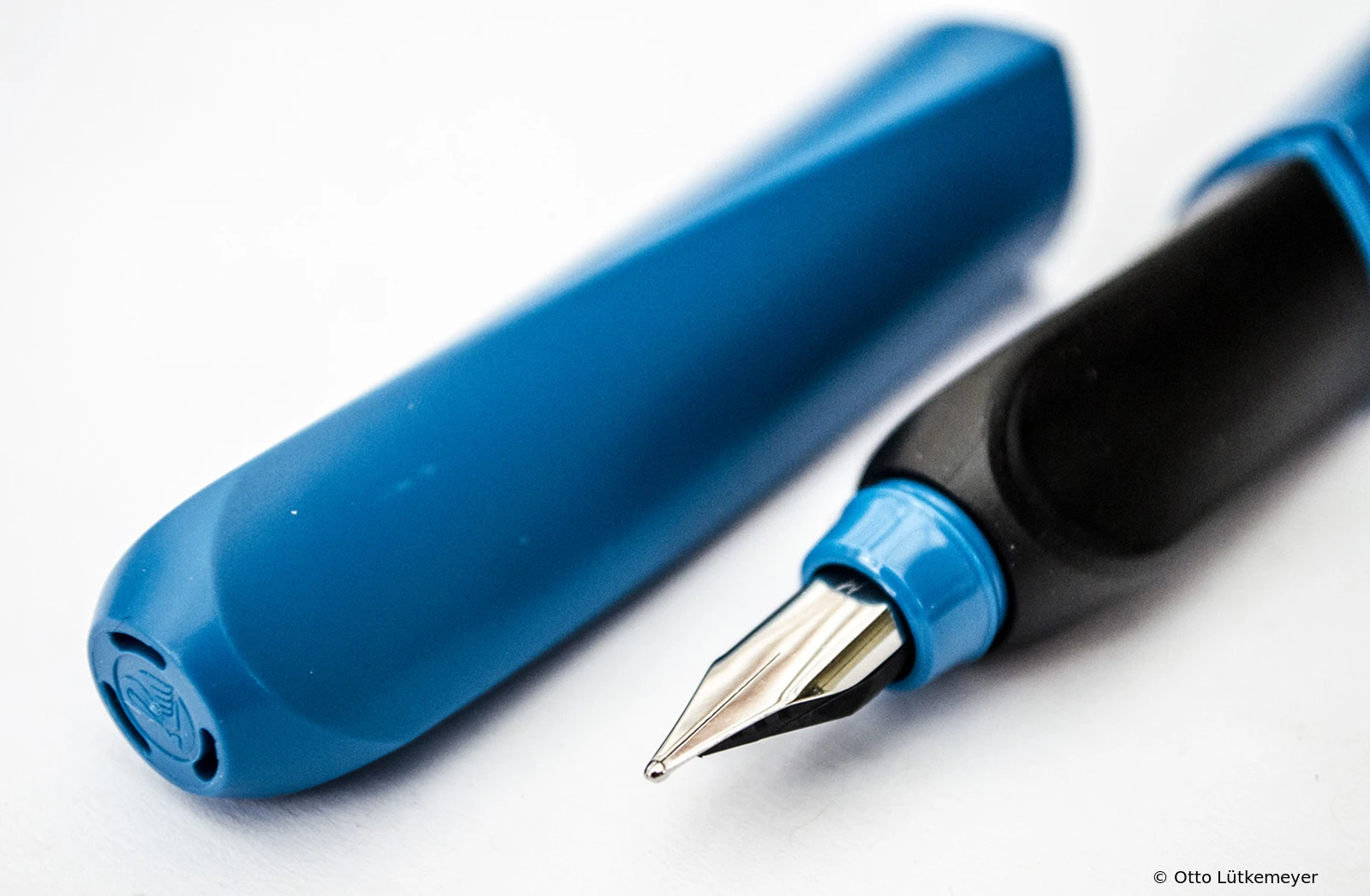

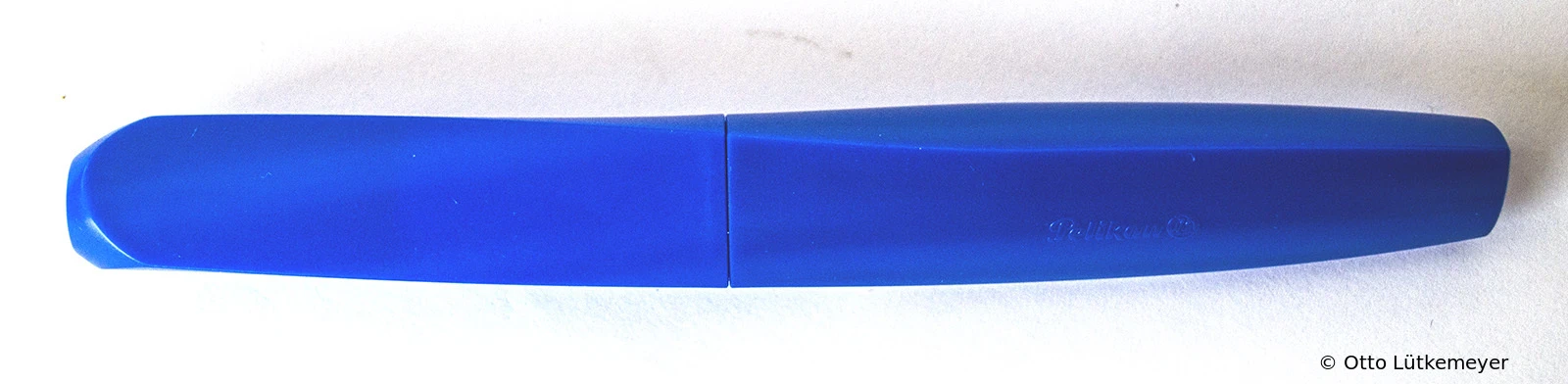

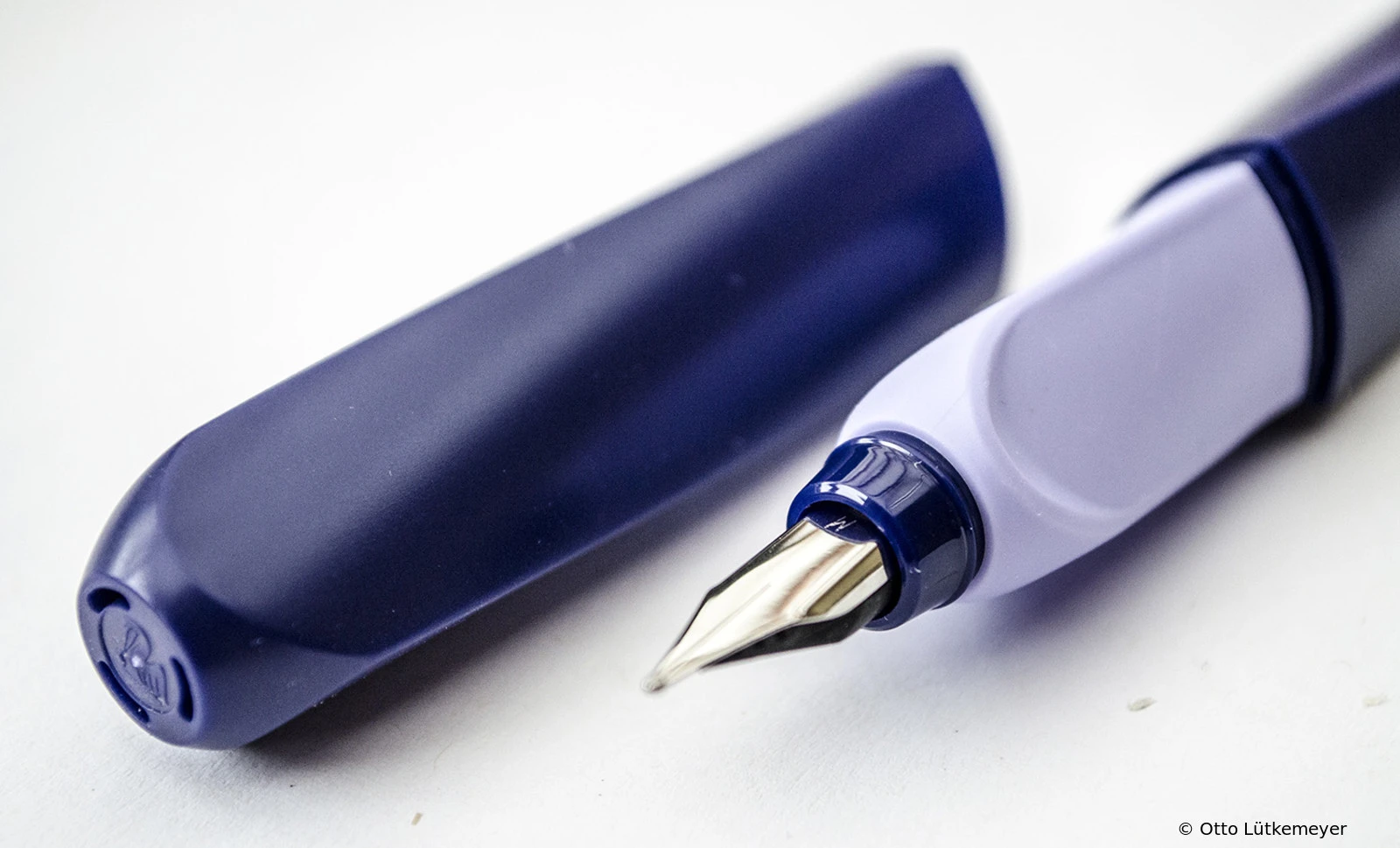

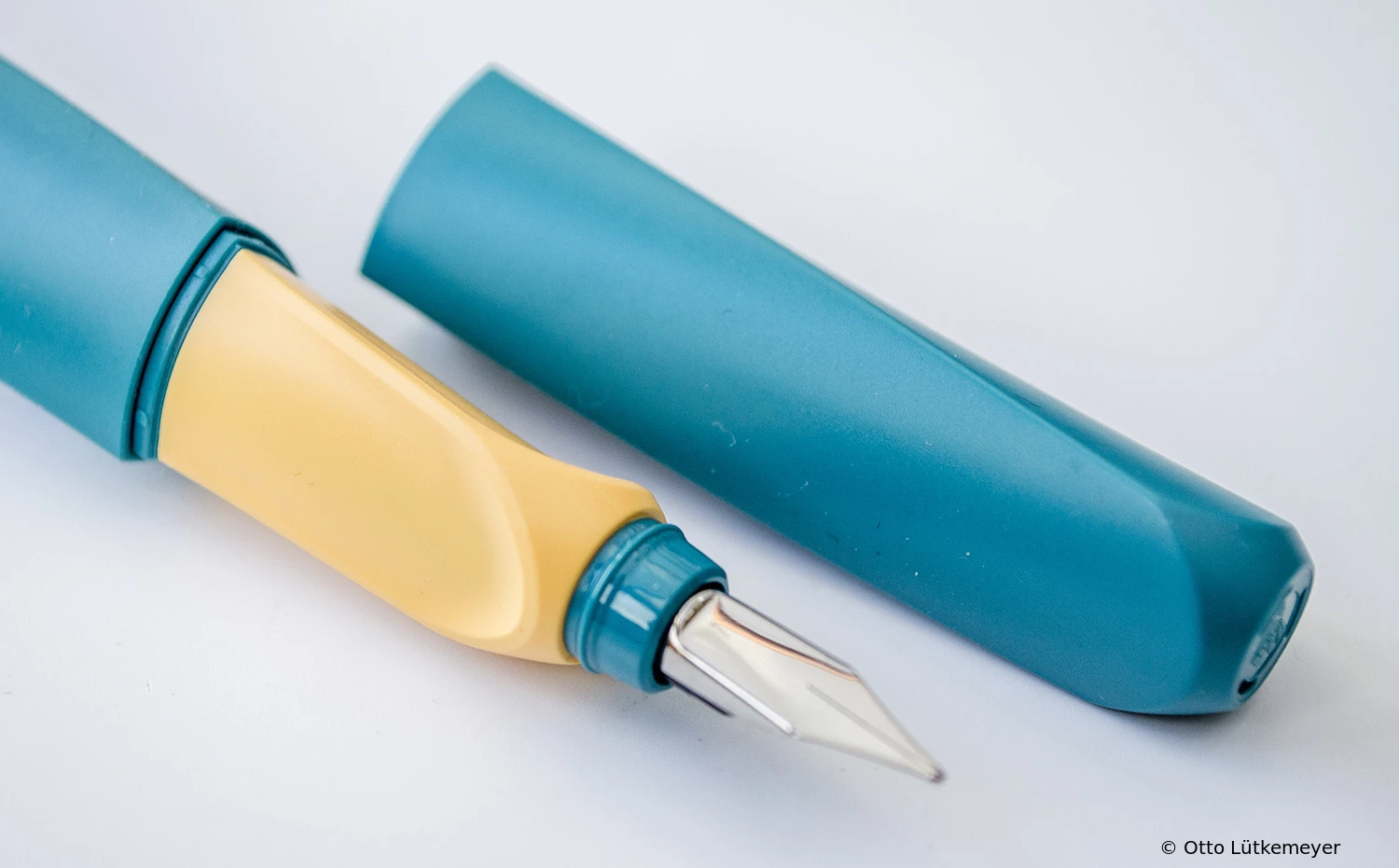

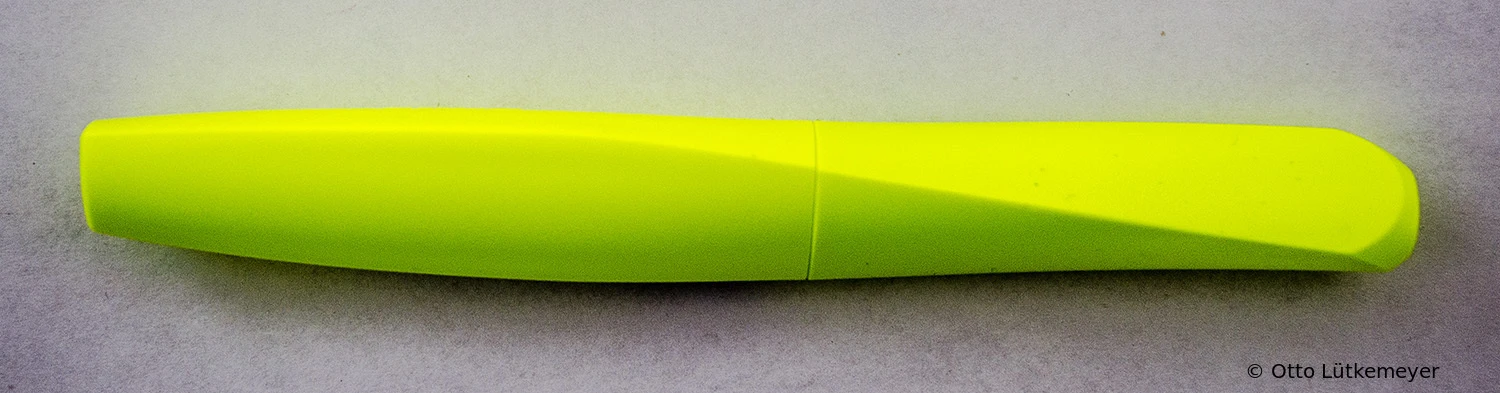

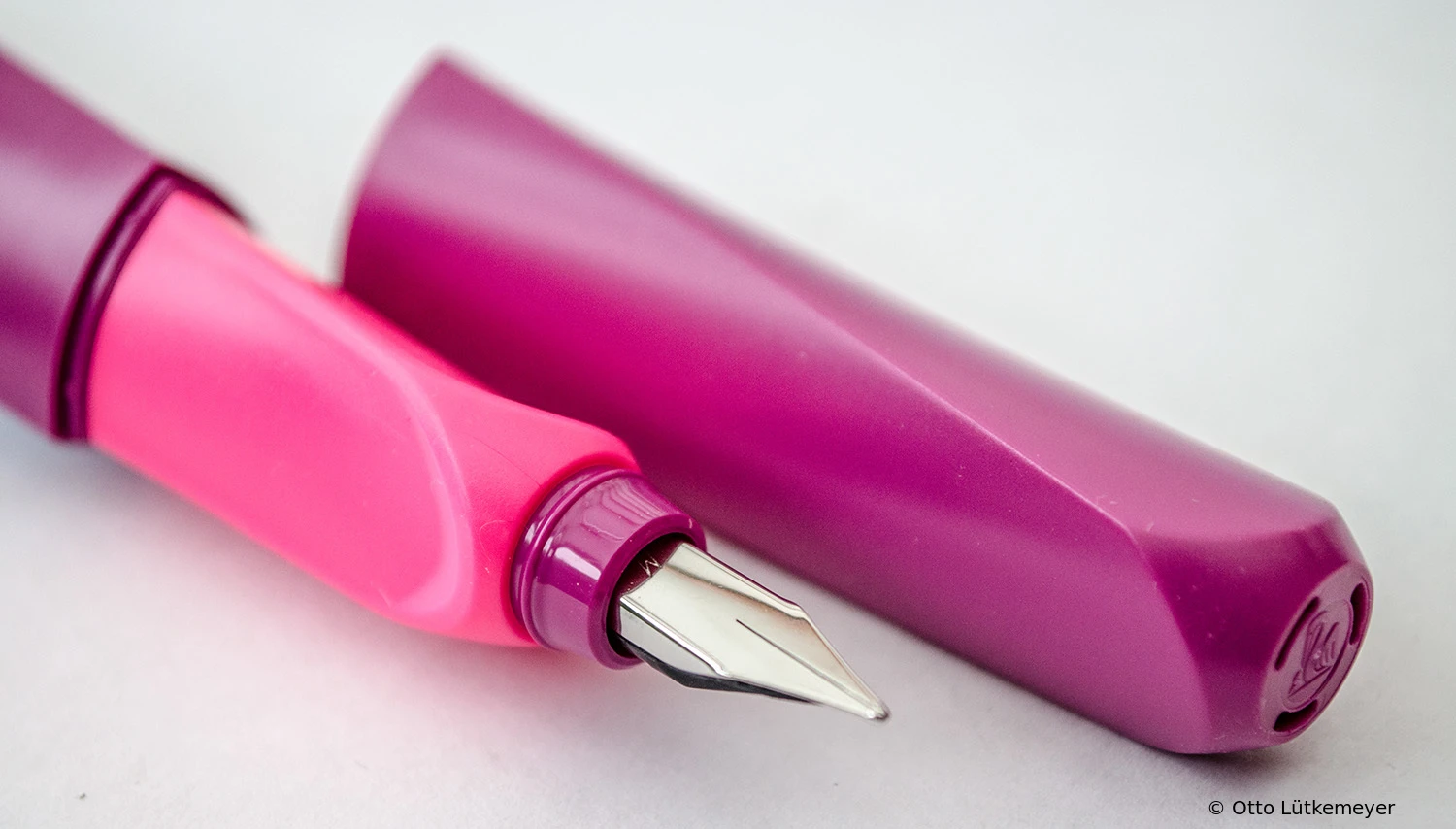

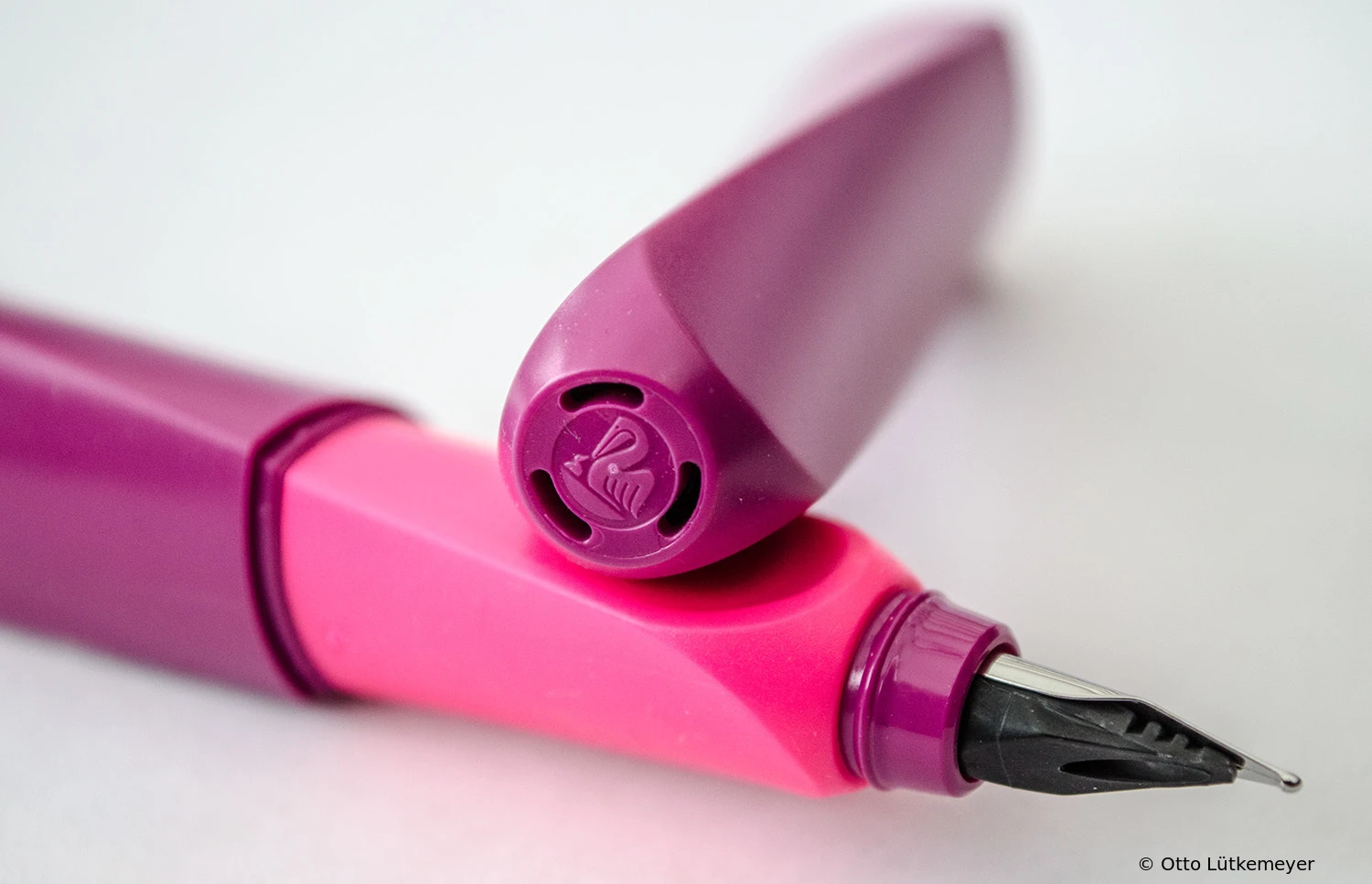

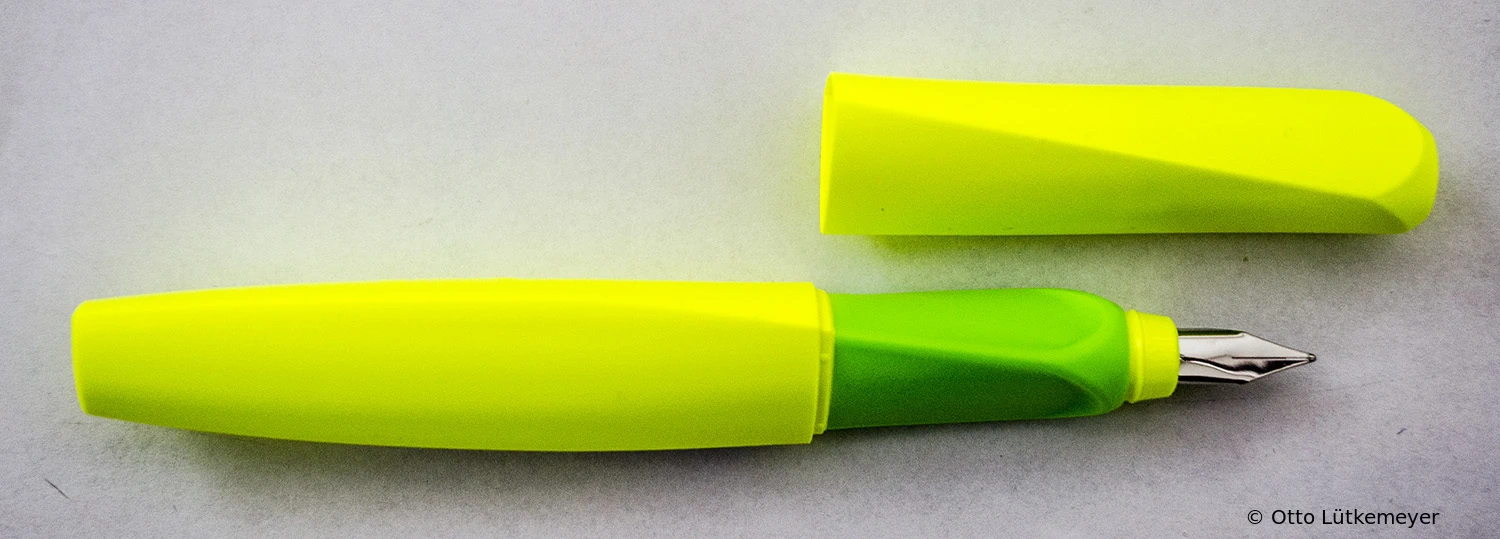

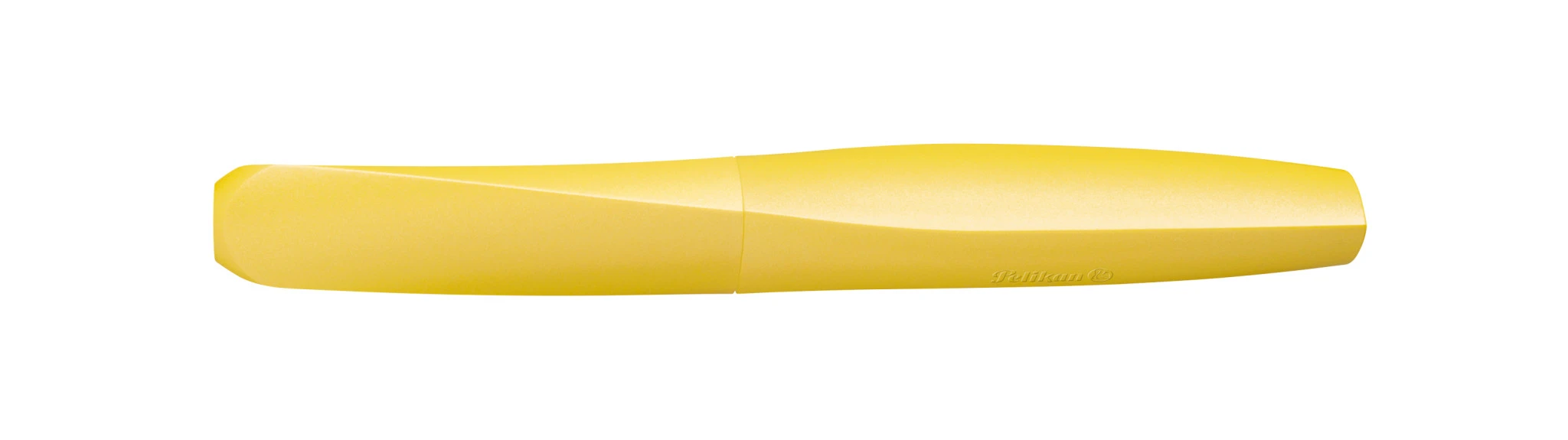

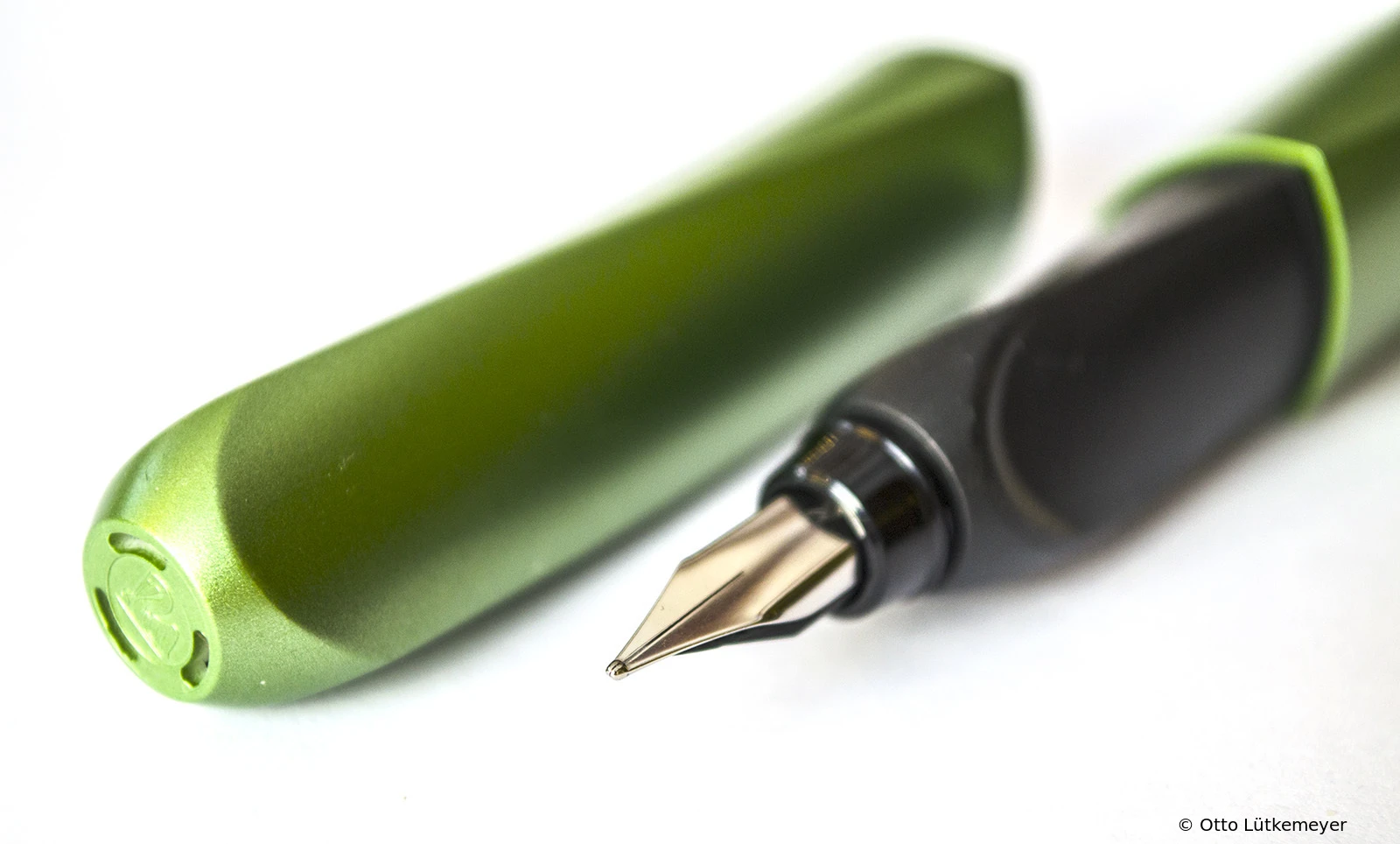

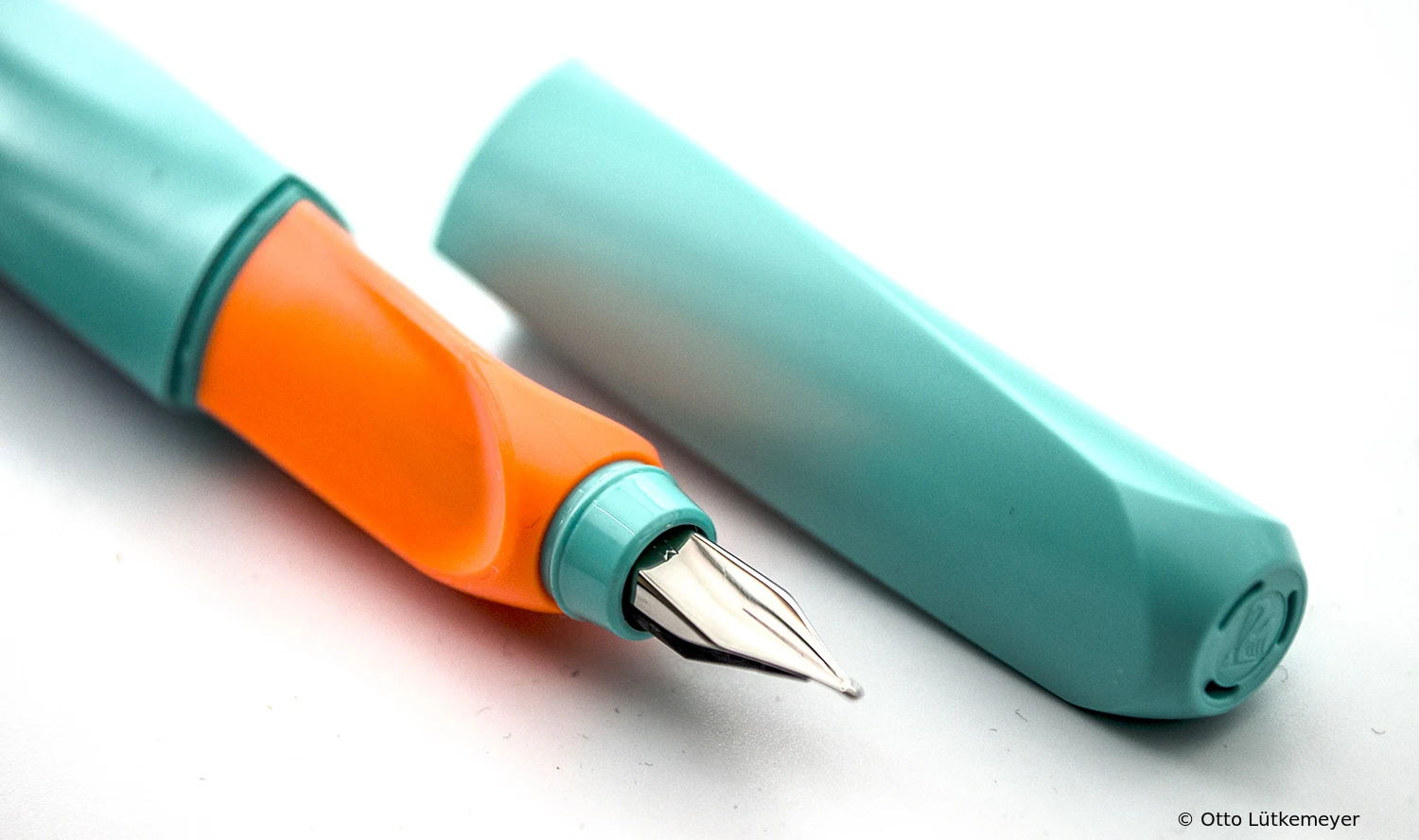

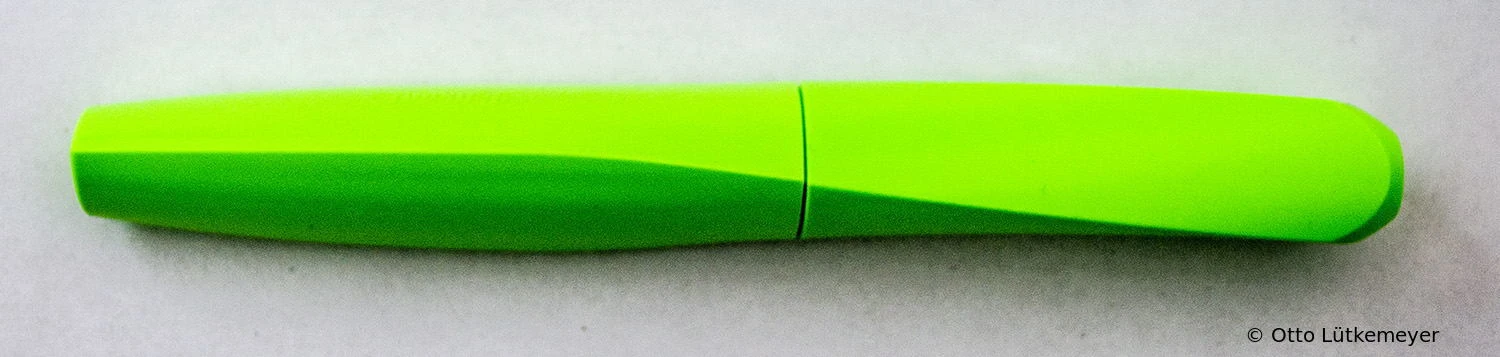

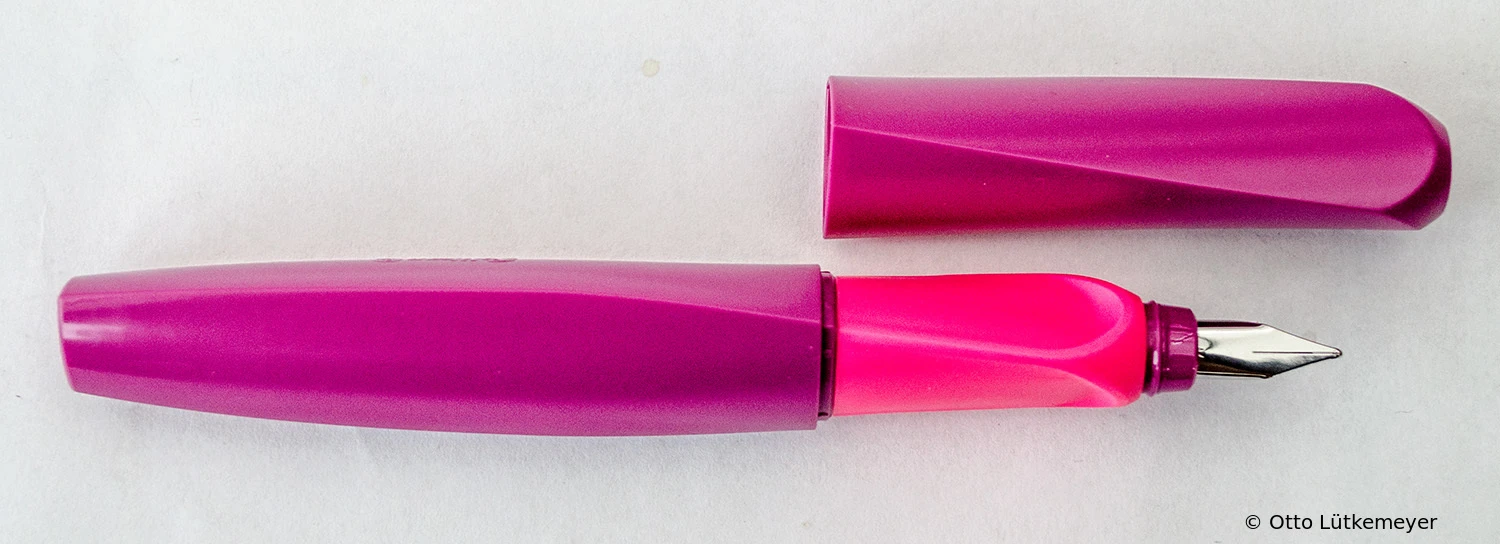

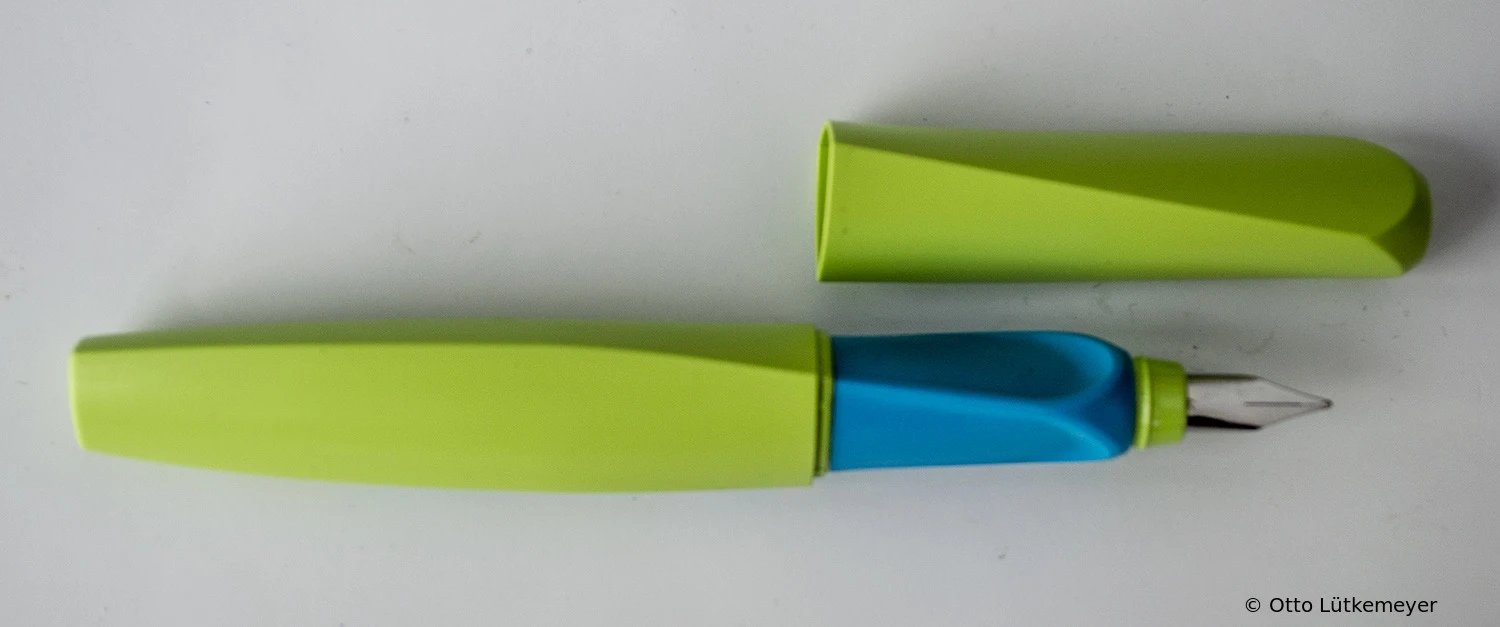

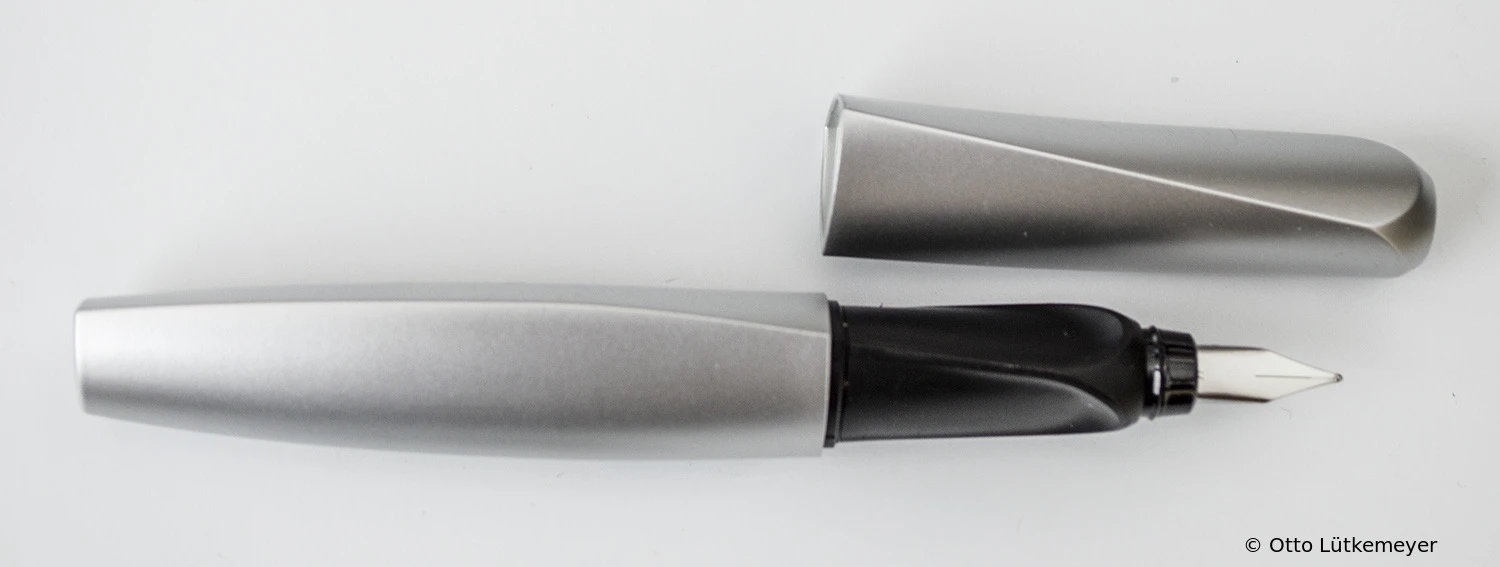

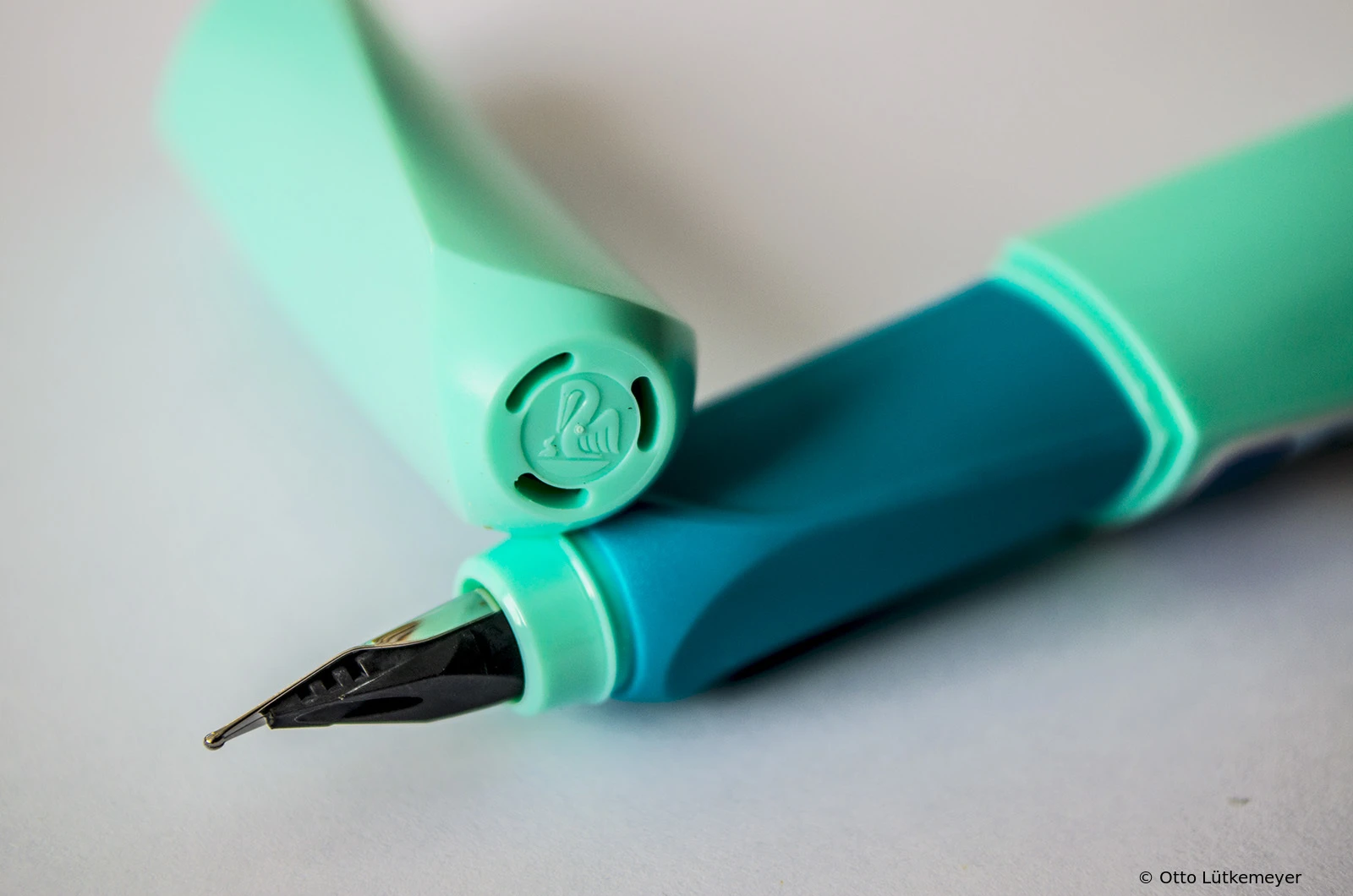

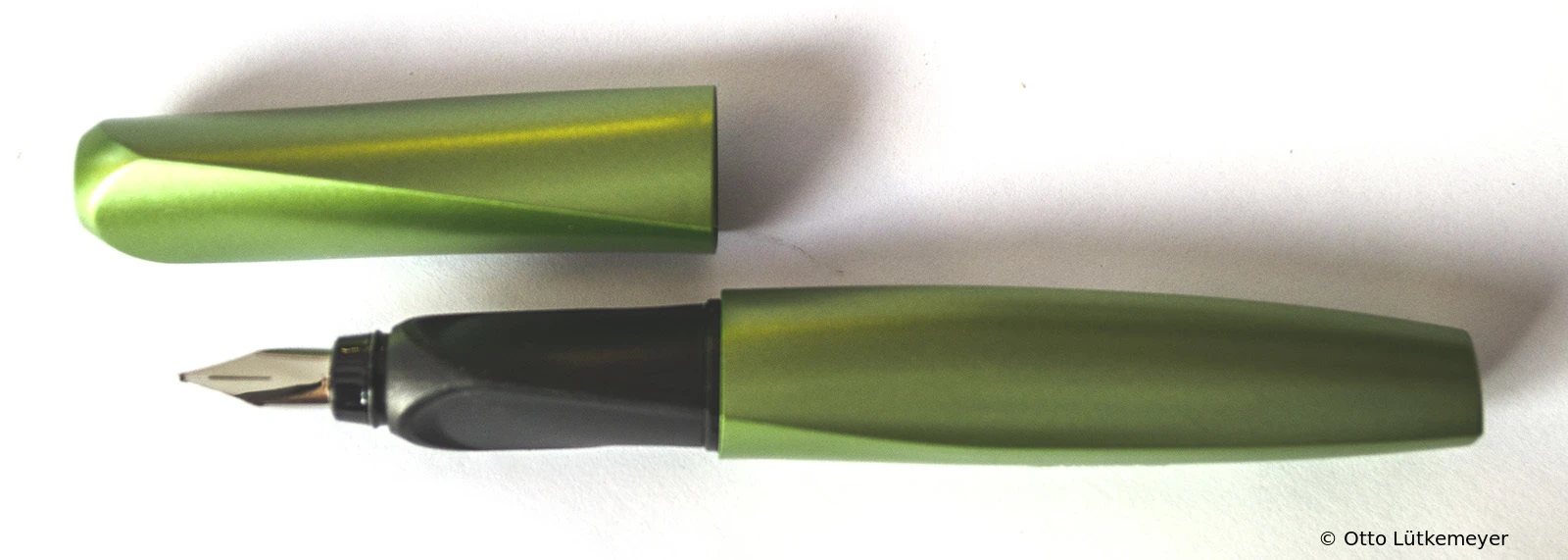

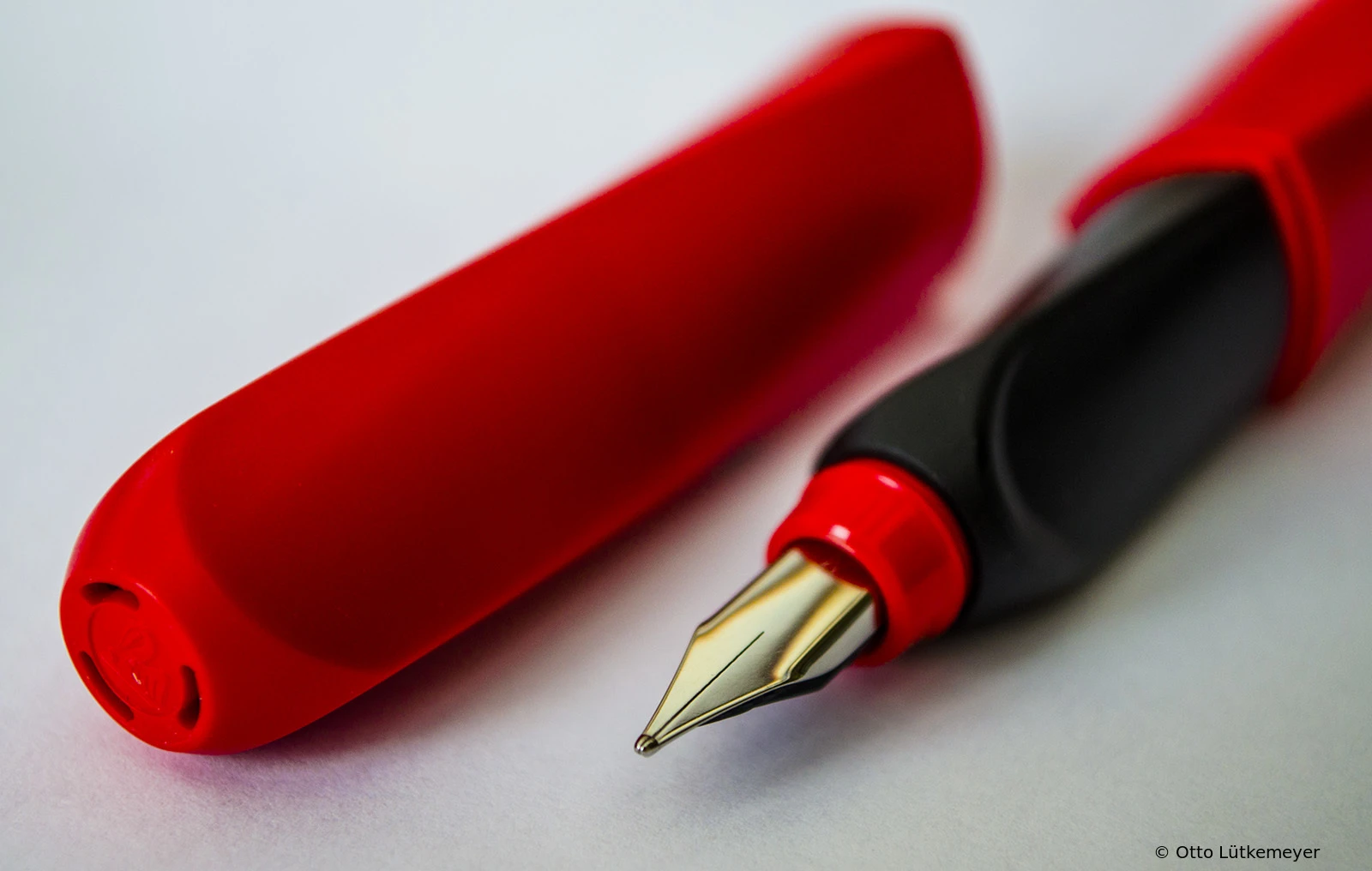

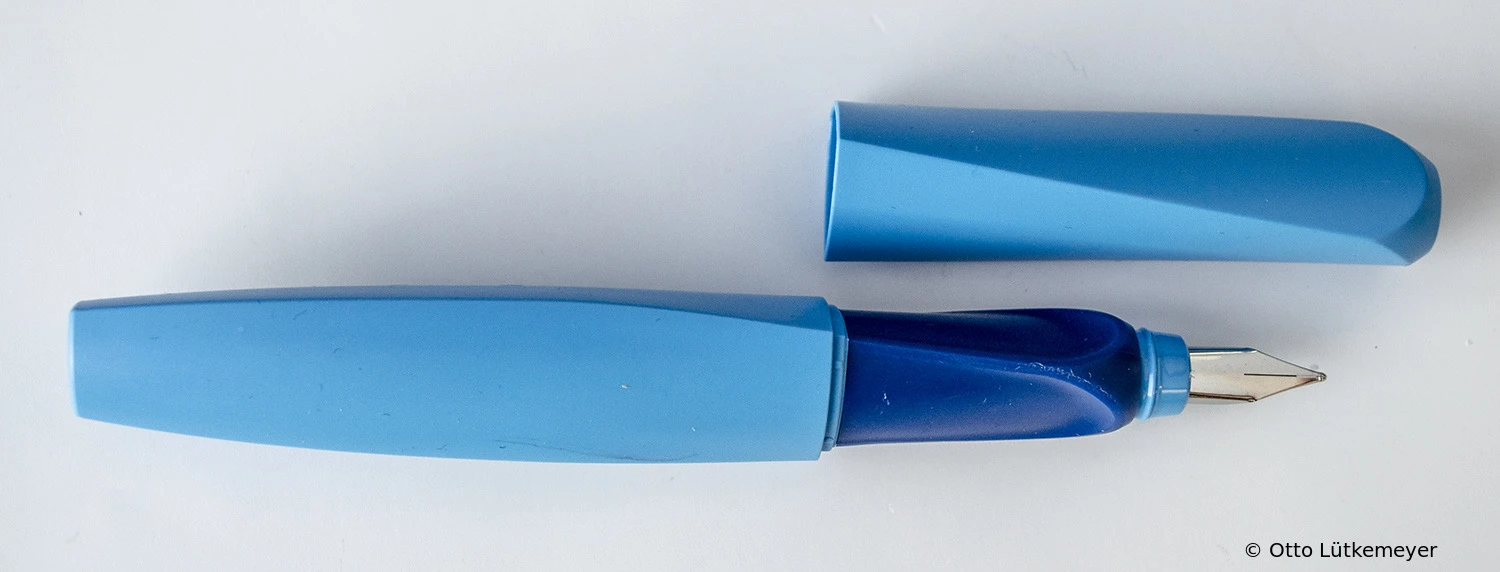

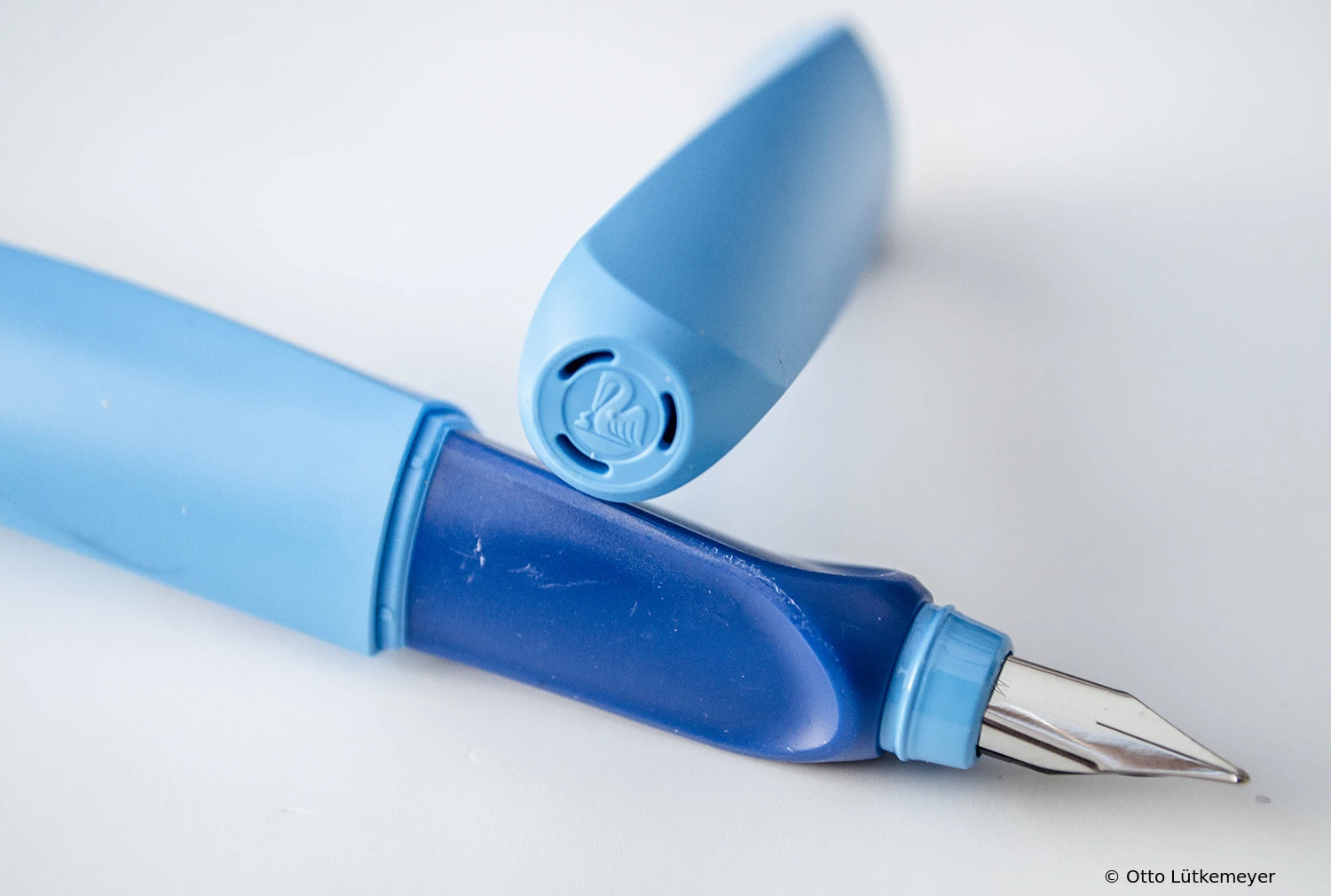

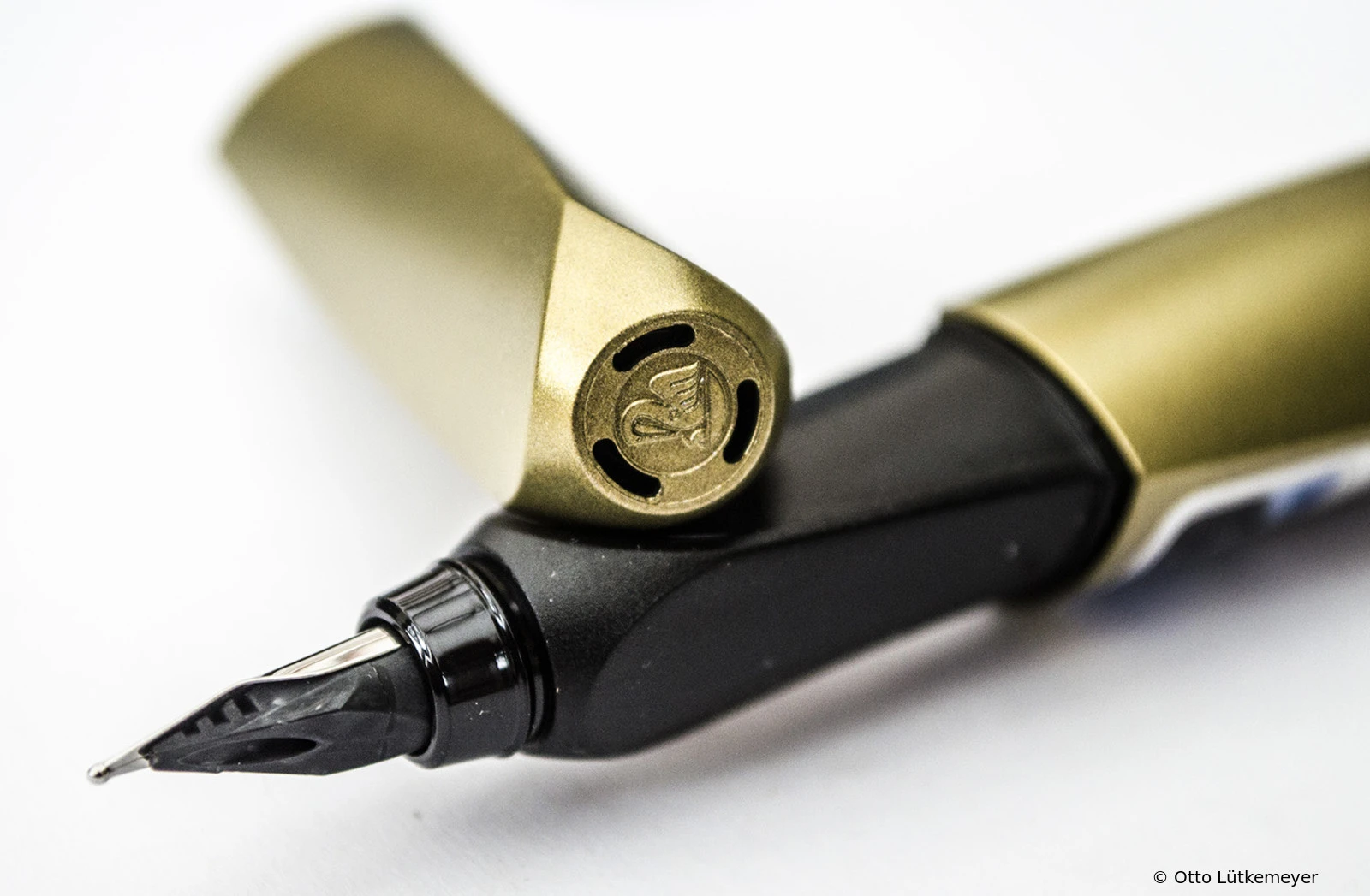

The ergonomic shape and twisty looking fountain pen fits the hand perfectly. It is universally suitable for right and left handed. The Twist is also offered as a Rollerball (R457).

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.67 oz	5.51 in	4.49 in	2.52 in	0.69 in	1.4 ml giant ink cartridge
19 g	140 mm	114 mm	64 mm	17.5 mm

Mainly made from recycled plastic and therefore produced more sustainably.

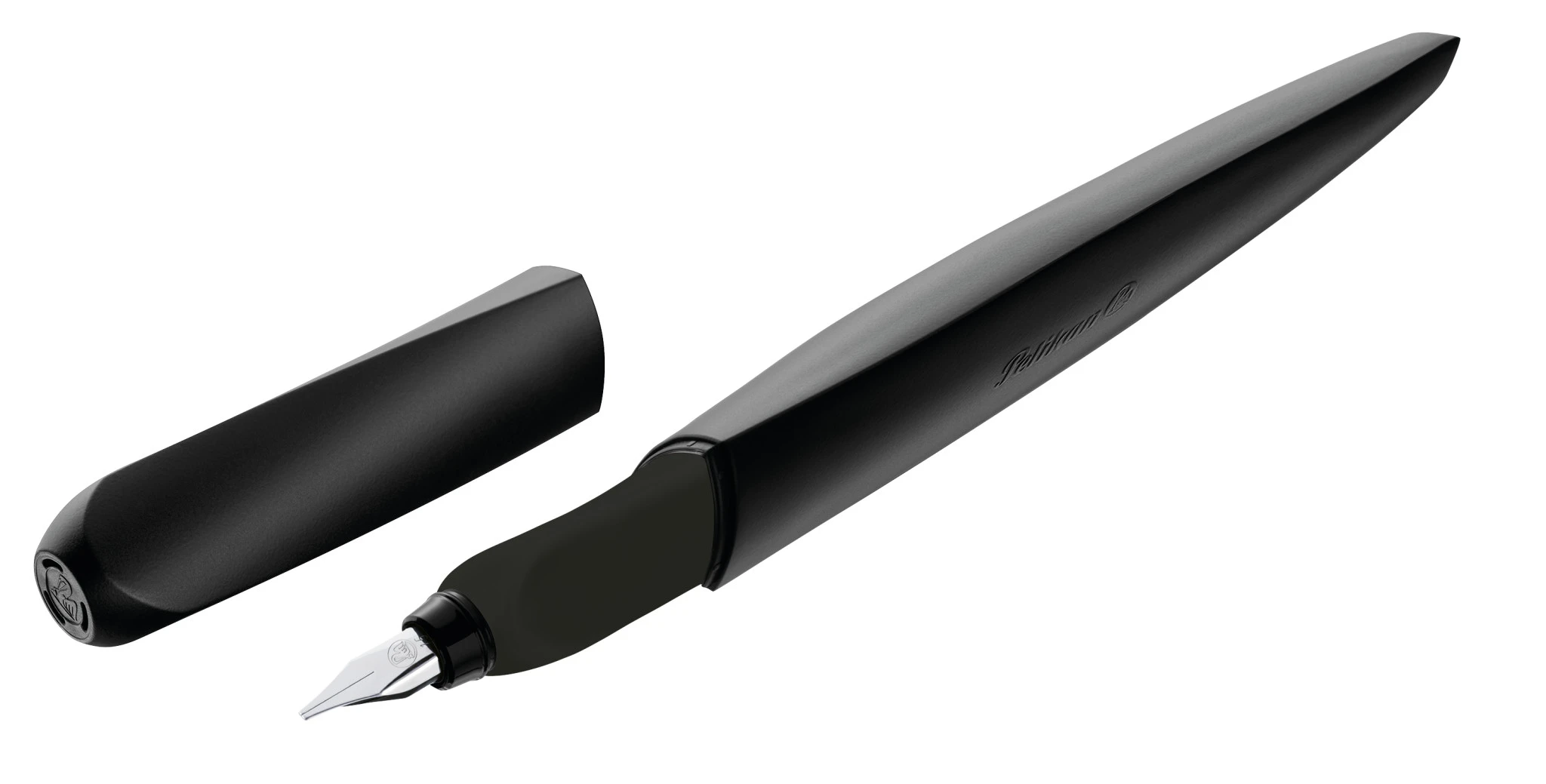

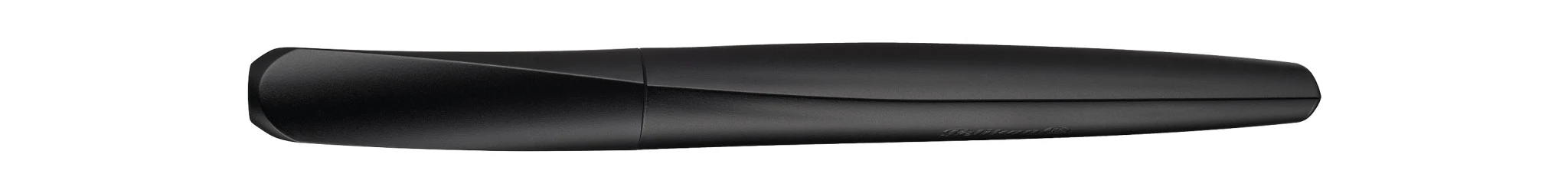

The calligraphy fountain pen with an extended barrel and 1.5mm nib in white and black.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.67 oz	5.51 in	4.49 in	2.52 in	0.69 in	1.4 ml giant ink cartridge
19 g	140 mm	114 mm	64 mm	17.5 mm

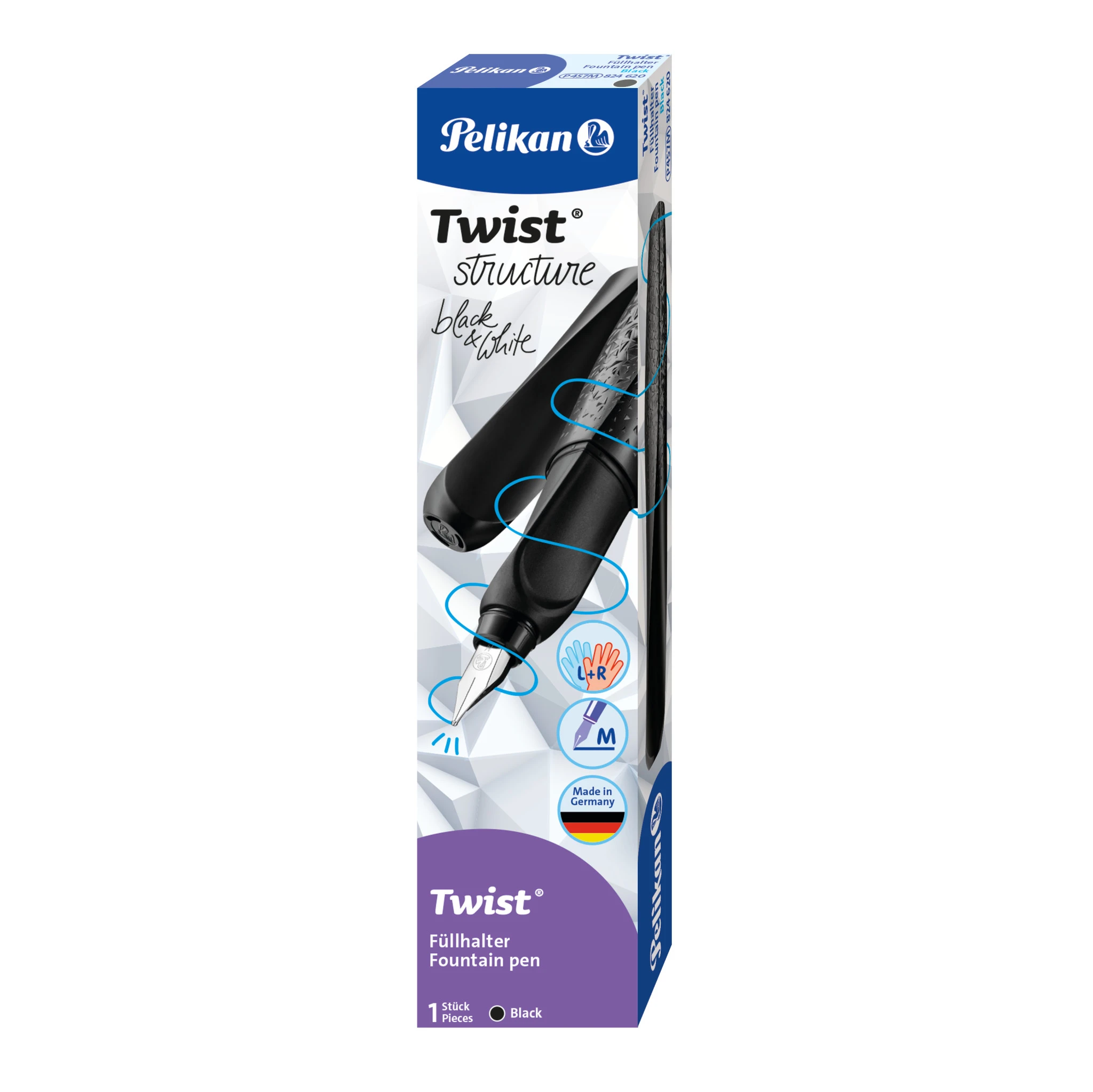

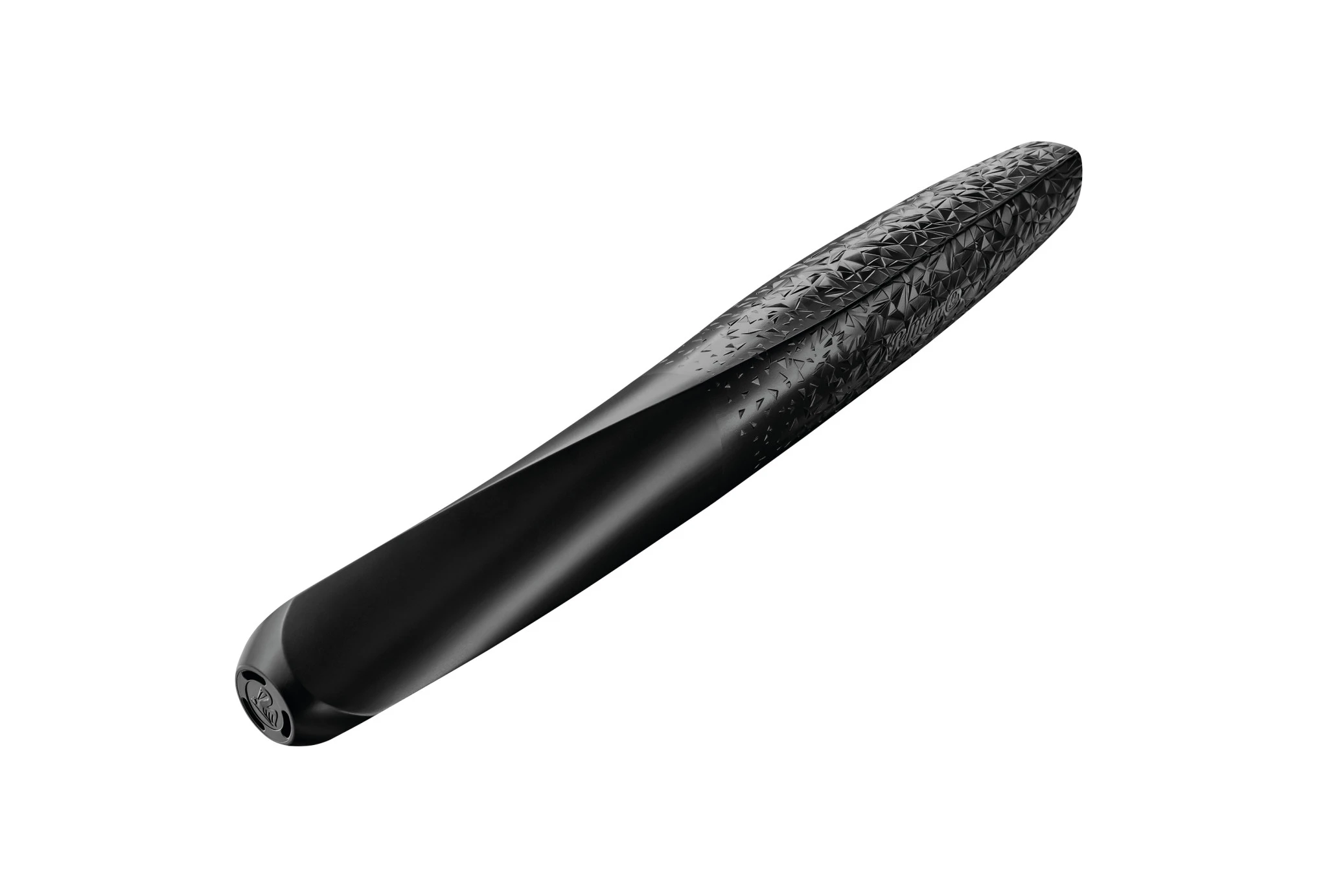

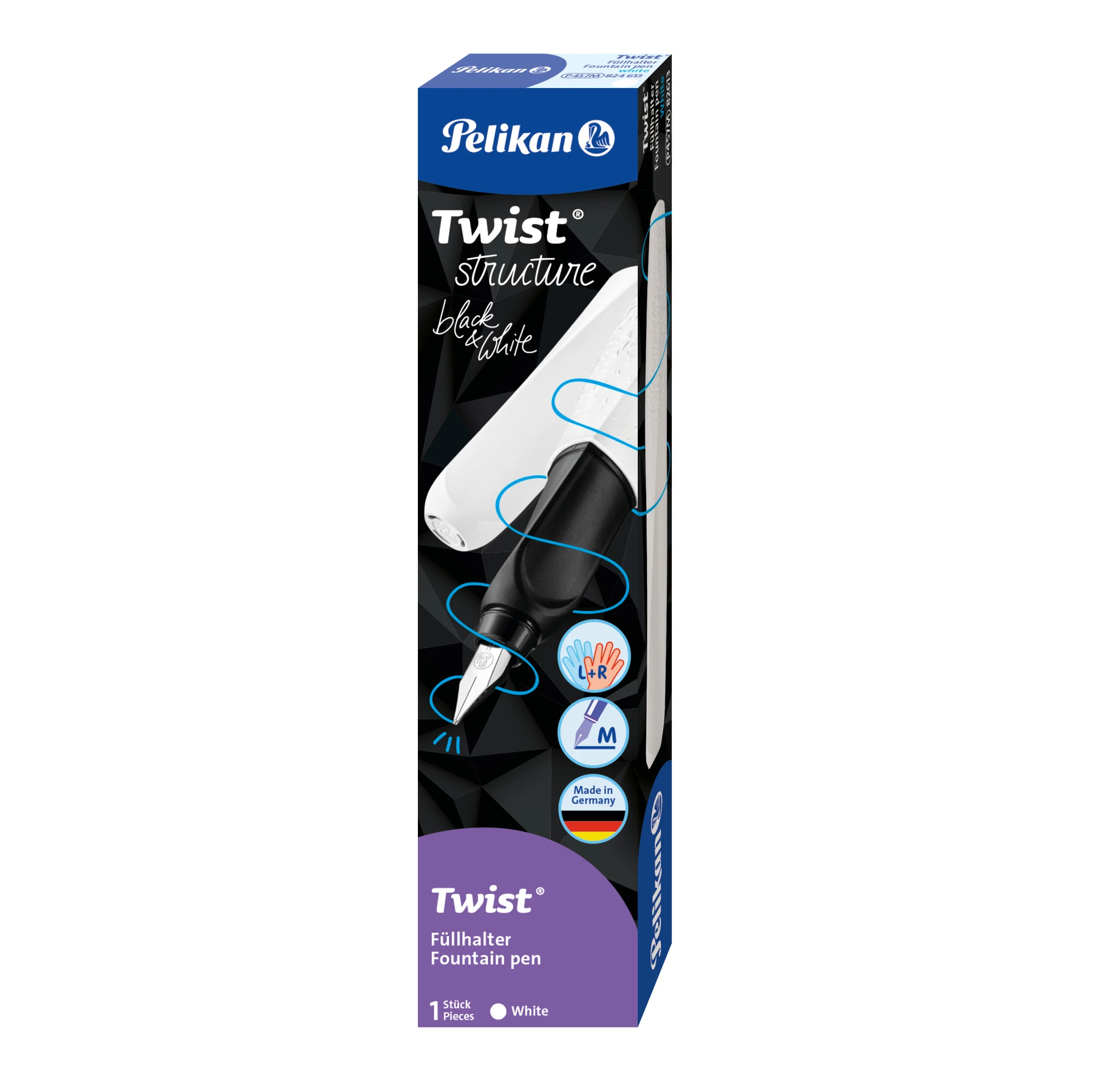

The 3D structure creates added design value based on the now classic twist. The geometric-futuristic polygon structure is timeless.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
0.67 oz	5.51 in	4.49 in	2.52 in	0.69 in	1.4 ml giant ink cartridge
19 g	140 mm	114 mm	64 mm	17.5 mm

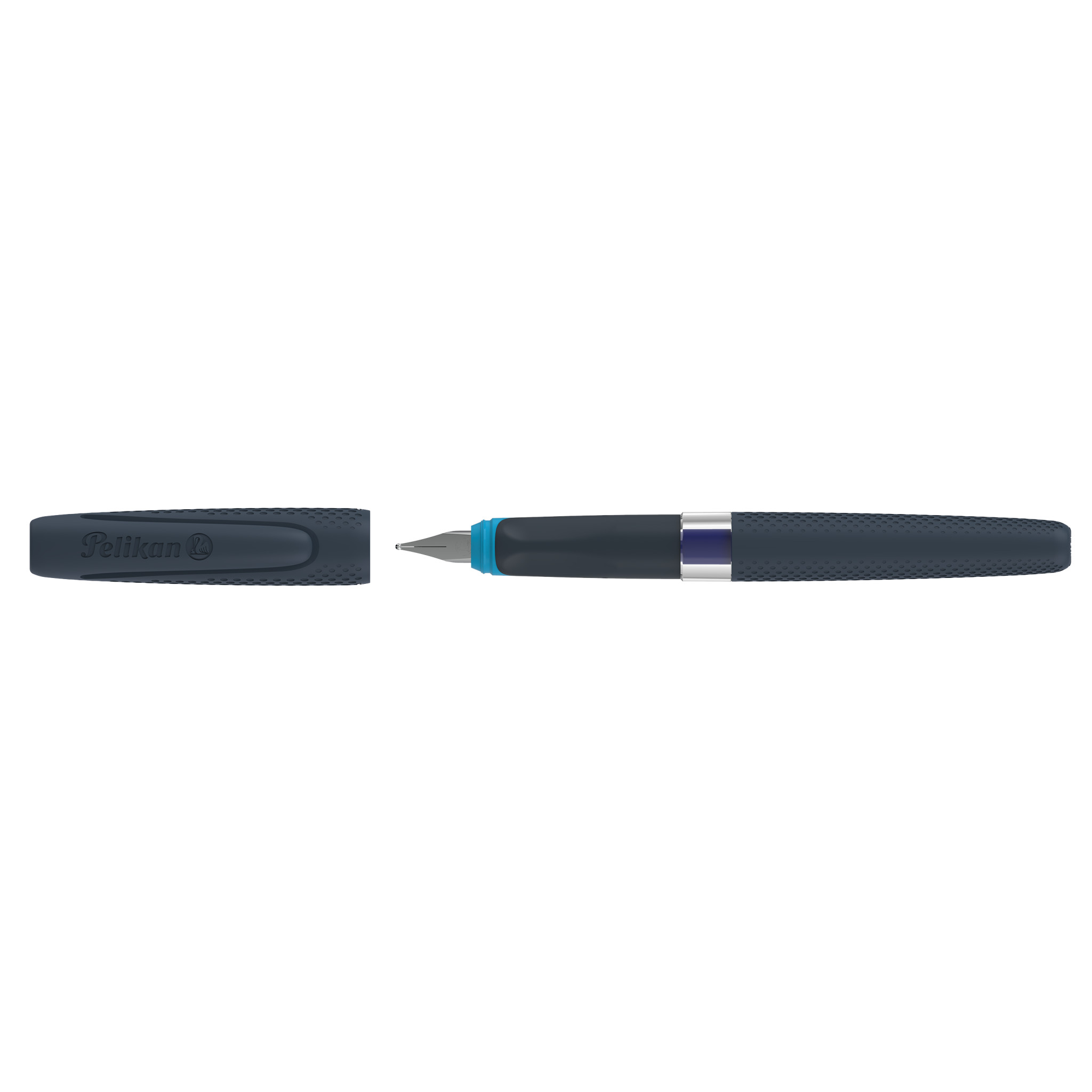

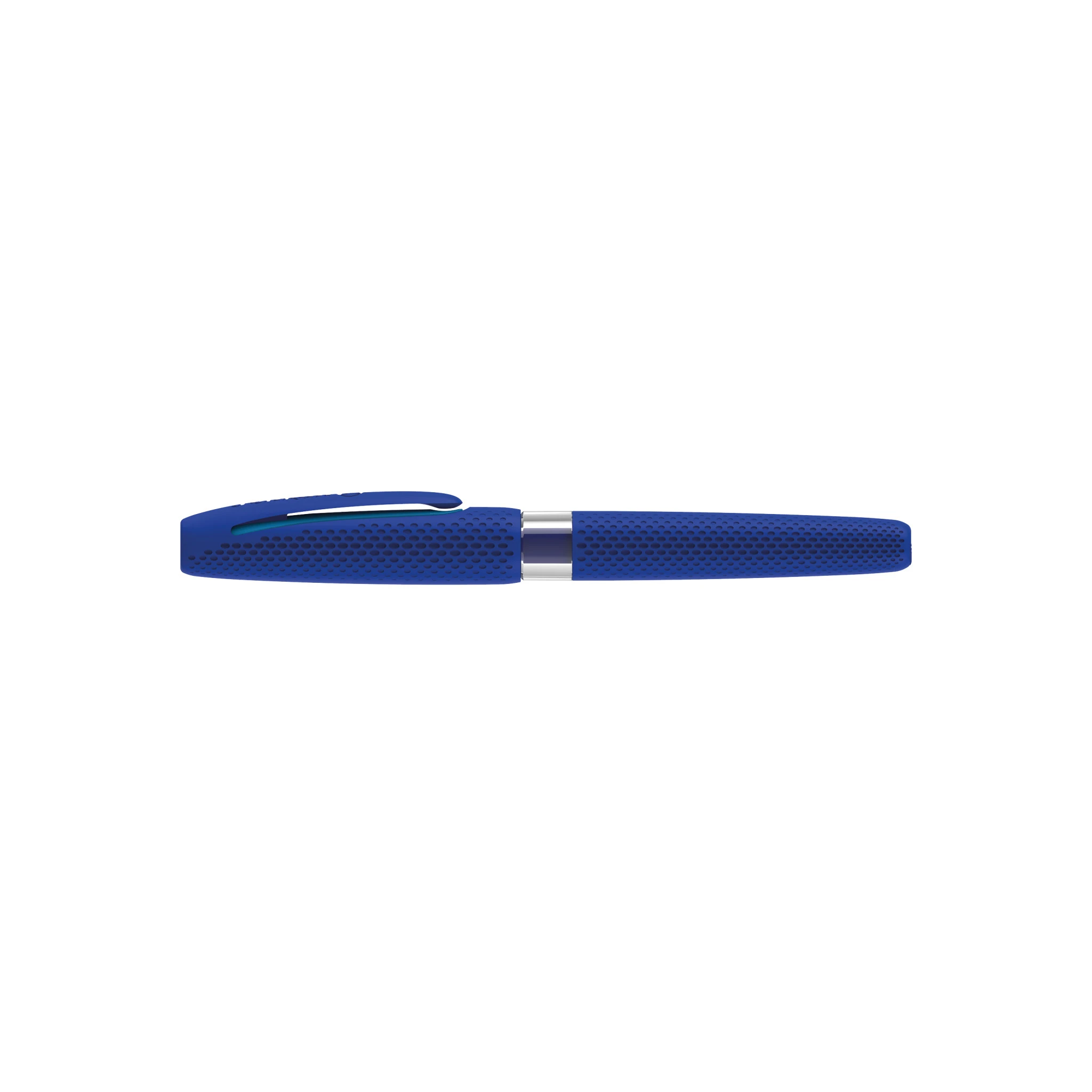

New school fountain pen with a large, transparent ink window.

Weight	Total Length	Barrel Length	Cap Length	Diameter	Ink Capacity
					1.4 ml giant ink cartridge
